Adder AD2028 audio/video transmitter

ADDER AD2028 Audio/Video Transmitter | High-Performance Dual DVI & USB KVM Extender

Experience unparalleled flexibility and performance with the ADDER AD2028 audio/video transmitter, a premier solution in the TV accessories category for professional-grade signal management. This high-performance KVM (Keyboard, Video, Mouse) extender is expertly engineered to overcome the distance limitations of standard cabling. It seamlessly extends a dual head, single link DVI-D and high-speed USB 2.0 signal with one UTP or fiber cable, delivering a powerful and reliable connection for your critical operations. Whether you are managing a broadcast control room, a post-production suite, a medical imaging facility, or an industrial command center, the AD2028 ensures your remote workstation performs as if it were directly connected to the source computer.

The AD2028 is built for ultimate connectivity freedom. For standard installations within a single room or floor, it can transmit perfect digital video and interactive USB signals up to 100 meters over a single CATx cable. For long-haul applications that require connecting separate buildings or spanning vast campus environments, the device leverages single-mode fiber optic cable to achieve an astonishing extension distance of up to 10 kilometers. This dual-capability ensures that your infrastructure is both cost-effective for shorter runs and future-proof for expansive network designs, all while maintaining pristine signal integrity.

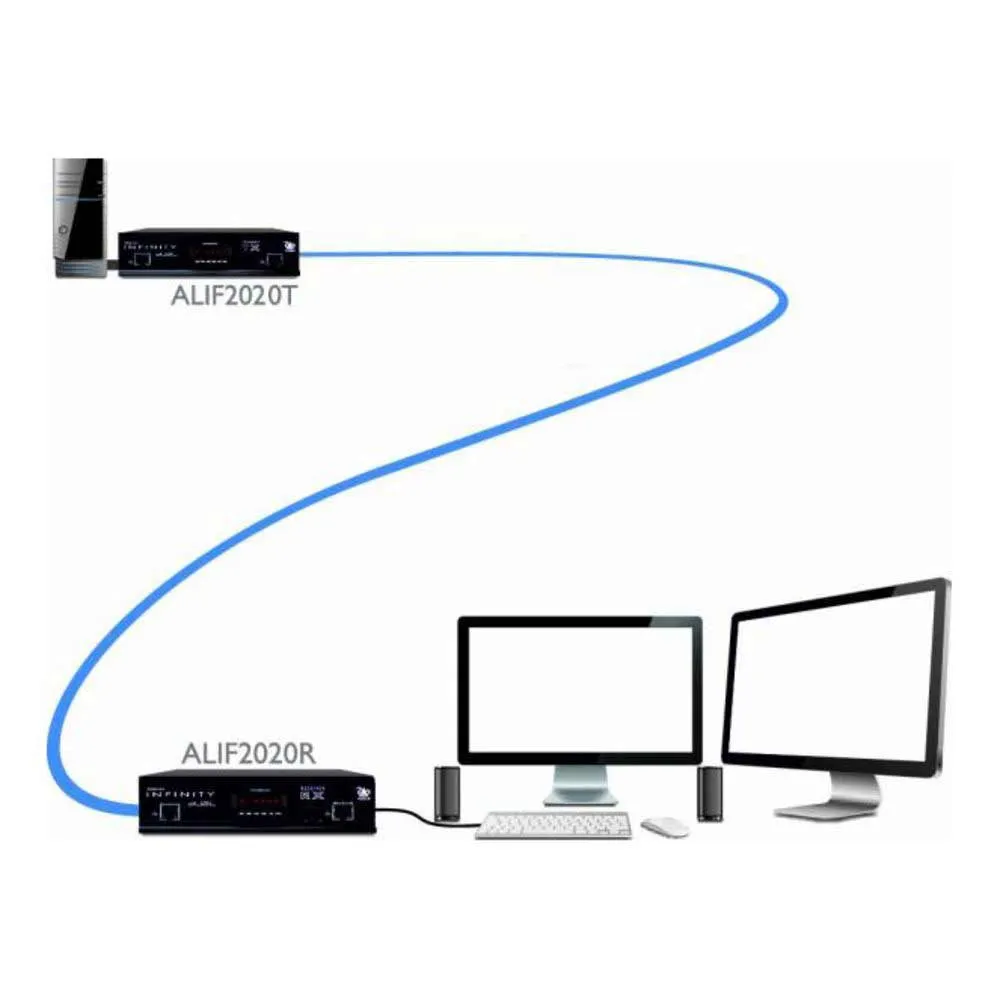

Scalability is at the core of the AD2028´s design. It can function as a simple, direct point-to-point extender for connecting a single remote user to a computer. However, its true power is unlocked when integrated with an AOM . In this configuration, the AD2028 becomes part of a sophisticated and expandable KVM matrix that can grow to an unlimited size. This allows multiple users to connect to and switch between multiple computers on the network instantly, creating a highly collaborative and efficient workflow. The system supports crystal-clear video resolutions up to 1920x1200 at 60Hz, ensuring every detail is rendered with pixel-perfect accuracy. In addition to video and USB, it also extends other essential signals like analog audio and RS-232, providing a complete remote access solution.

Attributes: Transmitters

Features:

* Extends a DVI-D and USB signal via UTP or fiber cable
* Extends to 100 meter via UTP, up to 10 kilometre via fiber
* Point to point or i.cm. wit AOM manager
* Expandable as KVM matrix to unlimited size

Specifications:

* Product category: Extenders / KVM

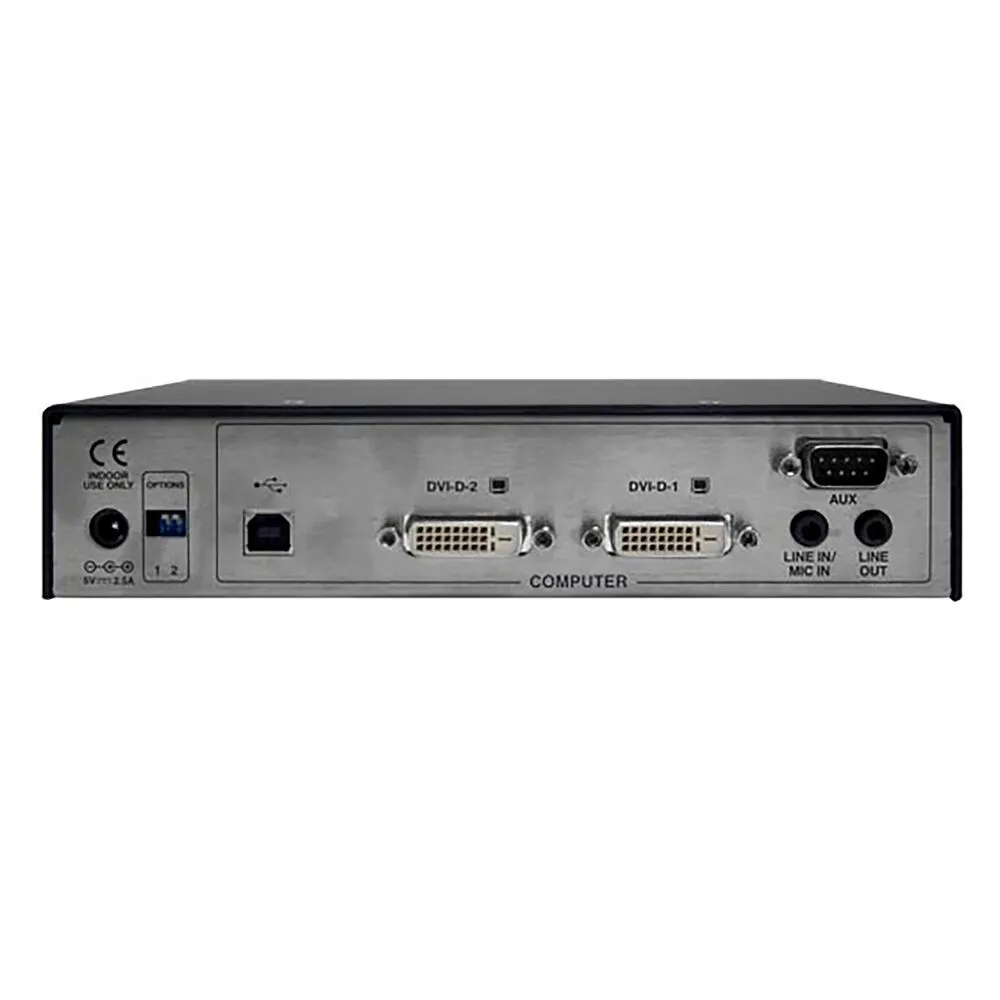

* Connections (in): 3.5 mm jack female (x2), DVI 18+1-pin female (x2), USB B female (x1)
* Max. extension distance: 10000 m
* Extension over: CATx, Fiber
* Extension cable: CATx (x1), Fiber single mode (x1)
* Extension connector: LC, RJ45
* Extension protocol: IP, Own
* Max. resolution @ 60Hz: 1920x1200
* Video signal: DVI
* DVI specification: DVI-D Single Link
* Other signals: Analog audio, RS-232
* Included: Power adapter
