Aerocool Graphite V1 PC tower case

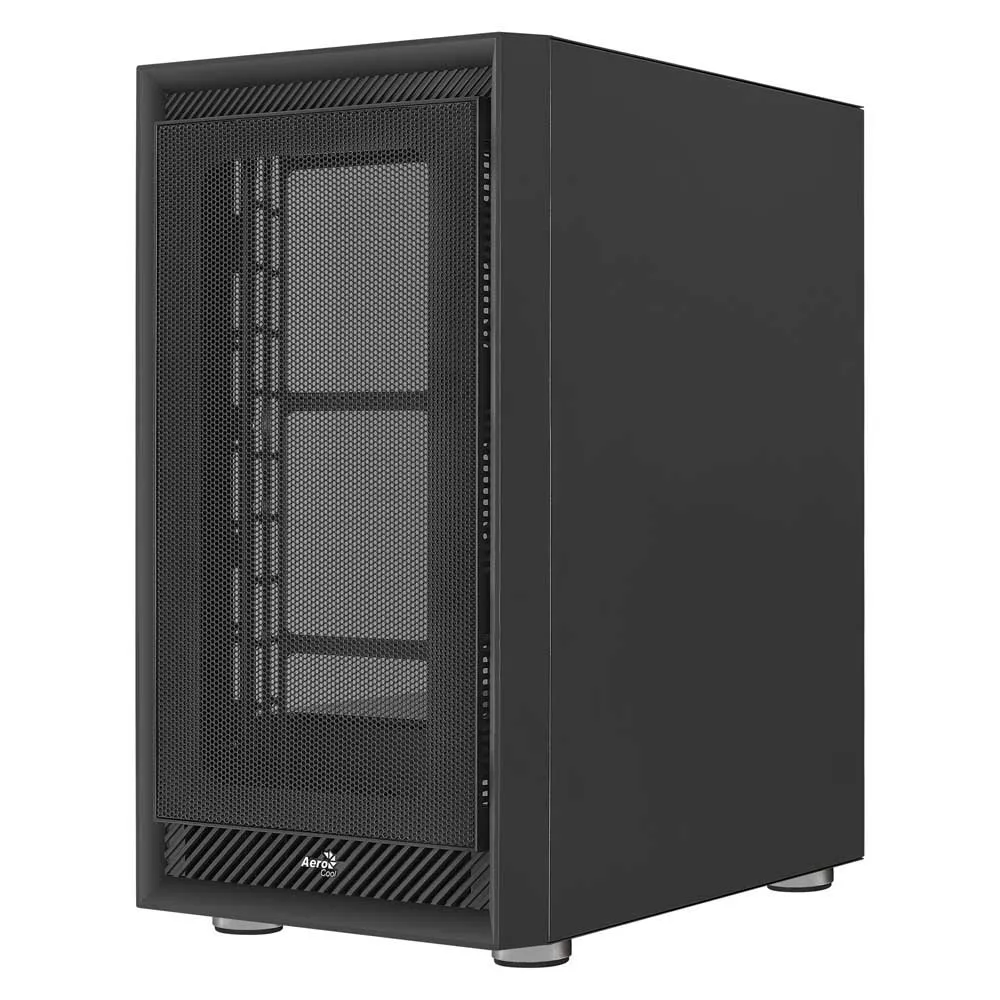

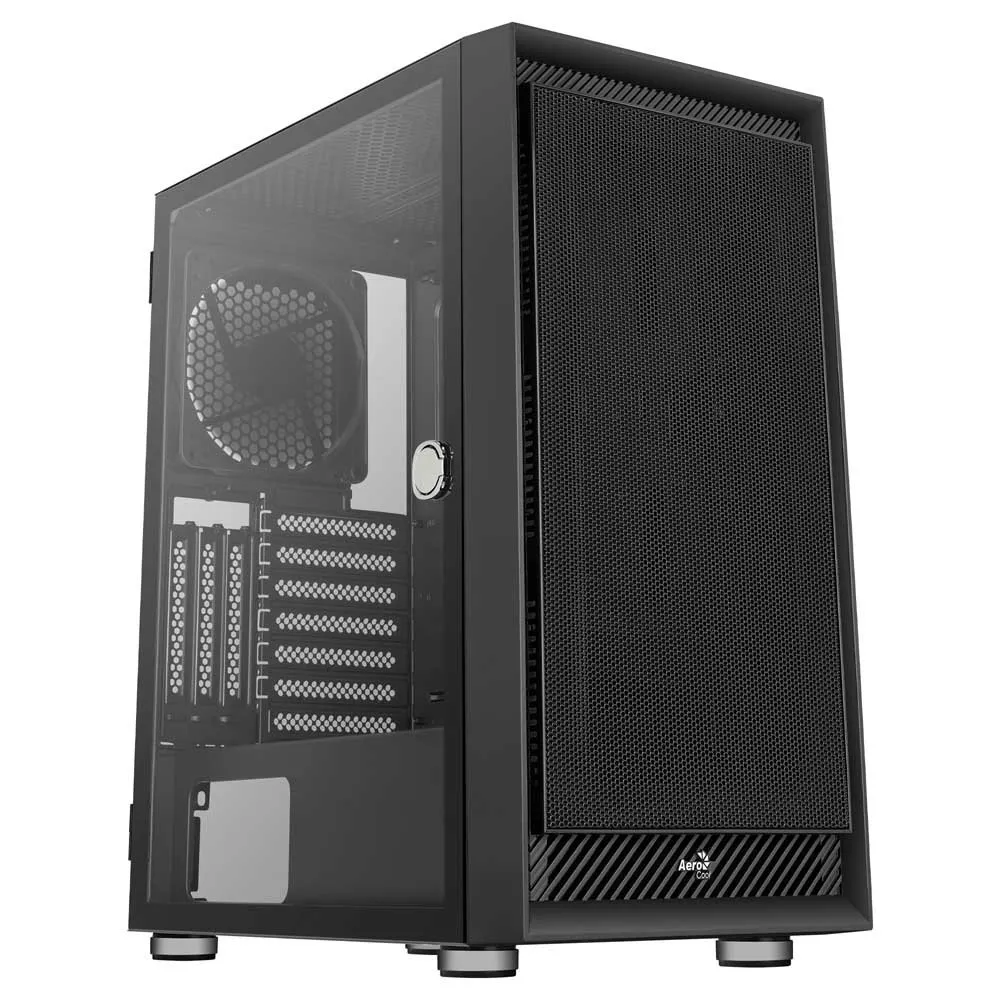

Featuring a mesh front panel design, this high-performance mid tower case allows for increased air circulation and viewing of your front LED fans.

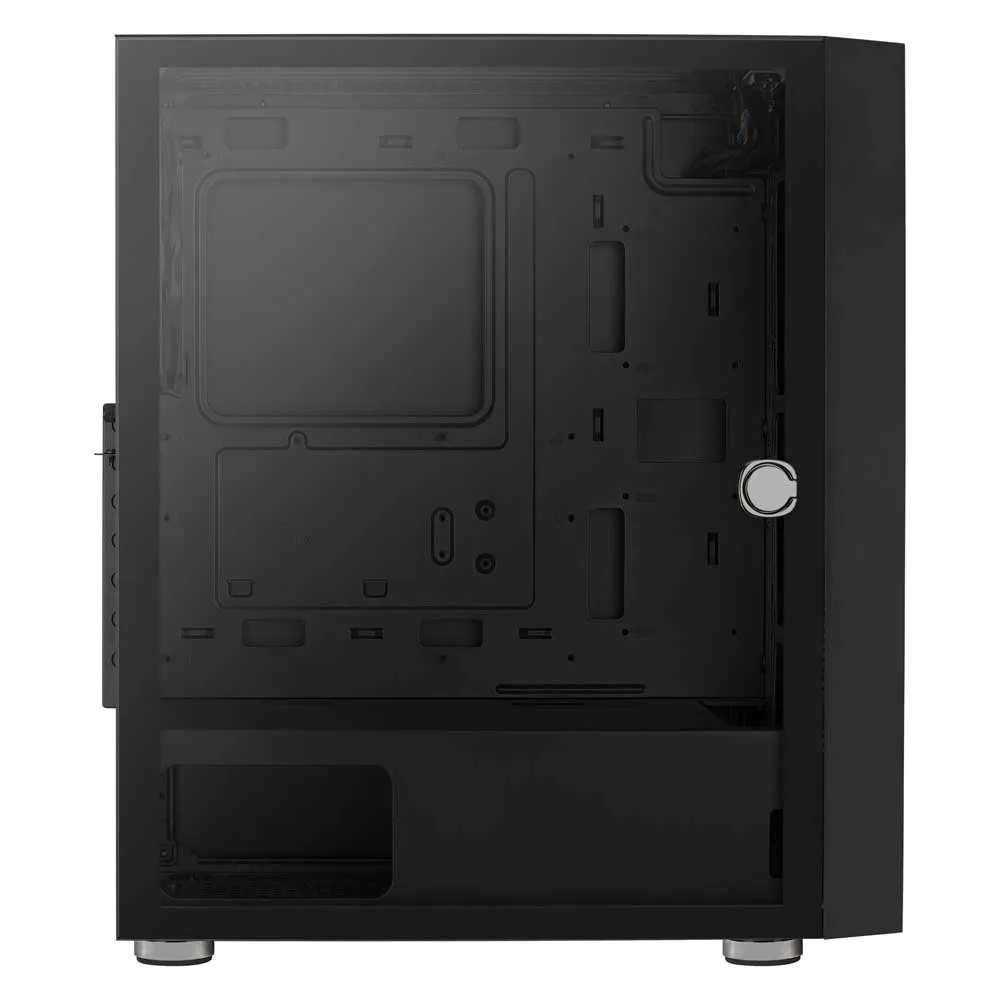

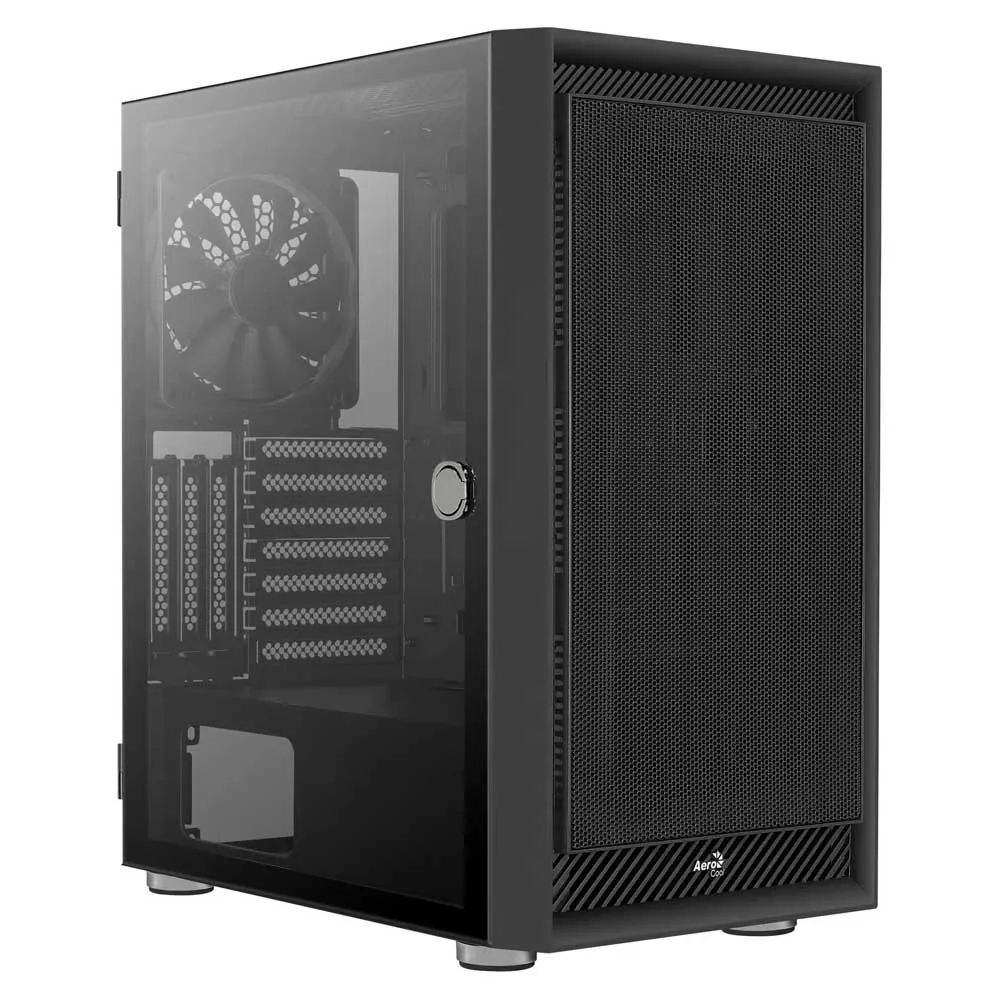

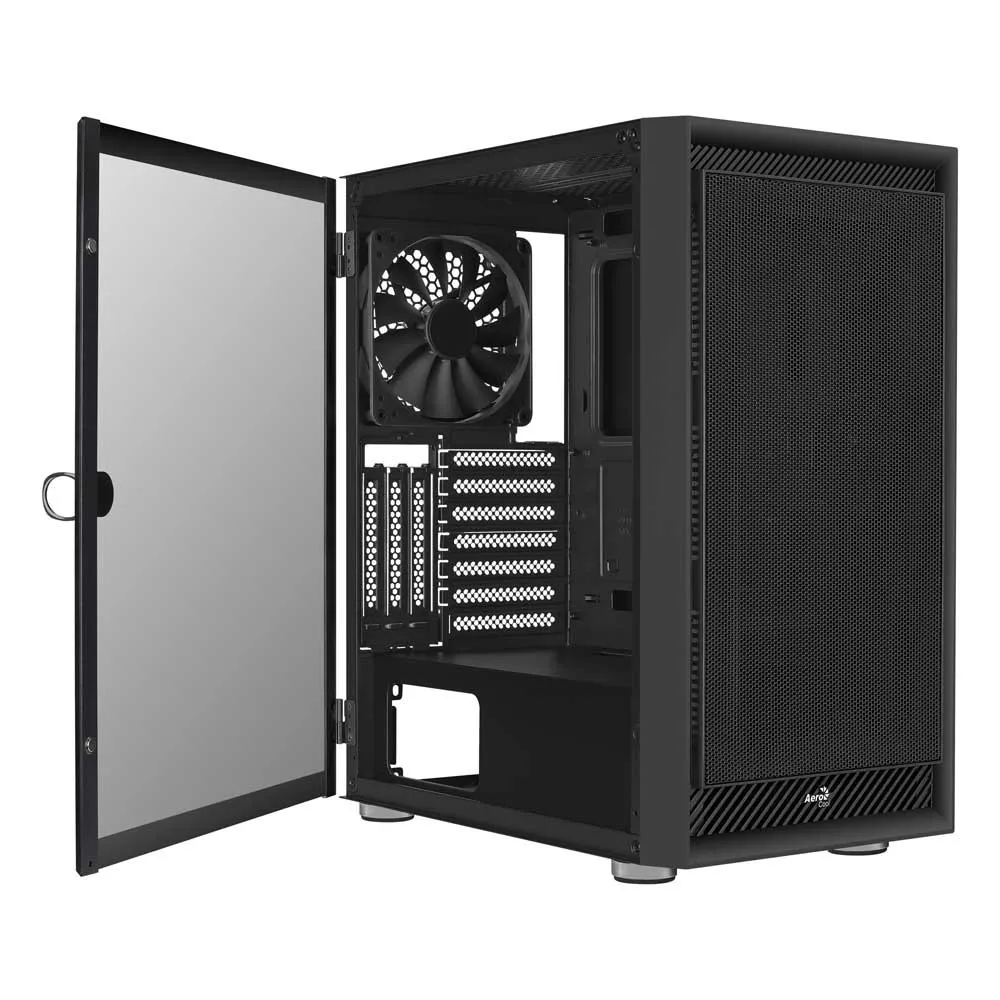

Full tempered glass side panel with a convenient hinge mechanism and handle allows for easy opening and closing while showcasing the inside of your rig.

Comes with three additional vertical expansion slots, allowing for vertical graphics card installation.

Wide And Sturdy Chassis Design:

- Featuring a chassis design focused on delivering increased interior space, you now have more freedom and possibilities to customize your PC how you want.

With more room for your graphics card, coolers and fans, and even your motherboard, the Graphite will allow you to fully maximize the performance of your PC build.

Expansion Slots For Vertical Graphics Card Installation:

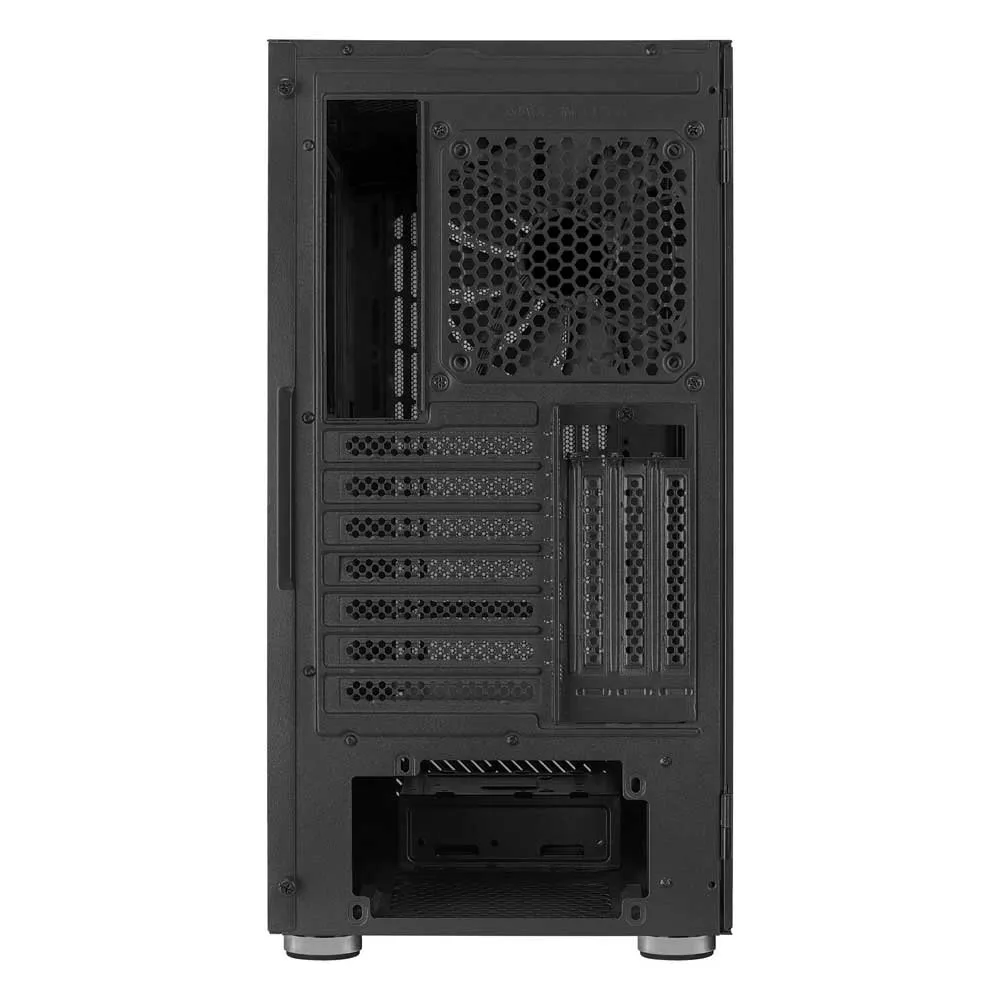

- Built with three additional vertical expansion slots, allowing you to install your graphics card at a vertical position.

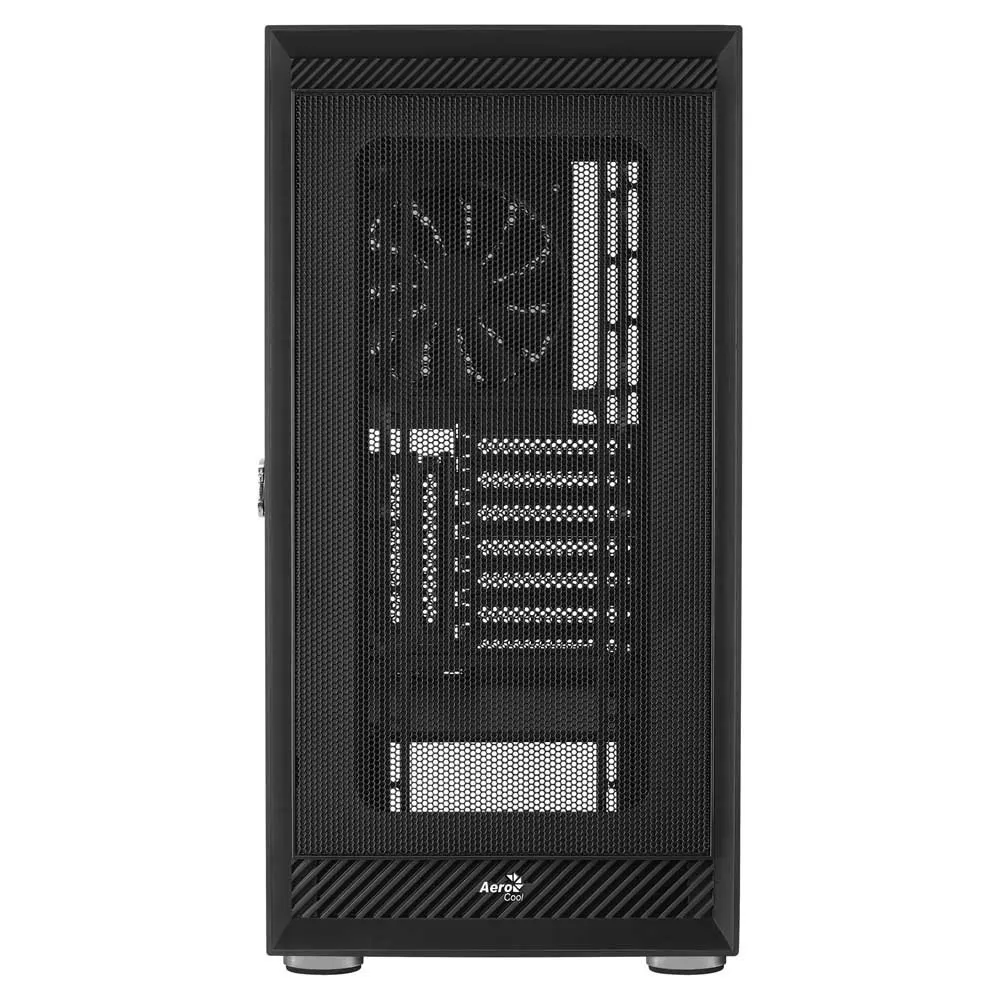

Mesh Front Panel Design Featuring a mesh front panel design, this case allows for clear viewing of your front LED fans while improving air flow and ventilation.

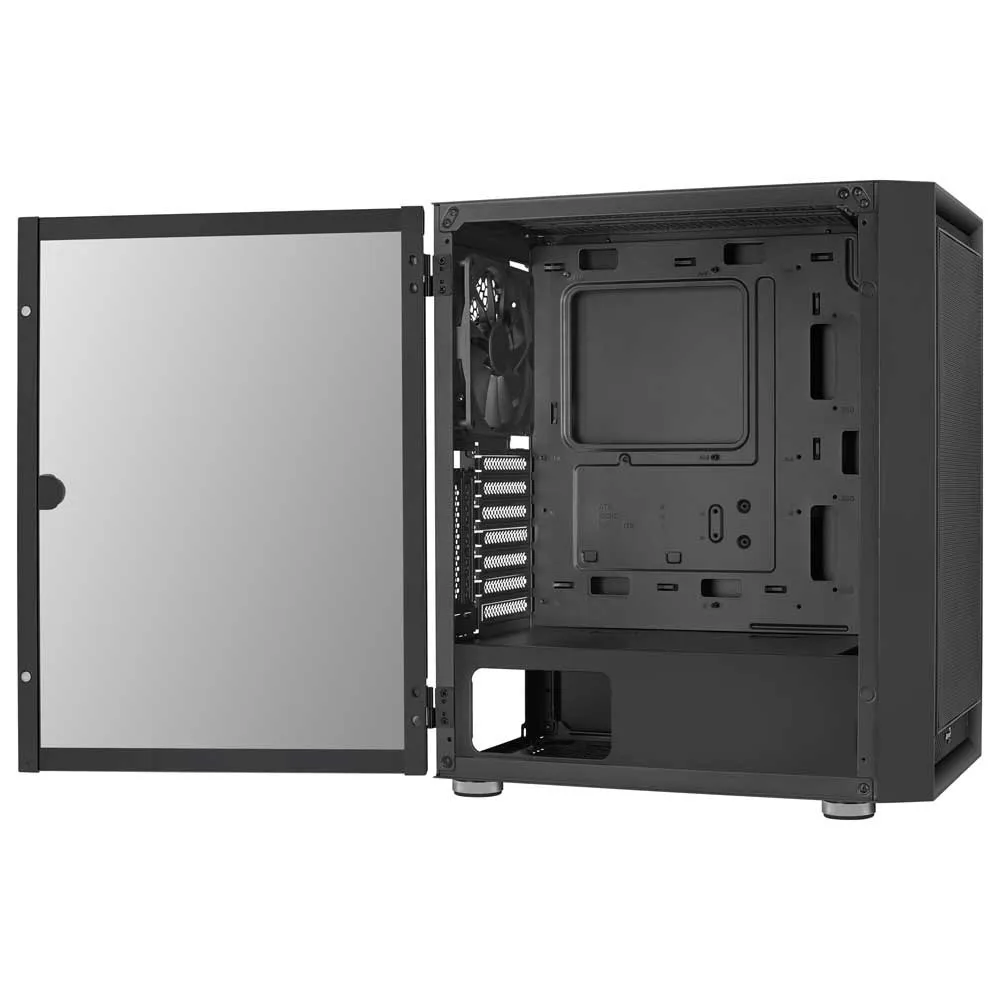

Full Tempered Glass Side Panel With Hinge Design Full tempered glass side panel with a convenient hinge mechanism and handle allows for easy opening and closing while showcasing the inside of your rig.

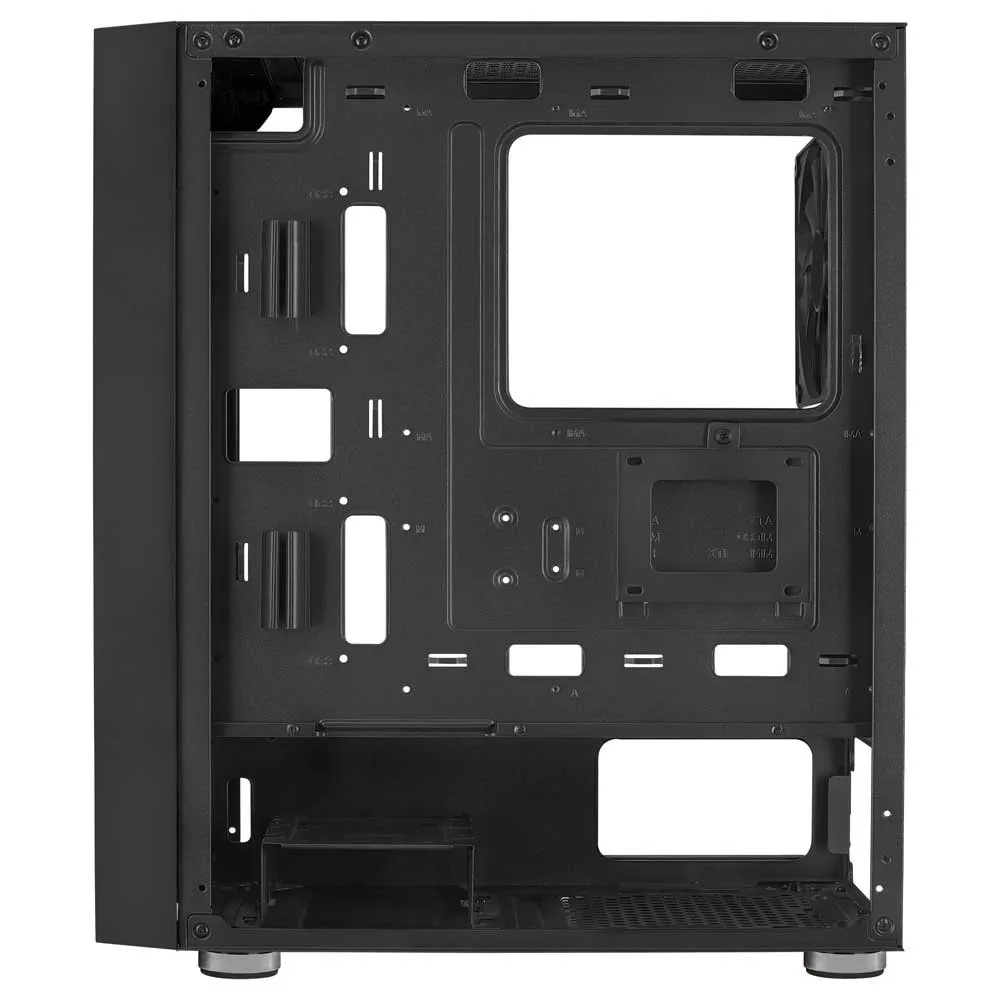

Efficient Cable Management Comes equipped with two cable passthrough tubes on the motherboard tray to keep your cables neat, tidy, and secure.

Air Cooling:

- Supports air cooling in the front, top, and rear of the case to enhance cooling performance.

Liquid Cooling:

- Supports liquid cooling in the front, top, and rear of the case for maximum efficiency cooling.

Dual Chamber Design:

- Built with a dual chamber design to direct heat away from the main chamber for more effective all-around cooling.

Built For High Performance:

- Supports ATX, Micro-ATX, and Mini-ITX motherboards.

- Supports CPU cooler up to 180mm.

- Supports graphics cards up to 348mm.

- (without front radiator) Convenient Access To Your Media:

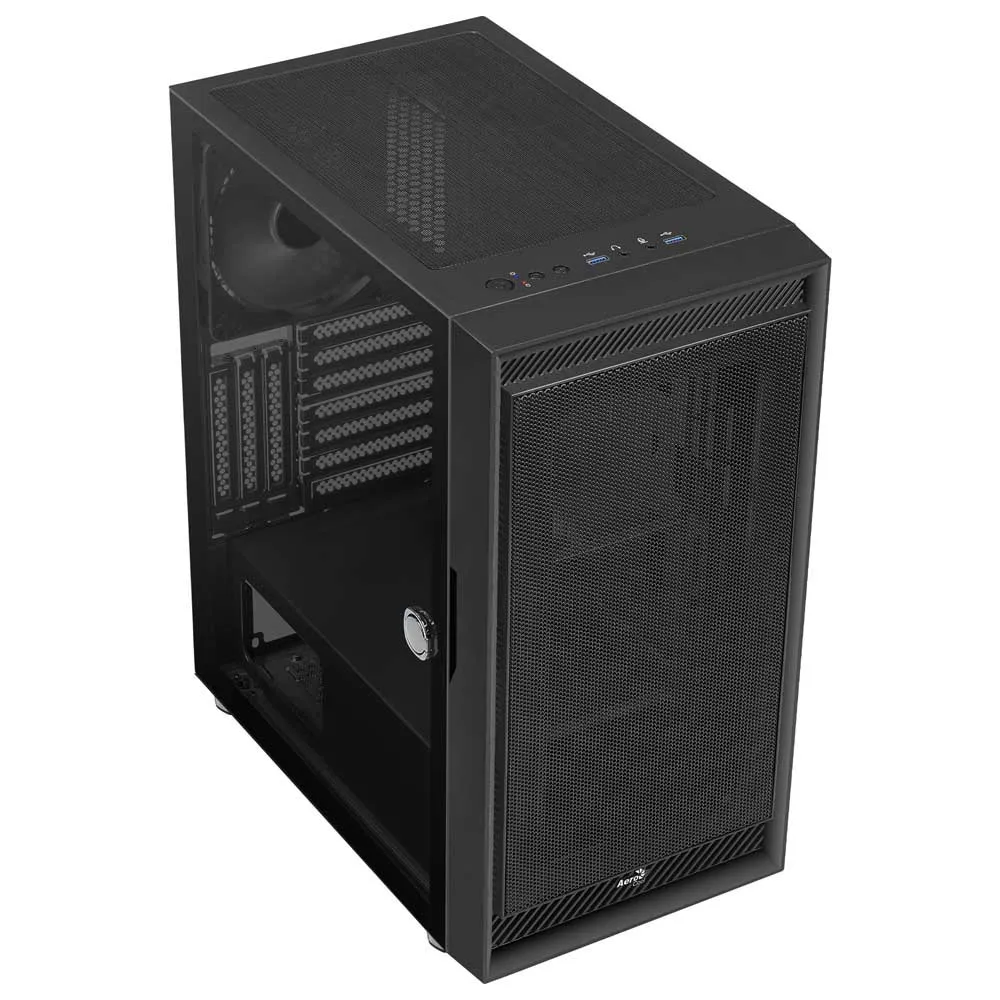

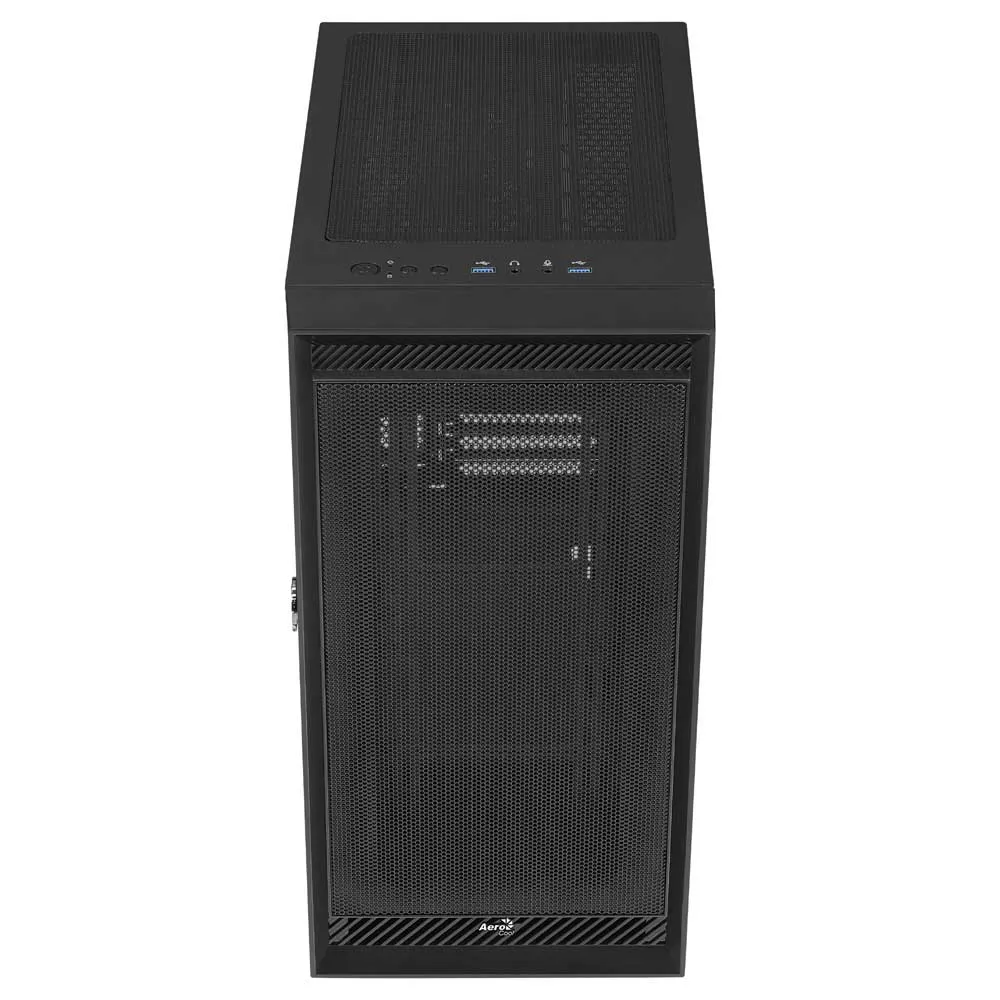

- Quick and easy access to 2 x USB 3.0, HD audio and mic ports, and power button.

Storage Capability:

- Supports up to 2 x 3.5´´ HDDs (1 x 3.5´´ and 1 x 3.5´´/2.5″), and 4 x 2.5´´ SSDs (3 x 2.5´´ and 1 x 2.5´´/3.5´´).

Easy Maintenance:

- Removable dust filters on the top and bottom of the case for fast and convenient cleaning.

Features:

- Mesh front panel design allows for improved air ventilation.

- Full tempered glass side panel with a convenient hinge mechanism and handle.

- Three additional vertical expansion slots allow for vertical graphics card installation.

- Supports Nvidia® Geforce RTX 30 series graphics cards.

- Supports liquid cooling in the front, top, and rear of the case.

- Supports air cooling in the front, top, and rear of the case.

- Dual chamber design for improved ventilation.

Specifications:

- Model:

Graphite.

- Case Type:

Mid Tower.

- Body Material:

SPCC.

- Front Panel Material:

ABS + Steel.

- Steel Thickness:

0.5mm.

- Motherboards:

ATX/micro ATX/mini-ITX.

- Case Dimensions (Internal):

230 x 445 x 350mm (W x H x D).

- Case Dimensions (Overall):

230 x 460 x 406mm (W x H x D).

- 3.5´´ Drive Bays:

2 Max.

(1 x 3.5´´ and 1 x 3.5´´/2.5″).

- 2.5´´ Drive Bays:

4 Max.

(3 x 2.5´´ and 1 x 2.5´´/3.5´´).

- Expansion Slots:

7+3.

- GPU Clearance:

Supports GPU up to 348mm (without front radiator).

- CPU Clearance:

Supports CPU cooler up to 180mm Air Cooling:

- Front:

120mm x 3 or 140mm x 2 (Max.).

- Top:

120mm x 2 or 140mm x 2 (Max.).

- Rear:

120mm x 1 or 140mm x 1 (Max.) Liquid Cooling:

- Front:

120/240/280/360mm Radiator (Optional).

- (radiator length <394mm, thickness <38mm).

- Top:

120/240mm Radiator (Optional) (radiator length < 296mm).

- (memory module height < 50mm).

- Rear:

120mm Radiator (Optional).

- (GPU width <130mm if installed vertically).

- I/O Ports:

USB3.0 x 2 HD Audio & Mic.

- Internal Cable Management Depth:

22mm.

- Power Supply:

ATX PSU (Including cables, up to 191mm) (Optional).
