Aisens A135-0747 CAT6 Reel network cable

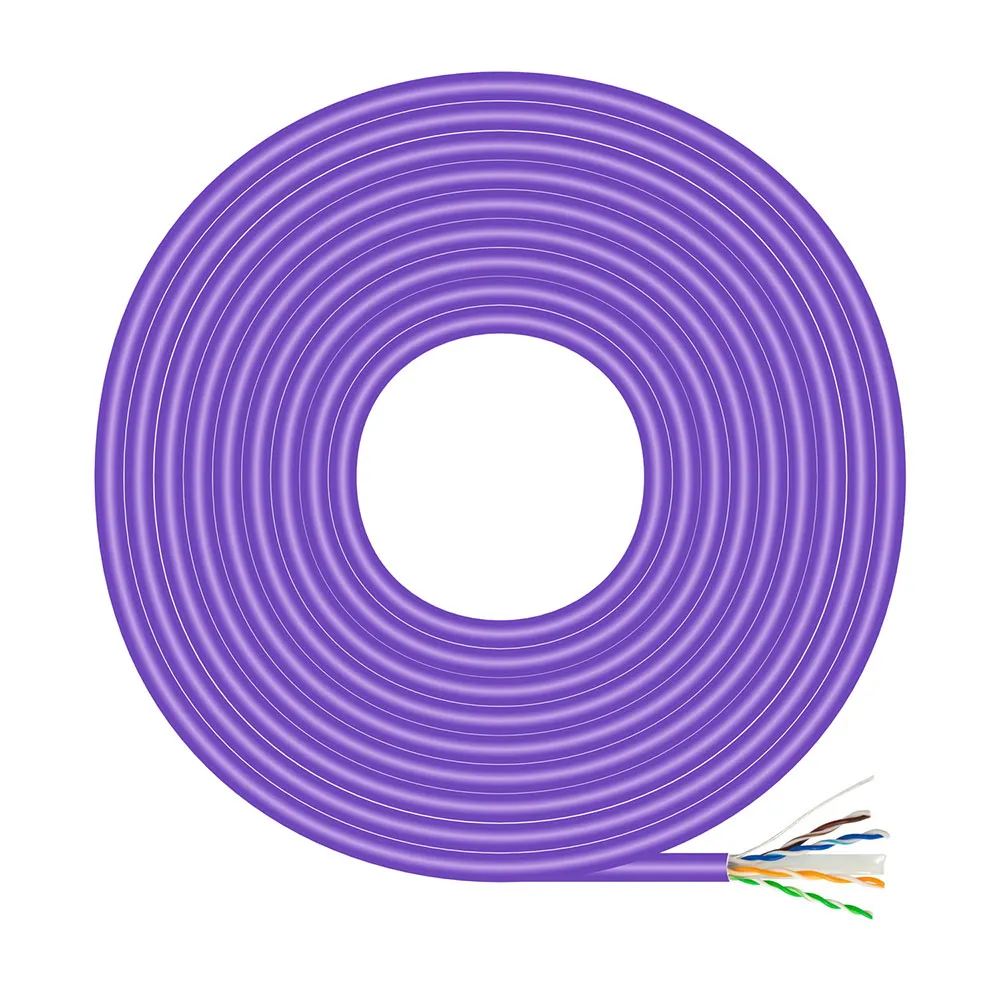

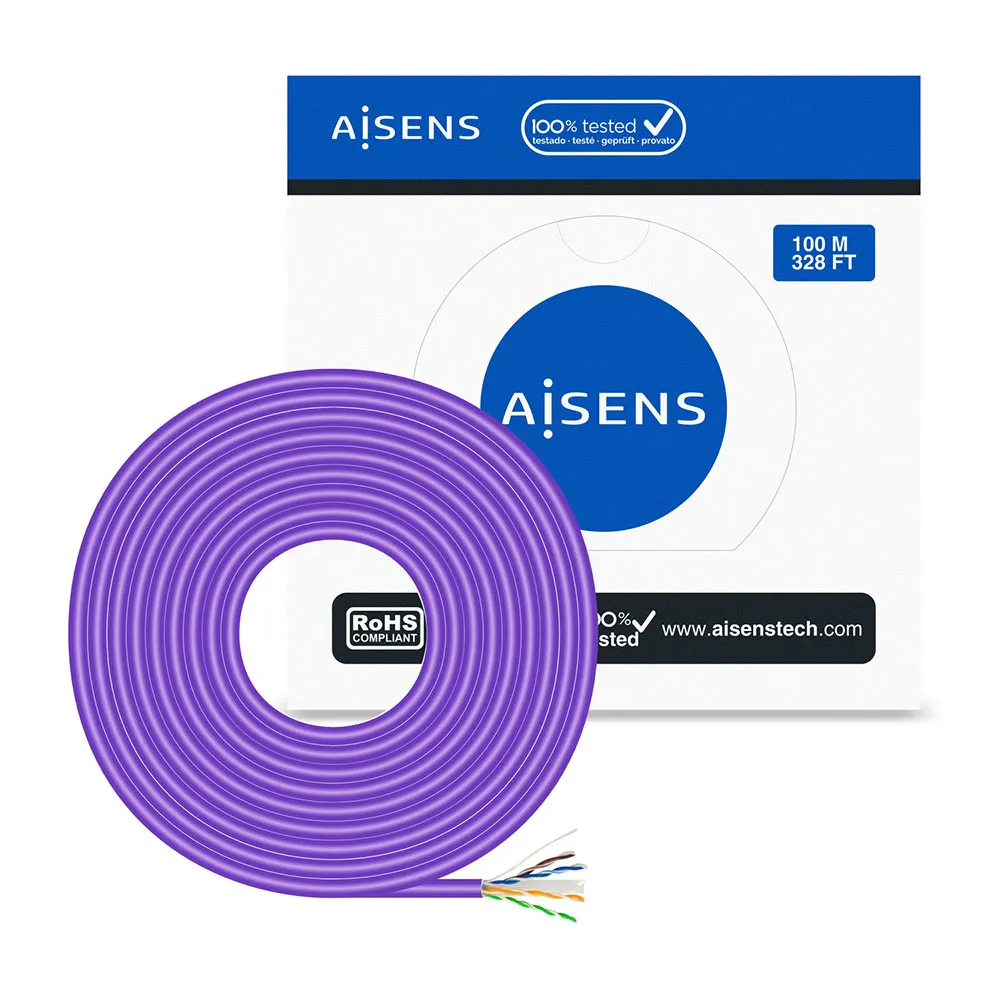

AISENS A135-0747 CAT 6 UTP Network Cable Reel, 100m LSZH

AISENS® - LSZH CAT.6 UTP AWG23 CCA network cable coil (alloy)
AISENS RJ45 LSZH Cat.6 UTP Rigid Network Cable AWG23 CCA (Alloy), Violet, 100M.

Cable length: 100 m, Cable standard: Cat6, Cable shielding: U/UTP (UTP), Product colour: Violet

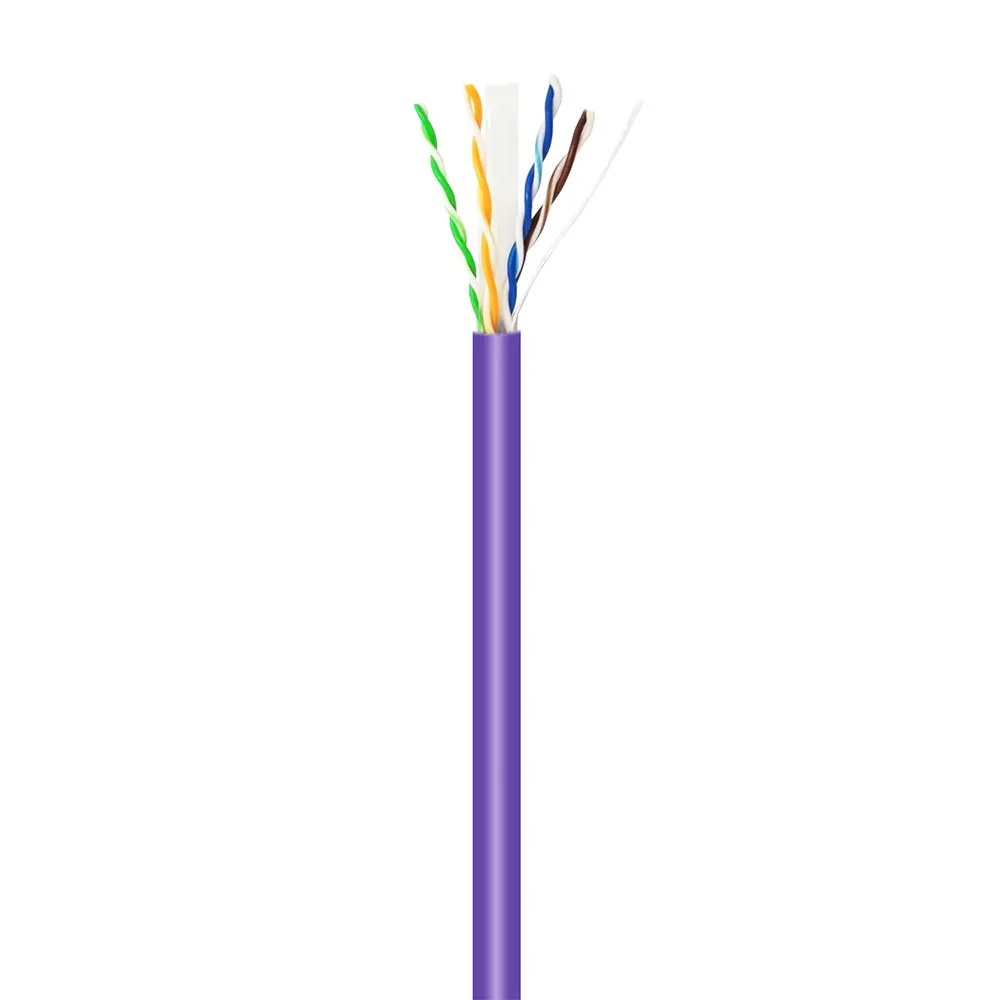

4 Pair Cable: 4x2xAWG23/1 (Rigid)
Diameter: 0.57mm.

Frequency range up to 250MHz.

Halogen free (LSZH or LSOH or LS0H or LSFH), fire retardant and with low smoke emission according to IEC 60332-1.

Manufactured from AWG23 diameter alloy (CCA) to ensure data transfer.
---

Elevate your network infrastructure with the AISENS A135-0747, a superior-quality CAT 6 network cable supplied on a convenient 100-meter reel. Designed for professional installers and demanding enterprise environments, this cable provides the robust backbone needed for today´s high-speed data, voice, and video applications. It is the ideal choice for creating custom-length network runs for structured cabling systems in offices, data centers, and public buildings.

Unleash High-Performance Connectivity

Experience the full potential of your network with CAT 6 performance. This cable is engineered to support frequencies up to 250MHz, providing ample bandwidth for Gigabit Ethernet (10/100/1000Base-T) and beyond. Whether you are deploying VoIP systems, streaming 4K video, or transferring large data files, the AISENS A135-0747 ensures stable, reliable, and high-speed connections with minimal crosstalk and signal degradation. The rigid, solid-core design is optimized for long-distance horizontal runs, delivering exceptional signal integrity from the patch panel to the wall outlet.

Safety and Compliance at its Core

Safety is paramount in any installation. This network cable features a Low Smoke Zero Halogen (LSZH) jacket, making it an essential component for installations in public spaces, commercial buildings, and areas with strict fire safety regulations. In the event of a fire, the LSZH material is fire-retardant and emits very low levels of smoke and non-toxic fumes, enhancing safety and allowing for clearer evacuation paths. Compliance with the IEC 60332-1 standard provides further assurance of its safety and reliability in critical environments.

Engineered for Professional Installation

The 100-meter reel format offers maximum flexibility, allowing you to cut cables to the exact length required for each run, minimizing waste and optimizing project costs. The unshielded twisted pair (U/UTP) construction makes the cable lightweight and flexible, simplifying handling and routing through conduits, walls, and ceilings. The AWG23 solid conductors are designed for durable and secure termination into IDC connectors, patch panels, and keystone jacks, guaranteeing a solid and long-lasting physical connection.

Technical Specifications:

* Product Code: A135-0747
* Cable Standard: CAT 6
* Cable Length: 100 m Reel
* Shielding: U/UTP (Unshielded Twisted Pair)
* Frequency Performance: Up to 250 MHz
* Conductor Type: 4x2xAWG23/1, Rigid (Solid Core)
* Conductor Diameter: 0.57 mm
* Jacket Material: LSZH (Low Smoke Zero Halogen)
* Safety Compliance: IEC 60332-1 Fire Retardant
* Product Colour: Violet
