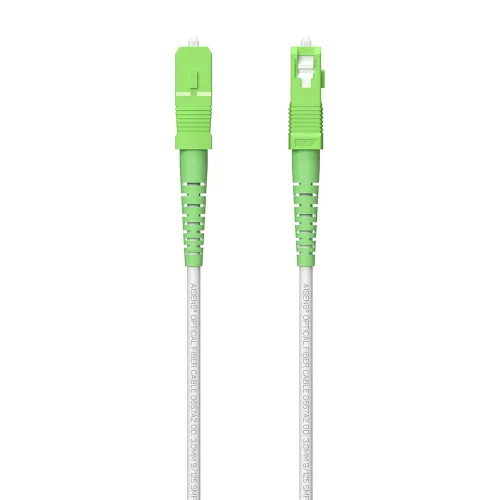

Aisens A152-0620 fiber optic cable

Singlemode fiber patch cord with SC/APC connector on both sides and G657A2 fiber type.

9/125µm singlemode fiber optic cable is ideal for enterprise networks, telecommunication rooms, server farms, cloud storage networks, and any place where fiber optic patch cords are needed.

This 9/125 OS2 singlemode fiber optic cable is ideal for connecting 1G/10G/40G/100G Ethernet connections.

It can transmit data up to 10km at 1310nm, or up to 40km at 1550nm.

Specifications:

- Connector Type:

SC to SC.

- Polishing Type:

APC to APC.

- Insertion loss 50dB.

- Fiber mode:

OS2 9/125µm.

- Fiber type:

ITU-T G.657A2 single-mode (SM) 9/125.

- Outer diameter:

3.0 mm.

- Minimum bending radius:

7.5mm.

- Cover material:

Dupont Kevlar.

- Fiber content:

Simplex.

- Attenuation 1310nm < 0.4 dB/km.

- Attenuation 1490nm < 0.4 dB/km.

- Attenuation 1550nm < 0.3 dB/km.

- Operating temperature:

- 20°C to 70°C.

- Halogen-free (LSZH or LSOH or LS0H or LSFH) and complies with CPR Dca regulations.

- Length:

200 meters.

- Regulations:

RoHS, CPR Dca.

- Weight:

2.22 kg.
