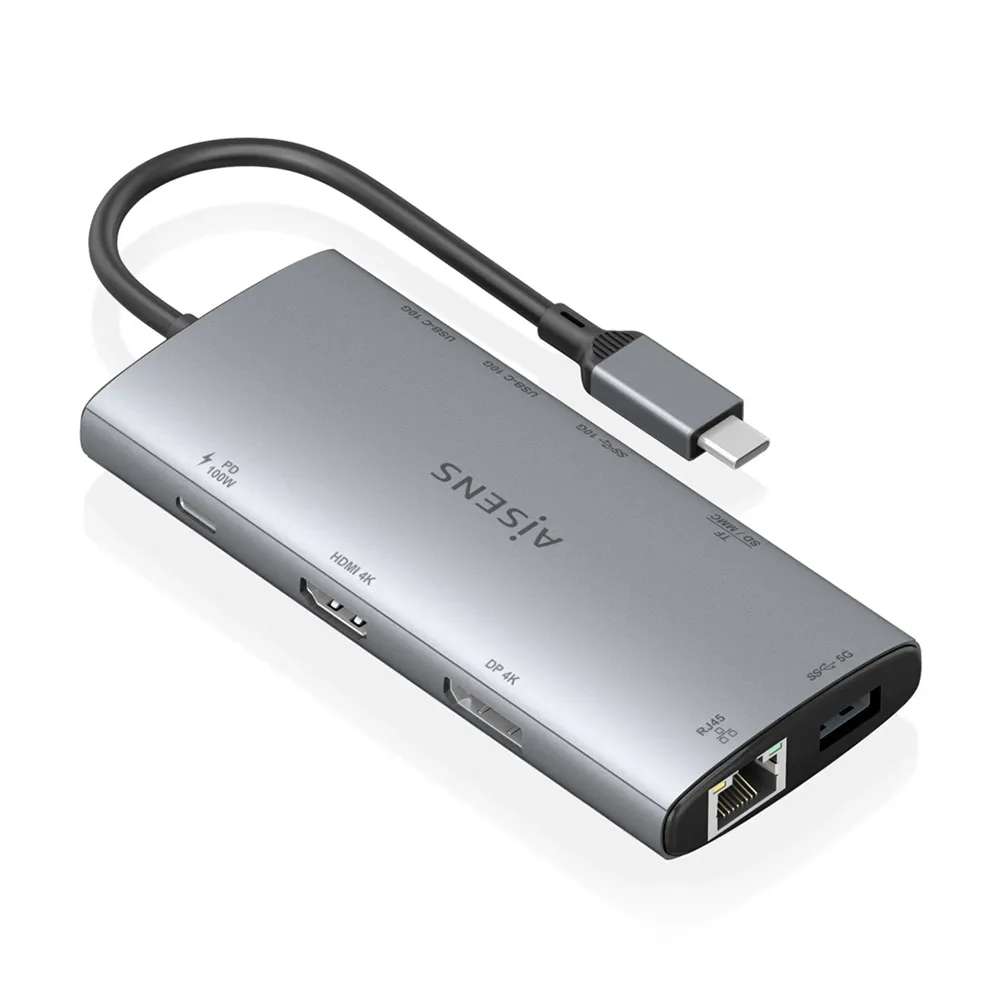

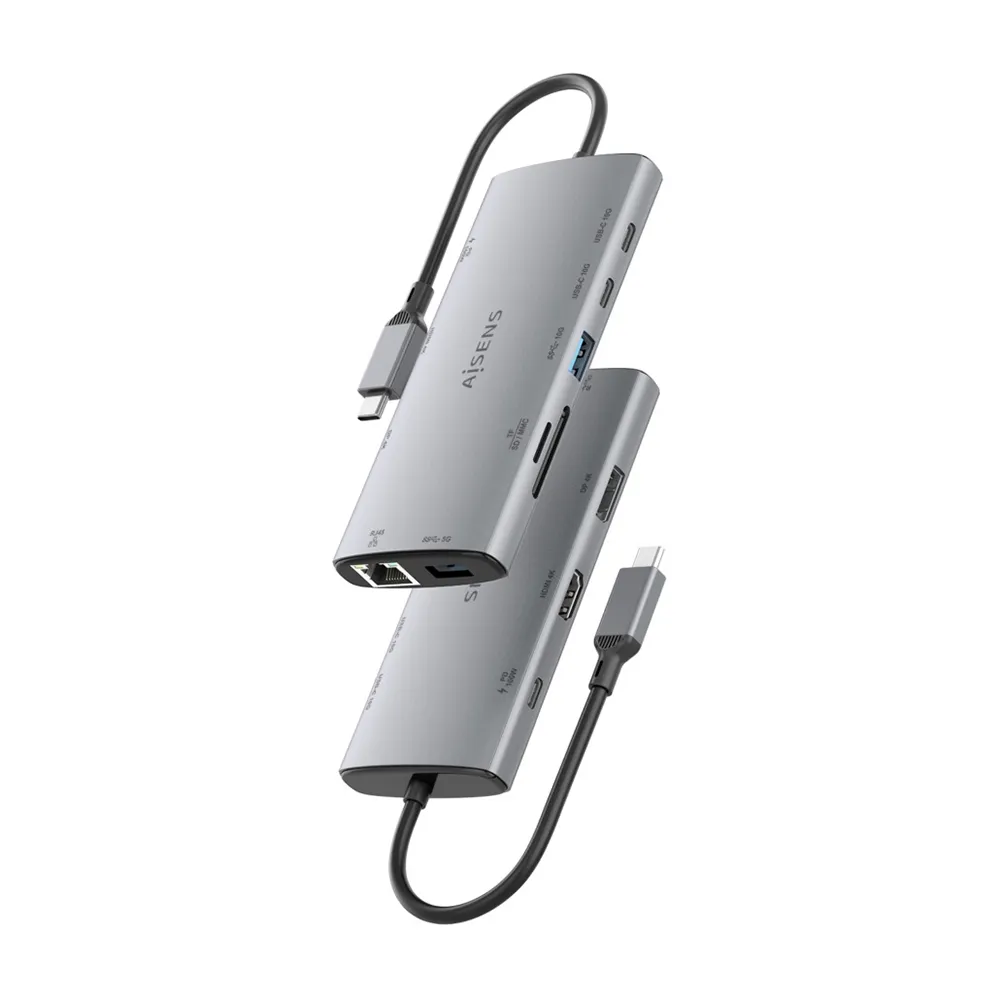

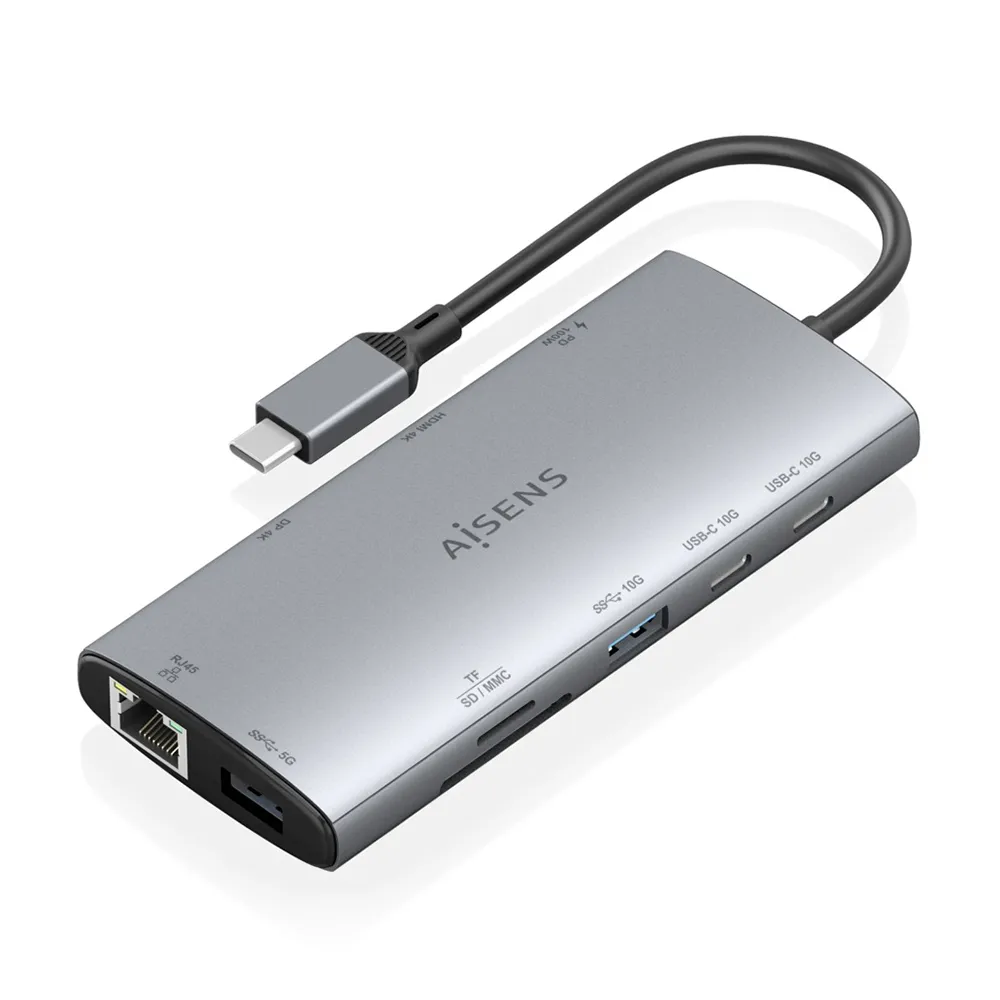

Aisens ASUC-10P050-GR docking station

AISENS - USB-C DOCK 10 IN 1, USB-C TO 1xHDMI, 1xDISPLAYPORT, 1xRJ45, 1xUSB-A 10G, 1xUSB-A 5G, 2xUSB-C 10G, 1xUSB-C PD100W, 1xSD, 1xMICRO SD, GRAY, 20CM.
- USB-C to 1xHDMI 4K, 1xDISPLAYPORT 4K, 1xRJ45, 1xUSB-A 10G, 1xUSB-A 5G, 2xUSB-C 10G, 1xUSB-C PD100W, 1xSD, 1xMICRO SD converter.
- This multi-function product features an aluminum casing, making it very lightweight, compact, modern, and easy to transport.
- It is excellent for connecting expansion accessories to computers with a USB-C interface.
- Turn your laptop into a powerful workstation wherever you are.

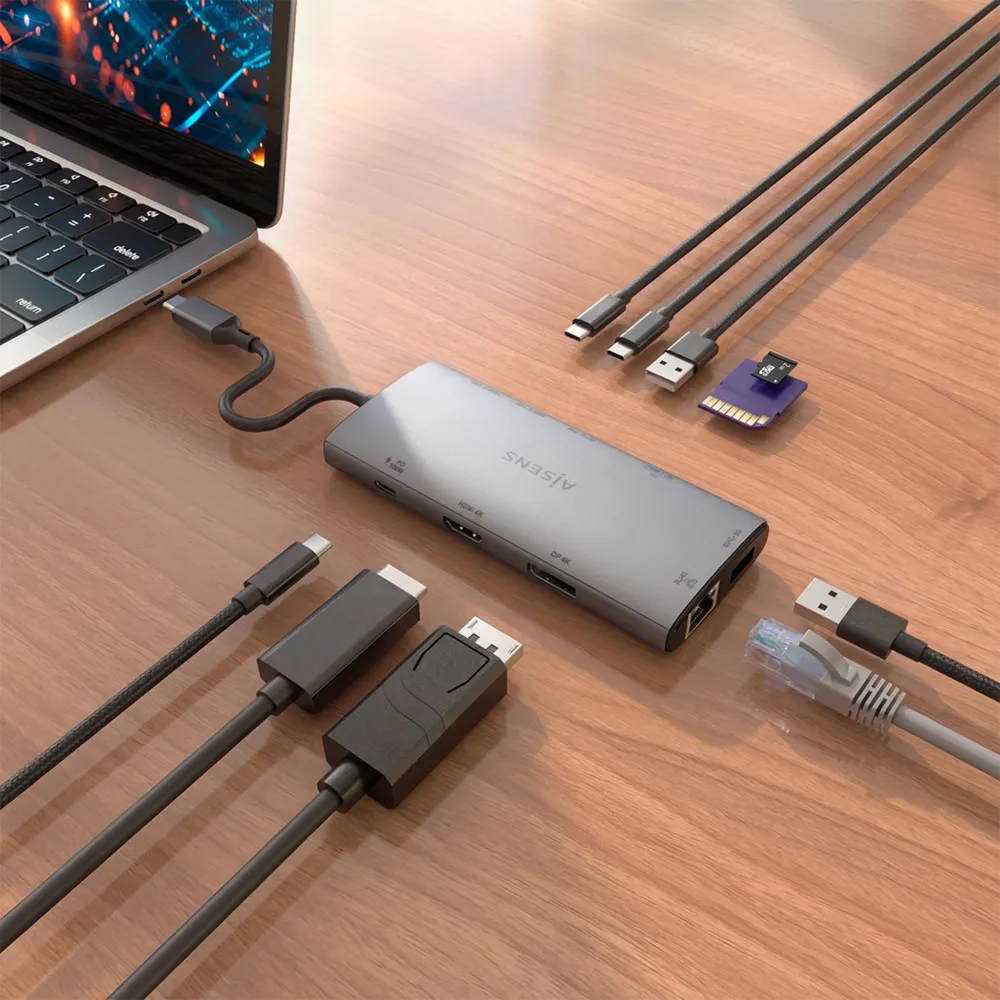

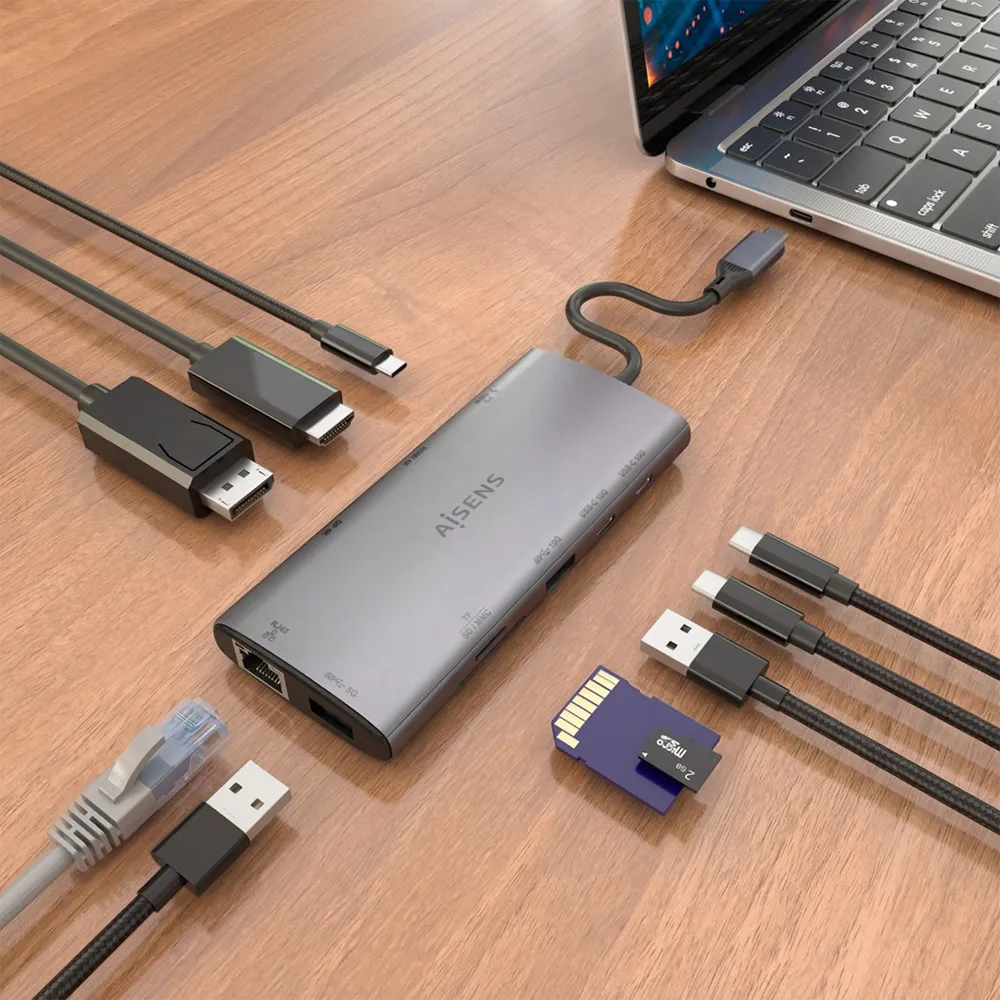

- Connect 2 displays simultaneously via the HDMI and DISPLAYPORT ports with a resolution of up to 4K@60Hz, power a laptop or tablet via the USB-C PD port up to 100W, the Ethernet port provides reliable access to a wired network, connect your mouse, keyboard, external hard drive, etc.

and power your smartphone, e-reader, etc.

using the USB Type-A or USB-C ports, you can also read memory cards.
- You will never have to carry multiple single-function adapters again!

Specifications.

General Features.

Product Type: 10-in-1 USB-C Dock.

Compatibility: Laptops, computers, tablets, and smartphones with compatible USB-C, USB4 or Thunderbolt 3, 4 or 5.

Color: Gray.

Cable Length: 20 cm.

Device Requirements.

General Requirement: Free USB-C port, USB4 or Thunderbolt 3, 4 or 5.

Power Delivery Requirement: USB-C or Thunderbolt 3, 4 or 5 port compatible with Power Delivery.

Video Output Requirement: USB-C port compatible with DisplayPort Alt Mode, USB4 or Thunderbolt 3, 4 or 5.

Functional Compatibility: Some functions may not be available if the device port does not support the required technologies.

Connectivity.

Ports:

1 x HDMI compatible with resolution up to 3840x2160 pixels at 60 Hz.

1 x DisplayPort compatible with resolution up to 3840x2160 pixels at 60 Hz.

1 x Ethernet RJ-45 10/100/1000 Mbps.

1 x USB-A 3.0 with transfer speed up to 5 Gbps.

1 x USB-A 3.1 Gen 2 with transfer speed up to 10 Gbps.

2 x USB-C 3.2 Gen 2 for data transfer up to 10 Gbps.

1 x USB-C Power Delivery up to 100 W, exclusive for charging and without data transfer.

Video Functions.

Display Modes: Supports SST and MST depending on the operating system.

Multi-Screen Configuration: Allows mirroring or extending the desktop to up to 2 additional monitors via MST, depending on the operating system.

Digital Content Protection via HDMI: HDCP compliant.

Ethernet Network.

Network Controller: RTL8153E.

Transfer Speed: 10, 100, and 1000 Mbps.

Network Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3az, and IEEE 802.3x.

Crossover Cable Detection: Automatic.

Network Compatibility: Windows 10 and 11, macOS X 10.6 to 10.11, iPadOS 15, and Linux.

Drivers: Some operating systems may require driver installation or updates.

USB Compatibility.

USB-A 3.0 Port: Backward compatible with USB 2.0, USB 1.1, and USB 1.0.

USB-A 3.1 Gen 2 Port: Backward compatible with USB 3.0, USB 2.0, USB 1.1, and USB 1.0.

USB-C 3.2 Gen 2 Data Ports: Backward compatible with USB 3.0 and USB 2.0.

Compatible Peripherals: Keyboards, mice, USB drives, external hard drives, printers, and other USB devices.

Card Reader.

SD Slot: Compatible with SDXC, SDHC, SD, MMC, and RS-MMC cards.

microSD Slot: Compatible with microSDXC, microSD, and microSDHC cards.

Transfer Speed: Up to 5 Gbps.

Simultaneous Reading: Allows using both slots at the same time.

Box Contents.

1x10-in-1 USB-C dock.

1 x multilingual user manual
