Features of Amass AM-XT90(2+2)-PB

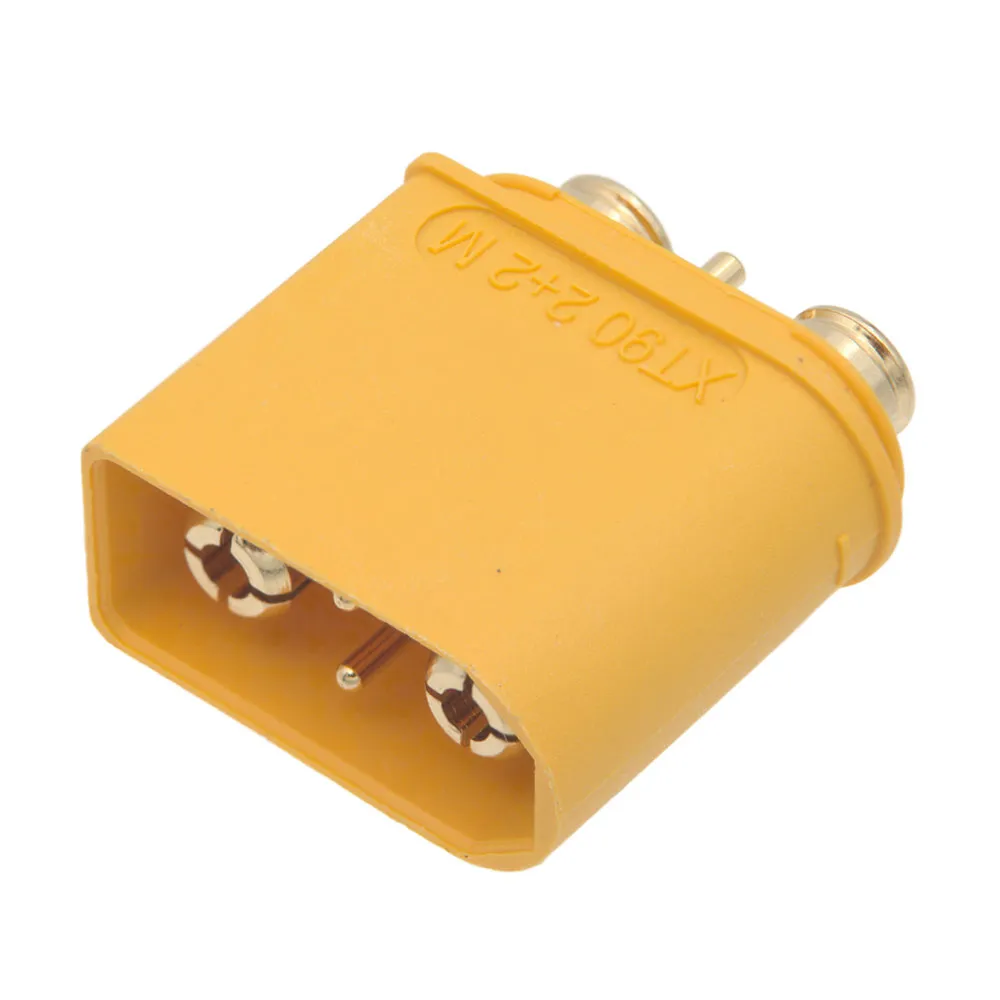

Product description of Amass AM-XT90(2+2)-PB Adapter
Description summary
Simplify your high-current power and signal needs with the AMASS AM-XT90(2+2)-PB PCB adapter. This innovative connector seamlessly integrates two high-amperage power contacts and two signal contacts directly onto your PCB. Enjoy a clean, robust design that enhances reliability, saves space, and eliminates complex wiring. Perfect for demanding applications like advanced robotics, drones, and BMS, it offers superior conductivity with gold-plated contacts and a secure XT90 mating interface. Experience uncompromising power and data integration for your sophisticated electronic designs
Experience the pinnacle of integrated power and signal connectivity with the genuine AMASS AM-XT90(2+2)-PB Adapter. As a premier solution in the Devices and Connectivities category, this adapter is meticulously engineered for the most demanding applications where both high-current power delivery and reliable data communication are paramount. Designed for seamless integration directly onto a printed circuit board (PCB), this component eliminates complex wiring harnesses, reduces potential points of failure, and provides a clean, professional, and robust foundation for your electronic designs. It represents a significant step forward for developers and engineers building sophisticated systems such as advanced robotics, high-performance drones, and custom battery management systems.
The core benefit of the AM-XT90(2+2)-PB adapter lies in its ability to streamline your entire power system architecture. By consolidating high-amperage power lines and low-voltage signal lines into a single, secure mating interface, you can drastically simplify your PCB layout and assembly process. This integration not only saves valuable space but also enhances the overall reliability and serviceability of your device. The direct board-mount design ensures a mechanically strong and electrically superior connection, minimizing resistance and maximizing power transfer efficiency. This allows for the implementation of advanced features like battery telemetry, temperature monitoring, or communication protocols directly through the main power connector, unlocking a new level of intelligence and safety for your project.
Main Features:
* Hybrid Integrated Design: Features a unique 4-pin configuration, combining two large-gauge power contacts with two smaller-gauge signal contacts within a single connector housing.
* Direct PCB Mounting: Engineered with through-hole pins for secure and stable soldering directly to a printed circuit board, ensuring exceptional mechanical strength and a low-profile installation.
* High-Current Capability: The power contacts are designed to handle significant and sustained electrical loads, making it ideal for high-drain applications.
* High-Conductivity Contacts: Employs gold-plated contacts that provide superior conductivity, minimal contact resistance, and excellent corrosion resistance for long-term performance.
* Secure Mating Interface: Inherits the proven XT90-series friction-fit design, providing a firm, reliable connection that resists vibration and accidental disconnection.
* Durable Housing: Constructed with a high-temperature thermoplastic body that maintains its structural integrity and insulating properties even under rigorous operating conditions.
This adapter is the definitive choice for applications including large-scale UAVs (Unmanned Aerial Vehicles), custom robotics platforms, light electric vehicles (LEVs), portable power stations, and advanced Battery Management Systems (BMS) where a flawless link between the power source and the mainboard is critical.
Technical Specifications
* Product Type: PCB Mount Connector, Adapters
* Model: AMASS AM-XT90(2+2)-PB
* Rated Voltage: 500V DC
* Rated Current (Power Contacts): 40A
* Instantaneous Current (Power Contacts): 90A
* Contact Resistance: 0.40mΩ
* Mounting Style: PCB Through-Hole
* Operating Temperature Range: -20°C to 120°C
* Flammability Rating: UL94 V-0
* Recommended Mating Cycles: 1000 times
Choose the AMASS AM-XT90(2+2)-PB adapter to elevate your project with an uncompromisingly reliable, efficient, and integrated power and data solution
