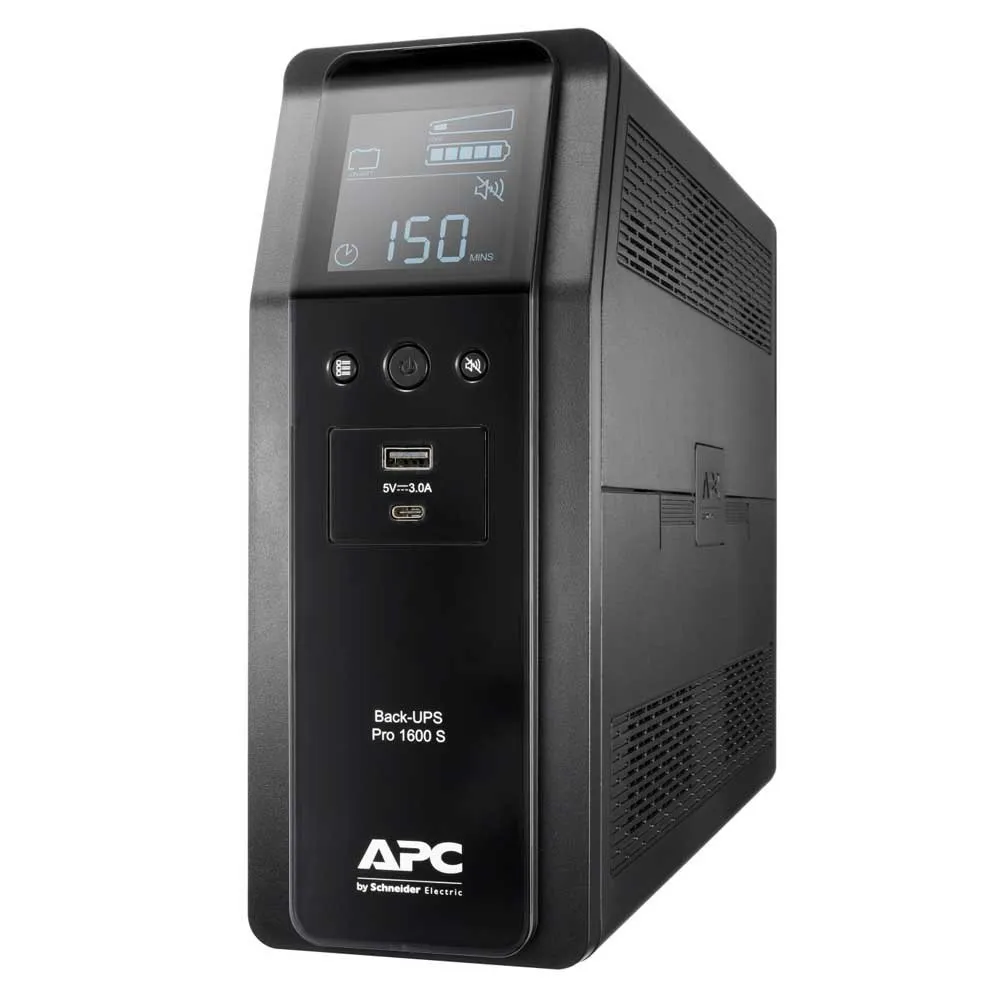

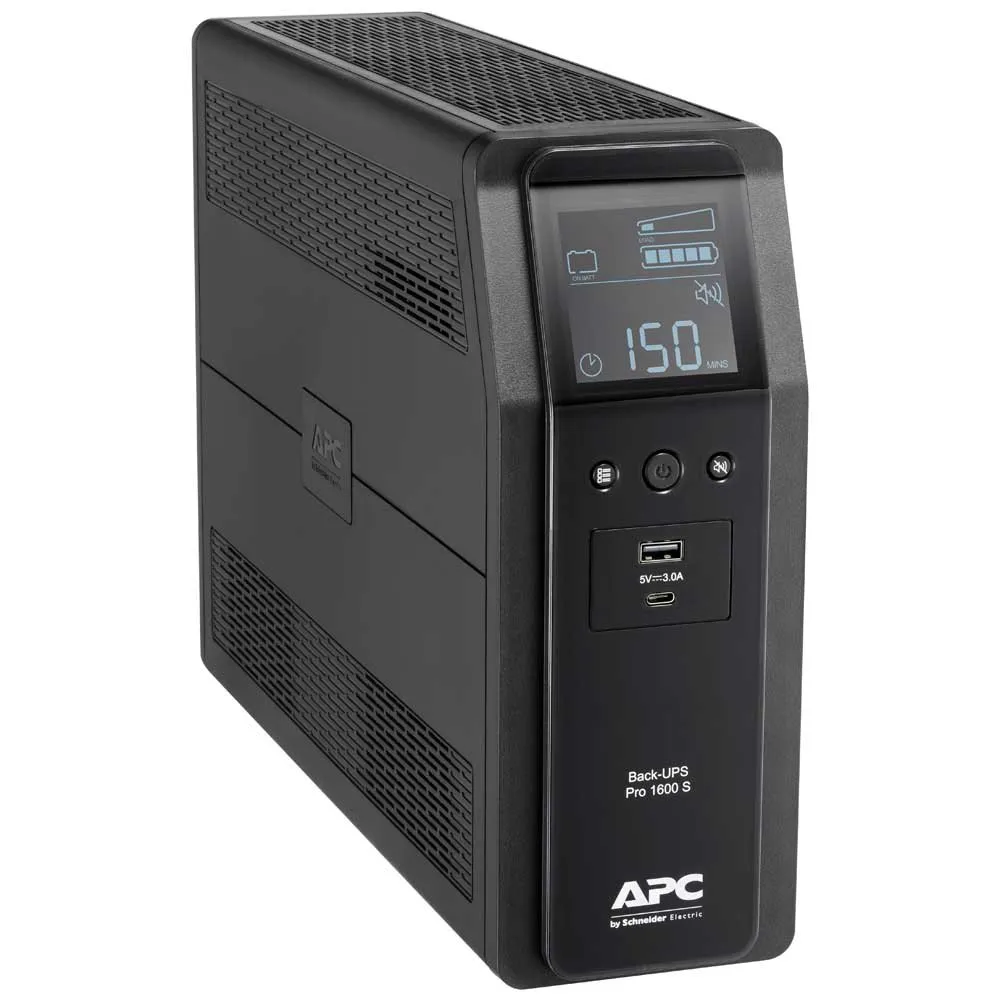

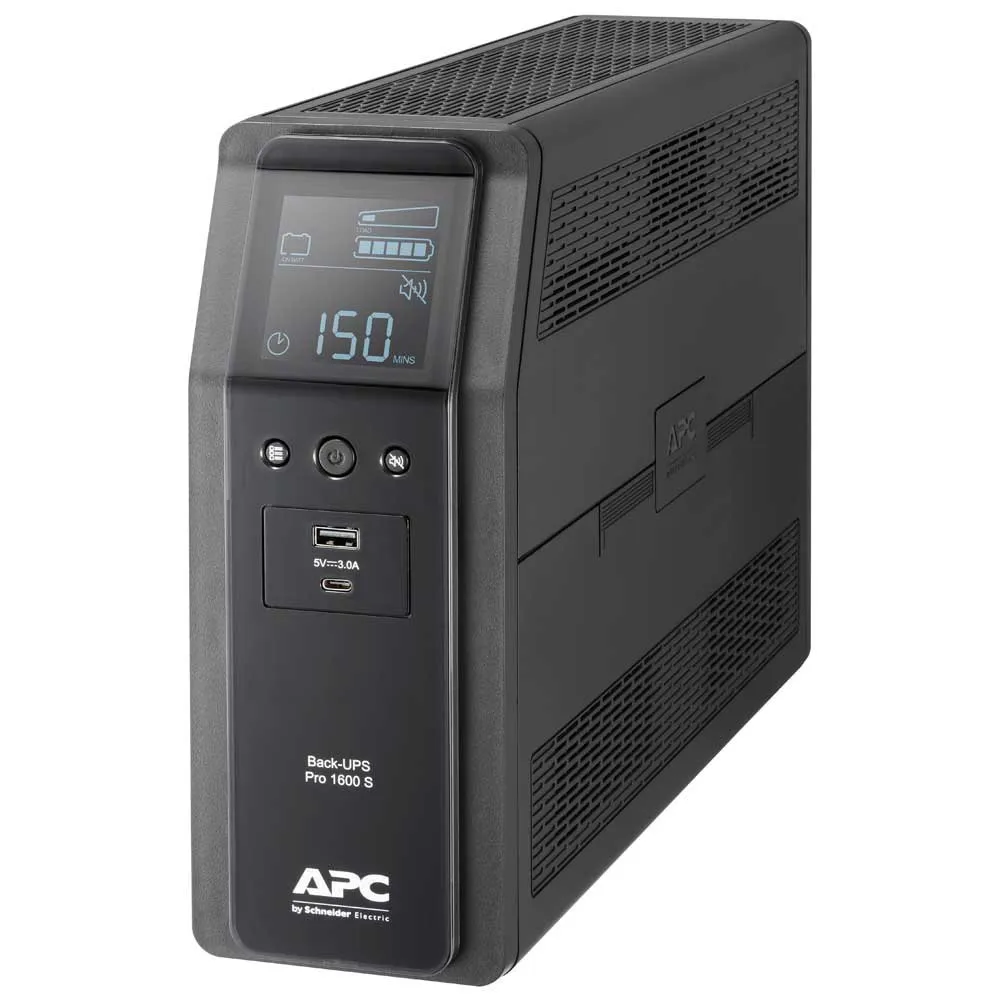

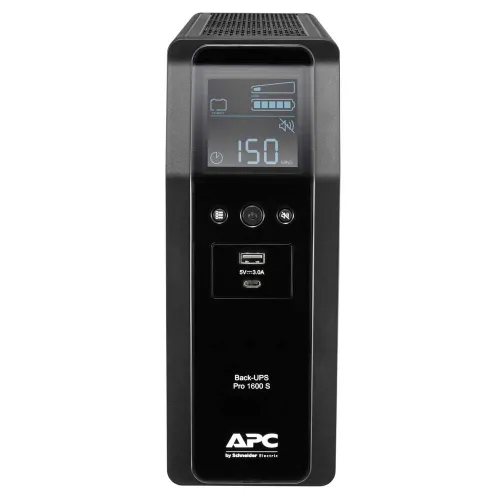

Apc Back Pro BR 1600VA Sinewave 8 Outlets AVR LCD Interface ups

EU Plug.

Features:

- Run time for load:960 W 3m.

- Max.

Capacity Used:100%.

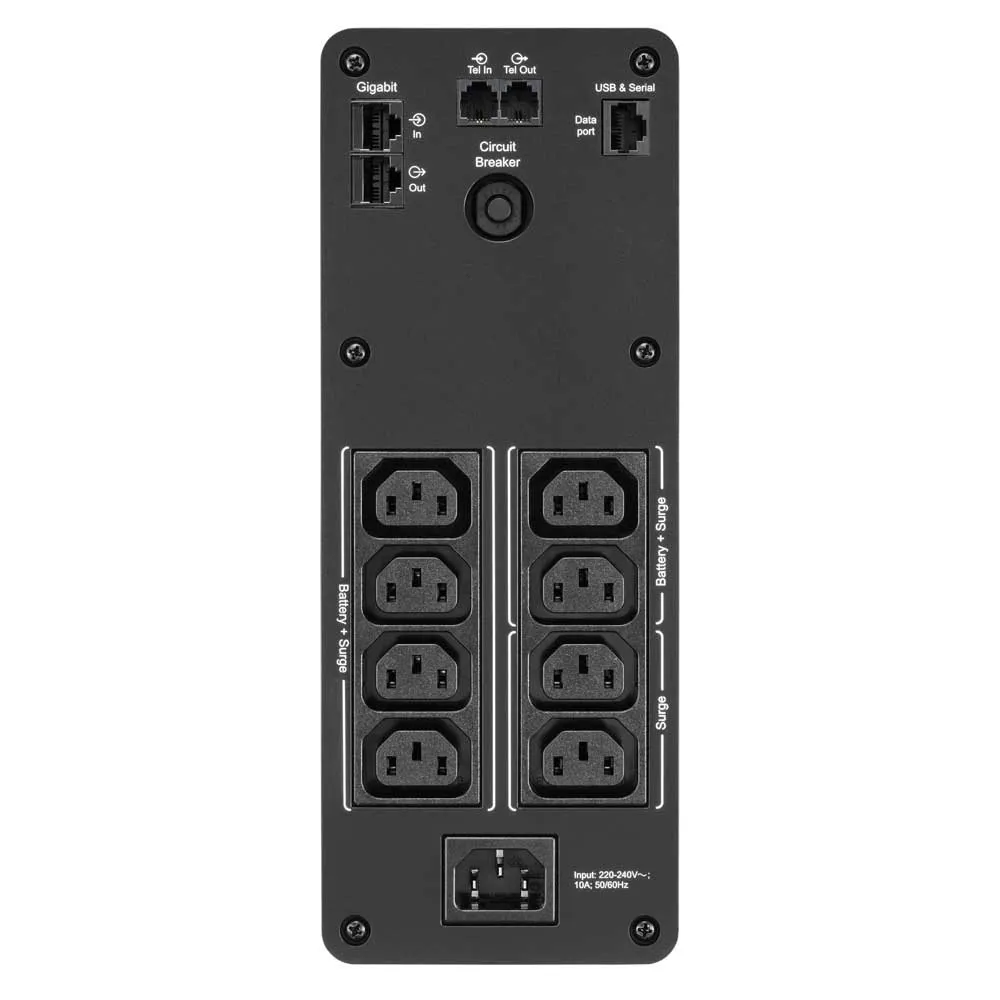

- Output power capacity:960 Watts / 1.6kVA Output Connections:- (6) IEC 60320 C13 (Battery Backup).

- (2) IEC 60320 C13 (Surge Protection).

- Nominal Output Voltage:230V.

- Nominal Input Voltage:230V.

- Input Connections:IEC 60320 C14.

- Back UPS Pro BR 1600VA, Sinewave,8 Outlets, AVR, LCD interface.

- High Performance Computer and Electronics UPS for Premium Power Protection.

- Includes:USB cable, User manual.

- Audible alarms:Provides notification of changing utility power and UPS power conditions.

- Automatic self-test:Periodic battery self-test ensures early detection of a battery that needs to be replaced.

- Battery failure notification:Provides early-warning fault analysis on batteries enabling timely preventive maintenance.

- Battery replacement without tools:Enables fast battery replacement, lowering Mean Time to Repair (MTTR).

- Battery-protected and surge-only outlets:Reserves power capacity and run time for connected equipment that require UPS battery back-up while providing surge only protection for less critical equipment.

- Boost and Trim Automatic Voltage Regulation (AVR):Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).

- Cold-start capable:Provides temporary battery power when the utility power is out.

- Dataline surge protection:Provides protection of connected equipment from power surges on the data lines.

- Disconnected battery notification:Warns when a battery is not available to provide backup power.

- Hot-swappable batteries:Ensures clean, uninterrupted power to protected equipment while batteries are being replaced.

- LCD graphics.

Display:Text and mimic diagrams that display modes of operation, system parameters and alarms.

- PowerChute Personal Edition OS Compatibility:This software supports numerous operating systems and processors.

- Safety-agency approved:The UPS is UL1778 Listed.

- Sine wave output:Eliminates humming and heat generated when powering tube lights and fans.

- USB connectivity:Provides management of the UPS via a USB port (not available on all models).

- User-replaceable batteries:Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR) Back-UPS Pro Features & Benefits:Availability:- Intelligent battery management:Maximizes battery performance, life, and reliability through intelligent, precision charging.

- Transformer-block spaced outlets:Protect equipment with input transformer blocks without blocking access to other receptacles.

- Customizable voltage-transfer points:Adjust the voltage points (widen or tighten the range) where your UPS transfers to battery to maximize useful battery life and protect sensitive electronics.

- Green mode:Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.

- Cold-start capable:Provides temporary battery power when the utility power is out.

- Customizable voltage sensitivity:Toggle between pre-determined voltage-transfer points depending on your power quality (high, medium or low sensitivity), maximizing useful battery life and protecting sensitive electronics.

- Battery failure notification:Provides early-warning fault analysis on batteries enabling timely preventive maintenance.

- Boost and Trim Automatic Voltage Regulation (AVR):Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).

- Automatic self-test:Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Safety:- Safety-agency approved:Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Serviceability:- Resettable circuit breaker:Easy recovery from overloads.

no need to replace a fuse.

(Not available on Wall Tap SKUs).

- Simple battery replacement:Increases UPS availability by allowing quick, easy battery replacement.

Marketing.

Features:

- Battery-protected and surge-only outlets:Reserves power capacity and run time for connected equipment that require UPS battery back-up while providing surge only protection for less critical equipment.

- Boost Automatic Voltage Regulation (AVR):Preserves battery life and maximizes runtime by correcting low voltages without discharging the battery.

Protection:- Battery and surge protected outlets:Back up and protect your hardware and data during power outages, surges and spikes.

- Surge only outlets:Protect secondary electronics from surges and spikes without reducing battery power used to run primary electronics during an outage.

- Dataline surge protection:Provides protection of connected equipment from power surges on the data lines.

Manageability:- Audible alarms:Provides notification of changing utility power and UPS power conditions.

- Disconnected battery notification:Warns when a battery is not available to provide backup power.

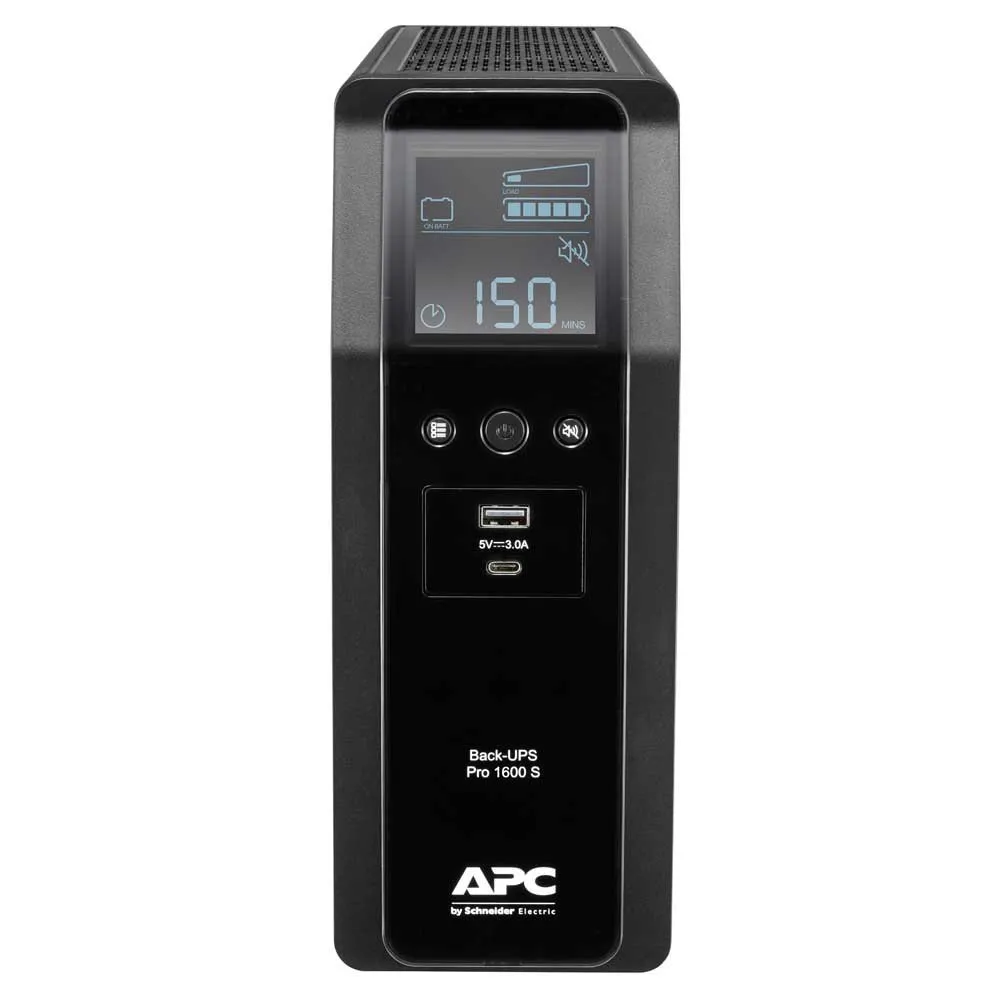

- LCD Status.

Display:Provides key UPS status at a glance.

Multiple status indicators with load and battery bar graphs.

- USB connection:Use your PC to access additional power protection and management features for your UPS via a USB Port.

Product Distribution:- United Arab Emirates, Afghanistan, Albania, Armenia, Angola, Austria, Australia, Azerbaijan, Bosnia and Herzegovina, Belgium, Burkina Faso, Bulgaria, Bahrain, Burundi, Benin, Botswana, Belarus, The Democratic Republic Of Congo, Switzerland, Côte d´Ivoire, Cameroon, Cyprus, Czech Republic, Germany, Djibouti, Denmark, Algeria, Estonia, Egypt, Eritrea, Spain, Ethiopia, Finland, Fiji, France, Gabon, United Kingdom, Georgia, French Guiana, Ghana, Gambia, Guadeloupe, Greece, Croatia, Hungary, Indonesia, Ireland, Israel, Iraq, Iceland, Italy, Jordan, Kenya, Cambodia, South Korea, Kuwait, Kazakhstan, Lebanon, Liberia, Lithuania, Luxembourg, Latvia, Morocco, Madagascar, Macedonia, Mali, Myanmar, Mongolia, Martinique, Mauritania, Malta, Mauritius, Malawi, Malaysia, Mozambique, Namibia, Nigeria, Netherlands, Norway, New Zealand, Oman, Philippines, Pakistan, Poland, Portugal, Qatar, Reunion, Romania, Russia, Rwanda, Saudi Arabia, Sweden, Singapore, Slovenia, Slovakia, Sierra Leone, Senegal, Somalia, Suriname, Turks And Caicos Islands, Togo, Thailand, Tajikistan, Turkmenistan, Tunisia, Turkey, Tanzania, Ukraine, Uganda, Uzbekistan, Vietnam, Yemen, Mayotte, South Africa, Zambia, Zimbabwe.

Specifications:

Output:- Max Configurable Power (Watts):960 Watts / 1.6kVA.

- Output Frequency (sync to mains):50/60 Hz +/- 1 Hz Sync to mains.

- Topology:Line interactive Input:- Input frequency:50/60 Hz +/- 3 Hz Auto-sensing.

- Input voltage range for main operations:176.

- 294V Batteries & Runtime:- Battery type:Lead-acid battery.

- Typical recharge time:16hour(s).

- Expected Battery Life (years):3.

- 5.

- RBC Quantity:1.

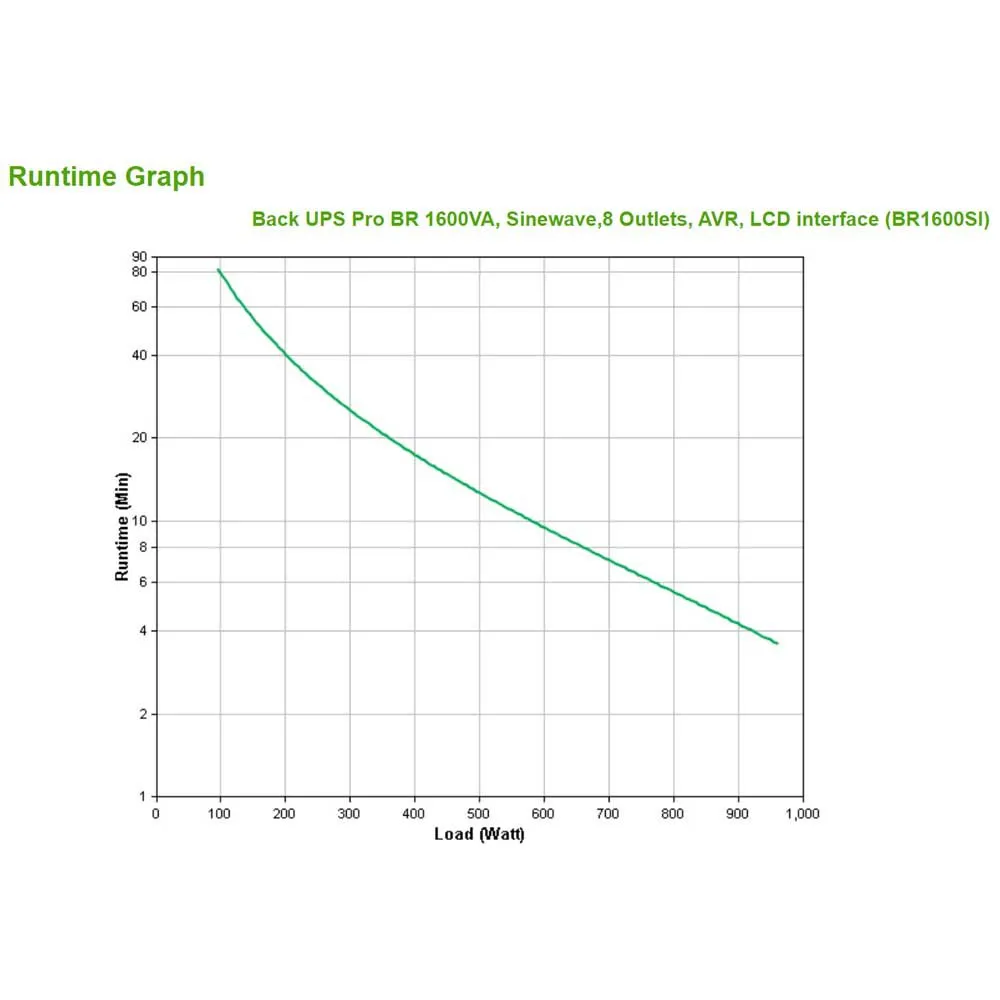

- Battery Charge Power (Watts):16 Watts Runtime:- View Runtime Graph.

- View Runtime Chart Communications & Management:- Interface Port(s):USB.

- Control panel:Multifunction LCD status and control console.

- Audible Alarm:Alarm when on.

Battery:distinctive low battery alarm:overload continuous tone alarm Surge Protection and Filtering:- Surge energy rating:509Joules.

- Data Line Protection:RJ45 10/100/1000 Base-T Ethernet protection.

- Filtering:Full time multi-pole noise filtering:10% of IEEE surge let-through:zero clamping response time:instantaneous Physical:- Maximum Height:260MM, 26.0CM.

- Maximum Width:100MM, 10.0CM.

- Maximum Depth:368MM, 36.8CM.

- Net Weight:12.1KG.

- Shipping weight:13.75KG.

- Shipping Height:359MM, 35.9CM.

- Shipping Width:223MM, 22.3CM.

- Shipping Depth:482MM, 48.2CM.

- Master Carton Dimensions (Length x Width x Height):381 x 483 x 229MM.

- Master Carton Units:1.0.

- Master Carton Weight:14.61.

- SCC Codes:10731304346927 Environmental.

- Operating Temperature:0.

- 40 °C.

- Operating Relative Humidity:0.

- 95 (Non-condensing) %.

- Operating Elevation:0.

- 3048meters.

- Storage Temperature:-15.

- 45 °C.

- Storage Elevation:0.

- 15240meters.

- Audible noise at 1 meter from surface of unit:45.0dBA.

- Online thermal dissipation:20.0BTU/hr Conformance:- Approvals:A-Tick, C-Tick, CE, EAC, GS Mark, RCM, TISI.

- Equipment protection policy:Lifetime 150000 euros, Lifetime:200000 AUD, Lifetime:75000 GBP.
