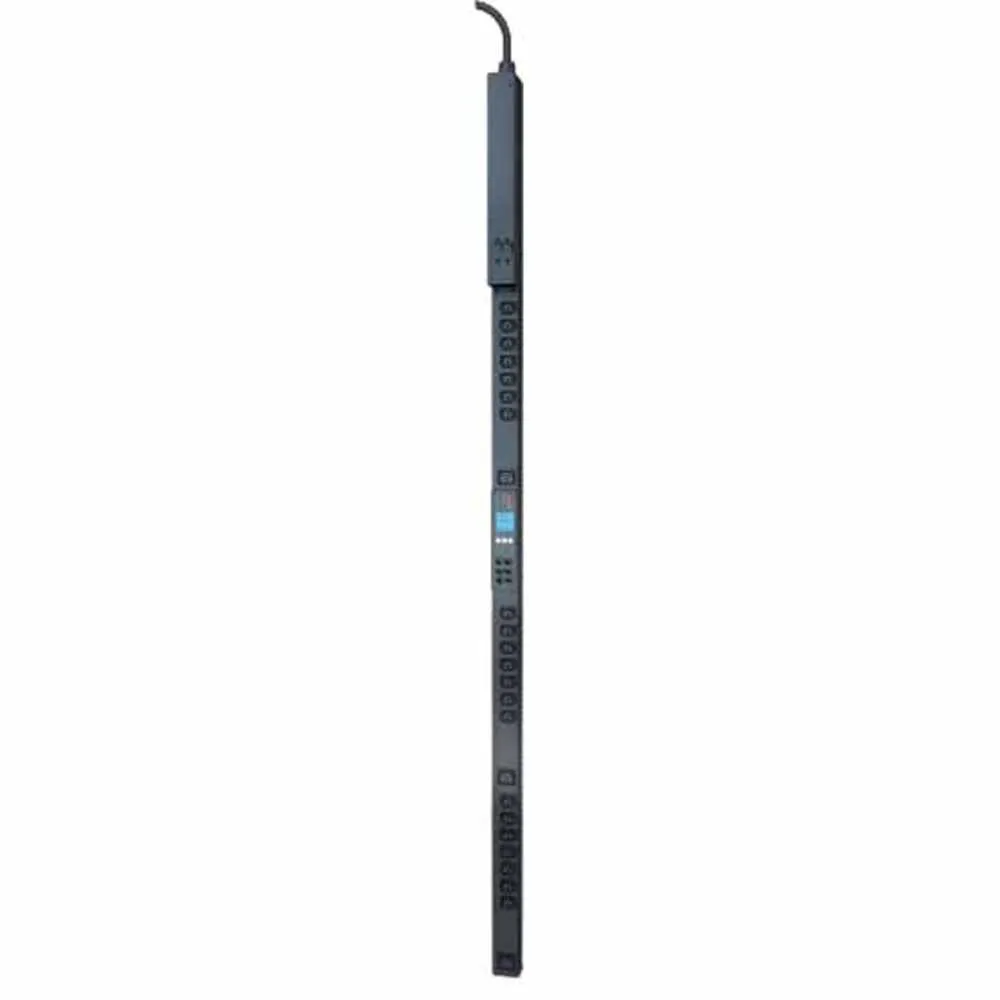

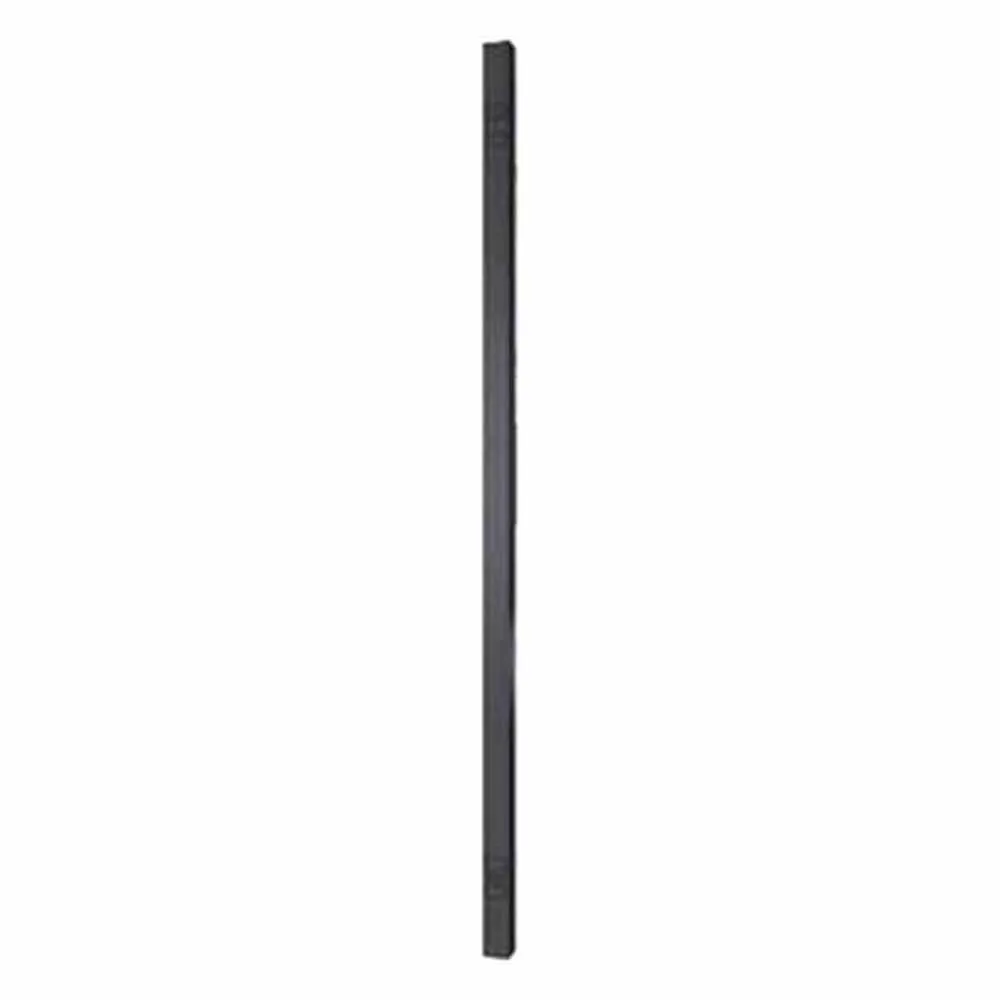

Apc Metered Rack PDU ZeroU 2G Power Distribution Unit

EU Plug.

APC Metered by Outlet Rack Power Distribution Units (PDUs) provide individual outlet power metering to enable energy optimization and circuit protection.

Current metering provides real-time remote monitoring of connected loads.

Metered by Outlet Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership.

Metered by Outlet Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers.

Users can access and configure Metered by Outlet Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.

Features:

Availability:Alarm Thresholds:- Define alarm thresholds in order to avoid overloaded circuits.

Network and visual alarms inform the user of possible problems.

Flash Upgradeable:- Quickly and easily upgrade firmware via network download for future product enhancements.

Eliminates the need to replace products already installed in the field when new features are released.

(Note:Networked units only) 60C Operating Temperature:- All 8000 and 9000 series PDUs now provide the ability to operate in a maximum ambient air temperature of 60C (140F) at full load ensuring reliability and availability even in today´s high density deployments.

Other models allow up to 45C (113F).

Network Management Capabilities:- Full-featured network management interfaces that provide standards-based management via Web and SNMP.

Allows users to access, configure, and manage rack PDUs from remote locations to save valuable time.

Local Current Monitoring.

Display:- The aggregate current draw per rack PDU is displayed on the unit via a digital display.

The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip.

(Available on designated SKUs only) Metering-by-Outlet capability:- Individual outlet level power metering provides a more granular view of the power distributed to equipment within the enclosure.

It also provides the ability to analyze component power trends and perform capacity planning.

Integrates with StruxureWare Data Center Expert:- An IT-ready, scalable access monitoring system that collects, organizes, and distributes critical alerts, surveillance video and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network Load indicator LED:- Indicates overload and warning conditions based on the user-defined alarm thresholds.

Alerts users of potential overloaded circuits.

(Note:Only available with units with local current monitoring feature).

Specifications:

Output:- Overload Protection:Yes.

- Maximum Total Current Draw:32 Input:- Input frequency:50/60 Hz.

- Acceptable Input Voltage:220.

- 240VAC.

- Number of Power Cords:1.

- Load Capacity:7400VA.

- Maximum Input Current:32A.

- Maximum Line Current:32A Physical:- Maximum Height:1829MM, 182.9CM.

- Maximum Width:56MM, 5.6CM.

- Maximum Depth:51MM, 5.1CM.

- Net Weight:8.21KG Environmental:- Operating Temperature:-5.

- 60 °C.

- Operating Relative Humidity:5.

- 95 %.

- Operating Elevation:0.

- 3048meters.

- Storage Temperature:-25.

- 65 °C.

- Storage Relative Humidity:5.

- 95 %.

- Storage Elevation:0.

- 15240meters.
