Assmann Digitus Cat 5E Keystone Jack Unshielded network cable

Future-oriented standards and high-end quality for your network.

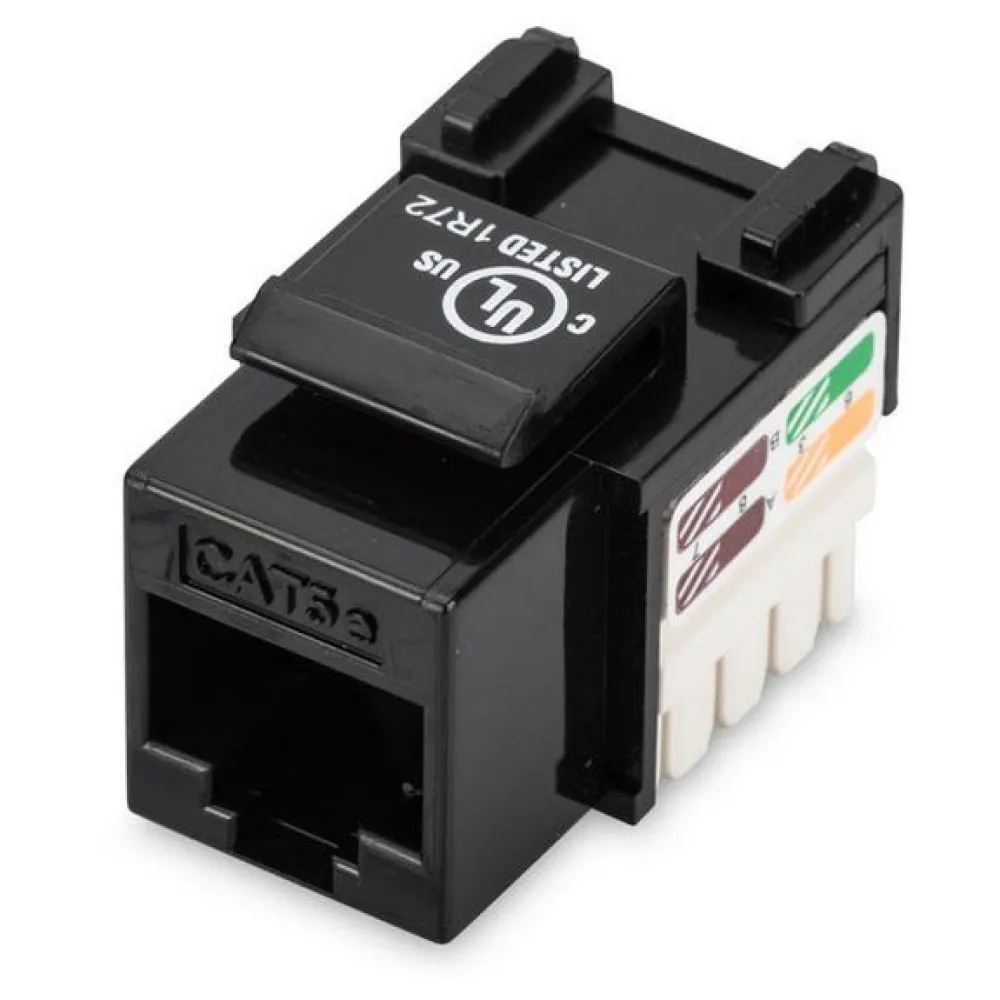

The Item ´´DN-93501´´ from DIGITUS® is an unshielded CAT 5e Keystone Module, which provides best performance and link quality for your network.

The cable installation takes place via LSA, color coded acc.

EIA/TIA 568 A&B.

Specifications:

- Transmission properties:

Category 5e.

- Area of application:

Up to 100 MHz, 10/100Base-T, 1GBase-T.

- Norms:

ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C.

- General properties:

- Suitable for 483 mm (19´´) cabinet mounting.

- RJ45 female, 8P8C.

- Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B.

- Cable fixing with smart cable ties.

- Technical properties:

- RJ45 female material:

ABS UL 94V-0.

- RJ45 female contact:

Tinned phosphor bronze, 0.5 μ gold-plated contact.

- LSA termination clamp:

Krone LSA+, UL 94V-2, zinc plated phosphor bronze.

- Conductor plate:

FR4, UL 94V-0.

- Physical properties:

- Insertion force:

30N max.

(IEC 60603-7-5).

- Retention strength:

7.7 kg between jack and plug.

- Operation temperature:

- 20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C).

- Mating cycles female:

> 750 acc.

to ISO/IEC 11801, IEC 60603-7-5.

- Clamp:

> 200 acc.

to ISO/IEC 11801, IEC 60603-7-5.

- IDC wire size:

22.

- 26 AWG solid and stranded conductor.

- Insulation resistance:

> 500 MOhm.

- Contact resistance:

< 20 MilliOhm.

- Dielectric strength:

1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground).
