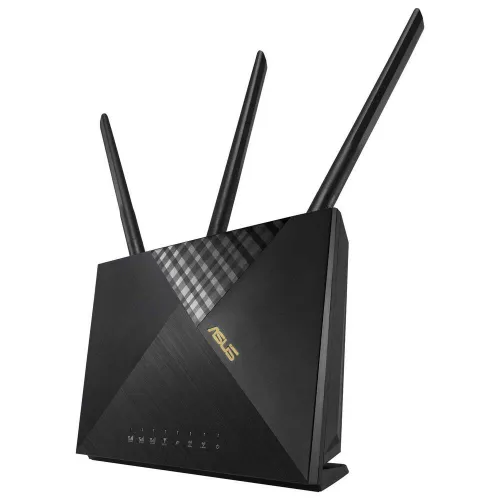

Asus 4G-AX56 router

EU Plug.

Prepare your home for the Wi-Fi 6 (802.11ax) standard.

The increasing number of devices we connect to our networks is pushing current Wi-Fi technology to the limit.

The new 802.11ax standard includes future-proof technologies, offers more efficient and faster wireless connections, greater range, extends the autonomy of connected devices and, in short, offers a superior network experience.

- It requires WiFi 6- compatible devices to enjoy the benefits brought by WiFi 6 WiFi standard.

Next-Gen WiFi Speed.

ASUS 4G-AX56 is a 2x2 dual-band WiFi 6 LTE Modem Router that provides 80MHz bandwidth and 1024-QAM for dramatically faster wireless connections.

With a total networking speed of about 1800Mbps - 574Mbps on the 2.4GHz band and 1201Mbps on the 5GHz band - 4G-AX56 is 1.5X faster than WiFi 5 2x2 dual-band LTE Modem Router.

Created for homes with multiple devices.

Thanks to OFDMA and MU-MIMO technologies, Wi-Fi 6 technology offers 4 times greater capacity and efficiency in traffic-saturated networks.

With the Wi-Fi 5 generation, only one device could be transmitted simultaneously per channel, resulting in inefficient bandwidth management.

Thanks to OFDMA support, the new Wi-Fi standard divides each channel into subchannels that can be used by multiple devices.

- at the same time, resulting in less latency and a smoother, faster Wi-Fi experience.

More autonomy for your devices.

Thanks to Target Wake Time (TWT) technology, the 4G-AX56 transmits data from devices in assigned time intervals, thus reducing its energy consumption up to 7 times.

-, since devices are only connected during the assigned time slot.

Wi-Fi that goes further.

The new 802.11ax Wi-Fi standard and OFDMA technology make the 4G-AX56´s Wi-Fi signal reach further.

OFDMA divides channels into subchannels with lower bandwidth that allows them to reach up to 80% further1 and allows you to enjoy quality Wi-Fi connections throughout your entire home.

Wireless connections wherever you want.

The 4G-AX56 offers unprecedented versatility.

Long-term testing ensures compatibility and reliability.

Simply insert a nano-SIM card to enjoy the convenience of 3G/4G mobile broadband, without the hassle of cables.

High speed mobile broadband.

The 4G-AX56 features LTE Category 6 mobile broadband, a technology that combines two cellular bands to deliver downloads of up to 300 Mbps (twice as fast as LTE Category 4 and 7 times faster than 3G (HSPA+).

With that much bandwidth, you can share large files and stream 4K UHD video with ease.

Eliminate bottlenecks.

Adaptive Quality of Service (QoS) allows you to prioritize network traffic without complications.

For example, you can prioritize streaming applications video, browsing, or gaming.

This way you´ll enjoy low-latency Wi-Fi connections anywhere in your home.

Commercial-grade security for your home network.

Your family members, young and old, are exposed to Internet threats every time they log in.

The 4G-AX56 includes AiProtection powered by Trend Micro™, which protects your devices and personal data against Internet threats with regular automatic security updates.

It also includes advanced parental controls, the ability to block websites, and filter specific types of mobile apps.

Connectivity options.

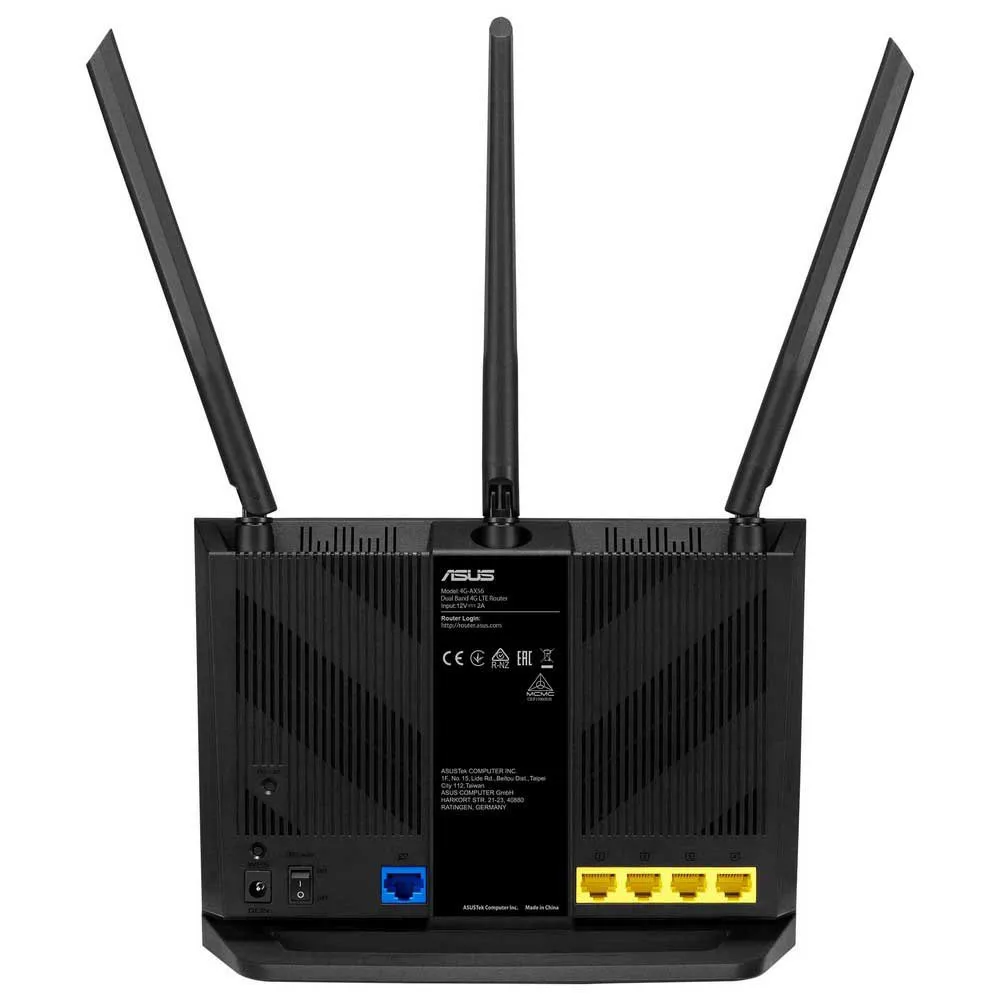

The 4G-AX56 has one Gigabit WAN port and four Gigabit LAN ports.

So smart TVs, game consoles and NAS storage devices can connect through their own ports.

Specifications:

-Ethernet LAN ports (RJ-45):5.

-USB port:No.

-DC-in jack:Yes.

-Weight:753 g.

Power:DC.

-DHCP, server:Yes.

-Port triggering:No.

-Built-in FTP server:No.

-Ethernet:Yes.

-Ethernet LAN interface type:Gigabit Ethernet.

-Network standards:IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n.

-Port forwarding:Yes.

-Dynamic DNS:Yes.

-VPN Support:VPN Client L2PTVPN Client OVPNVPN Client PPTPVPN Server OVPN VPN Server PPTP.

-SSID assignment based on VLAN:Yes.

-AC adapter included:Yes.

-Guarantee card:Yes.

-Quick setup guide:Yes.

-Parental control:Yes.

-Supported security algorithms:IPSec, SIPS.

-Firewall:Yes.

-Guest access:Yes.

-DMZ Support:Yes.

-Network Address Translation (NAT):Yes.

-NAT, functionality:PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough, PPPoE relay.

-Wi-Fi Band:Dual band (2.4 GHz / 5 GHz).

-Wi-Fi Standard:Wi-Fi 6 (802.11ax).

-WLAN data transfer rate (max.):1201 Mbit/s.

-Wi-Fi standards:802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax).

-WLAN data transfer rate (first band):54 Mbit/s.

-WLAN data transfer rate (second band):11 Mbit/s.

-WLAN data transfer rate (third band):54 Mbit/s.

-MU-MIMO Technology:Yes.

-Bandwidth control:Yes.

-Network connection:Yes.

-Quality of service (QoS) support:Yes.

-Restore button:Yes.

-WPS push-button.

Security:Yes.

-Antenna type:Internal and external.

-Quantity of antennas:4.

-Built-in screen:No.

-Product type:Desktop router.

-Product color:Black.

-LED indicators:LAN, Power, WAN.

-Integrated on/off switch:Yes.

-Housing material:Plastic.

-Indication light:Yes.

-5G:No.

-SIM card type:NanoSIM.

-3G:Yes.

-4G:Yes.

-3G standards:UMTS.

-4G standard:LTE-FDD.

-Support UMTS bands:850,900,1800,2100 MHz.

-Supports 4G bands:700,800,850,900,1800,2100,2300,2500,2600 MHz.

-Built-in.

Processor:No.

-Internal.

Memory:512 MB.

-Flash.

Memory:128 MB.

-Ethernet WAN:Yes.

-DSL WAN:No.

-SIM card slot:Yes.

-Compatible with 3G / 4G USB modem:Yes.

-WAN connection type:RJ-45.
