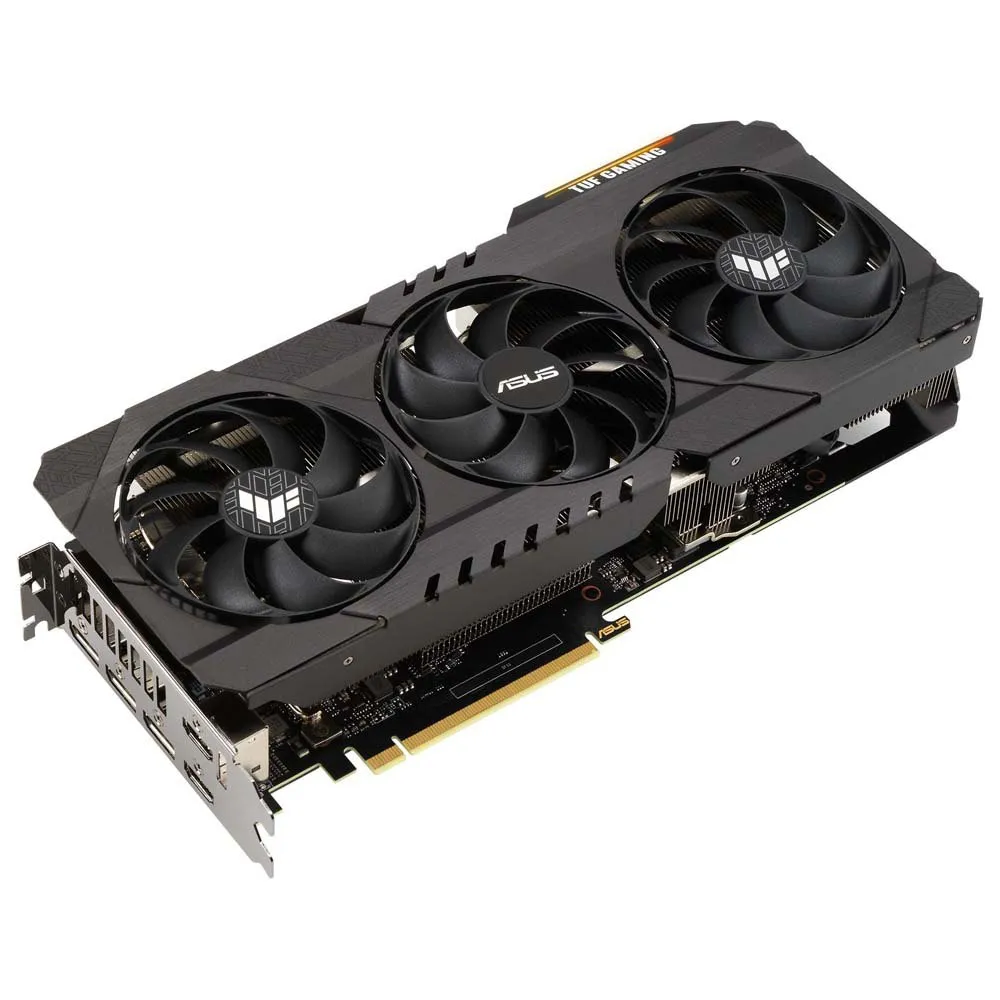

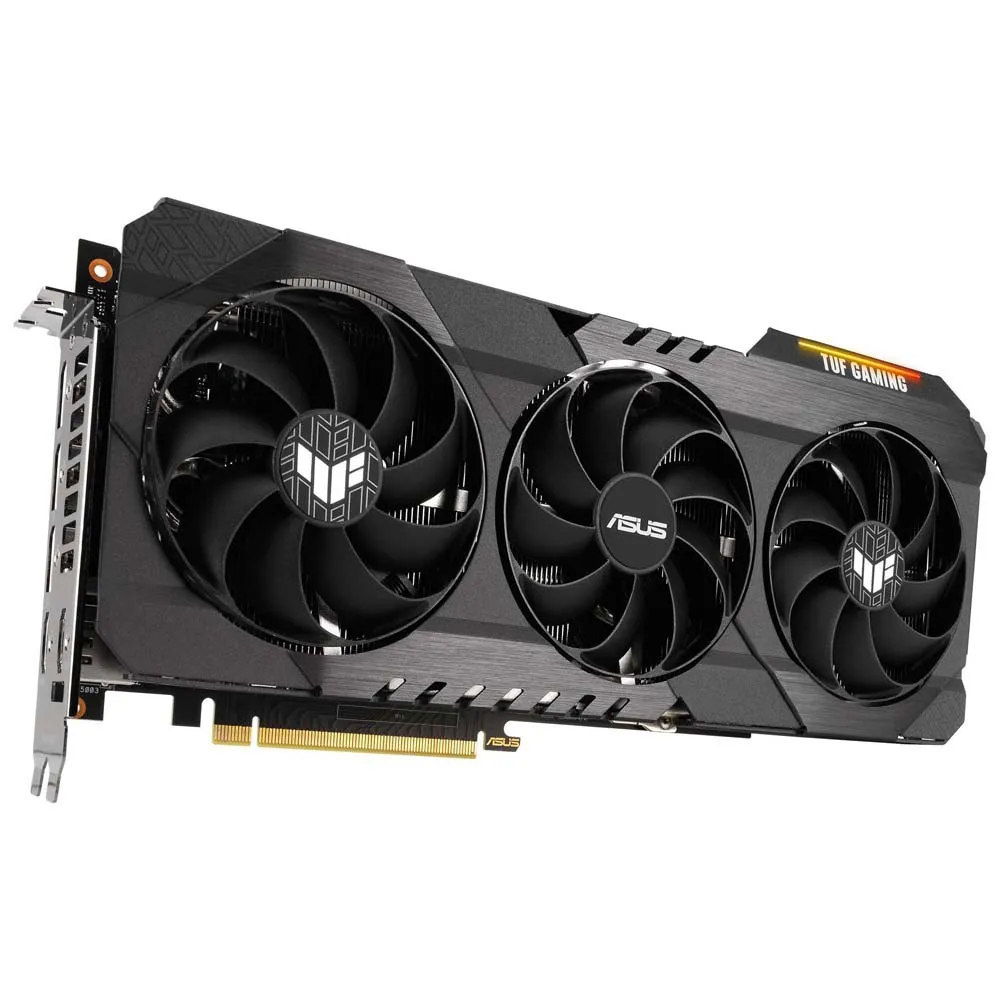

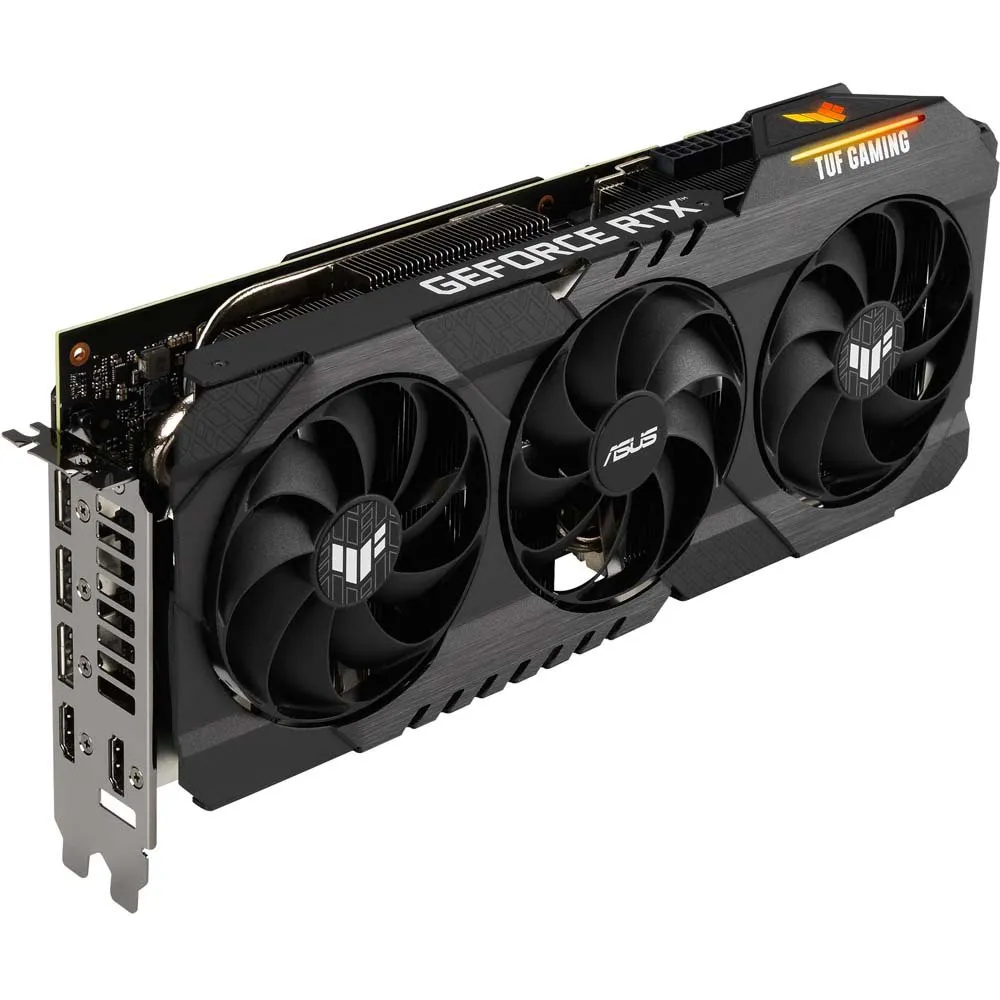

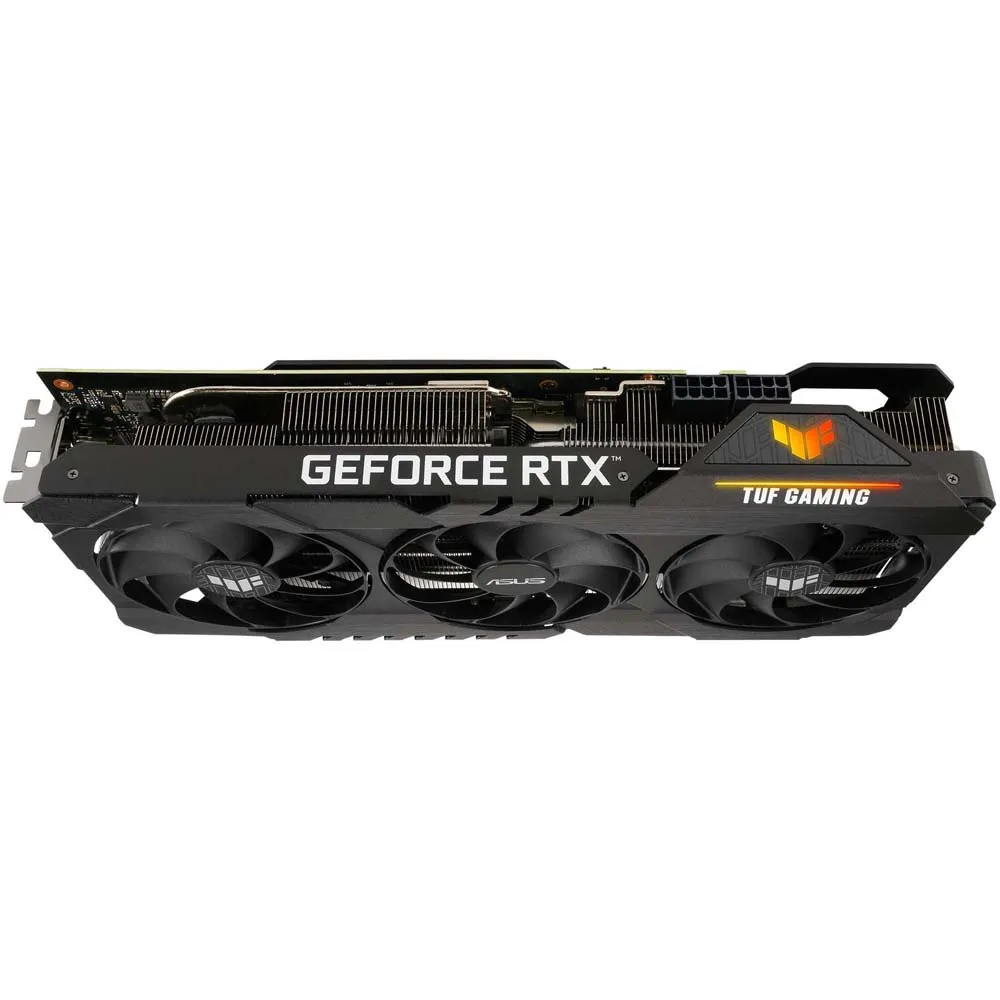

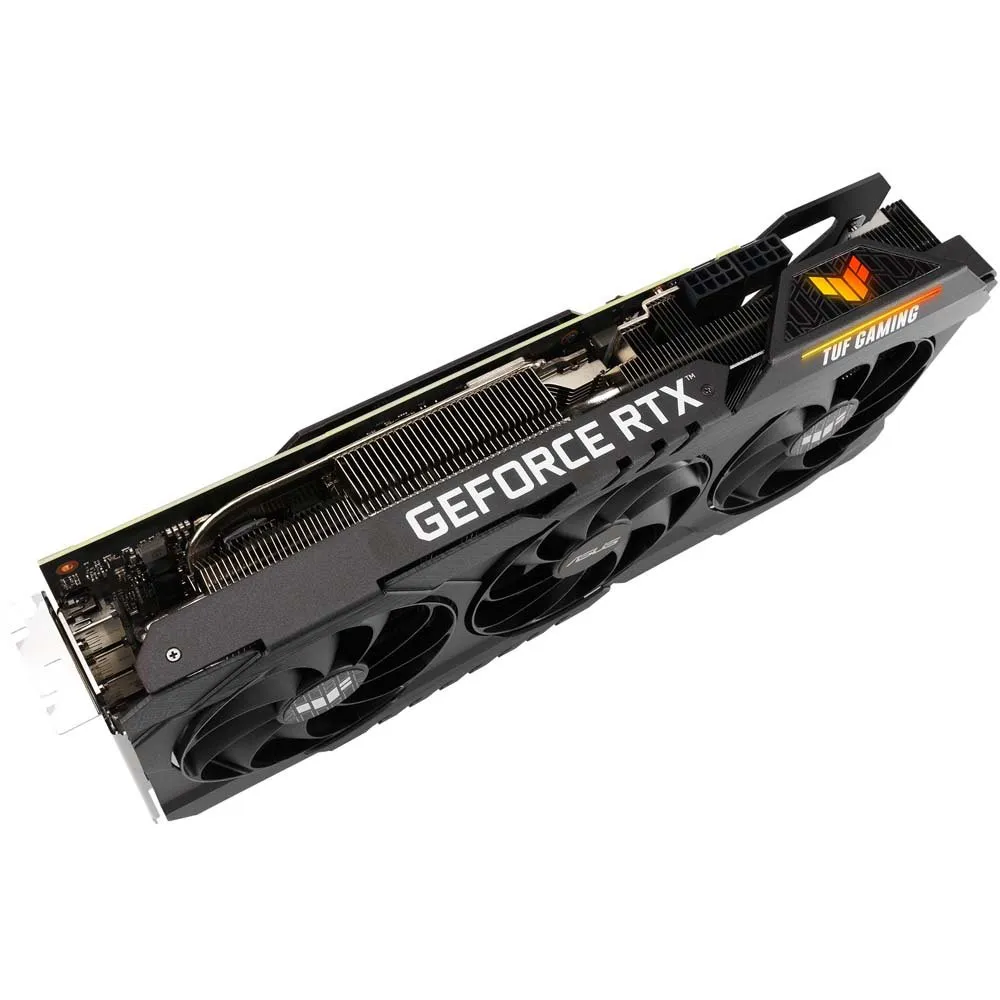

Asus Nvidia RTX 3070 TI 8GB GDDR6 graphic card

Features:

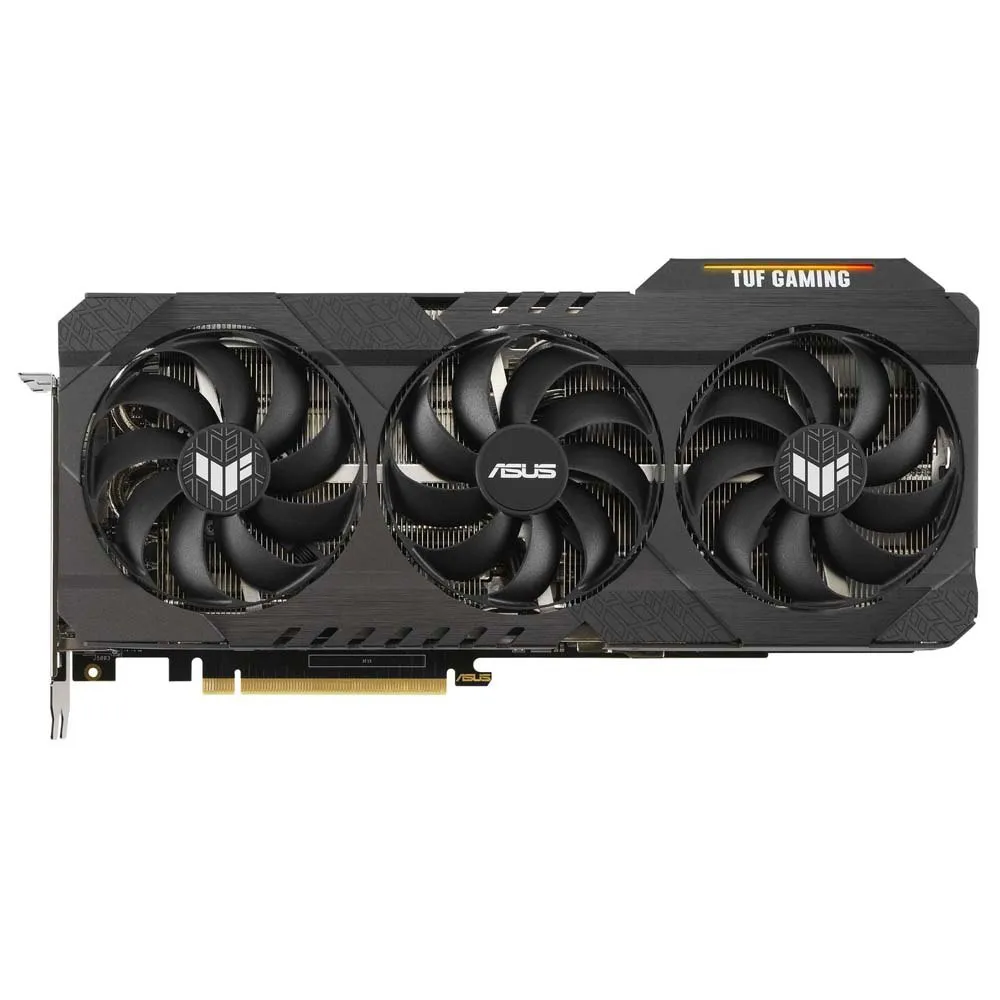

Fans:
- Tuf Gaming Cards Leverage Our Tried-And-True Axial-Tech Fan Design, With Three Fans Working In Tandem To Satisfy The Thermal Demands Of Nvidia’S New High-Octane Design. The Fans Rely On Dual Ball Fan Bearings To Ensure Consistent Performance And Increased Longevity Compared To Sleeve Bearings And Other Bearing Types.

Heatsink:
- To Get Heat Into The Heatsink Array Efficiently, So That It Can Be Whisked Away By The Powerful Axial-Tech Fans, We Use A Manufacturing Process That Improves The Surface Smoothness Of The Heatspreader At The Microscopic Level. The Extra Flatness Allows For Better Contact With The Die, Helping To Enhance Thermal Transfer.

2.7-Slot Design:
- The Heat Spreader Draws Heat Up Into Heatpipes That Carry It Through A Fin Stack That Fills Most Of The Card’S Large, 2.7-Slot Footprint. This Generation Of Tuf Gaming Graphics Cards Also Feature A Dedicated Heatsink For Vram To Keep Temperatures Well Under Maximum Operating Specs.

Pcb:
- Components Are Selected For Tuf Gaming Graphics Cards Based On Their Durability And Performance. In Addition To Top-Shelf Chokes And Mosfets, Capacitors That Meet Military-Grade Certification Make The Tuf Stand Tall Amongst The Competition. The Components Are Soldered To The Pcb Using Our Advanced Auto-Extreme Automated Manufacturing Process. Smooth Joints On The Rear Of The Pcb And The Elimination Of Human Errors Ensure Each Graphics Card Meets Our Rigorous Specifications. Finally, To Ensure Flawless Performance When It Counts, The Cards Are Subjected To A Grueling 144-Hour Validation Trial.

Design:
- An All-Aluminum Shroud Adds Robust Protection To Tuf Gaming Graphics Cards And A No-Nonsense Industrial Design And Grayscale Colorway Fits Into Any Build With Ease.

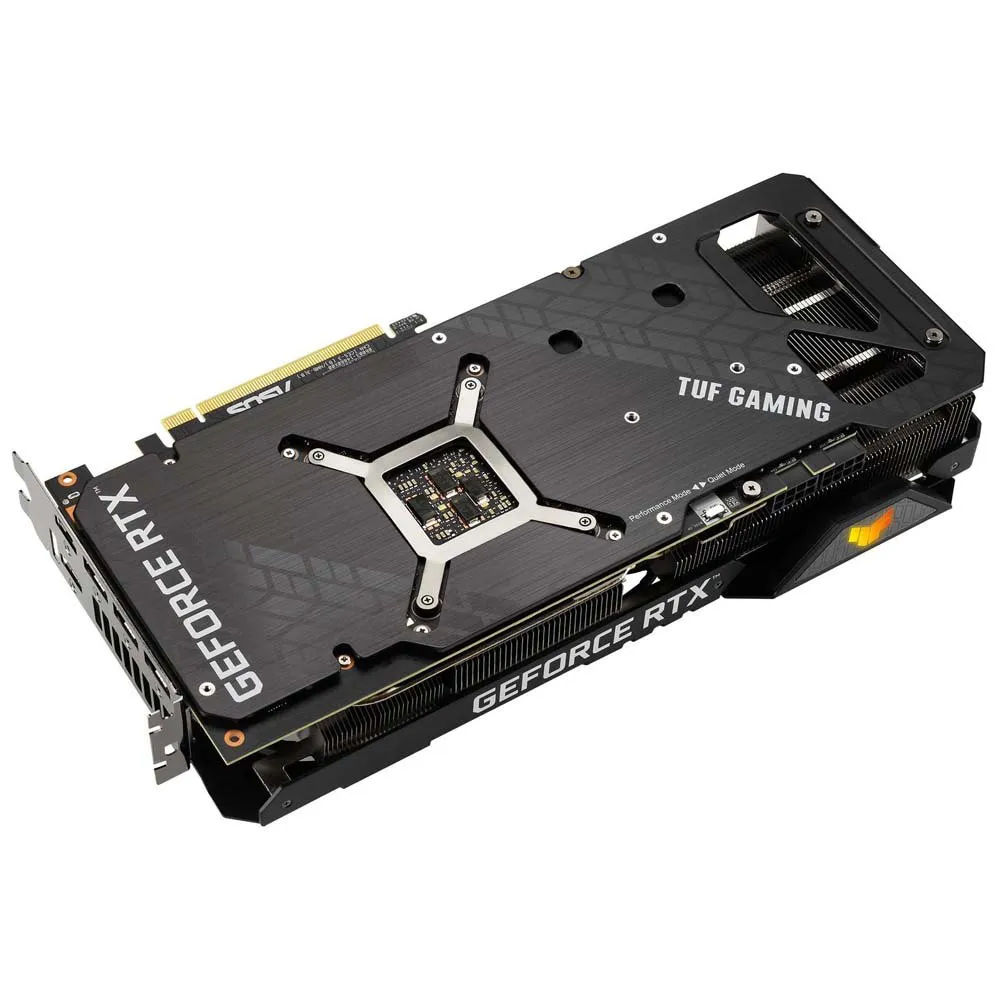

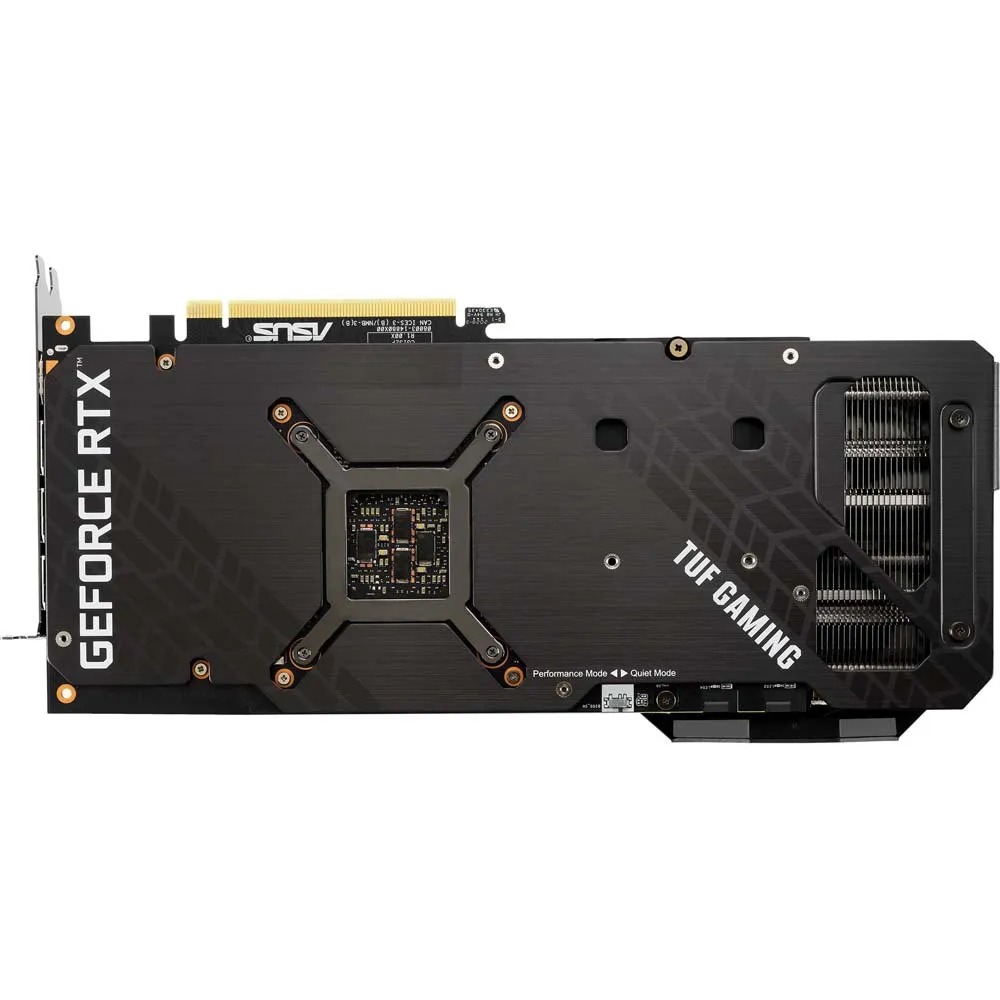

It’S Cooler Out Back:
- The Underside Of The Card Reveals A Host Of Improvements. Most Of The Rear Is Swathed In A Protective Metal Backplate That Prominently Features A Wide Vent. The Vent Allows Hot Air To Escape Towards Chassis Exhaust Fans Instead Of Being Recycled Back Into The Cooler. Beneath The Gpu, A Bracket Provides Consistent Mounting Pressure Between The Die And Heat Spreader. Stainless Steel Is Used For The I/O Bracket To Protect Ports And Provide A More Secure Mount. A Conveniently Placed Dual Bios Switch Allows Customization Of The Card’S Default Performance Profile Without Software.

Functional Front:
- The Top-Side Rgb Element Can Be Customized To Display A Range Of Aesthetic And Functional Effects And Also Synced With Other Asus Components To Enable Uniform Lighting. To Fulfill The Power Demands Of The Geforce Rtx 3070 Ti, Two 8-Pin Connectors Are Present, Along With Onboard Leds That Light Up If Psu Pcie Power Connectors Are Not Plugged In Correctly.

Software:
- The Asus Gpu Tweak Ii Utility Takes Graphics Card Tuning To The Next Level. It Allows You To Tweak Critical Parameters Including Gpu Core Clocks, Memory Frequency, And Voltage Settings, With The Option To Monitor Everything In Real-Time Through A Customizable On-Screen Display. Advanced Fan Control Is Also Included Along With Many More Features To Help You Get The Most Out Of Your Graphics Card.


Specifications:

Processor:
- Cuda: Yes
- Cuda Cores: 6144
- Graphics Processor Family: Nvidia
- Graphics Processor: Geforce Rtx 3070 Ti
- Processor Boost Clock Speed: 1785 Mhz
- Processor Boost Clock Speed (Oc Mode): 1815 Mhz
- Maximum Resolution: 7680 X 4320 Pixels
- Parallel Processing Technology Support: Not Supported
- Maximum Displays Per Videocard: 4
- Firestream: No

Memory
- Discrete Graphics Card Memory: 8 Gb
- Graphics Card Memory Type: Gddr6x
- Memory Bus: 256 Bit
- Memory Bandwidth (Max): 19 Gb/S

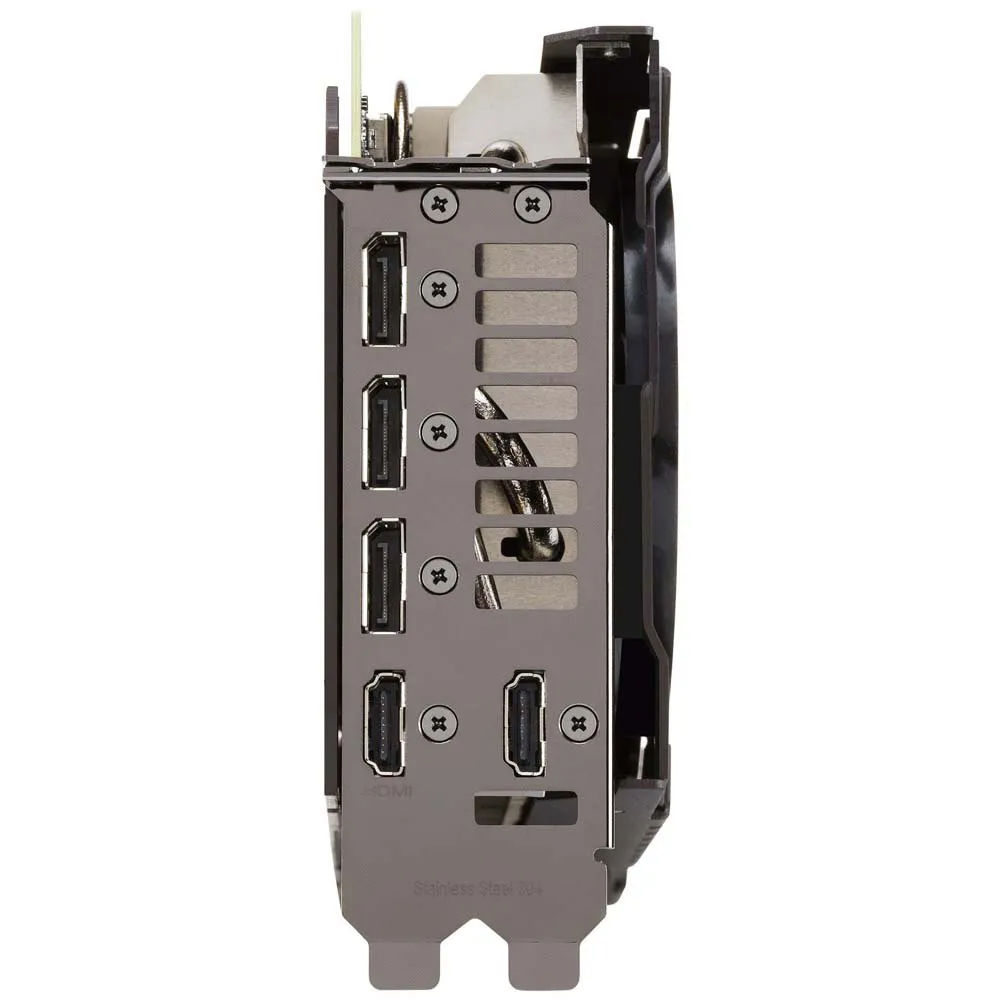

Ports & Interfaces:
- Interface Type: Pci Express 4.0
- Hdmi Ports Quantity: 2
- Hdmi Version: 2.1
- Displayports Quantity: 3
- Displayport Version: 1.4a

Performance:
- Tv Tuner Integrated: No
- Directx Version: 1‎2 Ultimate
- Opengl Version: 4.6
- Hdcp: Yes
- Dual Link Dvi: No
- Nvidia G-Sync: Yes

Design:
- Cooling Type: Active
- Cooling Technology: Asus Axial-Tech
- Number Of Fans: 3 Fan(S)
- Form Factor: Full-Height/Full-Length (Fh/Fl)
- Bracket Height: Full-Height (Fh)
- Number Of Slots: 2.7
- Illumination: Yes
- Illumination Colour: Multi
- Product Colour: Black

Power:
- Minimum System Power Supply: 750 W
- Supplementary Power Connectors: 2x 8-Pin

Weight & Dimensions:
- Depth: 299.9 Mm
- Height: 126.9 Mm
- Width: 51.7 Mm

Packaging Data:
- Manual: Yes
- Package Type: Box
