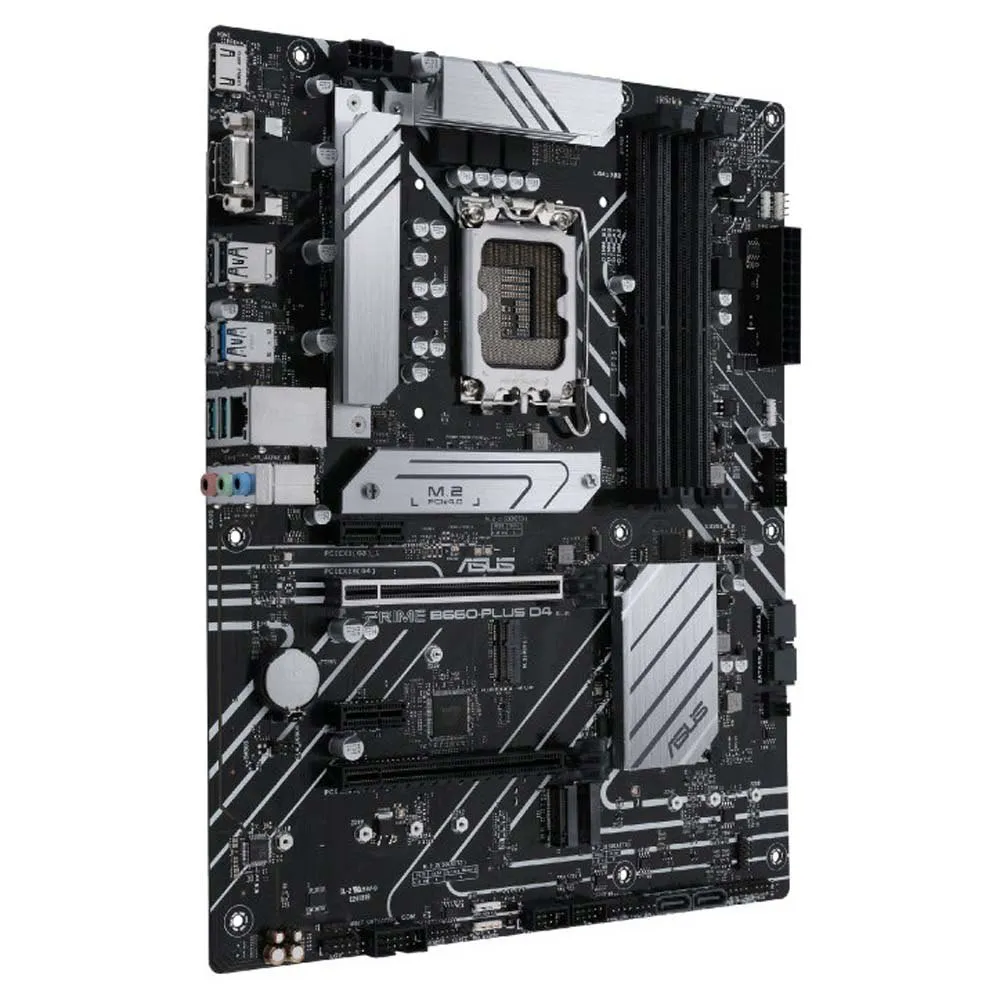

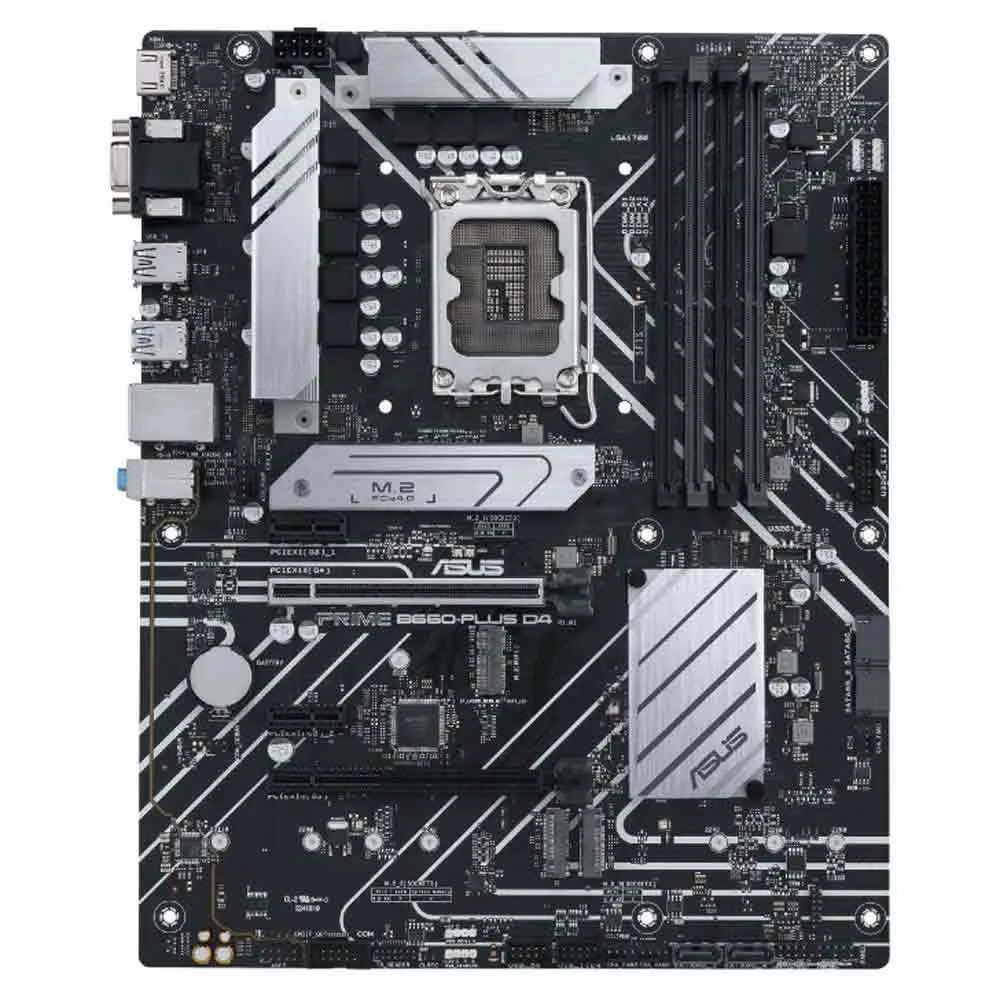

Asus Prime B660-PLUS D4 motherboard Black

Name: Asus Prime B660-PLUS D4 motherboard
Brand: Asus
SKU: 138698581
Price: 129.49 EUR
Availability: InStock
Rating: 5 (1 reviews)

Asus Prime B660-PLUS D4 motherboard

129.49 €

Price without code 129.49

RRP:

You save:

Price applying the code 15CM to your basket:

VAT & duties included

1 Reviews

1 Questions

No import duties to be paid.

Sold and shipped by

See other sellers()

Size

Long

What is my size?

Virtual fitting room

Stringing

Unstrung

Tension

18 Kg
19 Kg
20 Kg
21 Kg
22 Kg
23 Kg
24 Kg
25 Kg
26 Kg
27 Kg
28 Kg
29 Kg
30 Kg
31 Kg
32 Kg
33 Kg
34 Kg
35 Kg
36 Kg

To adjust your bindings, type in the following informations:

(Customized items cannot be returned or exchanged)

It´s free!

(Customized items cannot be returned or exchanged)

This size is currently out of stock

Stay in the loop! Add your email and be the first to know when this item is back in stock.

Sorry, we don´t have enough of this item in stock

Back to PC configurator

Add to my pack

You save:

Buy now with 1-Click

Buy this product and earn

Color:

Free shipping

Free assembly

Free removal of old appliance (only with Ader)

Your interest-free financing from with Klarna Paypal

Pay in 3, 4, 6 or up to 12 installments

Virtual fitting room

Other colors available

Perfect pairings

Reportar error

Features of Asus Prime B660-PLUS D4

Trusted by over 25 million satisfied customers worldwide

Official brand warranty

Quick & easy 30-day return

Specifications Asus Prime B660-PLUS D4

Features of Asus Prime B660-PLUS D4

Color Black

Color

Black

Memory Type DDR4

Memory Type

DDR4

Chipset Intel

Chipset

Intel

Form Factor ATX

Form Factor

ATX

Multi Gpu No

Multi Gpu

Internal Conections SATA

Internal Conections

SATA

M2 SATA

M2 PCIe

Socket Socket 1700

Socket

Socket 1700

MHz Speed 5000

MHz Speed

5000

Product description of Asus Prime B660-PLUS D4 motherboard

Description summary

Build your next PC with the ASUS PRIME B660-PLUS D4 motherboard. Designed for 12th Gen Intel processors on the LGA 1700 socket, it offers robust performance and future-proof features. It supports up to 128GB of high-speed DDR4 memory, three M.2 slots for ultra-fast PCIe 4.0 SSDs, and 2.5 Gb Ethernet for lag-free networking. With comprehensive connectivity including USB-C, HDMI 2.1, and DisplayPort 1.4, plus extensive cooling options and RGB headers, this ATX board is the solid foundation for any powerful build

Read full description

Automatic translation

Automatic translation
Original description available here

ASUS PRIME B660-PLUS D4.

Processor manufacturer:Intel, Processor socket:LGA 1700, Compatible processor:Intel® Celeron®, Intel® Core™ i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel® Pentium® Gold.

Compatible memory types:DDR4-SDRAM, Maximum internal memory:128 GB, Memory slot type:DIMM.

Supported storage drive interfaces:M.2,PCI Express 4.0,SATA III, Supported storage drive types:HDD & SSD.

USB connector:USB Type A, USB Type C.

Ethernet interface type:2.5 Gigabit Ethernet.

Specifications:-Processor manufacturer:Intel.

-Processor socket:LGA 1700.

-Compatible processor:Intel® Celeron®, Intel® Core™ i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel® Pentium® Gold.

-Supported processor sockets:LGA 1700.

-Compatible memory types:DDR4-SDRAM.

-Number of memory slots:4.

-Type of memory slots:DIMM.

-Maximum internal memory:128 GB.

-Memory channels:Dual-channel.

-Supported memory clock speeds:2133,2400,2666,2800,2933,3000,3333,3400,3466,3600,3733,3866,4000,4266,4400,4600,4800,5000,5066 MHz.

-Non-ECC :Yeah.

-Unbuffered memory:Yes.

-Ethernet:Yes.

-Ethernet interface type:2.5 Gigabit Ethernet.

-Wifi:No.

-USB 2.0, connectors:2.

-USB 3.2 Gen 1 (3.1 Gen 1) connectors:2.

-Number of SATA III connectors:4.

-Audio connector on front panel:Yes.

-ATX power connector (24 pins):Yes.

-CPU fan connector:Yes.

-Number of connectors to chassis fan:3.

-Front panel connector:Yes.

-EPS power connector (8-pin):Yes.

-S/PDIF, output connector:Yes.

-Connector for RGB LED strips:Yes.

-TPM connector:Yes.

-Thunderbolt Headers:1.

-Number of COM connectors:1.

-Intrusion connector to chassis:Yes.

-USB 2.0:2.

-USB 3.2 Gen 1 (3.1 Gen 1):1.

-Number of Type A USB 3.2 Gen 2 (3.1 Gen 2) ports:2.

-Number of Type C USB 3.2 Gen 2 (3.1 Gen 2) ports:1.

-Ethernet LAN ports (RJ-45):1.

-VGA Ports (D-Sub):1.

-HDMI Ports:1.

-HDMI version:2.1.

-DisplayPort:1.

-DisplayPort version:1.4.

-Headphone jack:3.

-USB connector:USB type A, USB Type C.

-RAID compatibility:Yes.

-Number of supported storage units:7.

-Supported storage disk interfaces:M.2,PCI Express 4.0,SATA III.

-Types of storage units supported:HDD & SSD.

-RAID levels:0,1,5,10.

-Number of HDDs supported:4.

-PCI Express x16 slots (Gen 4.x):1.

-Number of M.2 slots (M):3.

-PCI Express x1 (Gen 3.x) slots:2.

-PCI Express x16 Gen (3.x) slots:1.

-BIOS types:UEFI AMI.

-BIOS, memory size:128 MB/s.

-Jumper Clear CMOS:Yes.

-Chipset family:Intel.

-Chipset:Intel B660.

-Form factor:ATX.

-Audio output channels:7.1 channels.

-Power:ATX.

-Component for:PC.

-Supported Windows operating system:Windows 10 x64, Windows 11 x64.

-Width:305 mm.

-Depth:244 mm.

-Cables included:SATA.

Specifications

Manual

Tradeinn works with its own stock and with more than 2,000 suppliers connected daily. We update availability in real time to offer you the widest possible catalog, always at the best price. Some products may require additional delivery time depending on supplier availability.

Technology in Asus Prime B660-PLUS D4 motherboard

Energy rating

Warnings

Do you want to configure your own computer?

We´ll set it up for free!

Start

This product is also sold by

Price + shipping

Delivery date

Seller information

Size

Similar alternatives to this product

We think you might be interested in this

Best sellers

Frequently bought together

What our customers are saying about Asus Prime B660-PLUS D4 motherboard

Nice board

2023/05/13

Andrey

It has everything what i needed for decent price. Type-c 3.2 gen2x2 and m.2 3 ssd slot is killer features that none boards of same price has. Thanks a lot for asus, bios was updated from box, so 13 gen cpu started without problems.

Write a review about this product

Review headline

First Name

E-mail

Product rating

Write your review

Your review is too brief! To validate it and receive your CoINNs, please add more details about your experience with the product.

Incorrect please try again You’ve exceeded the allowed number of comments per product for earning CoINNs.

Thank you for leaving your feedback!

Send

I have read and accept the conditions contained in the Privacy Policy on processing of my data to manage my query or request

Your feedback is important to us, your review about this product will be revised by our experts and will be published within 5 working days. Please make sure that your review focus on the product and your experience with it, this will help other customers make more confident decisions. For any issues with an order, please contact us.

Answer the question

Write your answer

The question has already been answered, thank you very much for trying to help another customer. We will count on you for future questions.

Tradeinn Retail Services as the data controller will process your data in order to respond to your query or request. You can access, rectify and delete your data, as well as exercise other rights by consulting the additional and detailed information on data protection in our Privacy Policy.

Write your question

board description

2023/05/22

Julio Cesar de Oliveira

the description of the card is not the same as in the photo and on the asus website, memory slot is 2 and clock speed supported is up to 3200MHZ - in the photo and on the ASUS website there are 4 memory slots and clock speed up to 5,066 (0.c). I was going to buy it now but I need to be sure, I could be wrong

Answer of Andrey

o.c. means overclock, which is possible on -K processors only, maximum stock ram freq is 3200
