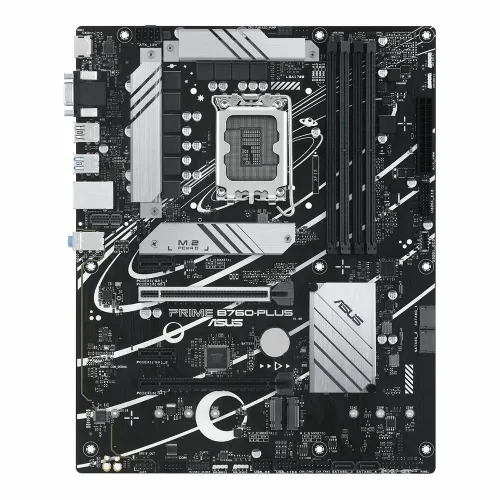

Asus Prime B760-PLUS motherboard

Intel® LGA 1700 Socket: Ready for 13th and 12th Generation Intel® Processors.

Ultra-fast connectivity: PCIe 5.0, three PCIe 4.0 M.2, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2x2 Type-C ® , front USB 3.2 Gen 1 Type-C ® and Thunderbolt™ header support (USB4 ® )

Comprehensive cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+. Exclusive memory technology: ASUS Enhanced Memory Profile II and ASUS OptiMem II

Aura Sync RGB Lighting: Integrated addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synchronized with Aura Sync compatible hardware

ASUS Prime series motherboards are expertly designed to unleash the full potential of 13th Generation Intel® Core™ processors. With a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760-PLUS offers users and PC builders a range of performance optimizations through intuitive software and firmware features.


Features:

Flexibility:
- Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME B760-PLUS motherboard includes flexible tools to fine-tune every aspect of your system, allowing performance settings to perfectly fit the way you work to maximize productivity.

Intelligent control:
- ASUS Intelligent Control makes your PC smart. In addition to taking care of complex settings and dynamically optimizing the essential aspects of your system, it offers cleverly simplified options for PC DIY newcomers, as well as more comprehensive features for seasoned veterans.

Cooling:
- The PRIME B760-PLUS motherboard is designed with multiple integrated heatsinks and a series of hybrid fan headers to ensure your PC stays cool and stable under intense workloads.

M.2 heatsink:
- The M.2 heatsink prevents throttling that can occur with M.2 storage during sustained transfers. The heatsink is held in place by captive screws, and these removable captive screws help reduce the risk of drops or loss during heatsink removal.

Performance:
- The PRIME B760-PLUS motherboard is designed to handle the high core count and bandwidth demands of 13th Generation Intel® Core™ processors. The ASUS B760 motherboard provides all the basics to increase daily productivity, so your system will be ready for action with stable power, intuitive cooling, and flexible data transfer options.

Robust power design:
- Stable power is essential to extracting every last bit of performance from Intel® processors. The PRIME B760-PLUS is designed to meet the demands of these high core count CPUs.

Audio shielding:
- Audio shielding ensures precision analog/digital separation and greatly reduced multi-sided interference.

Dedicated Audio PCB Layers:
- Separate layers for the left and right tracks ensure that both channels deliver consistent, consistent quality.

Premium Audio Capacitors:
- Delivers warm, natural, immersive sound with exceptional clarity and fidelity


Specifications:

CPU:
- Intel® Socket LGA1700 for 13th Gen Intel® Core™ and 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors* Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 ** Support for Intel ® Turbo Boost Max Technology 3.0 depends on CPU types.

Chipset:
- Intel® B760 chipset

Memory:
- 4 DIMM modules, max. 192 GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200 / 5000/ 4800 Non-ECC, Unbuffered Memory*
- Dual channel memory architecture
- Compatible with Intel® Extreme Memory Profile (XMP)

OptiMem II:
- Supported memory types, data rate (speed) and number of DRAM modules vary depending on CPU and memory configuration, for more information, see CPU/Memory Support in the Support tab or visit https:// www.asus.com/support/ .
* DDR5 unbuffered and non-ECC memory supports On-Die ECC function.

Graphics:
- 1 x DisplayPort**
- 1 x VGA port
- 1 x HDMI™ port***
- Graphics specifications may vary between CPU types. Check www.intel.com for updates.
- Supports max. 4K@60Hz as specified in DisplayPort 1.4.
- Supports 4K@60Hz as specified in HDMI™ 2.1.

Expansion slots:
- 13th and 12th Generation Intel® Processors
- 1 PCIe 5.0 x16 Chipset slot
- Intel®
- B760 1 PCIe 4.0 x16 slot (supports x4 mode)
- 2 x PCIe 3.0 x1 slots Note: To ensure compatibility of the installed device, please refer to https://www.asus.com/support/ for the list of supported peripherals.

Storage:
- Total supports 3 M.2 slots and 4 SATA 6 Gb/s ports* Processors
- Intel® 13th and 12th Generation M.2_1 Slot (M Key), Type 2242/2260/2280
- (supports PCIe 4.0 x4 mode)
- Intel® B760 Chipset
- M.2_2 slot (M key), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
- M.2_3 slot (M key), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
- 4 x SATA 6 Gb/s Ports
- * Intel ® Rapid Storage Technology supports SATA RAID 0/1/5/10.
- Ethernet
- 1 Realtek 2.5Gb Ethernet
- Wireless and Bluetooth
- M.2 vertical slot only (Key E, CNVi and PCIe)*

USB:
- Rear USB (6 ports total)
- 1 USB 3.2 Gen 2x2 port (1 x USB Type-C ® )
- 2 USB 3.2 Gen 2 ports (2 x Type-A)
- 1 USB 3.2 Gen 1 port (1 x Type-A)
- 2 USB 2.0 ports (2 type A)
- Front USB (7 ports total)
- 1 USB 3.2 Gen 1 connector (compatible with USB Type-C ® )
- 1 USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
- 2 USB 2.0 headers support 4 additional USB 2.0 ports

Audio:
- High Definition Audio CODEC with Realtek 7.1 Surround Sound*
- Supports: jack detection, multi-streaming, front panel jack remapping
- Supports playback up to 24-bit/192kHz

Audio Features:
- Audio shielding
- Premium audio capacitors
- Dedicated audio PCB layers
- A chassis with an HD audio module on the front panel is required to support 7.1 surround sound audio output.

Rear panel I/O ports:
- 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C ® )
- 2 x USB 3.2 Gen 2 ports (2 x Type-A)
- 1 x USB 3.2 Gen 1 port (1 x Type-A)
- 2 x USB 2.0 ports (2 x Type A)
- 1 x Display Port
- 1 x VGA port
- 1 x HDMI™ port
- 1 x M.2 vertical slot (E key)
- 1 x Realtek 2.5Gb Ethernet port
- 3 x audio connectors

Internal I/O connectors:
- Related to fan and cooling
- 1 x 4-pin CPU fan header
- 1 x AIO pump head
- 4 pin 3 4 pin chassis fan headers

Related to food:
- 1 x 24-pin main power connector 1 x 24-pin power connector
- +12V 8-pin

Storage related:
- 3 M.2 slots (M key)
- 4 SATA 6 Gb/s ports

USB:
- 1 USB 3.2 Gen 1 connector (compatible with USB Type-C ® )
- 1 USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
- 2 USB 2.0 headers support 4 additional USB 2.0 ports

Several:
- 3 Gen 2 addressable headers
- 1 Aura RGB header
- 1 Clear CMOS header
- 1 COM port header
- 1 front panel audio header (AAFP)
- 1 S/PDIF output header
- 1 SPI TPM header (14-1 pin)
- 1 x 20-3-pin system panel header with chassis intrusion function
- 1 Thunderbolt™ head (USB4 ® )

Special features:
- ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Surge protection
- SafeSlot Core+
- Stainless steel rear I/O

ASUS Q-Design:
- Q-DIMM
- Q-LED Core
- Q-Slot

ASUS Thermal Solution:
- M.2 heatsink
- VRM Heatsink Design

ASUS EZ DIY:
- ProCool

AuraSync:
- Aura RGB header
- Gen 2 addressable headers

Software Features:
- ASUS Exclusive Software

Armory Crate:
- AuraCreator
- Aura Sync
- Fan Xpert 2+
- Energy saving

AI Suite 3:
- DIGI+ VRM
- PC Cleaner
- ASUS CPU-Z
- Norton 360 Deluxe (60-day free trial)
- WinRAR
- UEFI BIOS
- ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode

BIOS:
- 128Mb Flash ROM, UEFI AMI BIOS

Manageability:
- WOL by PME, PXE

Accessories:
- Cables
- 2 SATA 6 Gb/s cables

Several:
- 1 I/O protector
- 1 pack of M.2 rubber
- 2 packs of screws for M.2 SSD
- Documentation
- 1 user guide

OS:
- Windows® 11, Windows® 10 64-bit

Form factor:
- ATX form factor
- 12 inches x 9.6 inches (30.5cm x 24.4cm)
