Asus RS300-E12-PS4 Network-NAS Hard Driver

Intel Xeon E-2400 processors / Intel Xeon 6300 processors.

Designed for small- to medium-sized businesses (SMBs) and cloud-service providers.offering robust and secure solutions.

These processors support up to eight cores and 16 threads.with a maximum frequency of 5.6 GHz and a 95 W TDP.ensuring rapid data processing and application responsiveness.

They support up to 128 GB of DDR5 4400 MT/s memory (Intel Xeon E-2400) or up to 4800 MT/s memory (Intel Xeon 6300) and PCIe 5.0 interfaces.providing server-grade 24/7 reliability for business-critical services and customer data.and cost-effective performance for entry-level bare-metal cloud services.ASUS RS300-E12-PS4.

Motherboard chipset:Intel C262.

Processor socket:LGA 1700.Intel.

Xeon series:E-2400.

Supported memory types:DDR5-SDRAM.Supported.

DIMM module capacities:8GB.16GB.32GB.

Maximum internal memory:128 GB.

Storage drive sizes supported:3.5.Supported storage drive types:HDD & SSD.

Supported storage drive interfaces:M.2.Serial ATA III.Serial Attached SCSI (SAS).

Chassis type:Rack (1U).

Product colour:Silver.

LED indicators:Power.Reset.HDD.

Power supply:350 W.

AC input voltage:100 - 240 V.

AC input frequency:50/60 HzPowered by eight-core Intel Xeon E-2400-series processor and Intel Xeon 6300 series processor with support for up to 95 W TDP.

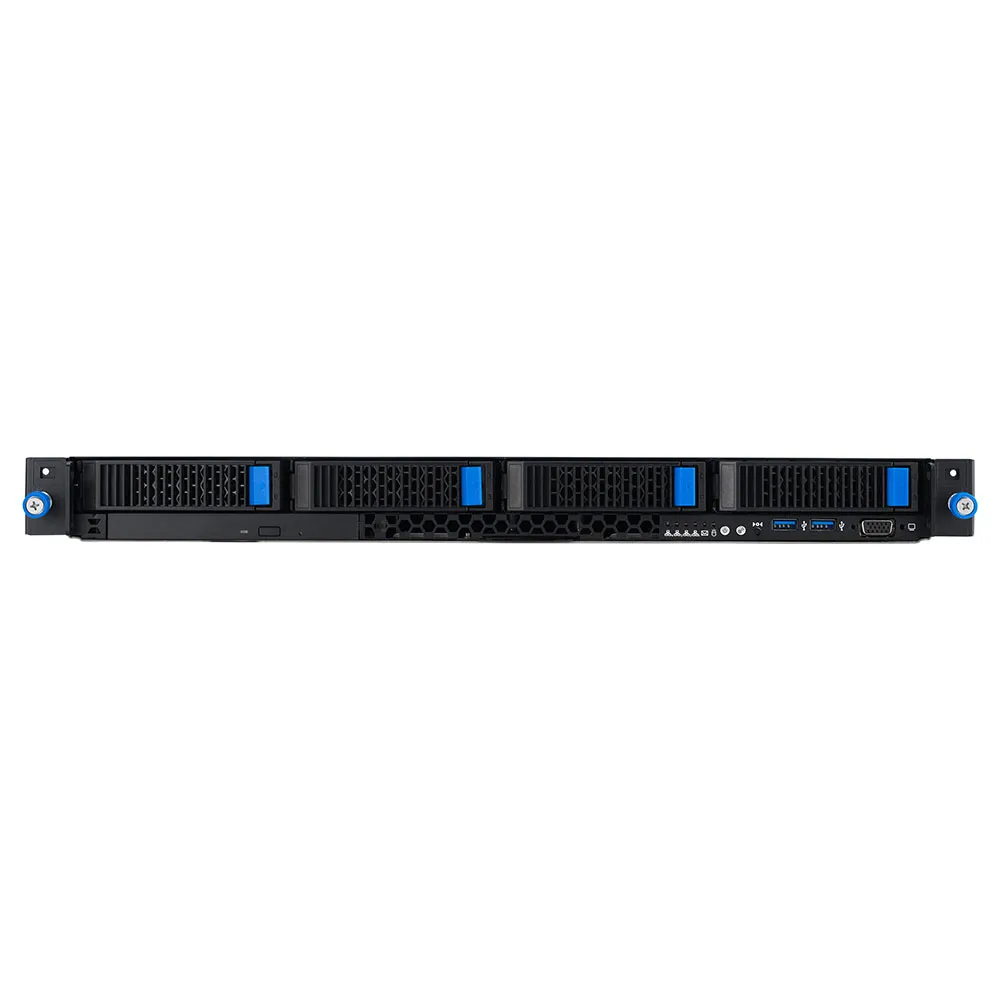

Four 3.5-inch or 2.5-inch hot-swap drives on front panel and one M.2 to enable extensive storage.

Up to one PCIe 5.0 slots and one PCIe 4.0 proprietary slot to drive higher bandwidth.

Simplified system maintenance with a 350 W 80 PLUS Gold power supply.

Dual Intel I210-AT gigabit Ethernet with teaming support.

Onboard ASUS ASMB11-iKVM for out-of-band management with ASPEED AST2600 controller.

Integrated PFR FPGA as the platform Root-of-Trust solution for firmware resiliency.

Chassis-intrusion for enhanced physical security
