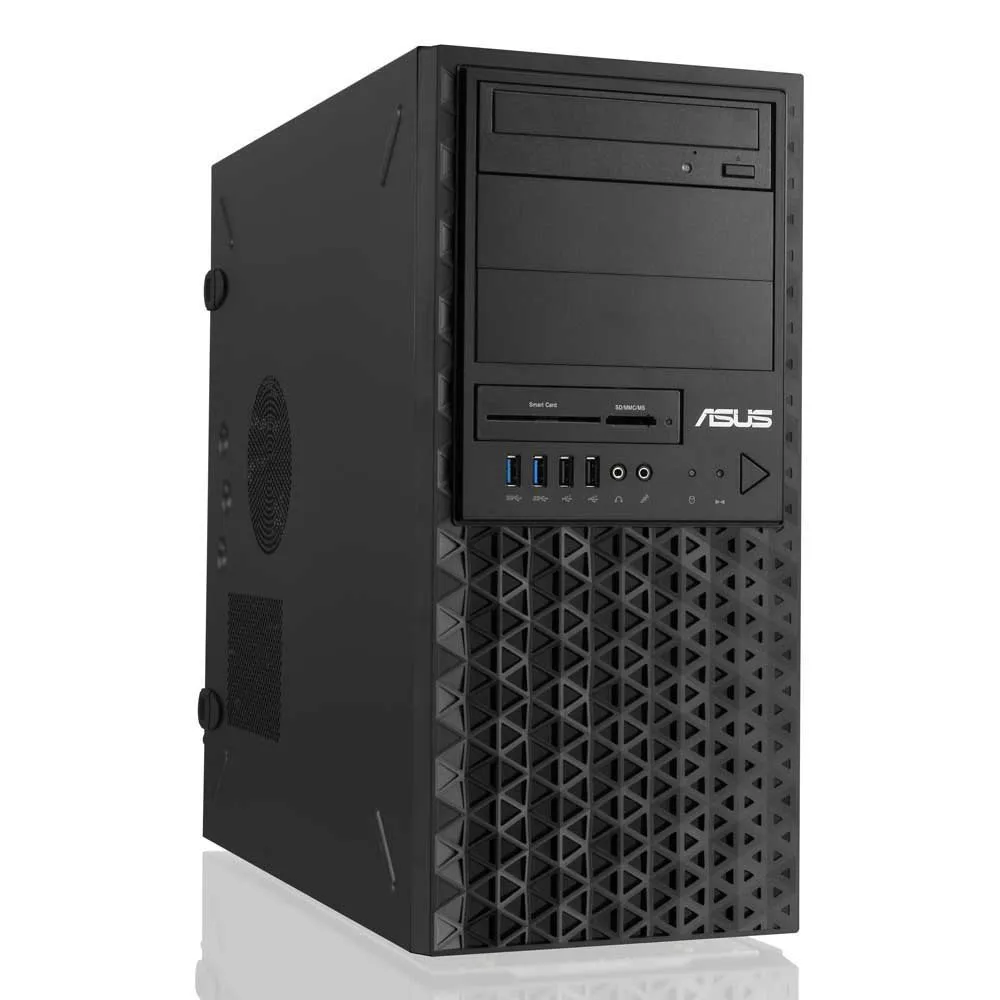

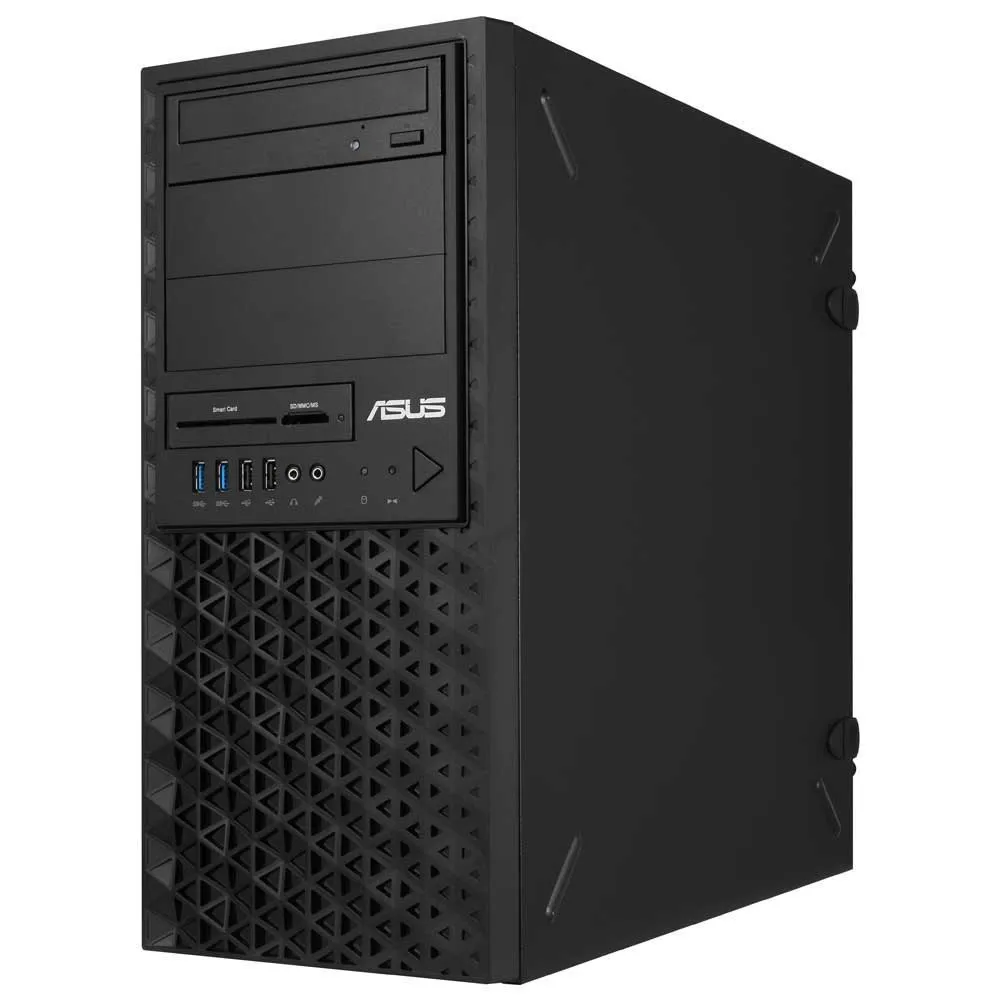

Asus TS100-E11-PI4/300W server

EU Plug.

Intel® Xeon® E workload-optimized server flexible storage expandability.

Intel Xeon E-2300 processors.

Small businesses require reliability and security to support their critical business and customer data needs.

Available with up to eight cores and featuring a TDP of up to 95 watts, Intel Xeon E-2300 processors deliver essential server performance, expandability and reliability small businesses to support critical business and customer data needs.

PCIe 4.0 Ready.

PCI Express® (PCIe®) 4.0 delivers 16 GT/s bandwidth, which is double the speed of PCIe 3.0, offering lower power consumption, better lane scalability and backwards compatibility.

ASUS TS100-E11-PI4 servers are PCIe 4.0 ready to support a diverse array of graphics, storage and networking.

- enabling flexible scalability for demanding or increasing workloads.

Enhanced security.

ASUS TS100-E11-PI4 servers integrate PFR FPGA as the platform Root-of-Trust solution for firmware resiliency to prevent from hackers from gaining access to infrastructure.

ASUS security solutions are fully compliant with the 2018 National Institute of Standards and Technology (NIST) SP 800 193 specification.

In addition, all TS100-E11-PI4 servers also include support Trusted Platform Module 2.0 (TPM 2.0) to secure hardware through integrated cryptographic keys and offer regular firmware update for vulnerabilities.

- Platform Firmware Resilience (PFR) module must be specified at time of purchase and is factory-fitted.

It is not for sale separately.

High-resolution HDMI monitoring.

TS100-E11-PI4 features a HDMI 1.4 port directed from CPU to offer higher-resolution monitoring and easier maintenance for IT administrators in business environments.

A VGA port directed from BMC is also available for dual-display monitoring.

Dual Ethernet Bandwidth.

Featuring dual onboard LAN ported by Intel I210-AT Ethernet Controller, TS100-E11-PI4 servers provide server-grade connectivity and supports high-density, high-bandwidth, low-latency access-layer networks to ensure faster transfers of large-size files used in data-intensive applications.

Server-management Solution.

ASUS ASMB10-iKVM.

ASUS ASMB10-iKVM is the latest server-management solution from ASUS, built upon the ASPEED 2600 chipset running on the latest AMI MegaRAC SP-X.

The module provides various interfaces to enable out-of-band server management through WebGUI, Intelligent Platform Management Interface (IPMI) and Redfish® API.

ASUS Control Center.

ASUS Control Center (ACC) is a centralized and integrated IT-management platform for monitoring and controlling ASUS servers, workstations and mini PCs.

ACC enables remote BIOS updates, monitoring of multiple systems via mobile devices, and one-click software updates and dispatching, allowing easier server management for any IT infrastructure.

ASUS TS100-E11-PI4.

Motherboard chipset:Intel C256, Processor socket:LGA 1200 (Socket H5), Processor manufacturer:Intel.

Supported memory types:DDR4-SDRAM, Supported DIMM module capacities:8GB, 16GB, 32GB, Maximum internal.

Memory:128 GB.

Storage drive sizes supported:2.5,3.5,M.2, Supported storage drive types:HDD & SSD, SSD form factor:M.2.

Ethernet interface type:Fast Ethernet, Gigabit Ethernet, Ethernet LAN data rates:10,100,1000 Mbit/s.

Chassis type:Tower, Product colour:Black, Certification:BSMI, CE, FCC(Class B).

Powered by the Intel® Xeon® E platform.

95W CPU and up to 128GB memory support (4 DIMMs).

High scalability with two PCIe Gen4 slots and two PCIe Gen3 slots.

Flexible storage design with internal 5.25´´ to 3.5´´/2.5´´ drive cage (Optional).

Dual Intel® Gigabit Ethernet with teaming support.

Supports the latest 10Gb/s USB 3.2 Gen2 onboard for high transfer speed.

Complete server management with ASUS Control Center.

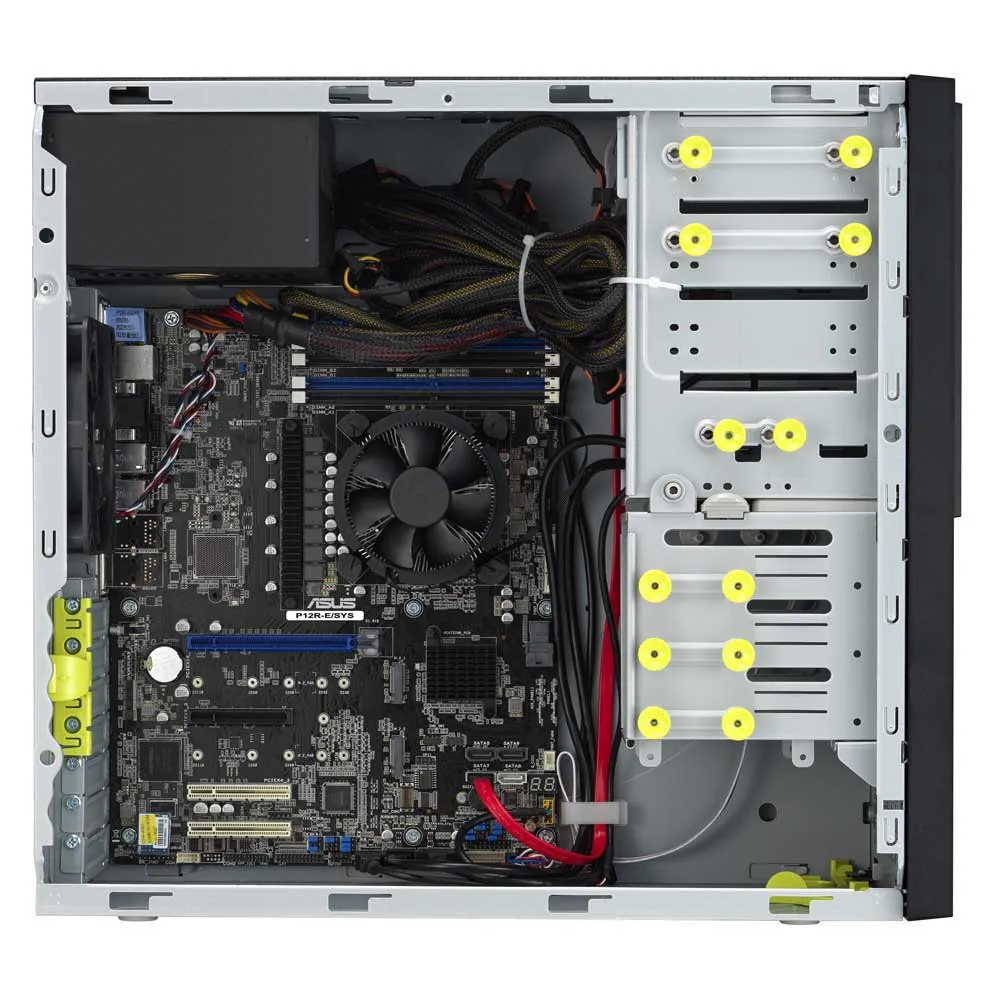

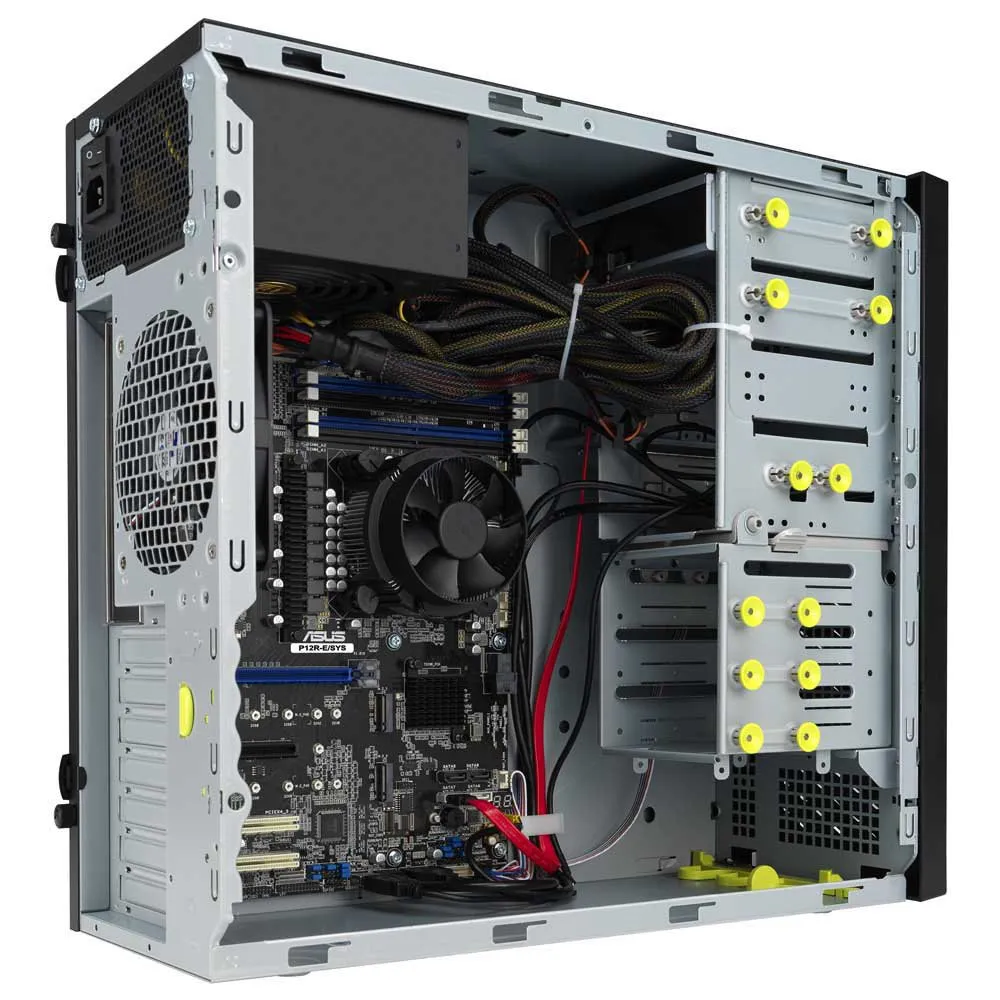

Easily serviceable design.

Design for SMB, Web/Print/File/Mail Server, entry storage applications.

Onboard audio for workstation applications.
