Aten CS-1308 switch

EU Plug.

Characteristics.

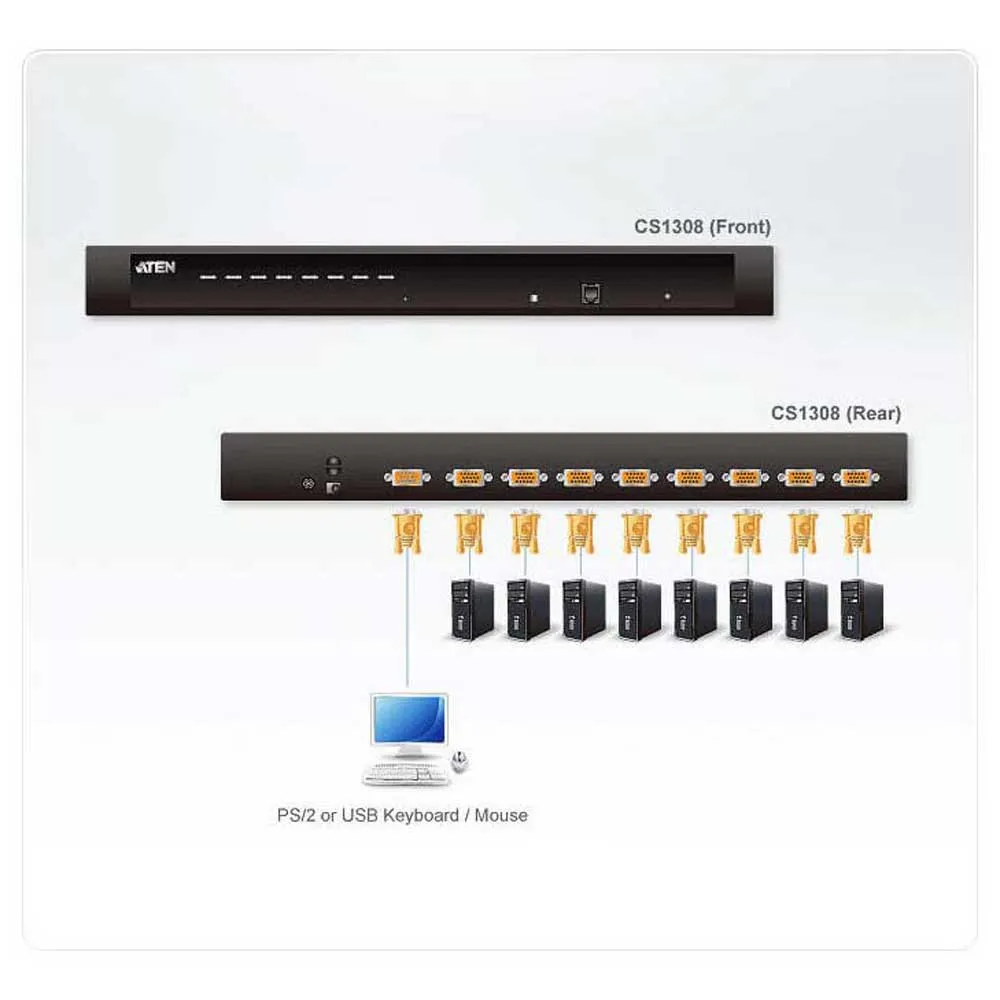

-One USB -PS/2 console controls 8 computers- Cascadeable up to 2 levels.

-, controls up to 64 computers- Dual interface, supports computers with USB and PS/2 console- Multiplatform support Windows 2000/XP/Vista, Linux, Mac, and Sun- Video DynaSync™.

- this exclusive ATEN technology eliminates problems that can arise with screens when starting computers and optimizes resolution when switching ports.

- Supports USB keyboards for PC, Mac and Sun.

- Automatic interface detection USB or PS/2.

- USB and PS/2 keyboard and mouse emulation allows computers to start even if the KVM focus is on another computer.

- Superior video quality, up to 2048 x 1536 DDC2B.

- Computer selection via front panel, keys quick access and OSD- Two levels of security, only authorized users can see and control the servers, up to 4 users and an administrator with separate profiles for each one- Auto Scan mode to monitor selected computers- HotPlug, connect or disconnect computers without need to restart the system- On/off of the acoustic signal through shortcut key and on-screen menu- Updatable firmware- Does not require installing any software on the computers- Designed for desktop or 19´´ rack mounting (1U).

- Cascade function only works with USB KVM cable set connections.

Packaging Contents.

-1 CS1308 KVM Switch with rack mounting kit- 1 Firmware Update Cable- 1 Console Cable- 1 Rubber Mounts (4-piece set)- 1 Power Adapter- 1 mounting kit- 1 User Guide.

Specifications:

-Built-in screen:No.

-Number of controlled computers:8.

-Keyboard port type:No.

-Mouse port type:No.

-Video port type:VGA.

-DC-in jack:Yes.

-VGA Ports (D-Sub):9.

-Depth:160 mm.

-Height:44 mm.

-Weight:1.89 kg.

-Width:433 mm.

-Energy consumption:5 W.

-Operating temperature range:0 -50 °C.

-Storage temperature range:-20 -60 °C.

-Relative operating humidity:0 -80%.

-Sustainability certificates:RoHS.

-Ethernet:No.

-User manual:Yes.

-Connectivity technology:Cable.

-Compatible operating systems:Windows 2000/XP/Vista, Linux, Mac, Sun.

-Power requirements:DC 5.3 V.

-Input and output ports (I/O):1 x RJ11.

-Product color:Black.

-Housing material:Metal.

-LED Indicators:Power.

-RoHS Compliant:Yes.

-Rack mounting:Yes.

-Rack capacity:1U.

-Maximum resolution:2048 x 1536 Pixels.

-Scanning interval:255 s.
