Axagon PCEE-GRF PCI-E Expansion Card

AXAGON PCEE-GRF PCI-Express network card adds high speed Gigabit Ethernet connection to your desktop computer.

It enables a transmission speed of 10/100/1000 Mbit/s.

The network card is equipped with proven Realtek 8111 chipset.

It ensures seamless compatibility with most operating systems.

Gigabit network card connects the computer to the Internet or a computer network, adds the missing RJ-45 connector, add another network card or replaces the original defunct network connection.

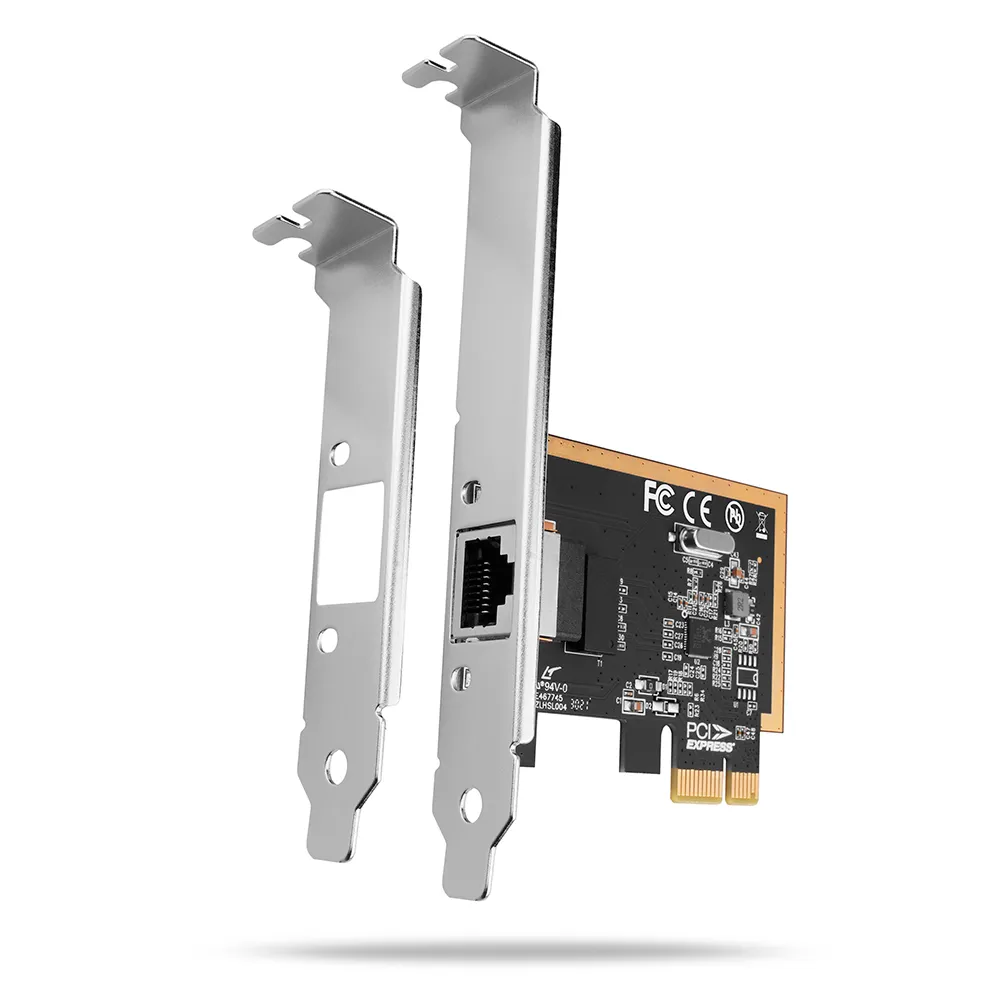

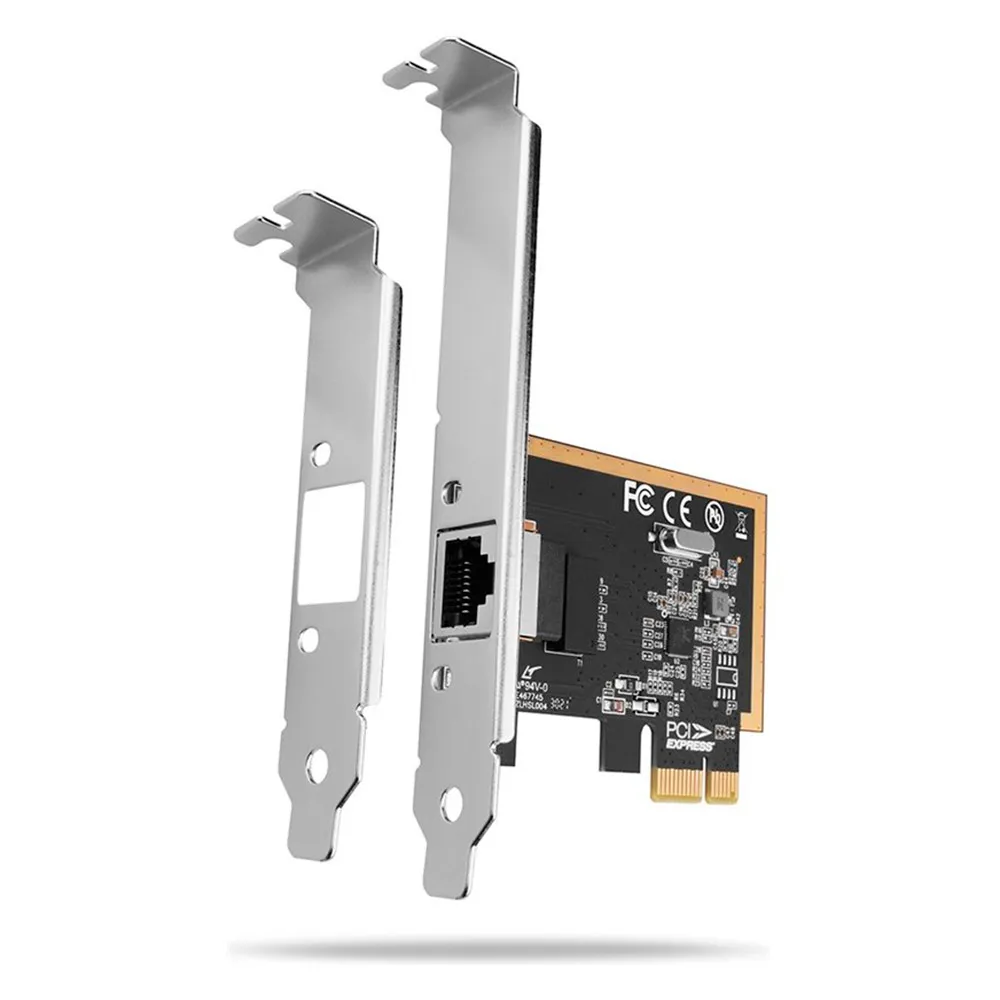

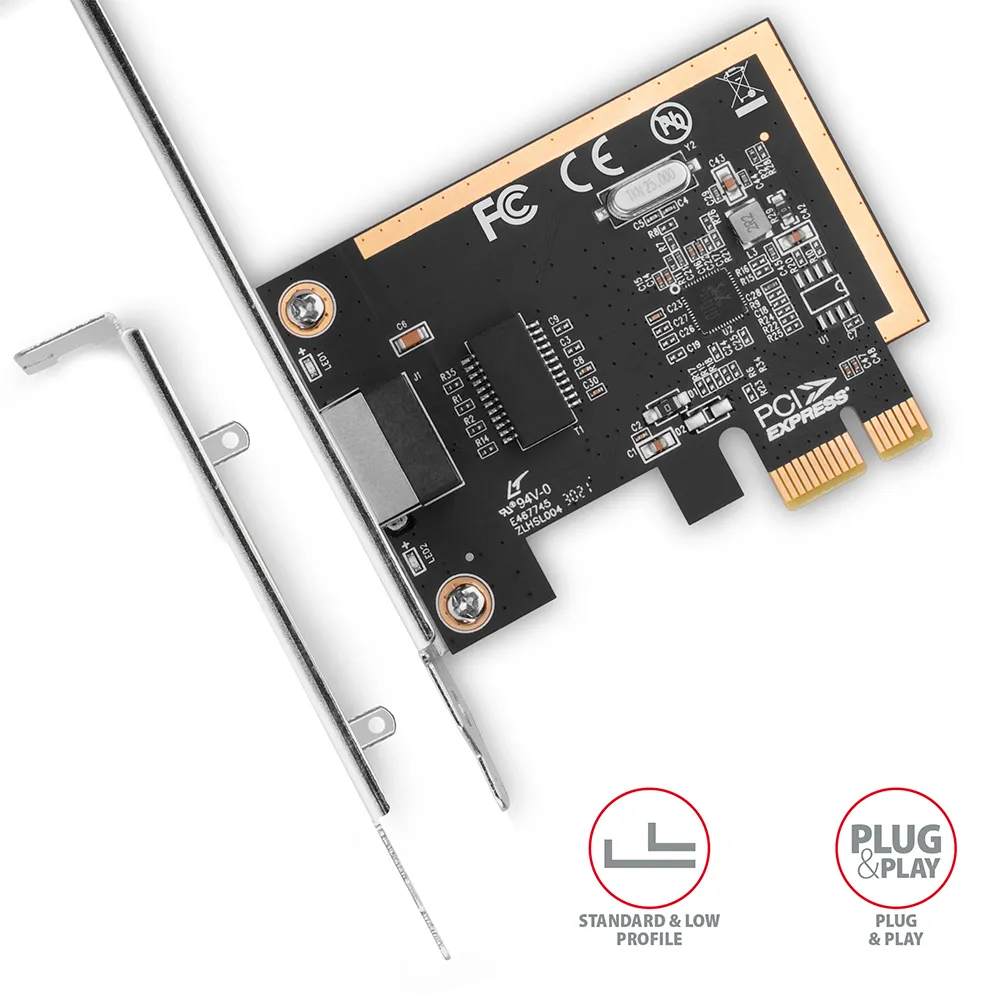

In addition to an adapter with a standard size bracket, the package also includes a low profile bracket which allows the mounting into low profile cases.

Input:

• PCI-Express 1.1 interface, PCI-Express 1.0a / 2.0 / 2.1 / 3.0 compatible.

• Number of lines 1-Lane (x1), compatible with x1 / x4 / x8 / x16 PCIe slots.

• A bandwidth of 1-Lane PCI-Express 1.1 bus 2.5 Gb/s.

Output:

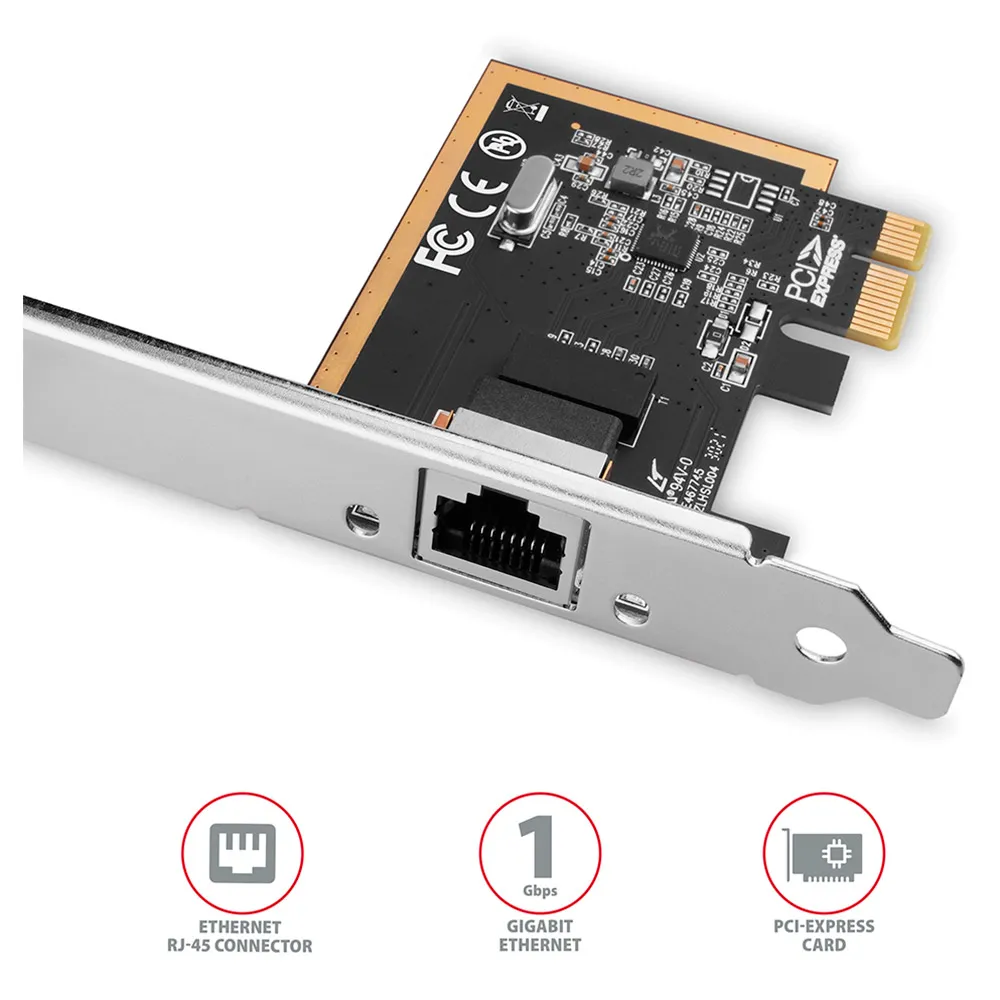

• Gigabit Ethernet interface with RJ-45 connector for UTP or STP cable connection.

• Supported transmission rates for the Ethernet interface 10/100/1000 Mb/s.

• Supported IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T specifications.

Other features:

• Full Plug and Play support.

• 10/100/1000 Mbit/s auto-detection.

• Supports Microsoft NDIS5, NDIS6 Checksum Offload (IPv4, IPv6, TCP, UDP) to reduce processor load.

• Supports Segmentation Task-offload (Large send v1 a Large send v2).

• Supports full-duplex transmission s IEEE 802.3x flow control.

• Supports IEEE 802.1P Layer 2 priority encoding.

• Supports IEEE 802.1Q VLAN tagging.

• Supports IEEE 802.3az-2010 (EEE) Energy Efficient Ethernet - reduce power consumption at standby.

• Supports Auto MDI/MDIX - crossover detection and auto-correction eliminate the need for crossover cables.

• Supports hardware ECC (Error Correction Code), CRC (Cyclic Redundancy Check) function.

• Supports Pair Swap/Polarity/Skew Correction.

• Two LEDs for indicating network activity and connection.

• The Realtek RTL8111E/F chipset is used.

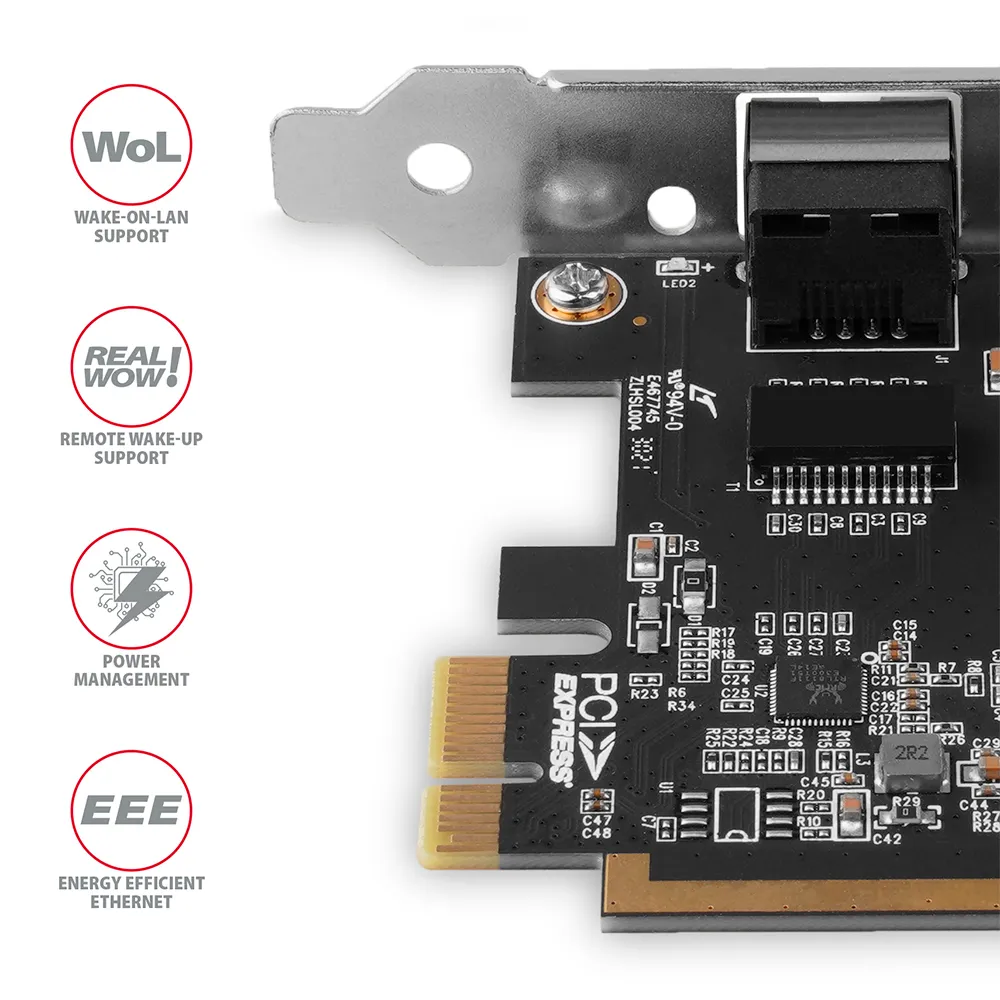

Wake-on-LAN support in various modes:

• Supports sleep mode and remote wake up via AMD Magic packet, Microsoft Wakeup Frame, Microsoft Wake Packet Detection and also Link Change wake-up.

• Supports ECMA-393 proxZzzy® standard for sleeping hosts to manage the network connection of sleeping guests using proxy servers.

Advanced Power Management features:

The network card supports advanced power management to reduce losses during standby.

It also supports advanced power saving when the Ethernet cable has been disconnected.

• Supports Advanced Configuration Power management Interface (ACPI).

• Supports Power Management offload (ARP & NS).

• Supports PCI MSI (Message Signaled Interrupt) and MSI-X.

Supported operating systems:

MS Windows XP / Vista / 7 / 8 / 8.1 / 10 / 11 and later, Windows Server 2003 / 2008 / 2012 / 2016 and later (supported are all 32- and 64-bit versions of OS Windows), MS DOS, MacOS X 10.4.x and higher, Linux kernel 2.4.x / 2.6.x / 3.x / 4.x, FreeBSD 7.x / 8.0 / 9.0, SCO Unix 5.0.6 / 5.0.7, SCO OpenServer 6, UnixWare 7.1.x, Novell server OS 5.x / 6.x, Novell client for DOS (ODI driver).

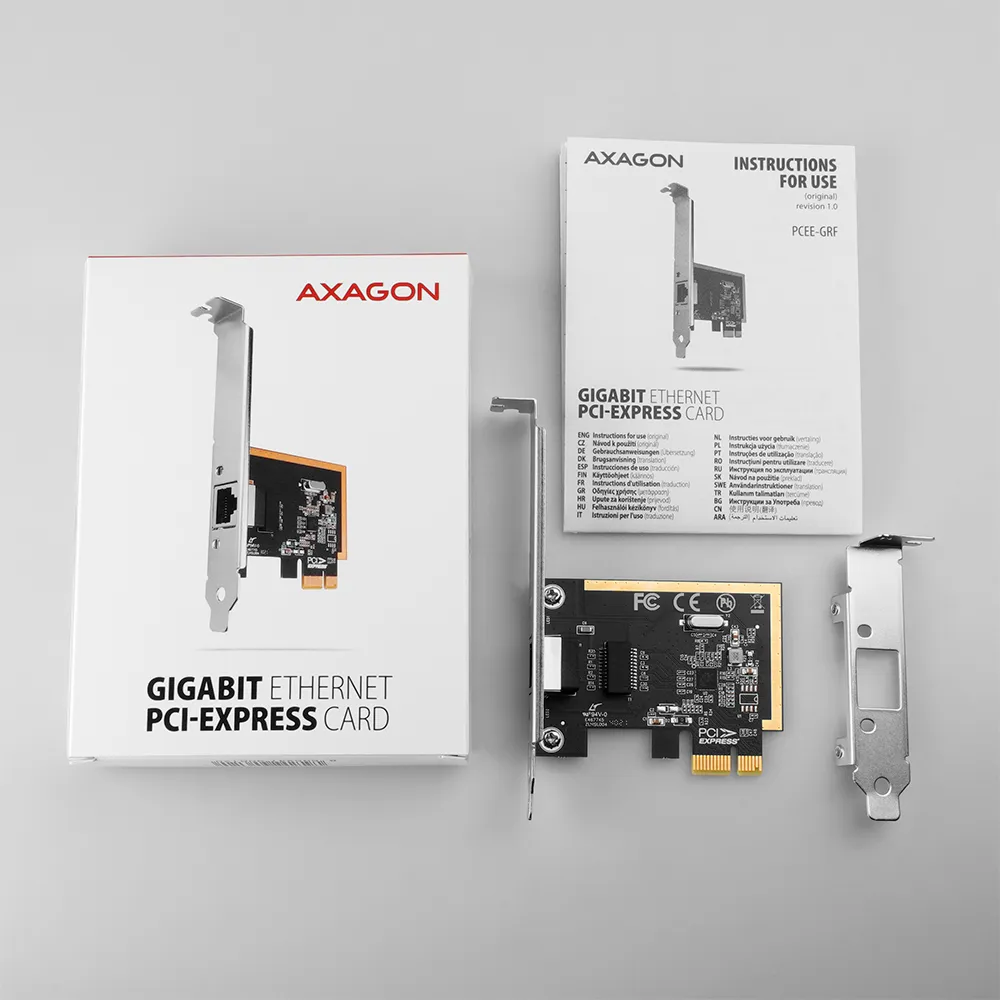

Package contains:

• PCI-Express Gigabit Ethernet card with a standard bracket.

• low profile bracket.

• multilanguage quick guide CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / BG / CN / TR / ARA.

• packed in a cardboard box.

Axagon PCEE-GRF PCIe - Gigabit Ethernet adapter Realtek 8111F w.

SP & LP.

Internal.

Connectivity technology:Wired, Host interface:PCI Express, Interface:Ethernet.

Maximum data transfer rate:1000 Mbit/s.
