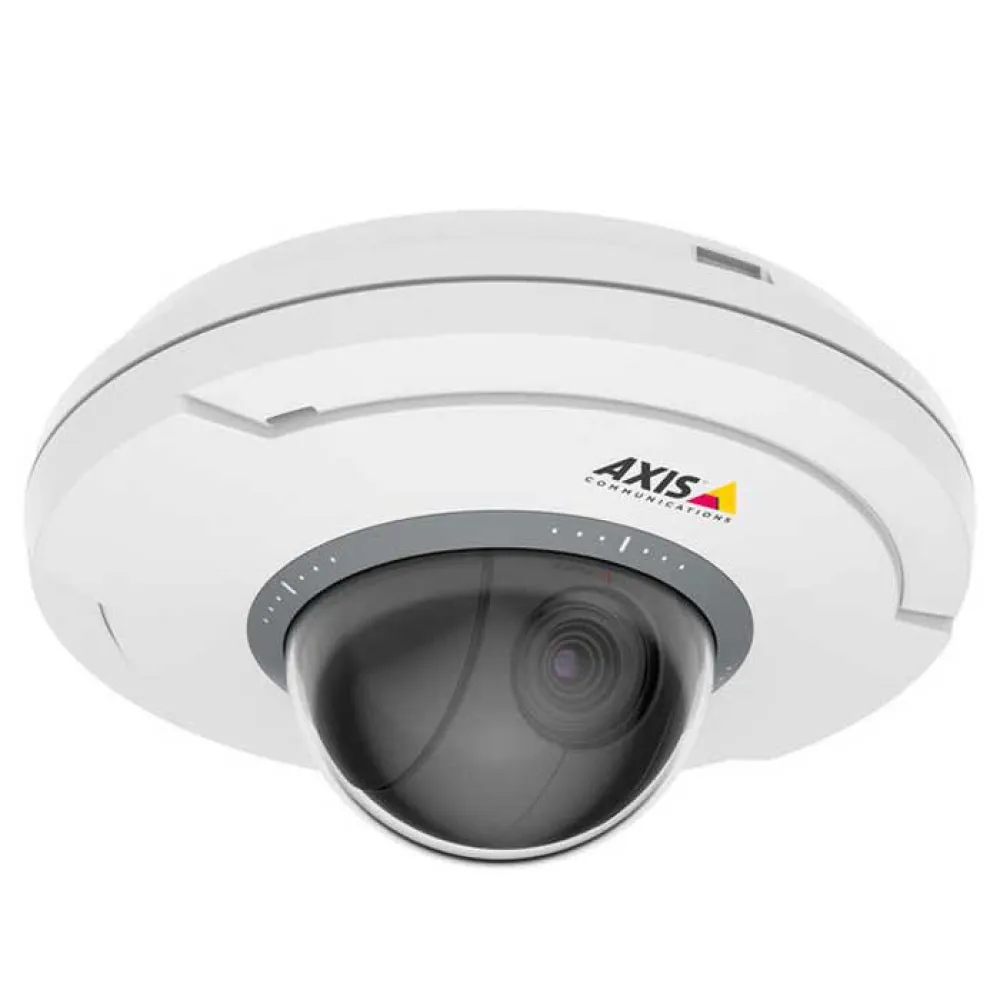

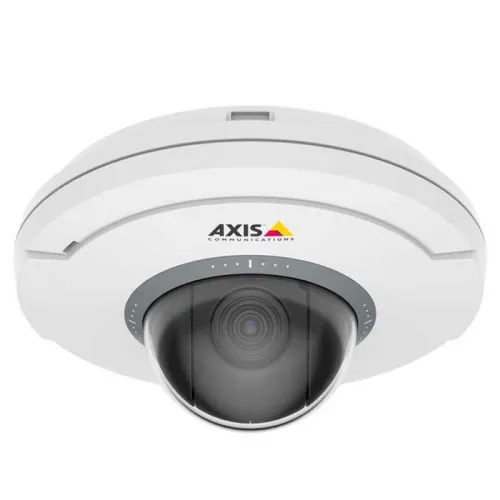

Axis M5075-G HD security camera 2.8 mm

Palm-sized PTZ camera with 5x optical zoom and wireless I/O

AXIS M5075-G is a discreet, palm-sized PTZ camera designed to fit in anywhere. Perfect for smaller installations, it offers an affordable way to see the big picture – and all the important details

Great coverage and image quality:
- With a diameter of just 130 x 63 mm (5.1 x 2.5 in), AXIS M5075-G blends discreetly into any environment. Featuring a built-in microphone, it enables audio analytics such as scream and glass break detection. This compact and discreet palm-sized PTZ camera offers HDTV 1080p/2 MP resolution and includes PTZ functionality with 5x optical zoom and 12x digital zoom so you can benefit from sweeping overviews and zoom in to get the details. Autofocus ensures detailed, sharp images—every time. And constant angle focusing ensures the field of view doesn’t change. Furthermore, built-in cybersecurity features help prevent unauthorized access and safeguard your system.

Smart functions:
- AXIS M5075-G offers wireless I/O connectivity with Z-Wave® devices and can communicate with up to 32 Z-Wave® devices (six in VMS) in a system setup. If, for example, a door or a window is opened, the device can automatically alert the camera to change its preset position. Plus, you don’t need to manually turn on lights, heating, or air conditioning—you can use Z-Wave Plus to automatically activate these devices. In retail applications, it lets you monitor temperatures in freezers so you can take action – before it’s too late. And, because all information from Z-Wave is transferred to the VMS and displayed as overlays in the video stream, you’ll always know what’s happening.

Built-in analytics:
- This plug & play functionality is a cost-effective way to gain insight for more efficient and effective security. It includes built-in analytics that transforms the camera into a business tool to help you make smart decisions about operations and resource allocation. For instance, it includes audio volume detection which uses the built-in microphone to trigger an event. Scream detection triggers an event when the microphone detects a scream in the camer´s proximity. Furthermore, AXIS Video motion detection triggers an event when movement is detected in a predefined area.


Features:

- PTZ with 5x optical zoom, 12x digital zoom
- Autofocus and WDR
- Built-in analytics
- Zipstream with H.264/H.265
- Z-Wave for smart home devices


Technical specifications:

Camera:
- Image sensor: CMOS
- Image sensor size: 1/2.8
- Wide dynamic range: Forensic WDR
- Min illumination/ light sensitivity (Color): 0.1 lux

General:
- Local storage (memory card slot): Yes
- Operating temperature: 0 to 45 °C
- IP rating: IP51
- Designed for repaint: Yes

Video:
- Max video resolution: 1920x1080
- Max frames per second: 50/60
- Day and Night functionality: Yes

Lens:
- Focal length: 2.2 - 11.0 mm
- Horizontal field of view: 71 - 14 °
- Vertical field of view: 40-8 °

Pan, Tilt, Zoom:
- Pan range: +/-179
- Tilt range: 90
- Optical zoom: 5
- Digital zoom: 12

Compression:
- Zipstream: Yes
- H.264: Baseline, High, Main
- H.265: Yes
- Motion JPEG: Yes

Audio:
- Audio Support: Yes
- Built-in microphone: Yes

System Integration:
- Audio detection: Yes
- Active tampering: Yes

Network:
- PoE Class: 3

Security:
- Signed firmware: Yes
