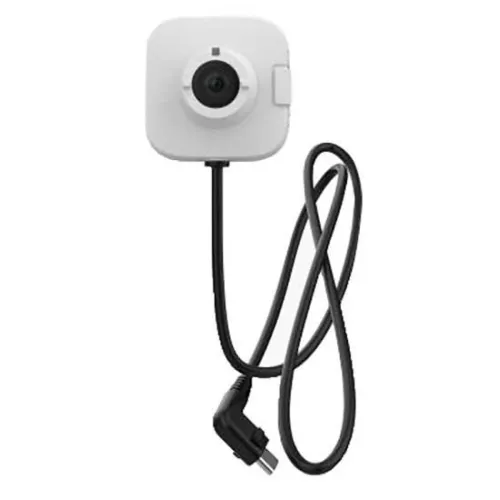

Axis TW1201 Sensor Module

Features:

- Extremely Small And Discreet - 45 X 45 X 23 Mm (1.8 X 1.8 X 0.9 In).

- Lightweight - Only 40g (0.09lb.).

- Same Optical Performance As Axis W100.

- Flexible Magnet Mount.

- For Use With Axis W100.

Specifications:

Photographic Camera:

- Sensor Type:

Cmos.

- Minimum Lighting:

0.1 Lx.

- Maximum Resolution:

1920 X 1080 Pixels.

- Vertical Field Of View:

82°.

- Angle Of View, Horizontal:

141.4°.

- Shutter Speed:

1/32000.

- 1/25s.

- Fixed Focal Length:

2.1mm.

- Wide Dynamic Range (Wdr):

Yes.

- Maximum Frame Rate:

30 Pps.

- Video Compression Formats:

Avc,H.264,Mpeg4 Design:

- Shell Material:

Plastic.

- Ip Code (International Protection):

Ip54 Characteristic:

- Connectivity.

Technology:

Wired.

- Mounting Type:

Magnet.

- Cable Length:

0.8m.

-.

Certification:

En 55032 Class B, En 55035, Fcc Part 15 Subpart B Class B, Ices-3(B)/Nmb-3(B), Rcm As/Nzs Cispr 32 Class B, Iec/En/Ul 62368-1, Can/ Csa C22.2 No.

62368-1, En 55032 Class B, En 55035, Fcc Part 15 Subpart B Class B, Ices-3(B)/Nmb-3(B), Rcm As/Nzs Iec 60068-2-1, Iec 60068-2-2, Iec 60068-2-14, Iec 60068-2-78, Iec/En 60529 Ip54cispr 32 Class B Energy Control:

- Feeding:

Usb Environmental Conditions:

- Operating Temperature Range:

-20.

- 55°C.

- Storage Temperature Range:

-40.

- 65°C.

- Relative Humidity Range For Operation:

0.

- 95%.

- Relative Humidity Range During Storage:

10.

- 90% Weight And Measurements:

- Width:

45mm.

- Depth:

23mm.

- Height:

45mm.

- Weight:

40g.
