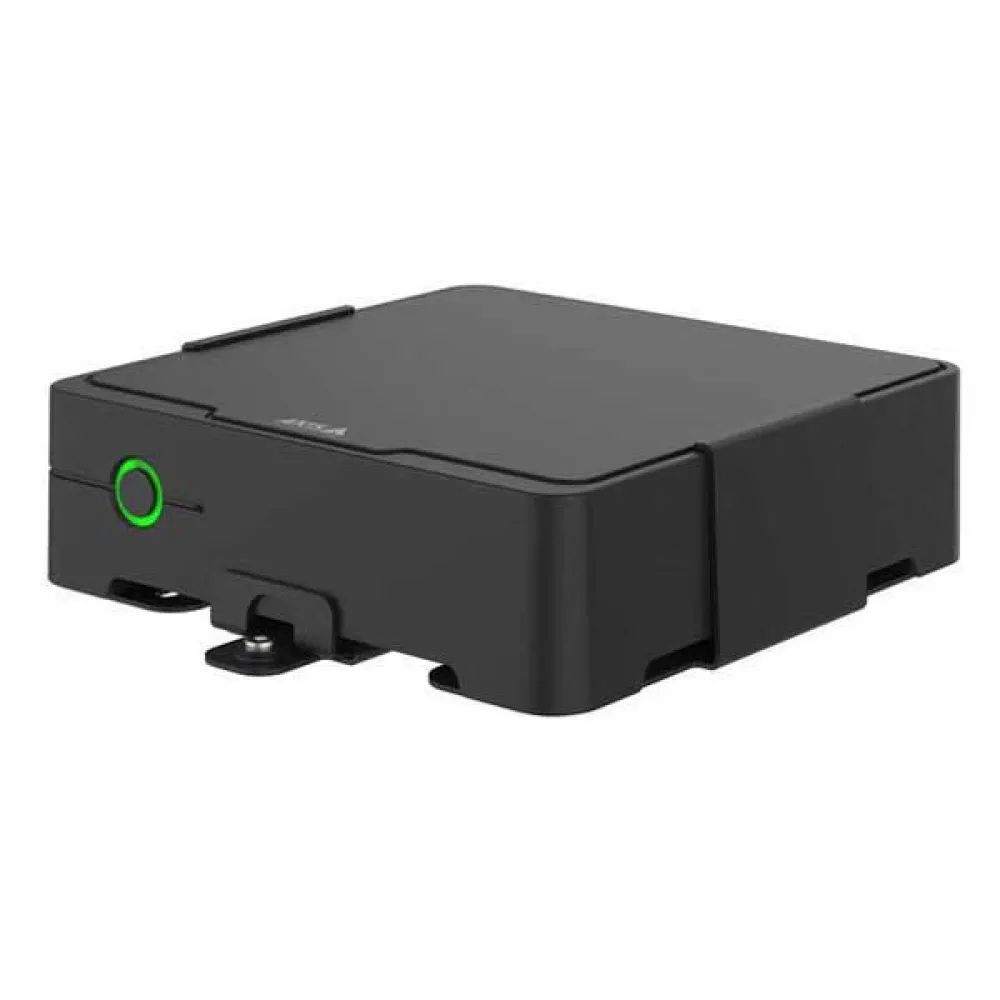

Axis W800 Controller Surveillance System

AXIS W800 System Controller is the central integration and management point of the body worn solution.

The modular design of the system controller ensures a flexible and highly scalable system.

A single AXIS W800 supports up to five docking stations and 40 cameras but can easily be extended with additional system controllers for larger body worn systems.

Specifications:

Network:

- Security:

Password Protection, Https Encryption, Ieee 802.1x (Eap-Tls) Network Access Control, Digest Authentication, Brute Force Delay Protection.

- Network Protocols:

Ipv4, Ipv6 Usgv6, Https, Tls, Bonjour, Dns, Ntp, Tcp, Udp, Icmp, Dhcp, Arp.

- Throughput:

Camera To System Controller:

100 Mbit/S (Per Camera) System Controller To Content Destination:

1 Gbit/S.

- System Integration:

Application Programming Interface:

Body Worn Integration Api Content Destinations:

- Evidence Management Systems.

- Third Party Evidence Management Software From Axis Application Development Partners General:

- Cybersecurity:

Signed Firmware, Secure Boot, Protection Of Cryptographic Keys With Fips 140-2 Certified Tpm 2.0 Module, Cjis Compliant Encrypted Ssd (Aes256) Aes256 Encryption Standard, End To End Encryption Of Contentb Compliant With Security Of Connected Devices.

User Is Required To Set Password At First Time Use.

- Casing:

Ip3x-Rated, Aluminum And Plastic Casing.

- Mounting:

Mounting Bracket.

- Sustainability:

Pvc Free.

- Power:

12 V Dc, Typical 12.25 W, Max 16 W Connectors:

- 1 X (Uplink) Shielded Rj45 10base-T/100base-Tx/1000base-T.

- 5 X (Device Network) Shielded Rj45 10base-T/100basetx/1000base-T.

- Usb 2.0dc Connector For 12 V Dc Input.

- Storage:

480 Gb Ssd Operating Conditions:

- 0 °C To 40 °C (32 °F To 104 °F).

- Humidity 10-85% Rh (Non-Condensing) Storage Conditions:

-40 °C To 65 °C (-40 °F To 149 °F).

- Humidity 5-95% Rh (Non-Condensing) Storage Conditions:

-40 °C To 65 °C (-40 °F To 149 °F).

- Humidity 5-95% Rh (Non-Condensing) Dimensions:

Axis W800 System Controller:

- Height:

53 Mm (2.1 In).

- Width:

180 Mm (7.1 In).

- Length:

180 Mm (7.1 In) Mounting Bracket:

- Height:

57 Mm (2.2 In).

- Width:

185 Mm (7.3 In).

- Length:

198 Mm (7.8 In) Weight:

- Axis W800 System Controller:

765 G (1.7 Lb).

- Mounting Bracket:

408 G (0.90 Lb) Optional Accessories:

- Axis Tw8100 Rack Mount:

External Secured Rfid Card Reader 125khz + 13.56mhz With Nfc (Usb).
