Be Quiet Shadow Rock TF2 CPU Fan

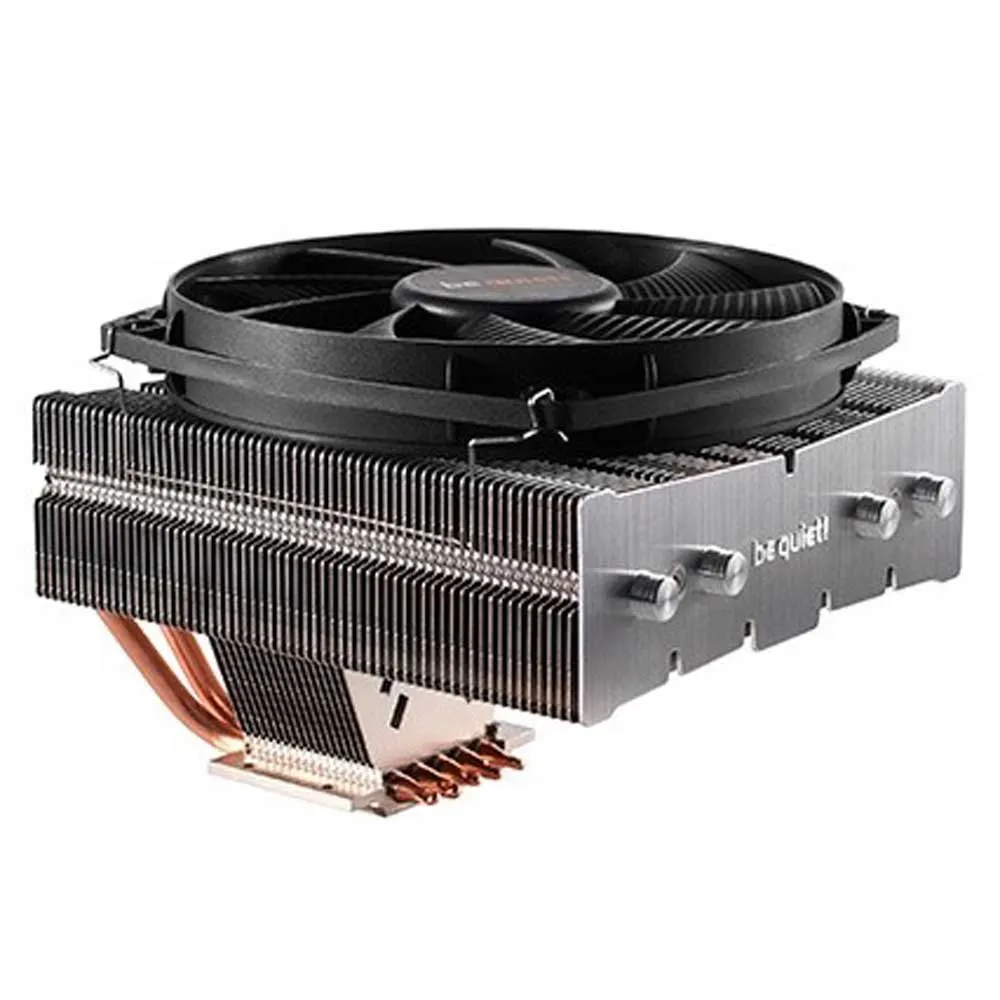

Shadow Rock TF 2 is the perfect cooler for PC systems with restricted space. It offers the best mix of performance and price in the premium compact CPU cooler segment.

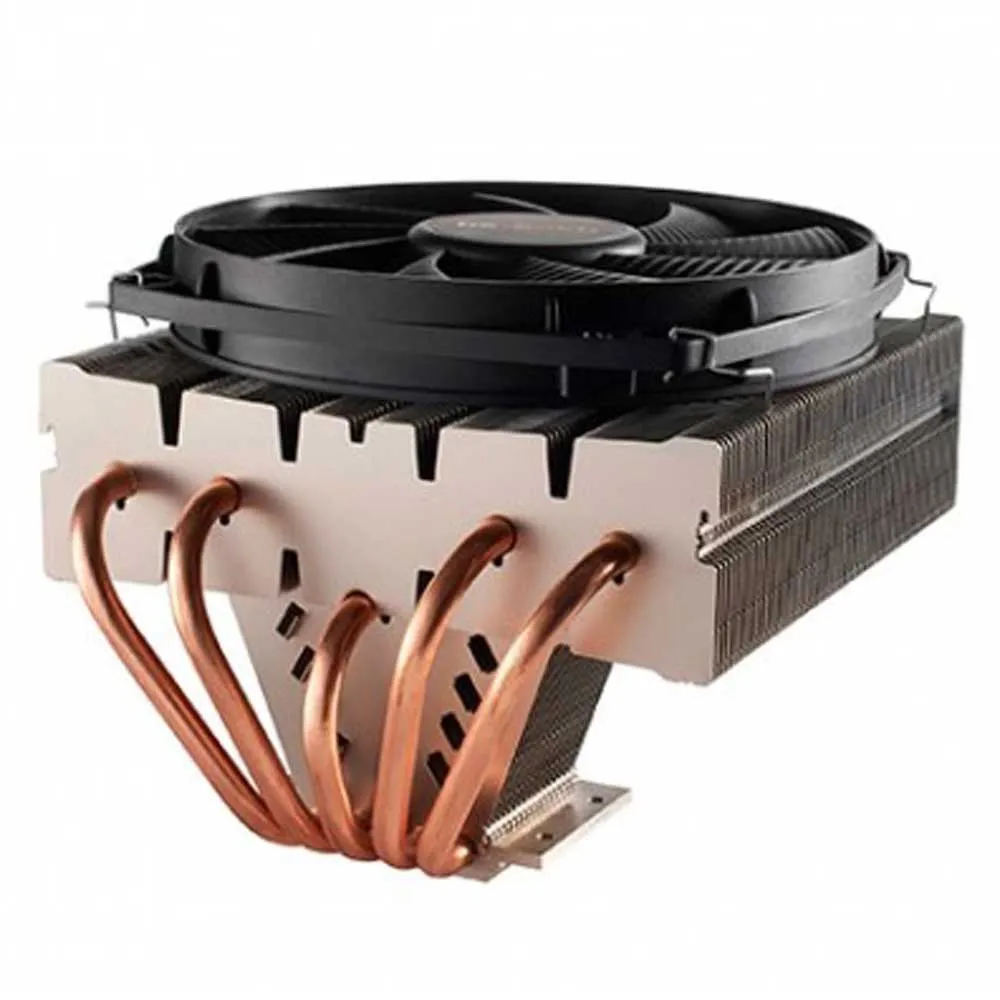

High-performance heatpipes:
- Offering the system an impressive cooling performance
- Shadow Rock TF 2 is equipped with five 6mm heat pipes. They carry the heat straight to optimal locations on the cooling fins and provide the system with a remarkable compact cooling capacity of 160W TDP.

Direct connection of base plate and fins:
- For highly effective cooling power
- An ingenious cooling concept: The baseplate and the cooling fins of Shadow Rock TF 2 are directly connected. This ensures fast heat transfer and optimum cooling efficiency.

Extremely silence-optimized operation:
- Even at 100% fan speed the overall noise is merely 24.4dB(A)
- Silent operation typical for be quiet! products is achieved by the silence-optimized 135mm be quiet! fan. Delivering the best balance between cooling performance and quietness its smooth operation is thanks to the nine airflow-optimized fan blades and durable rifle-bearing technology.

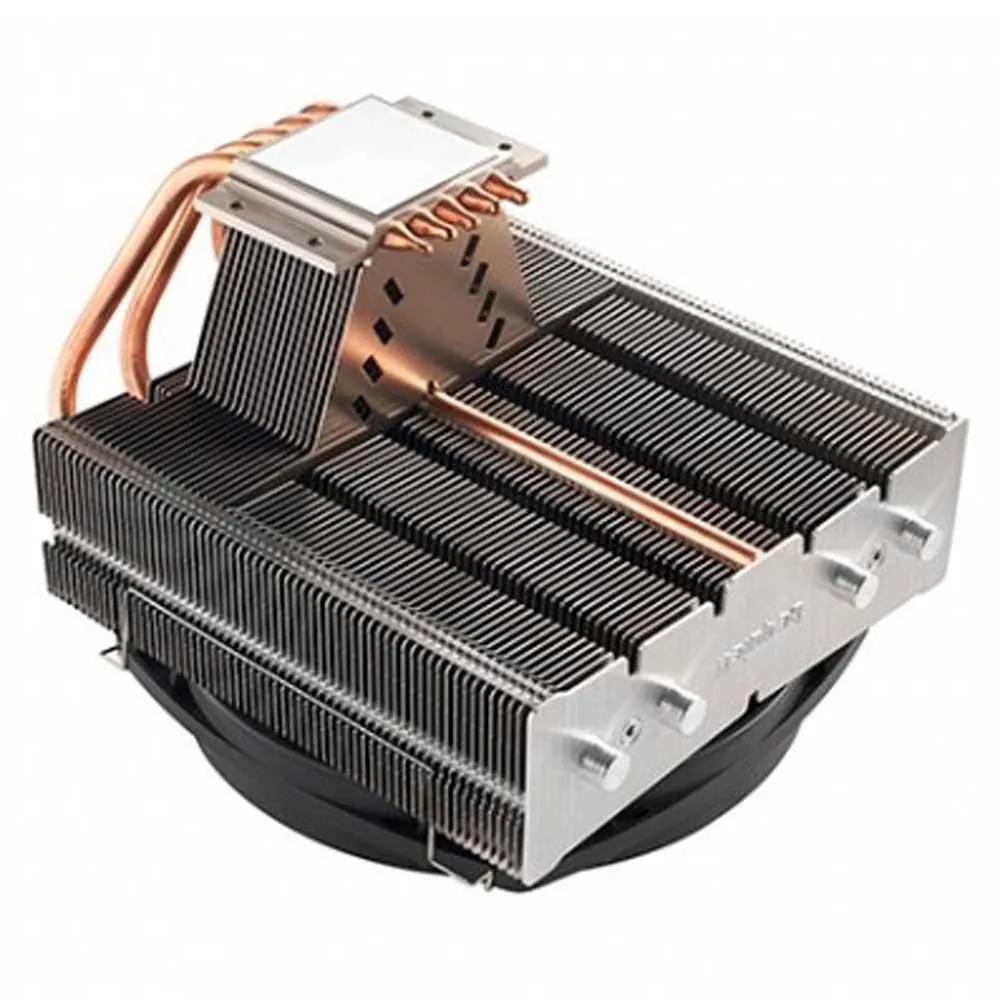

Small, diagonally arranged fins:
- Produce the perfect airflow
- The small diagonal fins on the back of the cooler direct the airflow to guarantee efficient cooling for the CPU as well as components around the Intel® or AMD™ socket.

Space-saving top-flow design:
- Benefit from this highly functional concept
- The top-flow design is perfect for anyone who has to cope with limited space restrictions when building a system. Shadow Rock TF 2 more than solves this problem.


Features:

- Space-saving top-flow construction
- Very high cooling capacity of 160W TDP
- Direct connection of baseplate to cooling fins for fast heat transfer
- Small, diagonally arranged fins create an airflow that ensures perfect cooling for components near to the socket
- Silence-optimized 135mm be quiet! fan (max. 24.4dB(A)) with durable rifle-bearing technology
- Five high-performance 6mm heat pipes
- Compatibility with Intel® and AMDTM sockets


Specifications:

- Type: Cooler
- Fan diameter: 13.5 cm
- Rotational speed (min): 1400 RPM
- Rotational speed (max): 2000 RPM
- Noise level (low speed): 11.9 dB
- Noise level (high speed): 24.4 dB
- Maximum airflow: 67.8 cfm
- Airflow: 113.8 m³/h
- Maximum air pressure: 2.1 mmH2O
- Bearing type: Rifle bearing.
- Width: 137 mm
- Depth: 165 mm
- Height: 112 mm.
