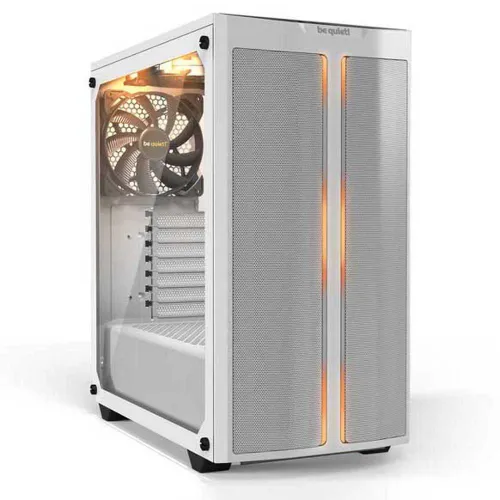

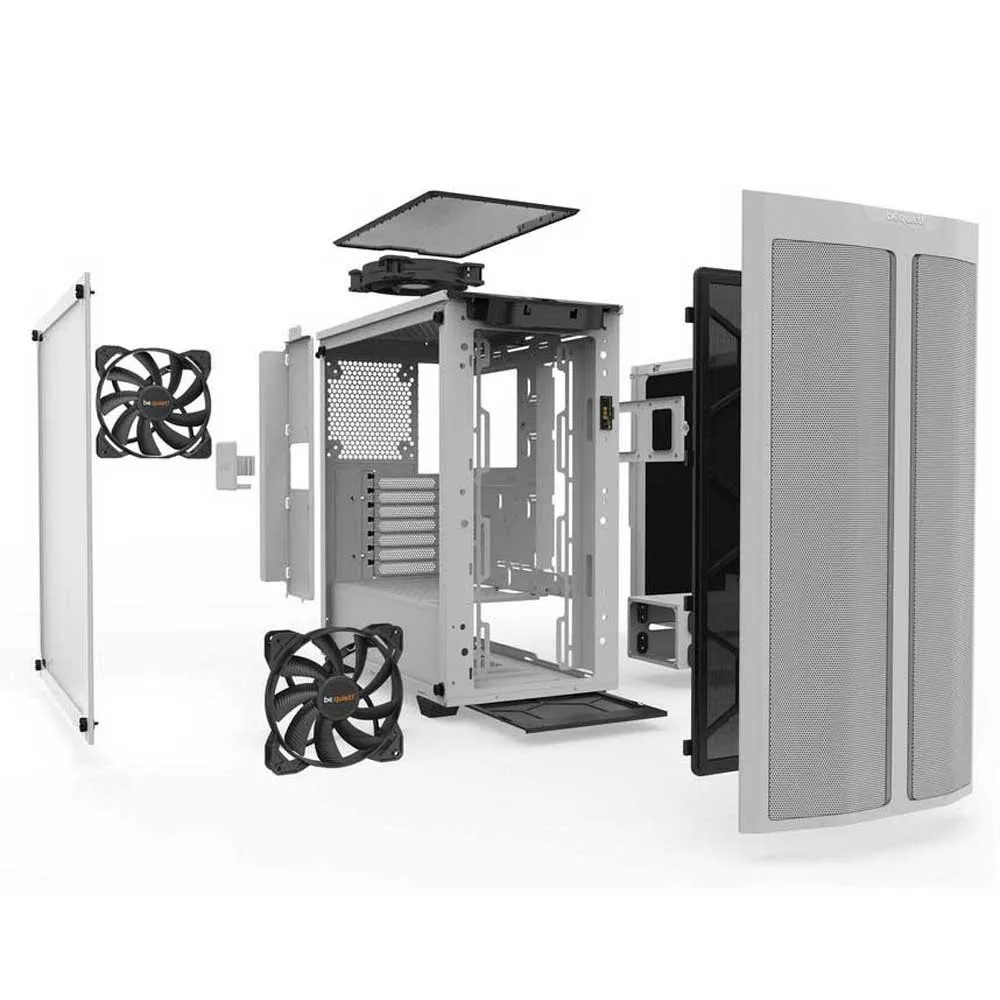

Be Quiet Silent Pure Base 500DX PC tower case

The be quiet Pure Base 500DX White is optimized for high cooling performance and designed for those who seek high airflow.


Features:

- High airflow intake front panel and top cover for maximum performance
- Three Pure Wings 2 140mm fans guarantee high cooling performance and silent operation
- ARGB LED at the front and inside the case
- USB 3.2 Gen. 2 Type C for latest hardware
- Water cooling ready for radiators of up to 360mm
- Up to two SSDs can be installed prominently behind the window panel
- Generous space for high-end graphics cards and large coolers
- Side panel made of tempered glass

High airflow and maximum performance:

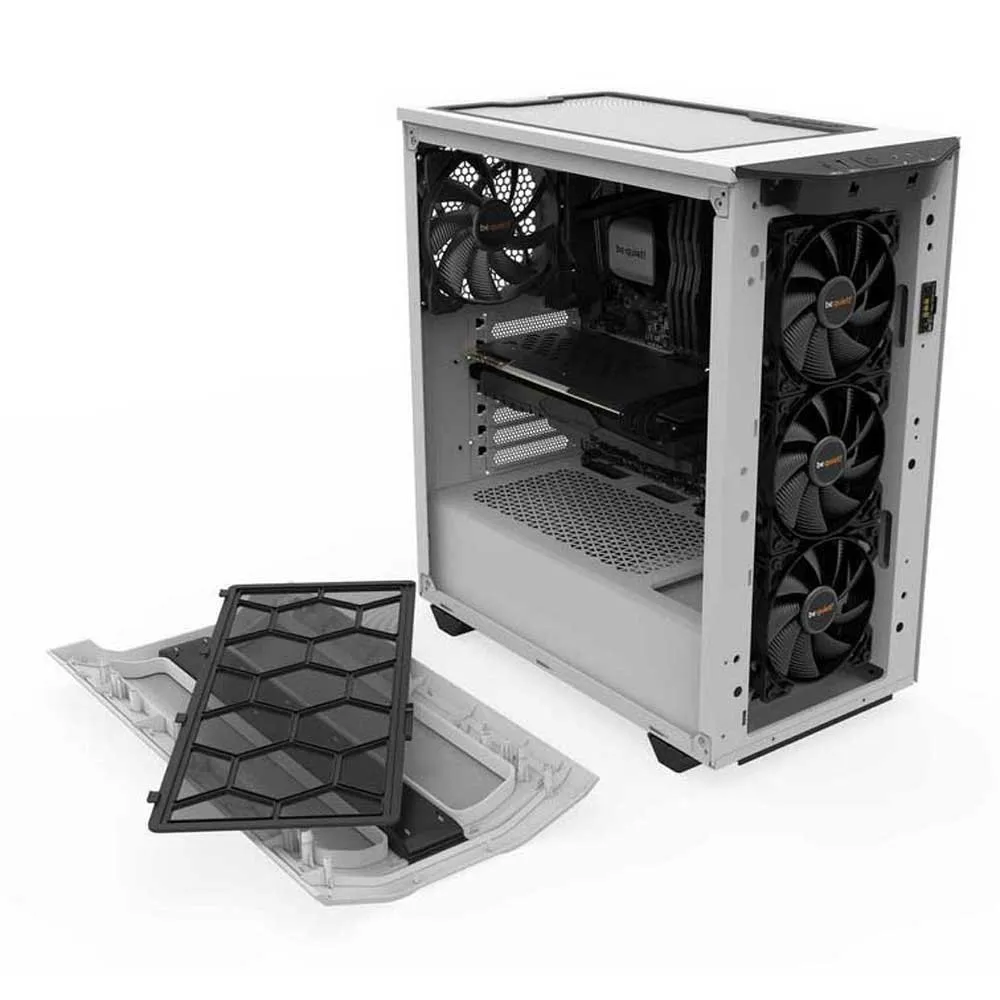

- For all who strive for maximum performance and especially with water-cooled systems, the Pure Base 500DX White with its extremely air-permeable front and top cover is the right choice. The dust filters on the front and bottom are easy to remove for cleaning.

Three preinstalled pure wings 2:

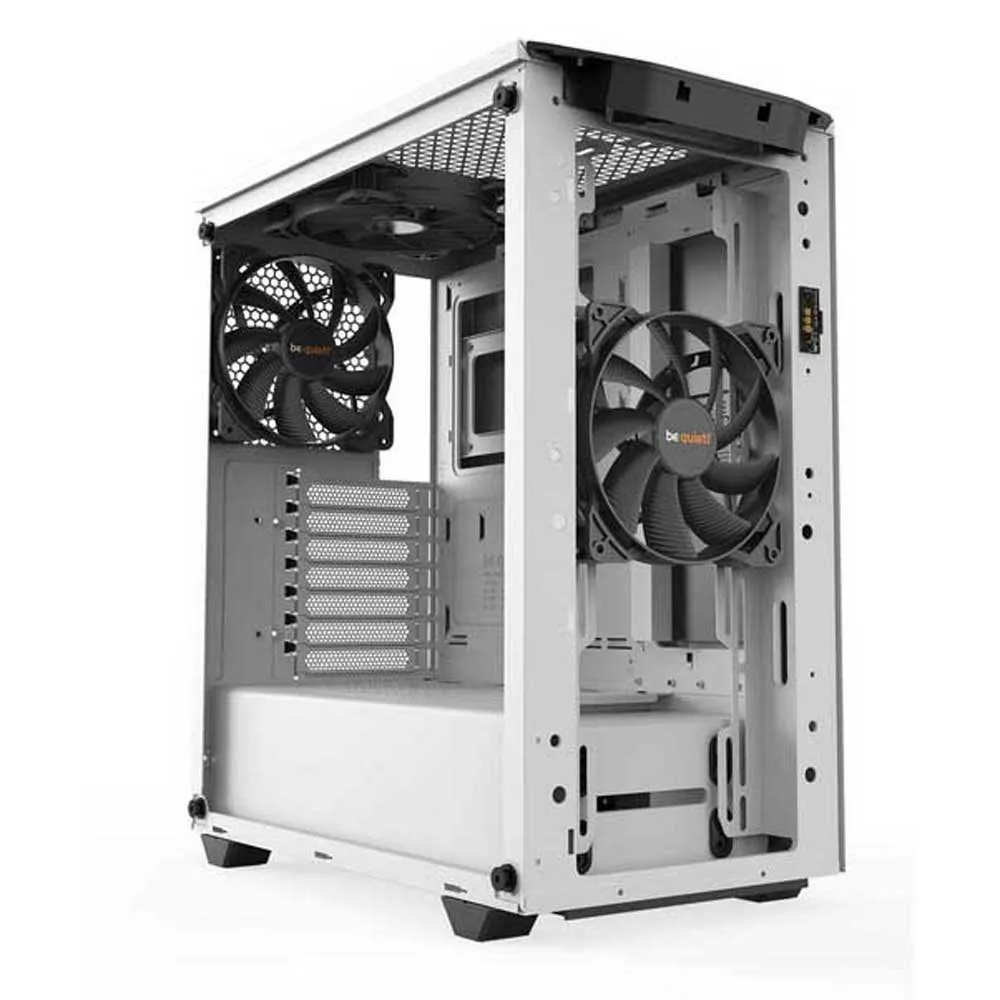

- Three preinstalled Pure Wings 2 fans with airflow-optimized fan blades that ensure perfect airflow and cooling. Despite the compact case design the fans at the front, top and rear are 140mm models, resulting in very quiet operation. Up to two 140mm fans can be installed in addition.

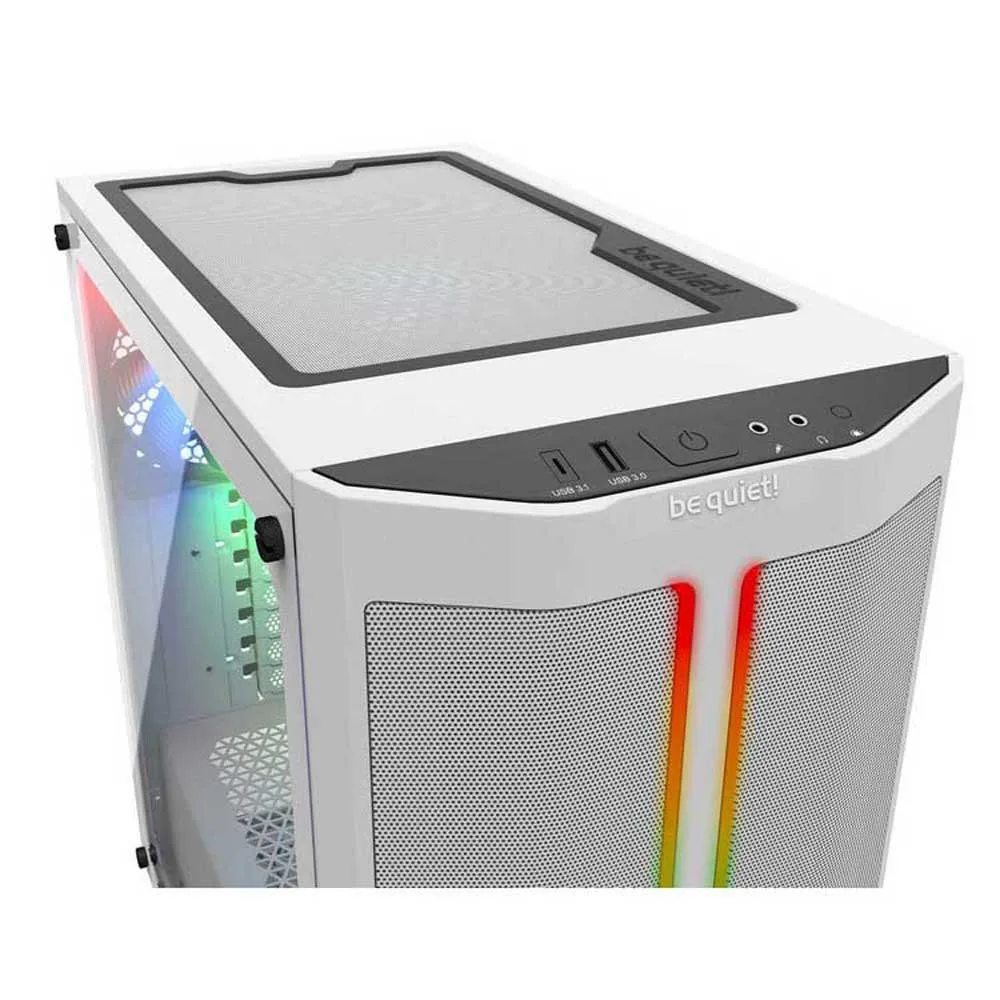

Impressive illumination:
- ARGB LEDs offer multiple colors and modes to individualize the look of the case from the inside as well as from the outside. You can optionally synchronize lighting with your motherboard or ARGB controller.

Sophisticated design:
- The Pure Base 500DX White provides generous dimensions to install high-end graphics cards and large coolers of up to 190mm in height. Fans or a radiator of up to 360mm can be installed easily at the front and the top area also provides space for more fans or a radiator of up to 240mm.

Eye-catching features:
- Pure Base 500DX White offers various options for installing up to five SSDs in total. Two can be installed for prominent viewing through the window panel. To hide any unwanted cables, the case offers excellent cable routing options.

Functional psu shroud:

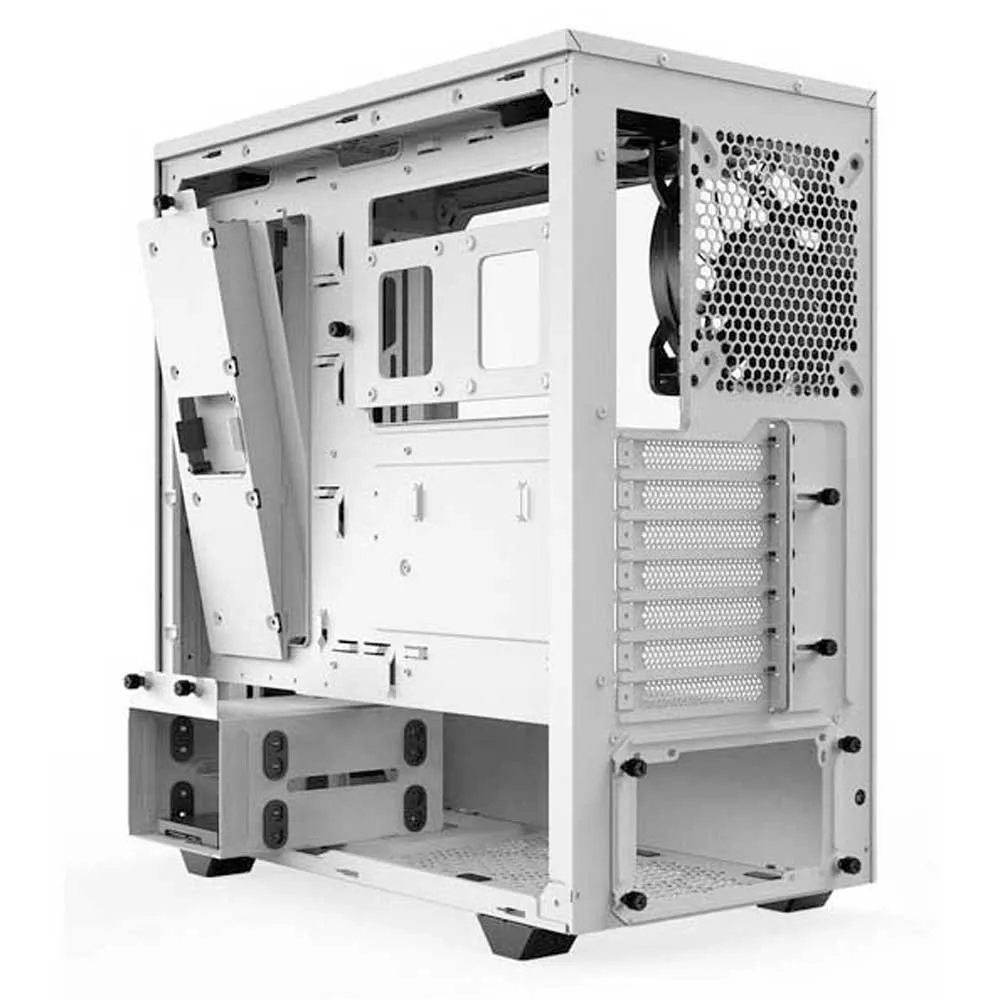

- The PSU shroud perfectly covers the cables and PSU. It also contains a double HDD cage with decoupled mountings that reduce vibrations and help maximize the silence. The cage can also be repositioned to install a radiator of up to 360mm at the front. The power supply unit can be easily installed from behind, mounted on the PSU bracket provided.

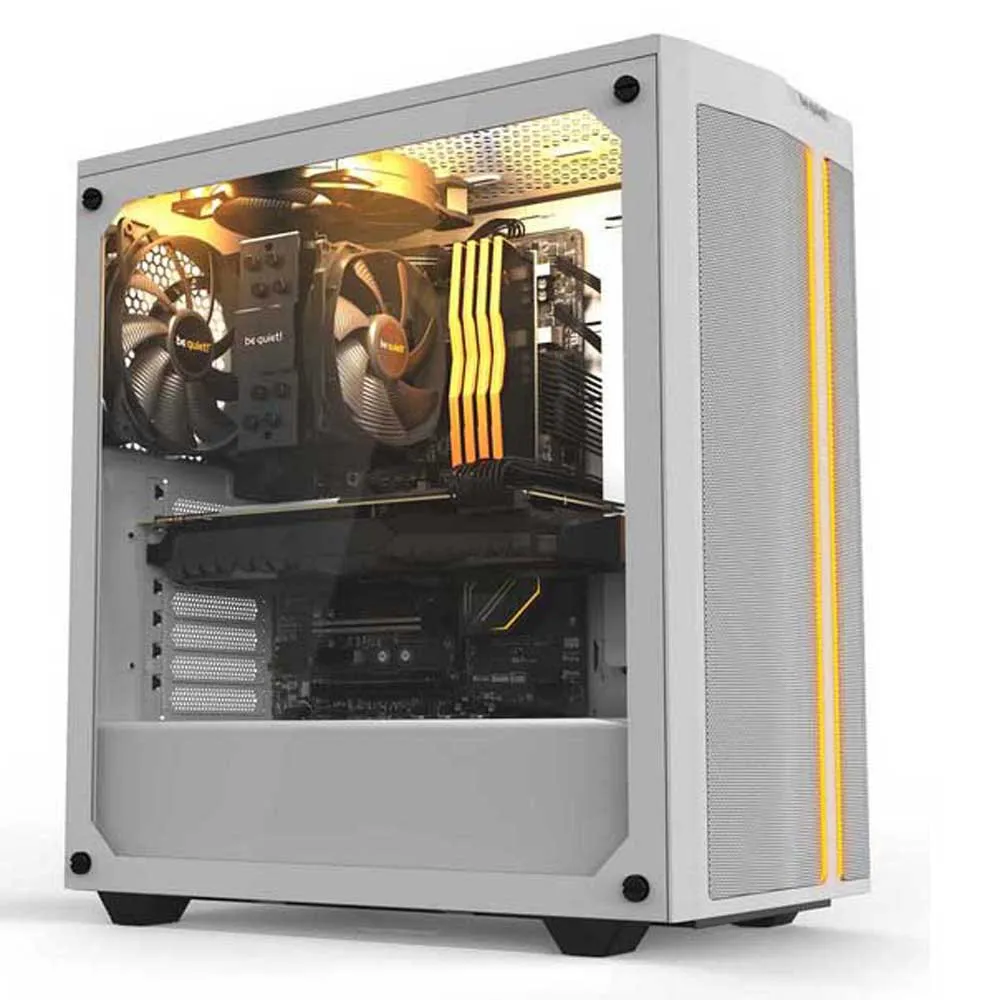

Tempered glass window:
- The high-quality, fully-windowed side panel offers a perfect view of the components inside your PC case. The window is made of tempered glass with white painted side bars.


Specifications:

General data:
- Model: Pure Base 500DX White
- PSU form factor: ATX PS/2
- Motherboard compatibility: ATX / M-ATX / Mini-ITX

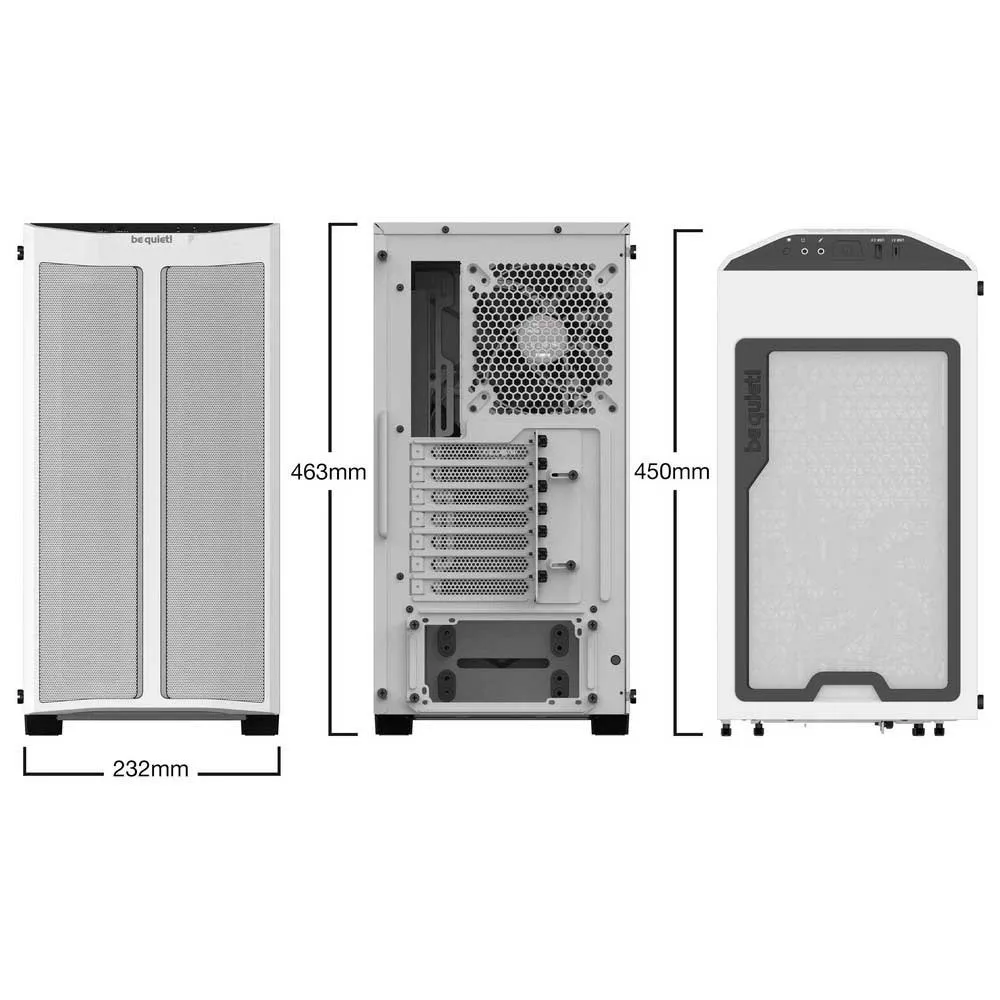

- Case size excl. stands (L x W x H), (mm): 450 x 232 x 443
- Installation of motherboards with backplate: Yes
- Case size incl. stands (L x W x H), (mm): 450 x 232 x 463
- Dimensions side panel window (L x W), (mm): 400 x 431
- Weight (kg): 7.8
- USB 2.0: -
- USB 3.2 Gen. 1: 1
- USB 3.2 Gen. 2 Type C: 1
- HD Audio I/O: Mic + Audio
- Expansion slots: 7
- Fan mounting locations: 6
- Qi charger / Quick Charging Option: -

Material:
- Top cover: ABS
- Side panel: Steel
- Side panel window: 4mm tempered glass
- Front panel: ABS
- Stands: ABS

Drive bay capacity:
- 5.25 bays: -
- 3.5 slots (max.): 2
- 3.5 slots (scope of delivery): 2
- 2.5 slots (max.): 5
- 2.5 slots (scope of delivery): 5

Pre-installed fans:
- Fan @ top: 1x Pure Wings 2 140mm
- Fan @ front: 1x Pure Wings 2 140mm
- Fan @ rear: 1x Pure Wings 2 140mm
- Dimensions (L x W x H), (mm): Front: 140 x 140 x 25 / Rear: 140 x 140 x 25 / Top: 140 x 140 x 25
- Fan speed @ 100% PWM / 12V (rpm): 900
- Noise level @ 100% PWM / 12V (dB(A)): 17.1
- Airflow @ 100% PWM / 12V (CFM / m3/h): 55.8 / 94.8
- Air Pressure @ 100% PWM / 12V (mm H2O): 0.6
- Voltage range (V DC): 12
- Input power (W): 1.08
- Input current (A): 0.09
- Connector: 3-Pin
- Lifespan (h / 25°C): 80,000
- Fan controller: -

Optional fan installation:
- Front (mm): 3x 120 / 1x 140
- Top (mm): 1x 120 / 1x 140
- Bottom (mm): -
- Side panel (mm): -
- PSU shroud: -

Optional radiator installation:
- Front (mm): 120 / 140 / 240 / 280 / 360
- Top (mm): 120 / 240
- Bottom (mm): -
- Rear (mm): 120 / 140

Cooling:
- Max.construction height of CPU cooler unit (mm): 190
- Airflow channel: Front / Top / Rear

Lighting:
- RGB LED illumination: Front LED ARGB / Internal ARGB
- LEDs synchronizable with RGB controller/motherboard: -
- Expandable RGB controller: -

PSU compatibility:
- Maximum dimensions excl. bottom fan (mm): 258
- Maximum dimensions incl. bottom fan (mm): 225

Graphics card:
- HDD cage (in height of graphics card) installed (mm): 369
- HDD cage (in height of graphics card) removed (mm): 369

Insulation and damping:
- Top panel insulation mats: -
- Front panel insulation mats: -
- Side panel insulation mats: Yes
- Anti-vibration decoupled HDD: Yes
- Anti-vibration decoupled fan: -
- Anti-vibration decoupled PSU: Yes
- Anti-vibration decoupled motherboard-tray: -

Removeable dust filters:
- Front: 1
- Bottom: 1
- Side panel: -

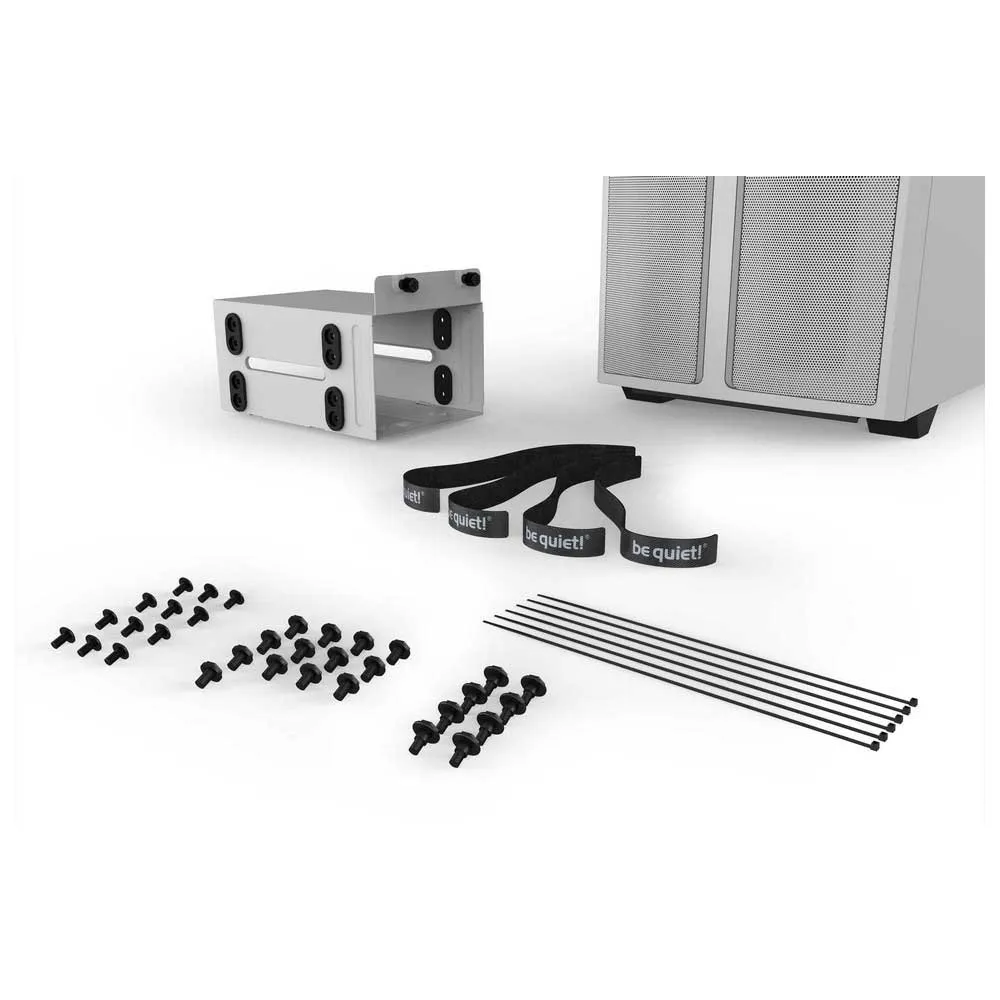

Accessories:
- Screw set (Drives/Motherboard): Yes
- Rubber rail (pcs.): -
- Standoff (pcs.): -
- LCS bracket (pcs).: -
- HDD slot cover (pcs.): -
- Upper fan bracket (pcs.): -
- HDD panel rubber grommet (pcs.): -
- SSD bracket for PSU shroud: -
- LED strips (pcs.): -
- Cable ties (pcs.): 6 / 4 (Velcro)

Service:
- International hotline / free of charge: Yes / DE, FR

Logistics data, RRP:
- Certifications: CE / RoHS
- Dimensions, package (L x W x H), (mm): 510 x 285 x 494
- Gross weight, package (kg): 8.49
- Pieces per packaging unit: 1
