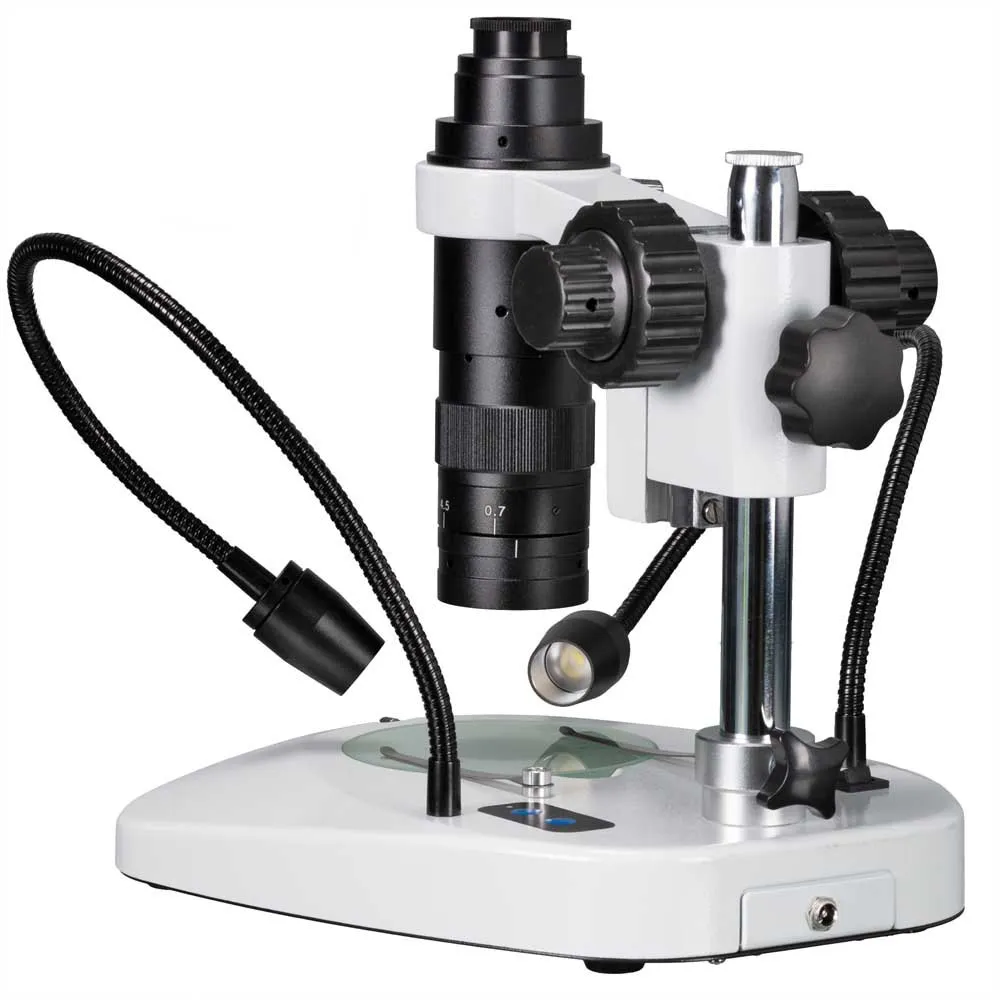

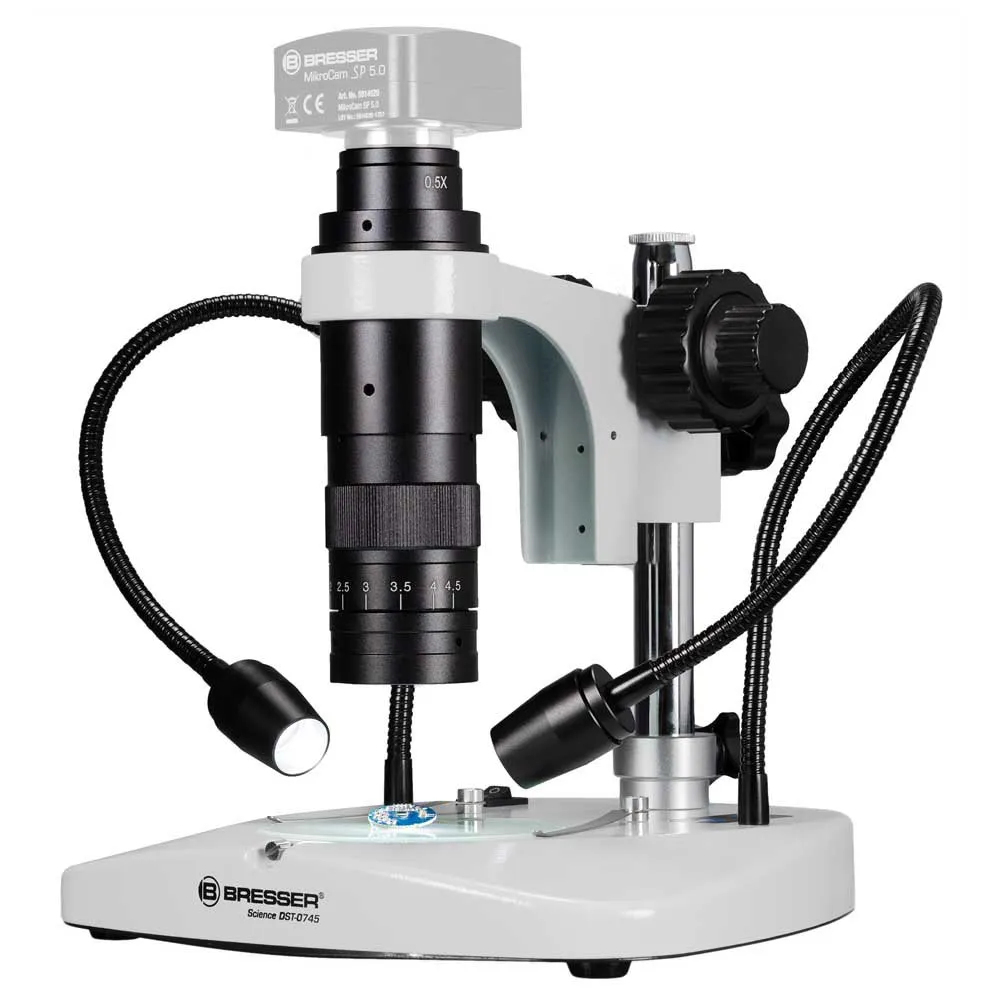

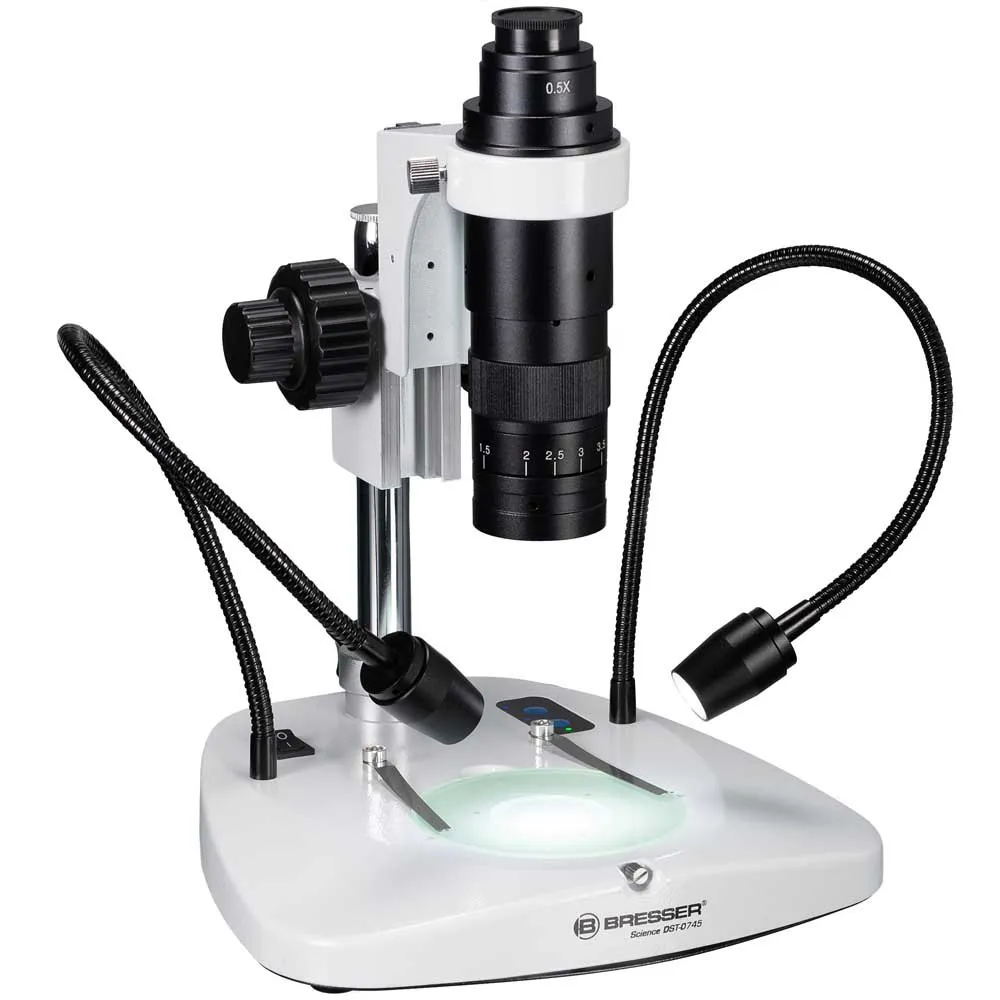

Bresser DST-0745 Professional Microscope

EU Plug.

The Bresser Dst-0745 Is A Special Microscope That Is Operated With A C-Mount Camera (Camera Not Included).

This Allows Direct Viewing On A Screen.

Due To The Vertically Installed Optics, There Is No Shifting Of The Image When Focusing.

This Is Especially Useful For ´´Focus Stacking´´ Shots.

The Zoom Is Continuously Adjustable From 0.7x.

- 4.5x.

A Coarse And Fine Focus Adjustment Facilitates Focusing, Especially At High Magnifications.

The Convenient And User-Friendly Operation Makes The Digital Microscope Particularly Suitable For Daily Use In The Workshop.

Measurements, Quality Control Of Surfaces Or Inspection Of Components And Raw Materials Are Easy With The Workshop Microscope.

Insects, Plants And Rocks Are Also Impressively Displayed.

The Dst-0745 Workshop Microscope Is Not Suitable For Visual Observation.

It Can Only Be Used In Combination With A Mikrocam C-Mount Microscope Camera.

It Is Designed For Camera Sensors Of About 1/2´´.

Smaller Sensors Can Be Used Without Problems.

With Larger Sensors There Is Vignetting, Which Becomes Somewhat Less At Higher Magnifications.

Due To The Two Flexible Incident Light Lamps, The Light Can Be Optimally Positioned.

The Transmitted Light Illumination Helps When Observing Transparent Objects.

The Brightness Of Both Illuminators Can Be Adjusted In Five Steps.

The Magnification Of A Usb Camera Differs From The Magnification Of The Lens.

It Depends, Among Other Things, On The Sensor Size And The Display On A Monitor.

It Can Be Compared To Macro Lenses With Macro Factor 0.7:1 Up To 4.5:1.

Features:

- Designed For C-Mount Microscope Cameras.

- Up To 1/2´´ Sea Sensor Size.

- Continuous Zoom (0.7x.

- 4.5x).

- Two Flexible Incident Light Led Lamps.

- Led Transmitted Light Illumination.

- Adjustable Brightness.

Specifications:

Focus Group:- Experts.

- Professional Users.

- Science And Research Product Family.

- Product Family:Incident And Transmitted Light Microscope Optical.

Specifications:

- Optical Design:Digital.

- Magnification From:0.7.

- Magnification Up To:4.5 Electronics, Hardware &.

Software:- Power Supply1:12v Dc 2a.

- Lighting5:Incident And Transmitted Light.

- Laser Class/Type:Class 1 (Harmless To The Eyes).

- Dimmer:Dimmable Lighting General Technical Data:- View:Digital For Pc Monitor.

- Object Stage.

Features:

2 Object Plates, Exchangeable Dimensions & Weights:- Total Length:250 Mm.

- Total Width:235 Mm.

- Total Height:280 Mm.

- Net Weight Total (Incl.

Accessories):3.288 Kg.
