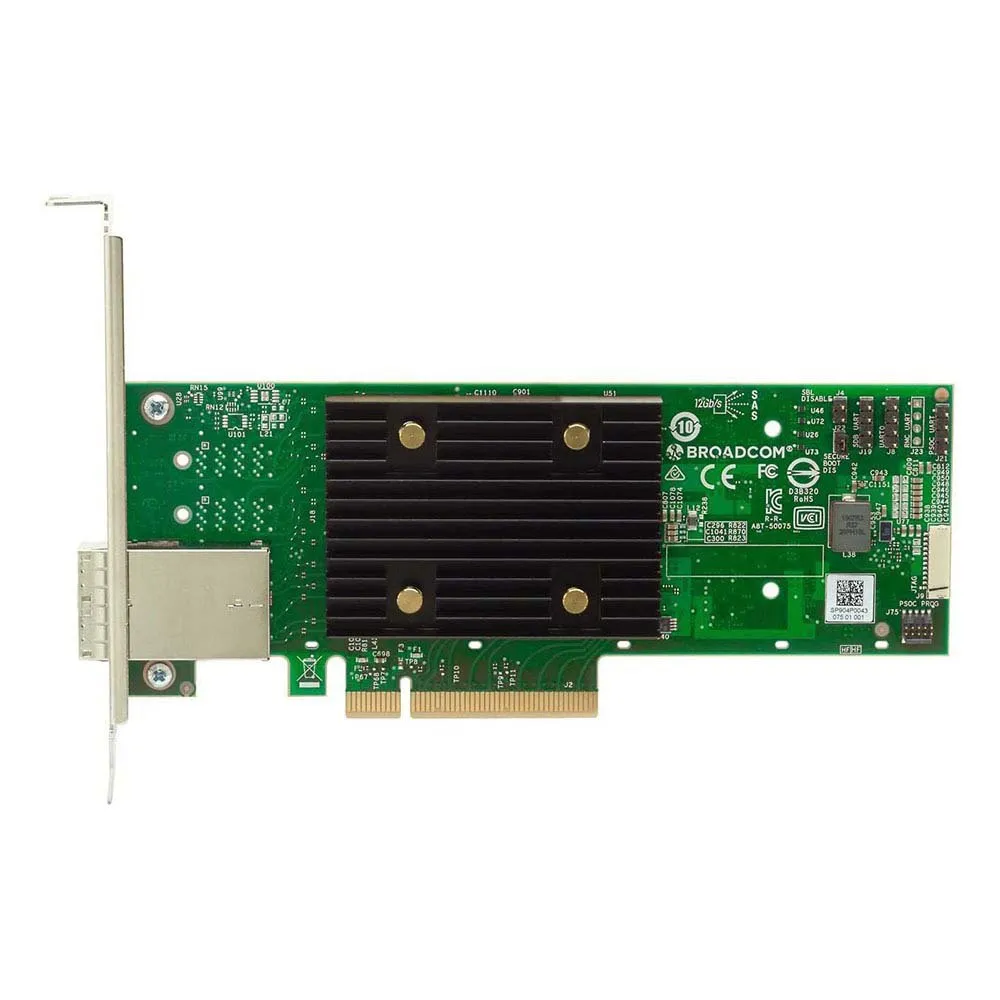

BROADCOM HBA 9500-8e Tri-Mode PCIe SATA/SAS Storage Controller

Elevate your data center´s storage capabilities with the Broadcom HBA 9500-8e Tri-Mode Storage Controller. As a vital component for next-generation server and storage platforms, this Host Bus Adapter is engineered to deliver maximum performance and flexibility for demanding data-intensive applications. By leveraging the power of a PCIe 4.0 host interface, the HBA 9500-8e provides the necessary bandwidth to eliminate storage bottlenecks and unleash the full potential of high-performance SSDs. Its groundbreaking Tri-Mode SerDes technology offers unparalleled connectivity, enabling the seamless operation of NVMe, SAS, and SATA storage devices from a single controller. This makes the HBA 9500-8e an ideal solution for enterprise data centers, cloud environments, and high-performance computing that demand high connectivity, extreme performance, and a future-proof design for their storage infrastructure.

Key Benefits of the HBA 9500-8e Controller
* Unleash Peak Performance: Experience a new level of data transfer speed with the PCIe 4.0 host interface, providing double the bandwidth of previous generations. This powerful controller is optimized for connecting to high-lane count external storage enclosures, ensuring that your applications run without performance constraints and I/O-intensive workloads are handled with ease.
* Ultimate Storage Flexibility: The signature Tri-Mode functionality allows you to connect to any combination of SAS, SATA, or PCIe (NVMe) devices. This exceptional versatility simplifies infrastructure, reduces total cost of ownership, and allows you to scale and adapt your storage architecture as your needs evolve, protecting your investment for the future.
* Designed for Modern Servers: With a versatile full-height and low-profile form factor, the HBA 9500-8e is designed for easy integration into modern high-density and rack-mounted servers. Its efficient power consumption and broad operating temperature range ensure reliable, stable performance in demanding 24/7 data center environments.

Main Features
* Host Interface: PCIe 4.0 x8
* Connectivity: Tri-Mode support for 12Gb/s SAS, 6Gb/s SATA, and 8GT/s PCIe (NVMe)
* External Ports: 2x x4 mini-SAS HD (SFF-8644) connectors
* Controller Type: SAS/SATA/NVMe Host Bus Adapter (HBA)
* IO Controller: SAS3808

Technical Specifications

General
* Product Colour: Green, Grey
* Quantity: 1
* Harmonized System (HS) code: 84733020

Ports & Interfaces
* Host Interface: PCIe
* Output Interface: SAS
* External mini-SAS HD ports: 2

Design
* Expansion Card Form Factor: Full-height / Low-profile
* Width: 167.6 mm
* Depth: 68.9 mm

Performance & Reliability
* Mean Time Between Failures (MTBF): 5.000,000 hours

Power
* Power Consumption (typical): 6.12 W

Operational Conditions
* Operating Temperature (T-T): 0 - 55 °C
* Operating Relative Humidity (H-H): 20 - 80%

Software & Compatibility

Certifications & Standards
* Certification: Australia/New Zealand (AS/NZS CISPR 22), Canada ICES-003 Class B, CE Europe (EN55022/EN55024), Japan (VCCI V-3), Korea (RRA no 2013-24 & 25), Taiwan (CNS 13438), USA (FCC 47 CFR part 15 Subpart B, class B)
* Safety: EN/IEC/UL 60950
