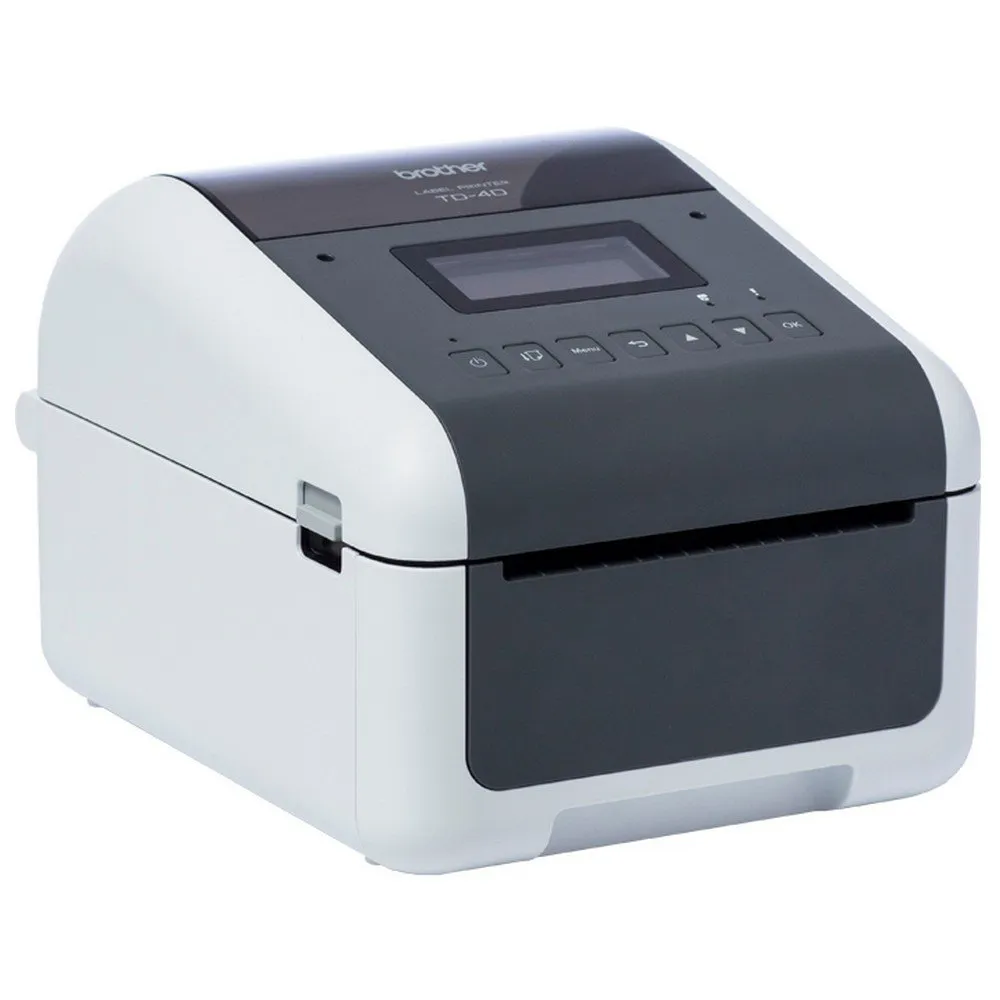

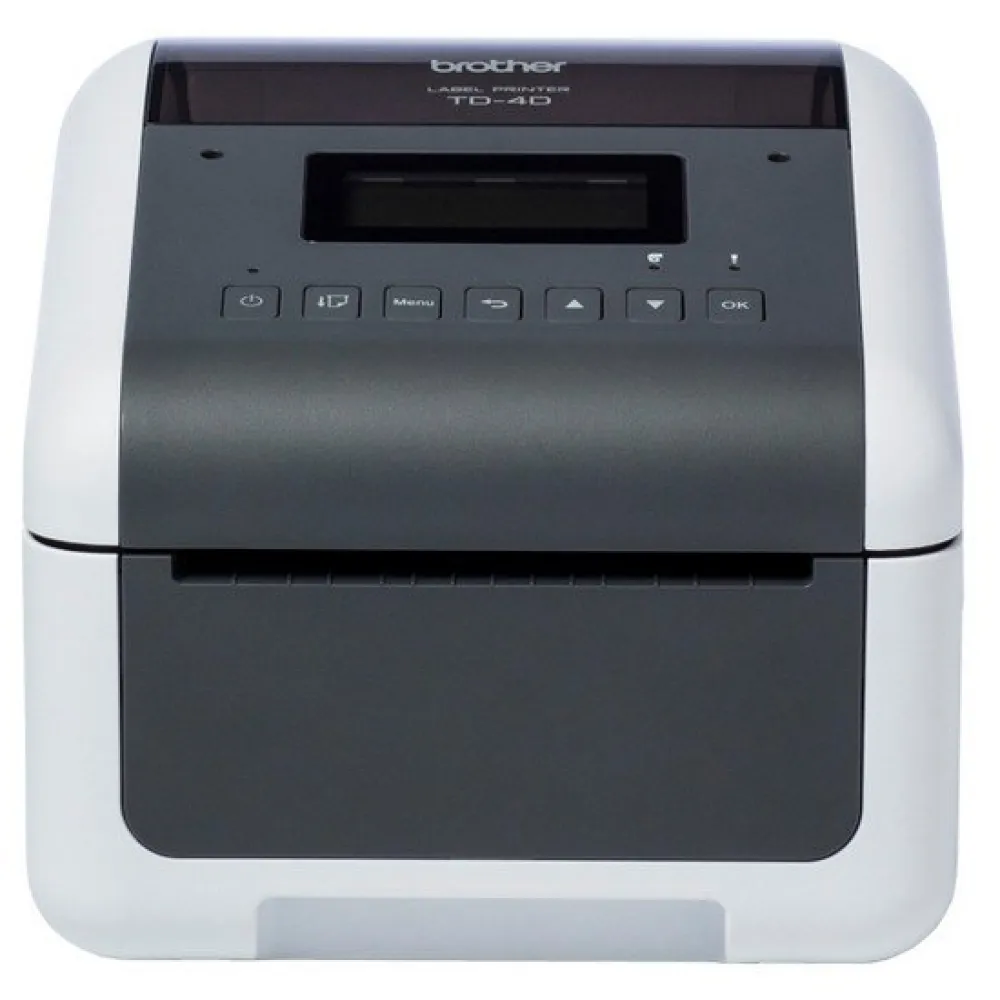

Brother TD-4550DNWB label printer

EU PLUG.

With 300dpi and print speeds up to 6ips, 4´´ desktop wireless network thermal printers affordably print barcode labels, tags, and receipts for SMB supply chain operations.

Ideal for inventory, shipping, barcode, and shelf labeling, these precision-built barcode label printers deliver the right levels of performance, quality, and integration at an exceptional value.

Experience fast spindle-less media loading, Windows compatibility, ZPL II emulation, intuitive design software, and Brother template mode.

Now, you can easily and affordably produce the labels you need, with the reliability and support that only Brother delivers.

Because powerful desktop printing doesn´t always come at a price.

Features:

- 4´´ Desktop Wireless Network Thermal Label, Tag and Receipt Printer.

- USB, Serial, Ethernet LAN, Wi-Fi® WLAN & Bluetooth® BLE MFi Connectivity.

- Ergonomic Design and Easy to Use.

- Improved thermal image capability.

- Prints up to a full roll of labels at up to 6ips‡ in a single print job Helps increase productivity and higher print job volume from a desktop printer.

- WLAN 802.11a/b/g/n Radio Wirelessly connect to a 5GHz or 2.4GHz router.

- Wide Range of Compatible Software Solutions Seamless integration with backwards compatibility with virtually any competitive desktop printer‡.

- USB/Host-USB/Serial/LAN/WLAN/Bluetooth 4.2 BLE/MFi Interfaces Complete set of connectivity choices to print from virtually any computer, phone or tablet.

- Complete Thermal Printing Solution.

- Includes Design Software Comes with virtually everything needed to design and print high quality media right out of the box.

- Direct Thermal Technology has the Fewest Moving and Total Parts Required to Print Dependable printing technology that produces barcodes that are accurate and scan reliably.

- LCD Control Panel with Intuitive Navigation Easy to use without having to read the manual.

- Innovative Media Width Sensor Accurate and faster media calibration.

- Spindle-Less, Spring Loaded Media Guides with Adjustable Open-and-Lock Position True drop-in and easier media loading experience.

- Future Proof Optional Accessories.

- Purchase Only What is Needed Purchase easy to install optional accessories when needed after deployment.

- Ambidextrous Top Cover Latches Open top cover from either side of the printer.

- Field Replaceable Print Head and Platen Roller Easy to replace print head and platen roller without any tools.

Specifications:

Certifications:

- Energy Conservation Certifications:

Energy Star Communications:

- Communications Certifications:

USB v2.0 (Full Speed), RS-232C Serial, LAN Ethernet 10/100Base-TX, Wi-Fi® WLAN (5GHz 802.11a/n and 2.4GHz 802.11b/g/n Infrastructure /.

- 802.11g/n Wireless Direct), Bluetooth® Version 4.2 BLE/MFi (SPP, OPP, HCRP, GATT).

- Communications Interface(s):

USB, Serial, Bluetooth Mfi, WLAN, LAN, Host-USB.

- Communications Security:

Infrastructure:

WEP 64/128bit, WPA/WPA2-PSK (TKIP/AES) Wireless Direct:

WPA2-PSK (AES) LAN:

802.1x (EAP-FAST, PEAP, EAP-TLS, EAP-TTLS, EAP-MD5) WLAN:

802.1x (EAP-FAST, PEAP, EAP-TLS, EAP-TTLS) Compatibility:

- Operating System Compatibility:

Windows 10 (32/64bit), Windows Server 2003, Windows 8 (32/64bit), Windows 7 (32/64bit), Windows XP, Android v2.2 or later, iOS v6.0 or later, Windows Server 2012 R2, Windows Server 2012, Windows Server 2008 R2, Windows Server 2008 (32/64bit), Linux Red Hat and Debian.

- Print Driver Compatibility:

Windows, Linux Consumables:

- Consumable Format:

Fanfold Media, Roll with Continuous Media, Roll with Perforated Media, Roll with Die Cut Media.

- Consumable Max Roll OD Size:

5´´ (127mm).

- Consumable Roll Core ID Size:

All Core Sizes Down to 0.50´´ (Inside Diameter).

- Consumable Thickness:

Receipt:

2.3mil to 3.5mil (0.058mm to 0.090mm), Label:

3.1mil to 6.7mil (0.080mm to 0.170mm), Tag:

3.5mil to 5.3mil (0.090mm to 0.135mm).

- Consumable Types:

Receipts, Labels, Tags, Wristbands.

- Media Width Max:

4.65´´ (118mm).

- Media Width Min:

0.75´´ (19mm) Dimensions:

- Unit Dimensions (W x D x H):

7.08´´ x 8.82´´ x 6.10´´ (180mm x 224mm x 155mm).

- Unit Weight:

4.58 lbs.

(2.08 kg) without Media and Options Environment Compatibility:

- Operating Environment:

32°F.

- 104°F (0°C.

- 40°C) / 20%.

- 85%.

- Storage Environment:

-4°F.

- 140°F (-20°C.

- 60°C) / 5%.

- 90% General:

- Available Memory:

64MB Flash (40MB Template / Database) / 256MB SDRAM.

- Channel Protected:

Yes.

- Flash Memory:

64MB Flash (40MB Template / Database).

- Media Exit.

Features:

Tear Up, Peeler, Cutter.

- Media Exit Options:

Label Peeler.

- Media Feed.

Features:

Drop In Roll, Adjustable Roll Holder, External Slot.

- RAM:

256MB SDRAM.

- User Interface:

7 Switches (Power, Feed, Menu, Back, Cursor Up, Cursor Down, Print), 3 LEDs (Power, End of Roll, Status), LCD Power:

- Power Source Options:

AutoRanging Power Supply.

- Power Supply:

24VDC 5A (PA-AD-002) Print:

- Print Resolution:

300 dpi.

- Print.

Technology:

Direct Thermal.

- Print Width Maximum:

4.27´´ (108.4mm).

- Printer Type:

Desktop Print.

Features:

- 2 Dimensional Barcodes:

PDF417/MicroPDF417, Data Matrix, Maxicode, QR Code/Micro QR Code, Aztec.

- Bitmap Fonts:

Helsinki, Brussels, Letter Gothic Bold, Gothic, San Diego, Brougham.

- Emulations:

Raster, ESC/P, P-touch Template, ZPL II®, CPCL, AirPrint®.

- Linear Barcodes:

Code39, Code93, Code128, ITF, UPC-A/E, EAN8/13, GS1-128 (UCC/EAN-128), GS1 DataBar (RSS), MSI/Plessey, Industrial 2/5, Codabar (NW-7), POSTNET.

- Media Sensor Types:

Transmissive (Gap, Hole), Reflective (Adjustable Position Black Bar, Hole), Out of Paper, Peeler (Optional).

- Outline Fonts:

Helsinki, Brussels, Letter Gothic, Gothic.

- Print Commands:

ZPL II®, CPCL, Raster Graphics, Text (Template) ESC P.

- Stored Templates:

Up to 99 What´s Included:

- Carton Configuration:

Printer.

- Carton Contents:

TD-4550DNWB Printer, USB Cable, AC Adapter, Power Cable, Printed Guides, Software (Brother Solutions Center).
