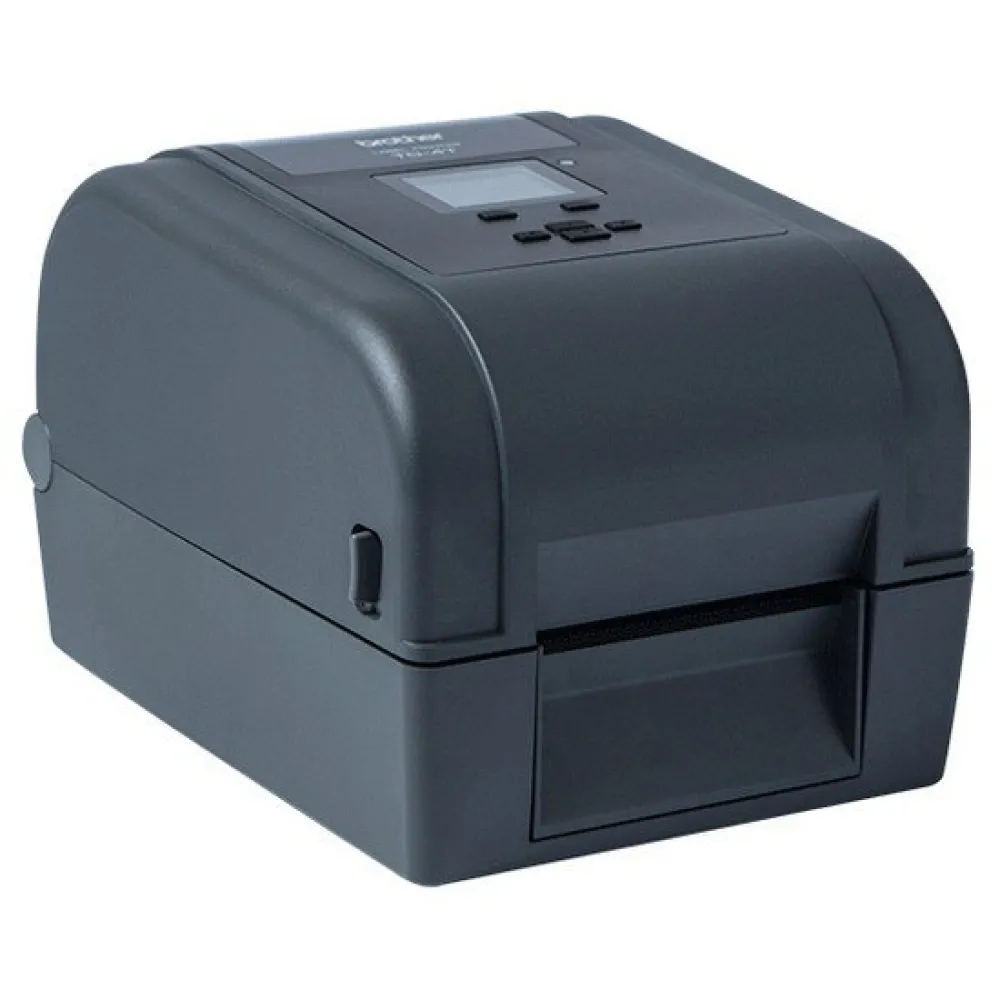

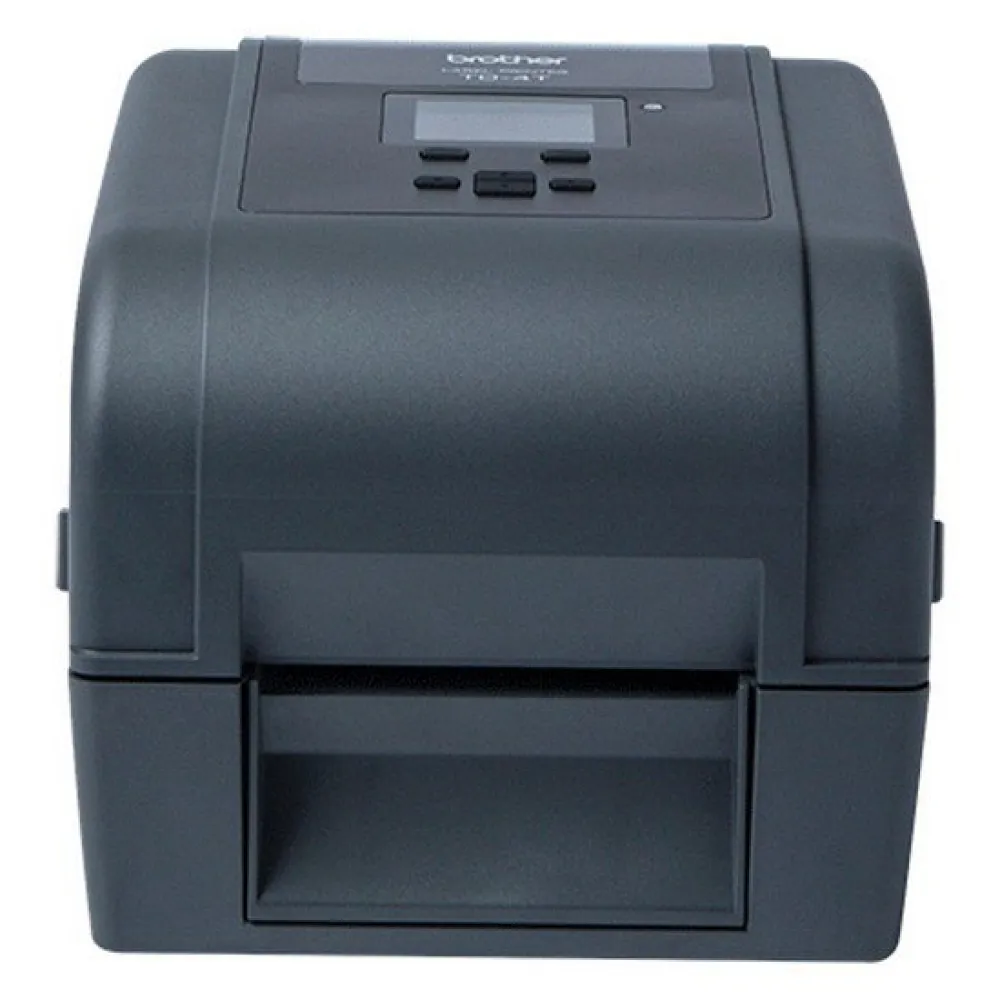

Brother TD-4650TNWB label printer

EU PLUG.

With 203dpi and print speeds up to 8ips, 4´´ desktop network thermal printers affordably print archival-quality barcode labels, tags, and receipts for supply chain and manufacturing operations.

Ideal for highly-durable shipping, inventory, parts, barcode, certification, and shelf labeling, these precision-built barcode label printers deliver the right levels of performance, quality, and integration at an exceptional value.

Experience fast spindle-less media loading, Windows compatibility, ZPLII/EPL2/DPL emulations, and intuitive design software.

Now, you can easily and affordably produce the labels you need, with the reliability and support that Brother delivers.

Because powerful desktop printing doesn´t always come at a price.

Features:

- 4´´ Desktop Network Thermal Transfer/Direct Thermal Printer.

- 203dpi.

- USB, Host USB, Serial, Ethernet LAN, Wi-Fi® WLAN & Bluetooth® MFi Connectivity.

- Versatile Design, Easy to Integrate.

- Wide Range of Compatible Software Solutions Seamless integration with backwards compatibility with virtually any competitive desktop printer.

- Complete Thermal Printing Solution.

- Includes Design Software Comes with virtually everything needed to design and print high quality media right out of the box.

- Prints up to 8ips‡ on Thermal Transfer & Direct Thermal Labels, Tags, Receipts & Wristbands Versatile design delivers higher performance with media diversity that helps improve efficiency.

- Prints Small Labels & Comes with Adjustable Media Sensor Versatile media compatibility with virtually any direct thermal and thermal transfer media.

- Spindle-Less, Spring Loaded Media Guides with Adjustable Open-and-Lock Position True drop-in and easier media loading experience.

- Compatible with 300m Ink Ribbon and 8´´ OD Media Roll with Optional External Media Roll Holder Use common media in mixed deployment of industrial tabletop and desktop printers & helps increase productivity and higher print job volume from a desktop printer.

- Wide Range of Compatible Software Solutions Using Windows Printer Driver & ZPL/EPL/DPL Emulations Seamless integration with backwards compatibility with virtually any competitive desktop printer‡.

- Real Time Clock with Battery Backup No extra cost to use built in clock/calendar.

- Thermal Transfer Printing Mechanism is Protected by a ABS Plastic Shell Innovative print engine modular design helps protect use tough environments.

Specifications:

Certifications:

- Energy Conservation Certifications:

Energy Star Communications:

- Communications Certifications:

USB v2.0 (Full Speed), RS-232C Serial, LAN Ethernet 10/100Base-TX, Wi-Fi® WLAN (5GHz 802.11a/n and 2.4GHz 802.11b/g/n Infrastructure).

- Communications Interface(s):

USB, Serial, Bluetooth Mfi, Bluetooth, WLAN, LAN.

- Communications Security:

WLAN:

802.1x (EAP-FAST, PEAPv0, EAP-TLS, EAP-TTLS, LEAP), Infrastructure:

WEP 64/128bit, WPA/WPA2-PSK (TKIP/AES) Compatibility:

- Operating System Compatibility:

Windows 10 (32/64bit), Windows 8 (32/64bit), Windows 7 (32/64bit), Windows Vista (32/64bit), Windows Server 2012 R2, Windows Server 2012, Windows Server 2008 R2, Windows Server 2008 (32/64bit), Mac OS X 10.10.x or later, Linux Red Hat and Debian.

- Print Driver Compatibility:

Windows, Mac ®, Linux Consumables:

- Consumable Format:

Fanfold Media, Roll with Continuous Media, Roll with Perforated Media, Roll with Die Cut Media.

- Consumable Max Roll OD Size:

5´´ (127mm).

- Consumable Roll Core ID Size:

All Core Sizes Down to 0.50´´ (Inside Diameter).

- Consumable Thickness:

2.36mil to 7.48mil (0.06mm to 0.19mm).

- Consumable Types:

Receipts, Labels, Tags, Wristbands.

- Media Width Max:

4.65´´ (118mm).

- Media Width Min:

0.79´´ (20mm) Dimensions:

- Unit Dimensions (W x D x H):

8.62´´ x 7.52´´ x 11.2´´ (219mm x 191mm x 284mm).

- Unit Weight:

6.6 lbs.

(3 kg) without Media and Options Environment Compatibility:

- Operating Environment:

32°F.

- 104°F (0°C.

- 40°C) / 20%.

- 85%.

- Storage Environment:

-4°F.

- 140°F (-20°C.

- 60°C) / 5%.

- 90% General:

- Available Memory:

128MB Flash/ 128 SDRAM.

- Channel Protected:

Yes.

- Flash Memory:

64MB Flash (40MB Template / Database).

- Media Exit.

Features:

Tear Up, Peeler, Cutter.

- Media Exit Options:

Label Peeler.

- Media Feed.

Features:

Drop In Roll, Adjustable Roll Holder, External Slot.

- RAM:

256MB SDRAM.

- User Interface:

6 Keys (Menu, Feed, Pause, Navigation), 1 LED (Power, Status), 3.5´´ Color LCD Power:

- Power Source Options:

AutoRanging Power Supply.

- Power Supply:

24VDC 3.75A Print:

- Print Resolution:

203 dpi.

- Print.

Technology:

Direct Thermal.

- Print Width Maximum:

4.25´´ (108mm).

- Printer Type:

Desktop Print.

Features:

- 2 Dimensional Barcodes:

PDF417/MicroPDF417, Data Matrix, Maxicode, QR Code/Micro QR Code, Aztec.

- Bitmap Fonts:

Helsinki, Brussels, Letter Gothic Bold, Gothic, San Diego, Brougham.

- Emulations:

FBPL-EZD (ZPL II®, EPL2™, DPL).

- Linear Barcodes:

Code39, Code93, Code128, ITF, UPC-A/E, EAN8/13, GS1-128 (UCC/EAN-128), GS1 DataBar (RSS), MSI/Plessey, Industrial 2/5, Codabar (NW-7), POSTNET.

- Media Sensor Types:

Transmissive (Gap, Hole), Reflective (Adjustable Position Black Bar, Hole), Out of Paper, Peeler (Optional).

- Outline Fonts:

Helsinki, Brussels, Letter Gothic, Gothic.

- Print Commands:

ZPL II®, CPCL, Raster Graphics, Text (Template) ESC P.

- Stored Templates:

Up to 99 What´s Included:

- Carton Configuration:

Printer.

- Carton Contents:

TD-4650TNWB Printer, USB Cable, AC Adapter, Power Cable, Printed Guides, Software (Brother Solutions Center).
