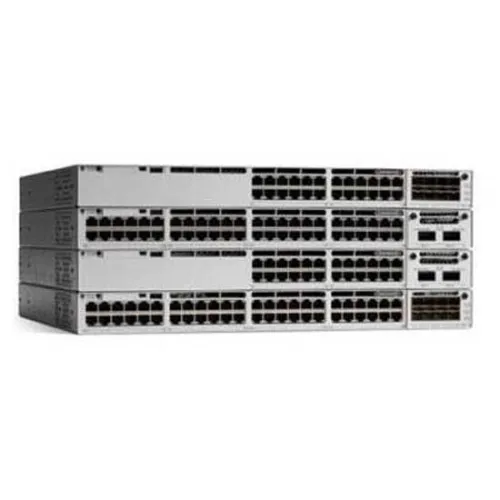

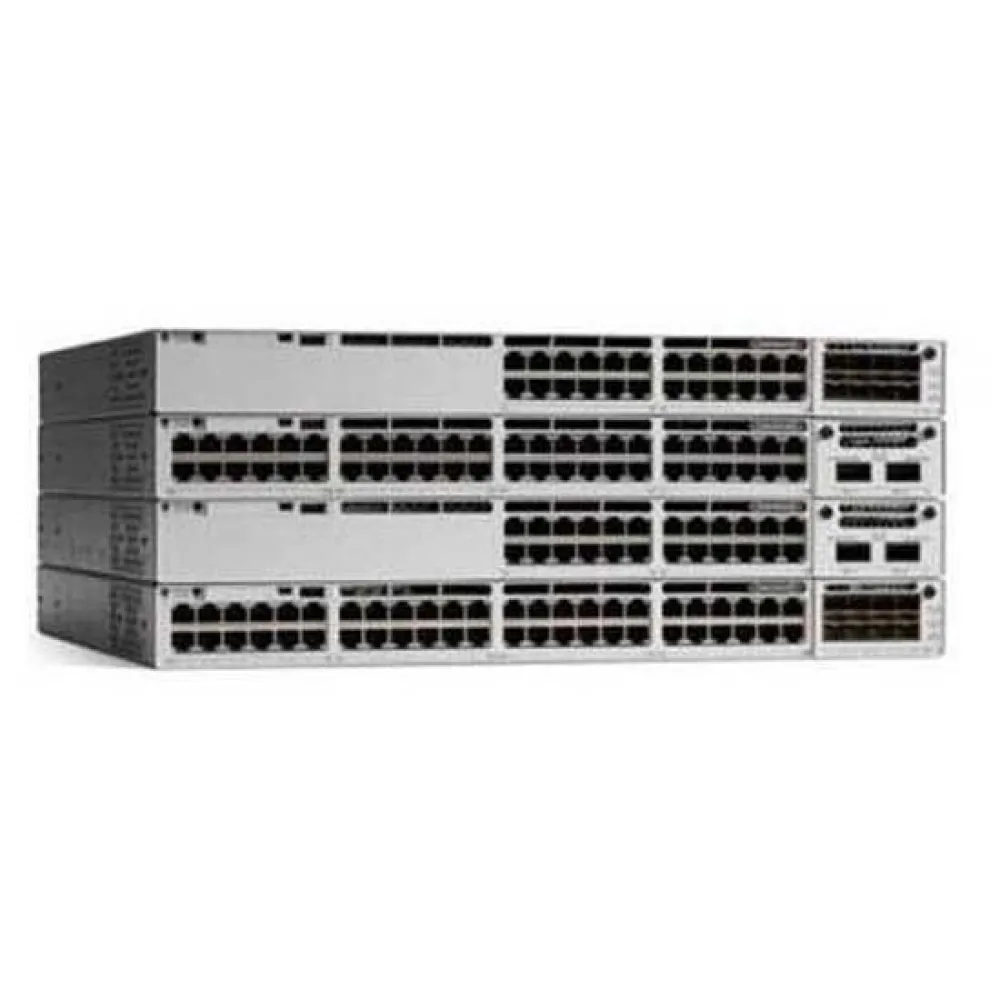

Cisco Catalyst 9300l C9300L-48T-4G-E switch

EU Plug.

The Cisco Catalyst 9300 Series is a best-in-class fixed switching platform switch for Cisco enterprise access.

Perfect access switch for large enterprise branch and facility environments that need scalability and an extra degree of security, resiliency, and programmability.

Features:

- Offers a stacking bandwidth capacity of 480 Gbps.

- Flexible uplinks:Cisco Multigigabit 1 Gbps, 10 Gbps, 25 Gbps, and 40 Gbps.

- Flexible downlinks:Multigigabit 5 Gbps, 2.5 Gbps or 1 Gbps copper.

- Support for ETA, EVB, hot patching, NFS/SSO, redundant power, fans, and perpetual PoE+.

Specifications:

General:- Type Of Device:Switch.

- 48 Ports.

- L3.

- Stackable.

- Type Of Box Rackmount.

- Subtype Gigabit Ethernet.

- Ports:48 X 10/100/1000 + 4 X Gigabit Sfp (uplink).

- Performance Switching Capacity With Stacking:424 Gbps.

- Switching Capacity:104 Gbps.

- Transmission Speed:77.38 Mpps.

- Transmission Speed With Accumulation:315.48 Mpps.

- Ability Ipv4 Routes:32000.

- Ipv6 Routes:16000.

- Multicast Scale:8000.

- Qos Scale Entries:5120.

- Acl Scale Entries:5120.

- Routed Ports:416.

- Supported Vlans:4094.

- Switched Virtual Interfaces (svis):1000.

- Mac Address Table Size:32000 Entries.

- Supports Jumbo Case 9198 Bytes.

- Addressing Protocol Ospf,rip-1,rip-2,eigrp,vrrp,pim-sm,eigrp For Ipv6,pim-ssm,rule-based Routing (pbr),ripng,mstp.

- Remote Management Protocol:Snmp 1,rmon 1,rmon 2,snmp 3,snmp 2c,cli,netconf,restconf.

Features:

Quality Of Service (qos),cisco Stackwise Technology,rapid Per-vlan Spanning Tree Plus (pvrst+),shaped Round Robin (srr),compatible Con Pxe,remote Switch Port Analyzer (rspan),netflow,energy Efficient Ethernet,management Information Base (mib),class Of Service (cos),flexible Netflow (fnf),autenticación 802.1x,búfer De Paquetes De 16 Mb,admite Diffserv Code Point (dscp),admite Macsec,control Plane Protection (copp),switched Port Analyzer (span),embedded Event Manager (eem),protocol Independent Multicast (pim),first Hop Security (fhs),compatible Con Pvlan,tasa De Información Comprometida (cir).

- Standards Compliance:Ieee 802.3,ieee 802.3u,ieee 802.3z,ieee 802.1d,ieee 802.1q,ieee 802.3ab,ieee 802.1p,ieee 802.3x,ieee 802.3ad (lacp),ieee 802.1w,ieee 802.1x,ieee 802.1s, Ieee 802.3bz.

- Ram.

Memory:8 Gb.

- Flash.

Memory:16 Gb.

- Expansion / Connectivity.

- Interfaces:48 X 1000base-t Rj-45.

- 4 X 1000base-x Sfp+ Subida Feeding:- Feeding Device:Power Supply.

- Hot Plug.

- Installed Quantity:1.

- Maximum Amount Supported:2.

- Power Redundancy:Optional.

- Supplied.

Power:350 Watts.

- Required Voltage:Ca 120/230 V (50.

- 60 Hz) Different:- Mtbf (mean Time Between Errors) 387,860 Hours.

- Standards Compliance:Cispr 22 Clase A,cispr 24,en 61000-3-2,en 61000-3-3,en55024,en 61000-6-1,as/nzs 60950-1,ccc,ices-003 Clase A,ul 60950-1,iec 60950-1,en 60950-1,rohs,as/nzs 3548 Clase A,bsmi Class A,vcci Class A,cns 13438,en 55022 Class A,fcc Cfr47 Part 15 B Class A,en 300 386,kn32,kn35,en 55032 Class A,cispr 32 Class A,can/csa-c22.2 No.

60950-1,tcvn 7189 Class A,v-3 Class A,tcvn 7317,cispr 35 Dimensions And Weight:- Width:44.5 Cm.

- Depth:4.4 Cm.

- Height:40.9 Cm.

- Weight:7 Kg Environment Parameters:- Operating Humidity Range:5.

- 90% (non-condensing).

- Minimum Storage Temperature -40 °c.

- Storage Temperature 70 °c.

- Storage Humidity Scope:5.

- 90% (non-condensing).
