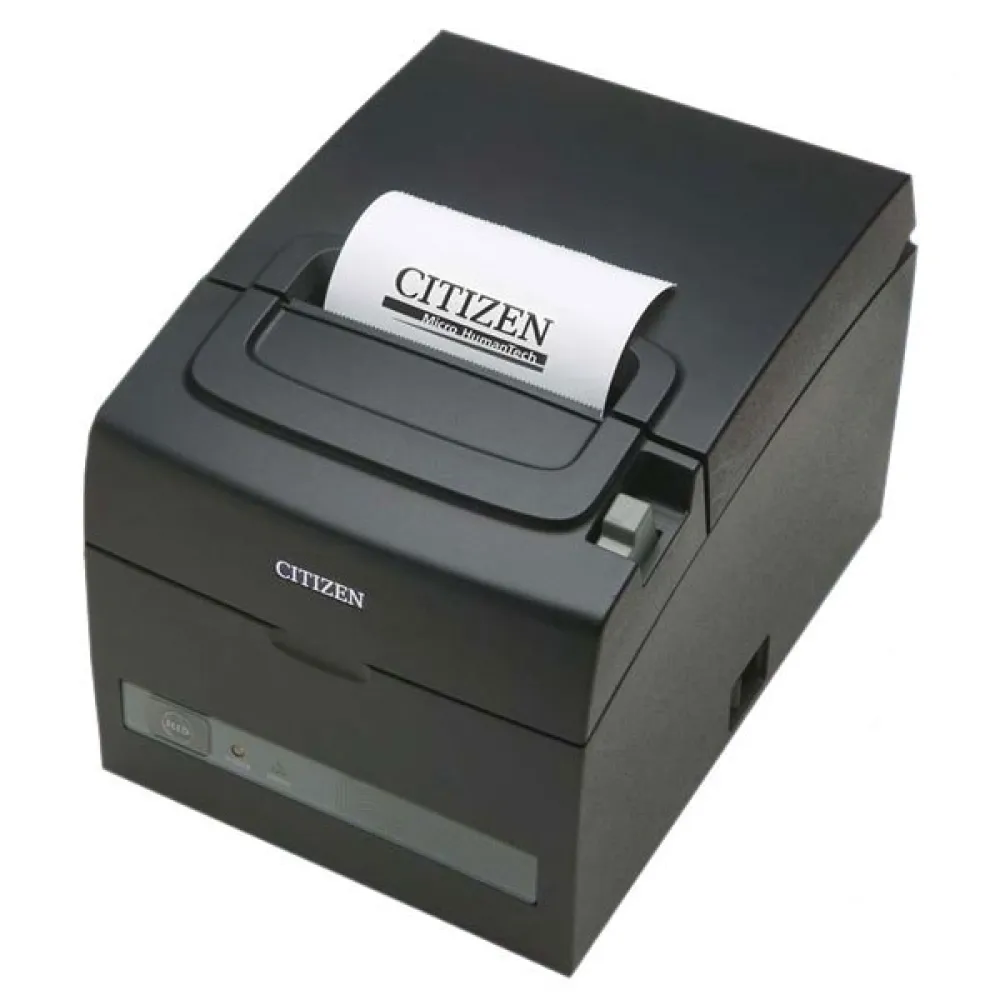

Citizen Systems CT-S310-II Serial label printer

EU PLUG.

Environmentally friendly, cost conscious printing:

The Eco-POS Printer:

- The industry-leading CT-S310II is a compact and advanced receipt and bar code printer.

Featuring an ENERGY STAR® power supply, paper-save function, halogen-free housing and packaging produced from recycled materials, the CT-S310II is truly environmentally friendly.

With an easy maintenance cutter and patented long life printing (LLP) technology, capable of extending print life to over 200km, the CT-S310II offers the ultimate combination of performance and energy efficiency.

- High speed 160mm/sec printing.

- Choice of paper widths.

- Extensive range of advanced functions Features:

- Paper exit:

Top exit.

- ideal for all retail applications.

- Paper width:

Variable paper width - 58 and 80 mm.

- Paper load:

Easy paper loading.

- Printing Speed:

Prompt print out of receipts.

- up to 160mm per seconds.

- Low space requirement.

- integrated power supply enables clean work station.

- Easy notification.

- built-in buzzer.

- Futureproof investment.

- 2 built-in interfaces:

serial and USB.

- Page mode.

- Easy customisation by software.

- Barcode printing.

- Cash drawer connection.

- Case colour:

Available in black or white Energy:

- Low power consumption including USB power save mode Specifications:

Printing Technology:

Direct Thermal Print Speed (maximum):

160 mm /sec.

Print Width (maximum):

48 / 72 mm (on 58 / 80 mm paper) Media Width (min to max):

58 or 80 mm Flash (Non-Volatile Memory):

192K bytes for character, 384K bytes for graphic Drivers and software:

Free-of-charge from website, including support for various platforms Size (W x D x H) and Weight:

140x195x132 mm, 1.9 Kg Emulations (Languages):

ESC/POS™ Barcodes:

- UPC-A.

- UPC-E.

- EAN-13 (JAN-13).

- EAN-8(JAN-8),.

- Codabar, ITF.

- CODE39.

- CODE93.

- CODE128.

- CODABAR(NW-7).

- PDF 417.

- QR Code.

- GS1-Databar Media type:

Thermal receipt paper Cutter:

Guillotine type, full and partial Drawer kick-out:

2 Drawers Power supply:

100 - 240V, 47-63 Hz, Engery Star approved Reliability:

200 Million pulses or 150 Km, 2 million cuts EMC and safety standards:

.

- CE.

- TUV.

- UL.

- C-UL.

- FCC class A.

- VCCI Number of columns:

.

- On 80mm paper up to 72 digits (8 x 16 font C).

- On 80mm paper up to 64 digits (9 x 24 font B).

- On 80mm paper up to 48 digits (12 x 24 font A).

- On 58mm paper up to 52 / 48 digits (8 x 16 font C).

- On 58mm paper up to 46 / 42 digits (9 x 24 font B).

- On 58mm paper up to 35 / 32 digits (12 x 24 font A) Character table / Code page:

.

- 863.

- 860.

- Katakana.

- Thai code18.

- WPC1252.

- 437.

- 850.

- 852.

- 857.

- 858.

- 864.

- 865.

- 866 Line spacing:

4.23mm (1/6 inch).

adjustable by user comand Input buffer:

4K bytes / 45 bytes Operation environment:

+5 to +45°C, 10%.

- 90% RH, non condensing Storage environment:

-20 to +60°C (10% to 90% RH non condensing) Resolution:

203 dpi Main Interface:

Dual Interface Serial (RS-232C), USB (version 2.0, full speed).
