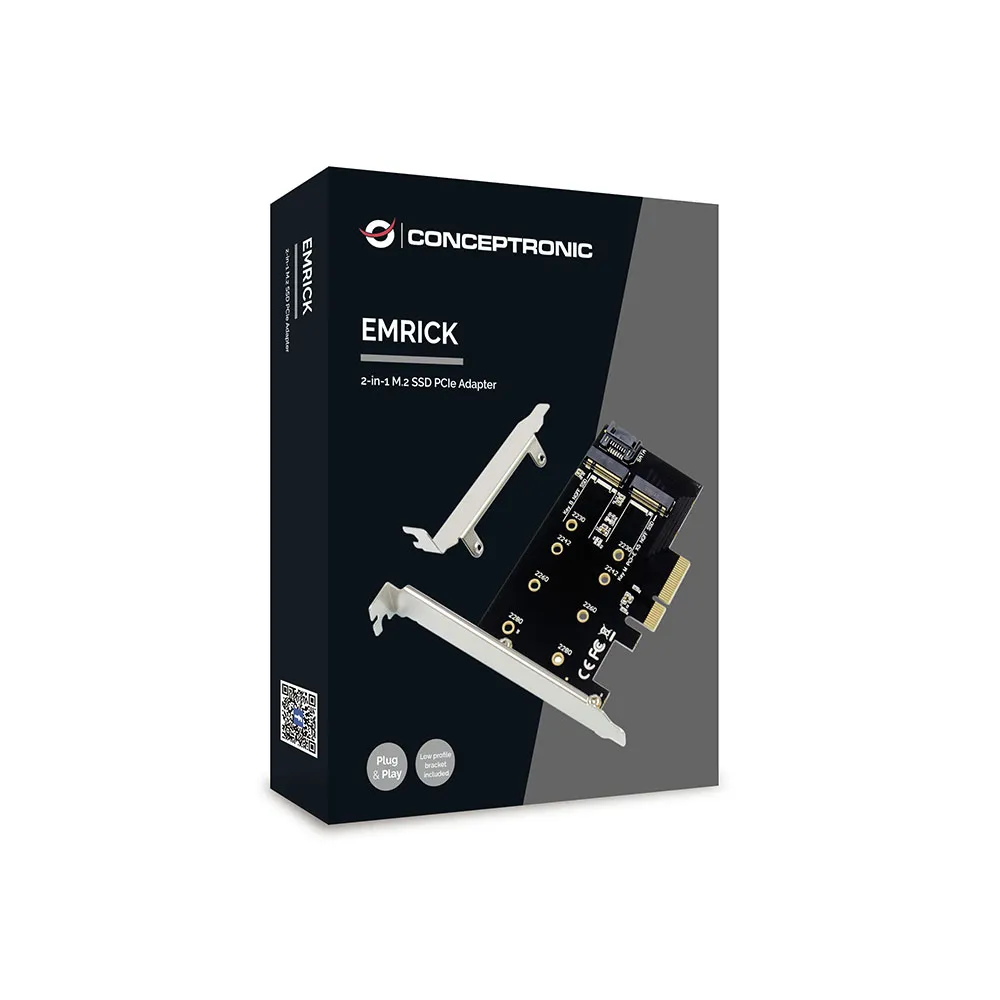

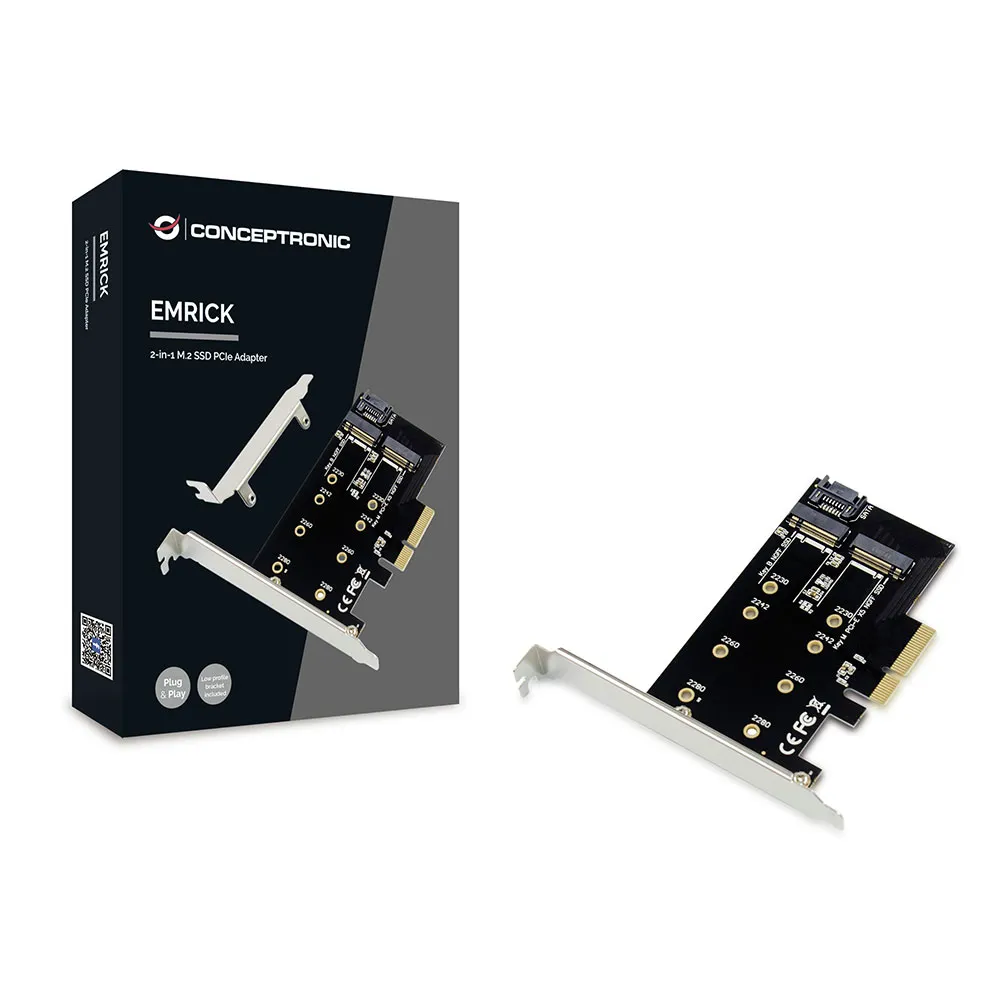

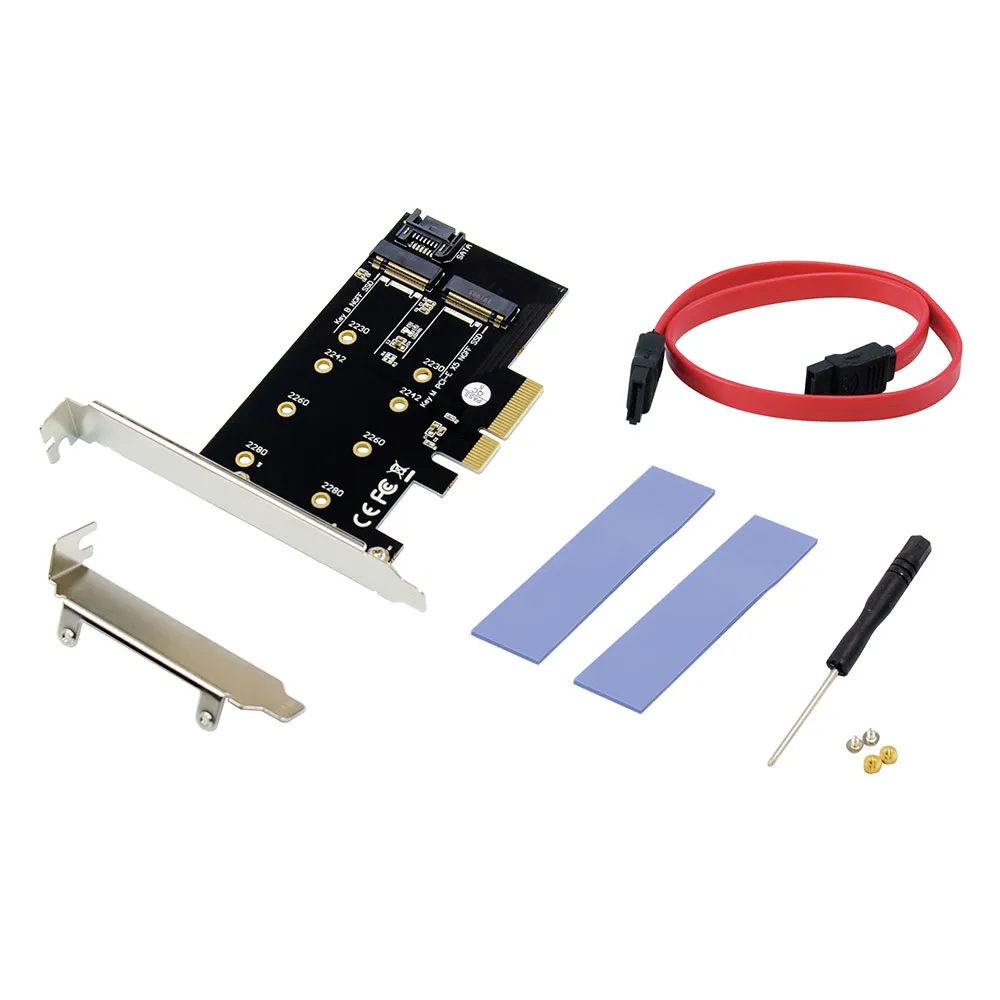

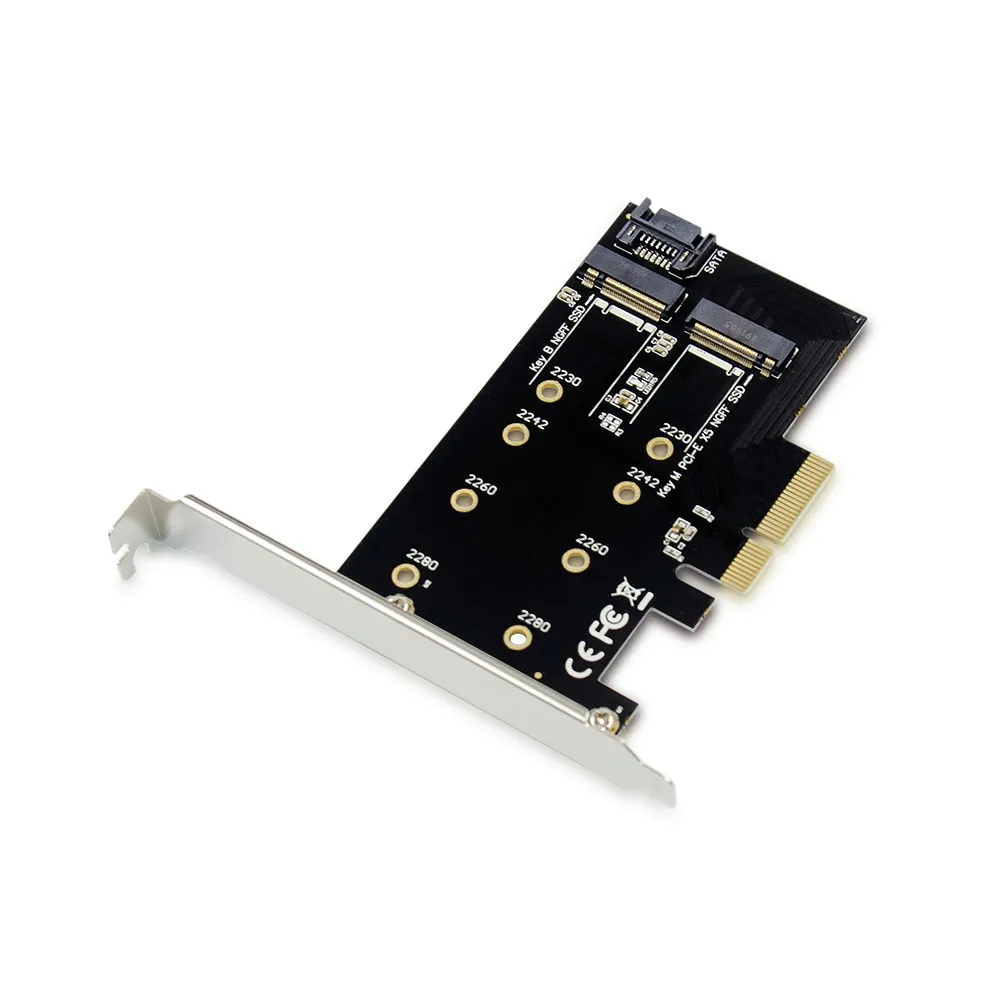

Conceptronic EMRICK04B M.2 PCI-E Expansion Card

This 2-in-1 M.2 SSD PCIe Adapter is a multi-functional NVMe conversion card, which can support the PCIe protocol NVMe SSD to connect directly to the motherboard, or the SATA Protocol NVMe SSD to connect to the motherboard SATA port with a SATA cable.

It also features ultra-fast PCI Express 3.0 X4 lanes, transmitting bandwidth up to 32GT/S, as well as Serial ATA v3.0 to transmit at speeds up to 6Gbps.

This adapter improves system speed, and will enhance the efficiency of office and entertainment equipment.Conceptronic EMRICK 2-in-1 M.2 SSD PCIe Adapter SATA AHCI NVMe.

Host interface:PCIe, Output interface:M.2, Expansion card standard:PCIe 3.0.

Cooling type:Passive, Country of origin:China.

Chipset:JMB585, Data transfer rate (max):6 Gbit/s.

Windows operating systems supported:Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10.

Width:70 mm, Depth:114 mm, Height:18 mmAdd 2 SSD to your desktop computer Supports PCIe Gen 3.0 x4 Supports both M.2 SATA SSD and M.2 PCIe NVMe SSD including 2230, 2242, 2260, and 2280 drives Supports M Key, B Key and B+M Key M.2 SSD Compatible with x4, x8, and x16 standard and low-profile PCI Express slots Simple Plug and Play installation
