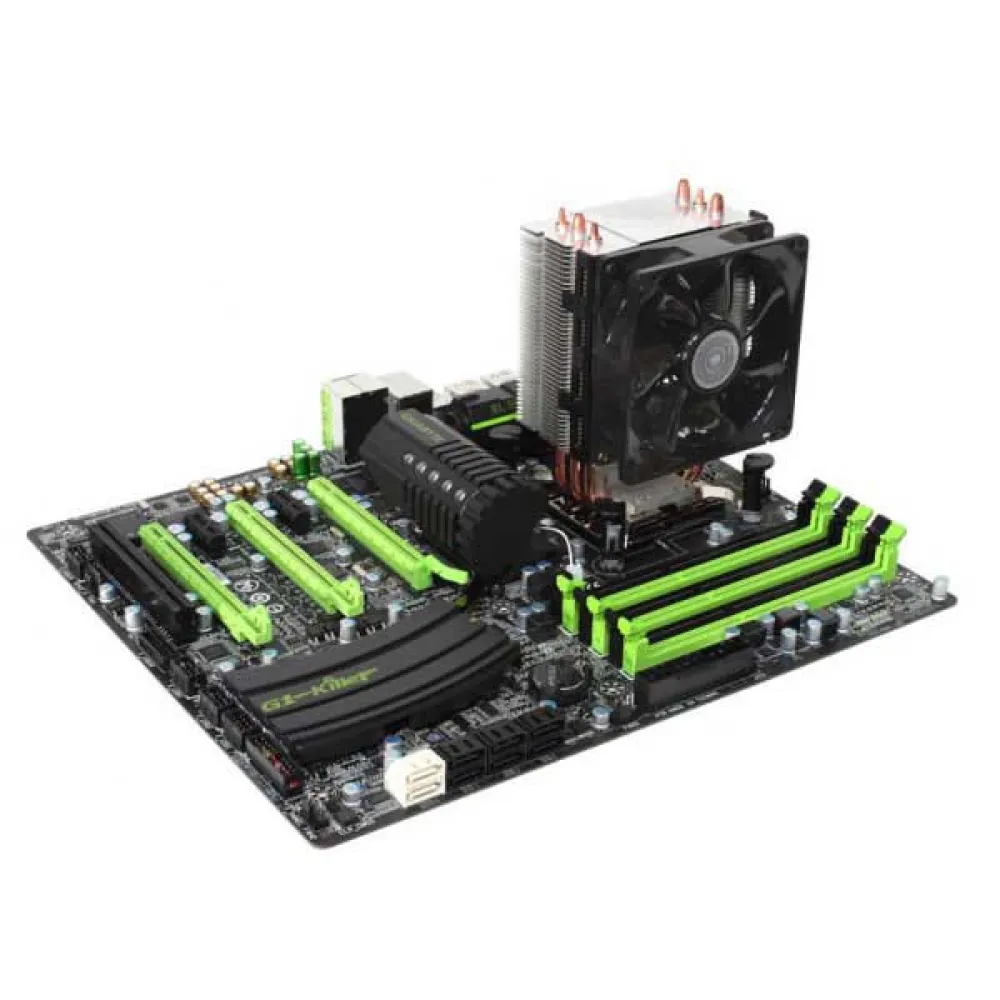

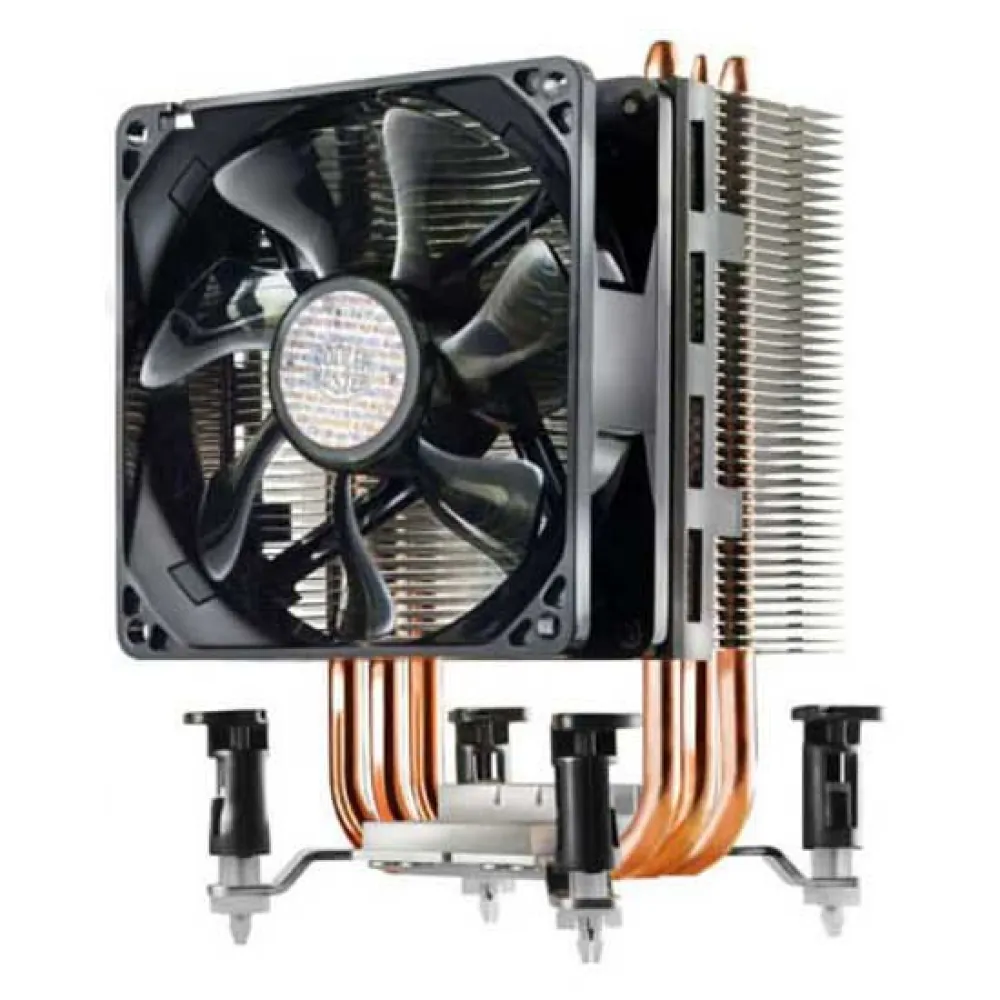

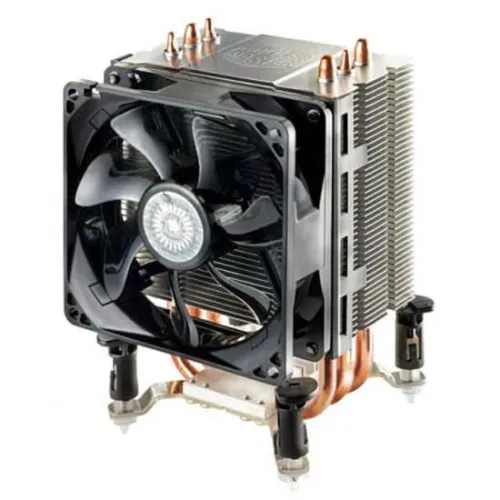

Cooler Master Hyper TX3 Evo CPU Fan

The Hyper TX series has evolved along with the requirements of mainstream CPUs. The launch of Hyper TX3 EVO marks another milestone with Cooler Master’s Improved Direct Contact technology, further improving cooling performance.

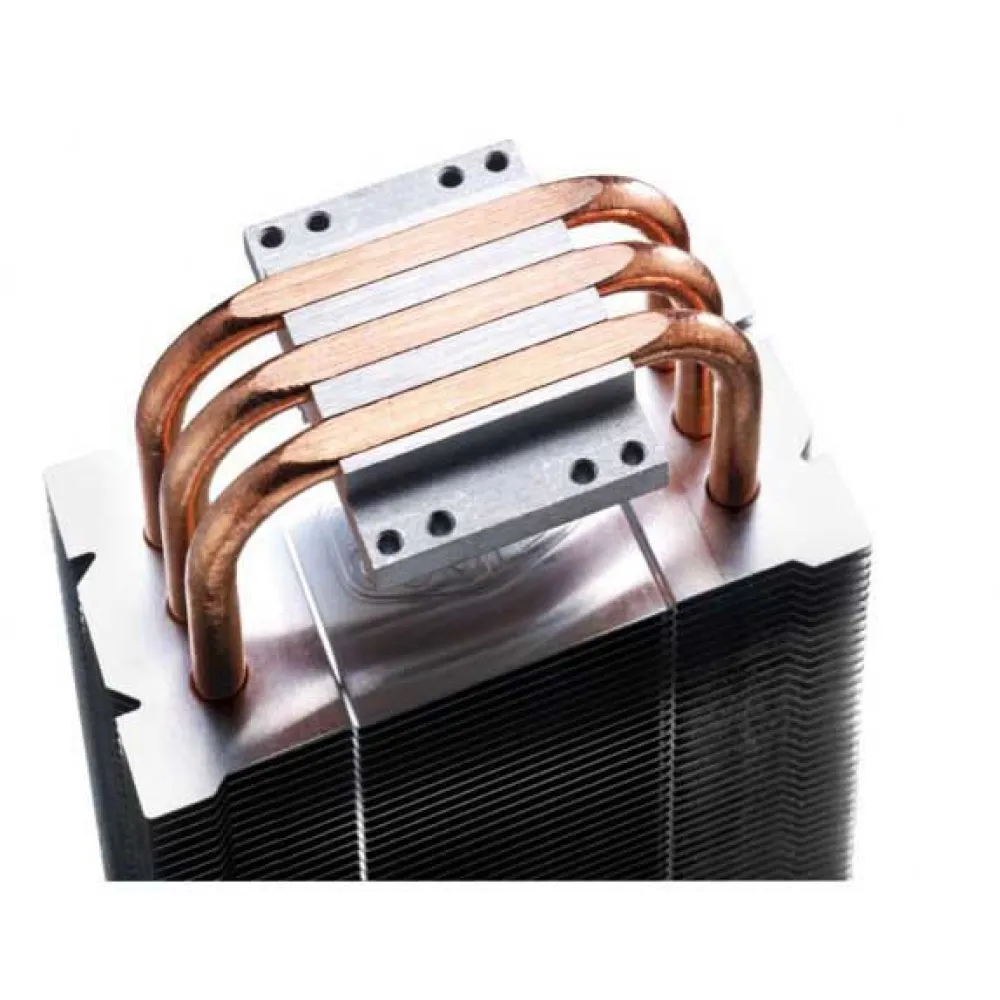

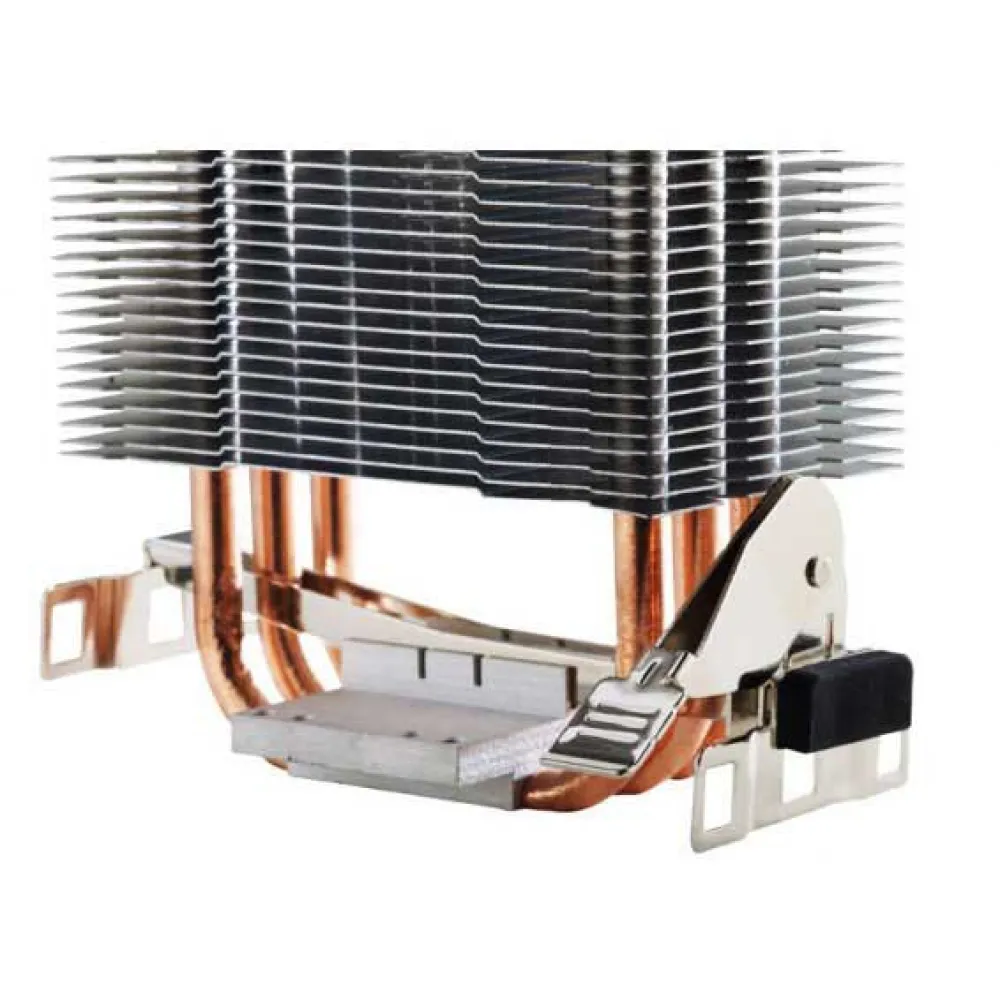

3 direct contact heat pipes:
- Aluminum fins with 3 direct contact heat pipes provide excellent heat dissipation.


Dual fan design:
- Increase cooling performance by adding an optional second 92mm fan.

92mm pwm fan with quick-snap fan bracket design:
- New 92mm PWM fan with anti-vibration rubber pads and a quick-snap cover for easy fan installation.

Compact dimensions:
- Excellent airflow design with compact heat sink dimension.

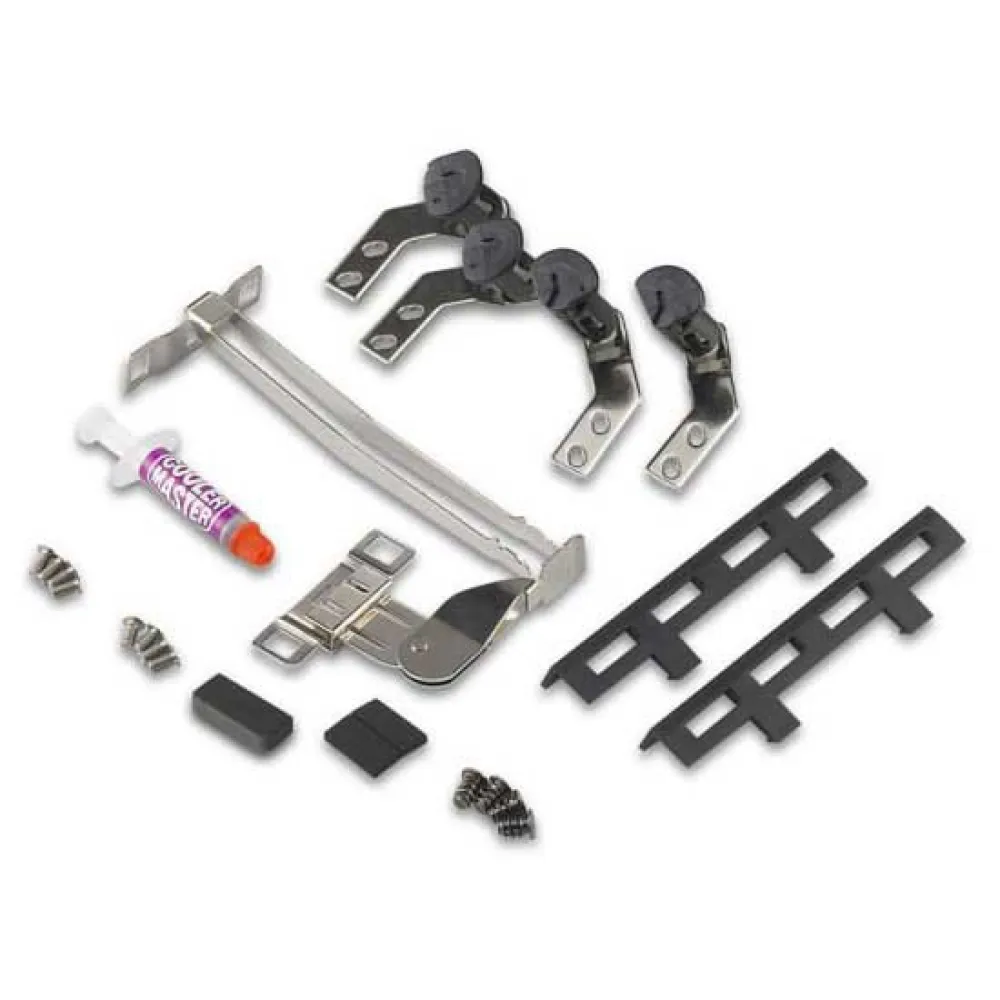

All-in-one mounting solution:
- Compatible with Intel® Socket LGA 1366/1156/1155/1151/775 and AMD Socket AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1.


Specifications:

- Cpu socket: LGA1366, LGA1156, LGA1155, LGA1151, LGA1150, LGA775, AM4, AM3+, AM3, AM2+, AM2, FM2+, FM2, FM1
- Dimensions (l x w x h): 90 x 79 x 136 mm / 3.5 x 3.1 x 5.4 inch
- Heat sink dimensions (l x w x h): 90 x 51 x 136 mm / 3.5 x 2.0 x 5.4 inch
- Heat sink material: 3 continuous direct contact heat pipes, aluminum fins
- Heat sink weight: 306g / 0.68lb
- Heat pipe dimensions: ø6mm
- Fan dimensions (l x w x h): 92 x 92 x 25 mm / 3.6 x 3.6 x 1 inch
- Fan speed: 800-2800 RPM (PWM) ± 10%, 800-2,200 RPM (PWM) ± 10% (EU Version)
- Fan airflow: 15.7 - 54.8 CFM ± 10%, 15.7 - 43.1 CFM ± 10% (EU Version)
- Fan air pressure: 0.35 - 4.27 mmH2O ± 10%, 0.35 - 2.63 mmH2O ± 10% (EU Version)
- Fan mttf: 40,000 Hours
- Fan noise level: 17 - 35 dBA, 17 - 30 dBA (EU Version)
- Fan bearing type: Long Life Sleeve Bearing
- Fan power connector: 4-pin (pwm)
- Fan power connector: 4-pin (pwm)
- Fan rated voltage: 12v dc
- Fan rated current: 0.24a, 0.15a (eu version)
- Power consumption: 2.88w
- Fan power consumption: 1.8w (eu version)
- Fan weight: 73g / 0.85lb
- Cooler type: Air Cooler
- Series: Hyper
- Heatpipes: 3
