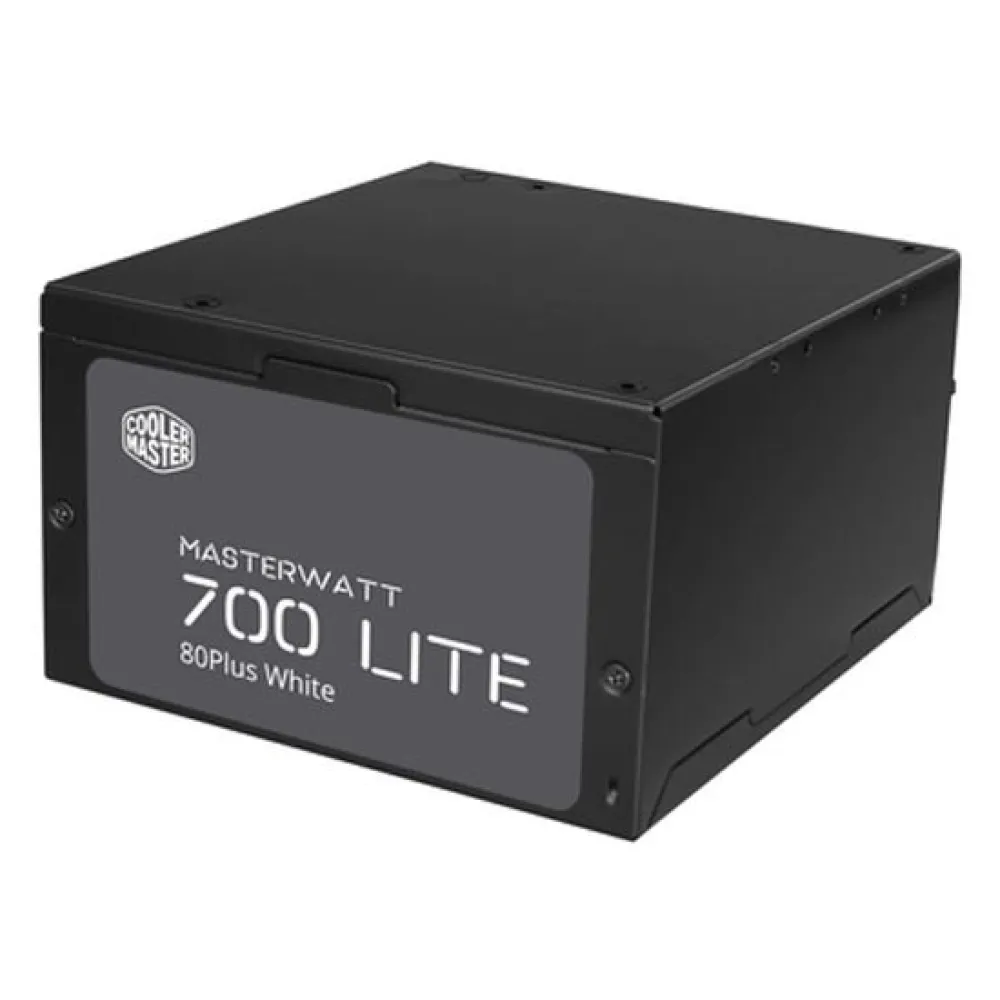

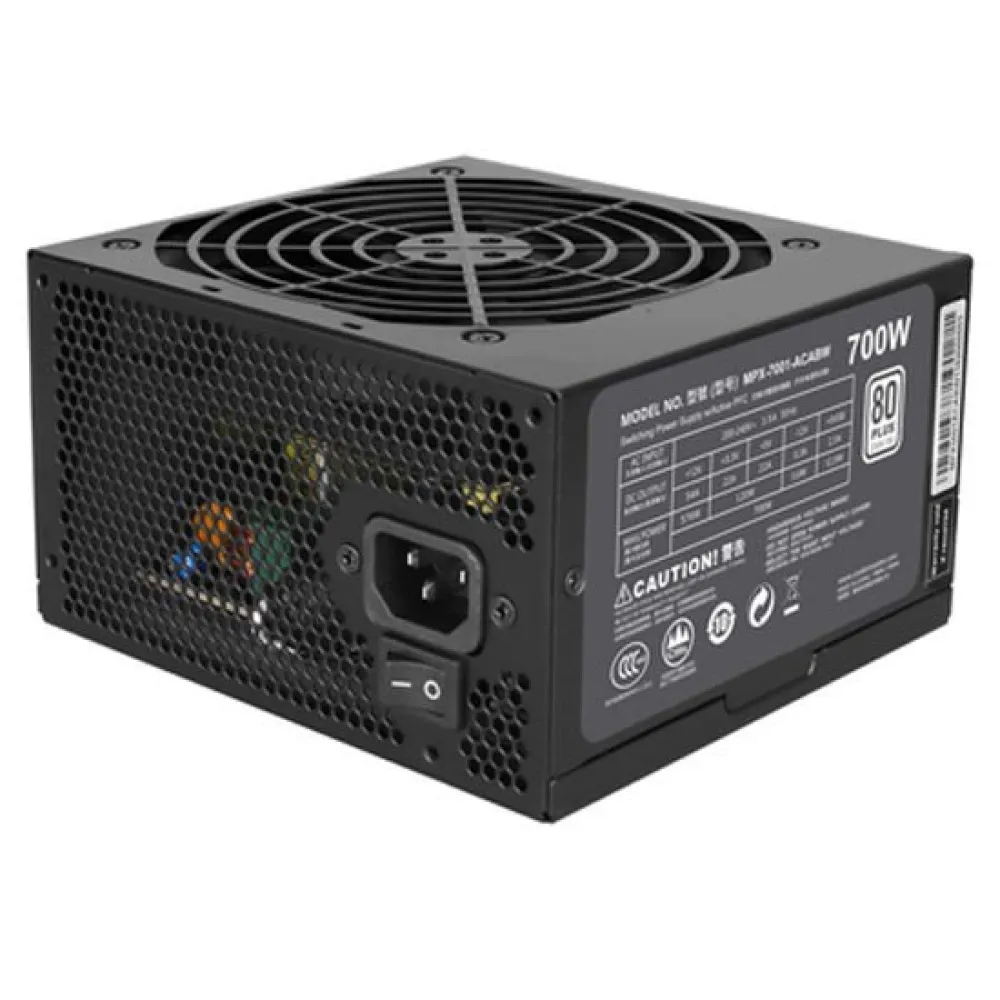

Cooler Master MasterWatt Lite 700 Power Supply

Masterwatt lite 230v 700w:
- ERP2013 230V
- 80 Plus EU (230V) certified 85% efficiency
- APFC + PWM combined with dual forward topology to increase stability and performance
- Green power design to meet ErP 2013 Lot6 & new CE energy saving regulation

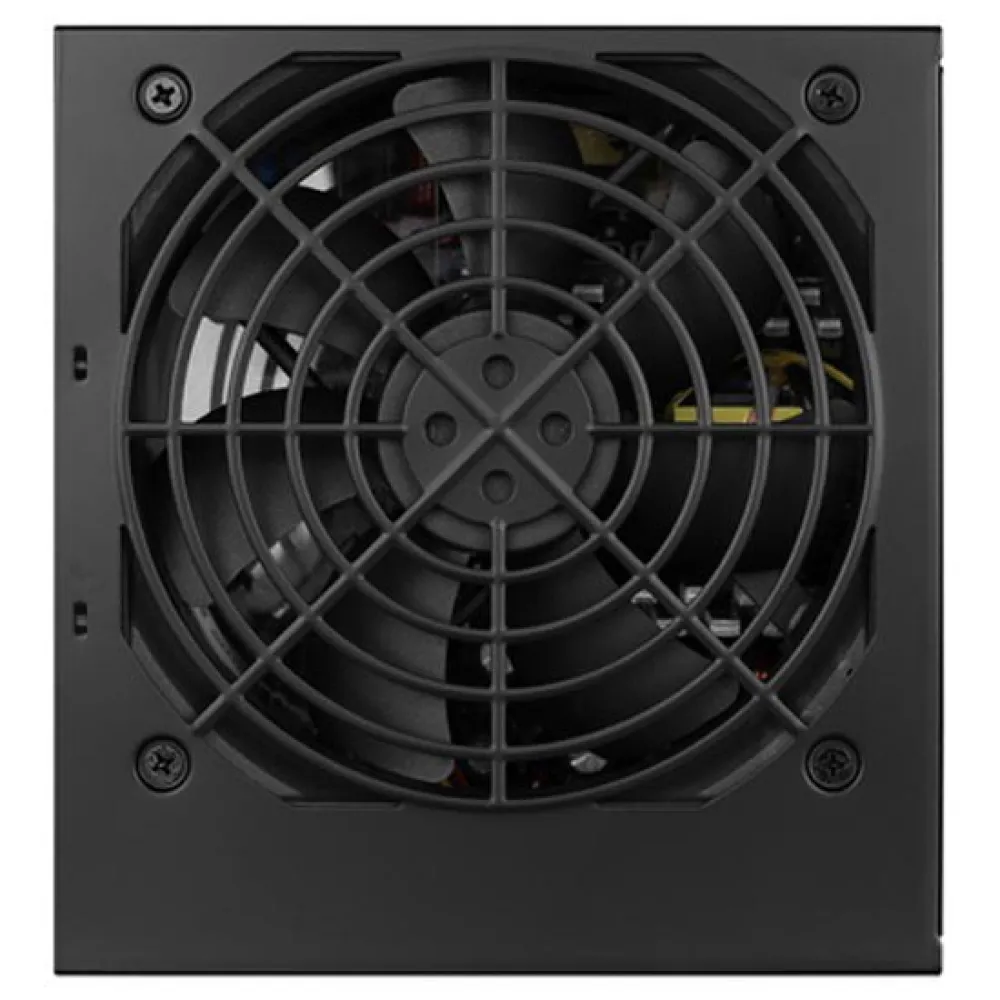

- Silent 120mm HDB fan with intelligent fan-speed control, to enhance longevity and help reduce noise in power unit.
- Fully protection (OCP/OVP/SCP/OPP) with build-in Over Temperature Protection (OTP)

Lighten the load:
- Power on. We want the MasterWatt Lite Series to be that simple. In the box are all the essentials of a reliable engine so you don´t have to think about it. We added higher-end perks like Active PFC and PWM technology for more stability, and made sure we met ErP 2013 and CE ratings for safety and low energy impact. It´s the survival kit for reliable, affordable power.

Advanced circuit design:
- Active PFC + PWM combined with dual forward topology and double EMI filter enhances power output efficiency and increases the performance and stability of your system.

Silent and durable fan:
- Cooler Master´s 120mm HDB temperature control fan can operate more smoothly without friction, which makes it quiet and more durable.

Green power:
- Compliant with ErP 2013 Lot6, which guarantees that your PSU will use less than 0.5W on system standby and lower than 45% transferring efficiency on 5V standby.

Safety guardian:
- Full protection (OCP/OVP/SCP/OPP) with built-in Over Temperature Protection (OTP). Minimizes the risk of damage from power outages.

Specifications:

- Atx version:atx 12v v2.31
- Pfc: active pfc
- Input voltage:200-240vac
- Input current:3.5-5a
- Input frequency:47-63hz
- Dimensions (l x w x h):150 x 140 x 86 mm
- Fan size:silent 120mm hdb fan
- Power good signal:100-500ms
- Hold up time:>10ms at 100% full load@230vac
- Efficiency:85% typically
- Mtbf:>100,000 hours
- Protections:ocp, ovp, opp, otp, scp, uvp
- Regulatory:tuv, ce, bsmi, fcc, ctuv-rhus, kc, ccc, eac, rcm, cb
- Operating temperature:0-40°c
- Mb 20+4 pin connectors:1
- Cpu 12v 4+4 pin connectors:1
- Pci-e 6+2 pin connectors:4
- Sata connectors:6
- Peripheral 4-pin connectors:3
- Fdd cable 4-pin connectors:1
- Series:standard
- Wattage:500 to 750w
- Serie:masterwatt lite series
