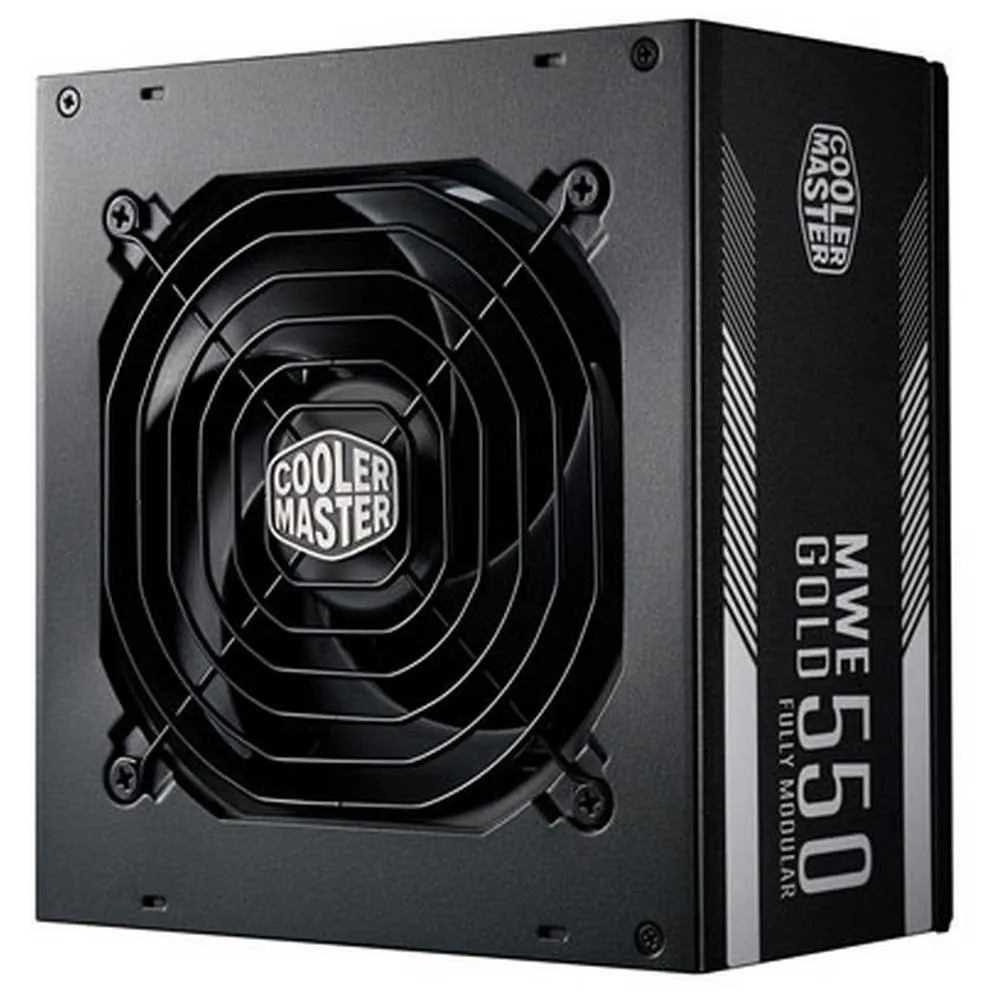

Cooler Master MWE 550 Full Modular Power Supply

Behold the 80 Plus Gold rated, fully modular MWE Gold. This power supply unit delivers consistent 90% efficiency, low temperatures, and quiet operation. High quality, heat resistant components have been used to achieve gold level performance at temperatures up to 45°C. The Silencio fan and exclusive LDB bearing provides nearly silent cooling at no loss to system performance and a longer lifespan. Flat cables improve airflow by reducing cable bulk and a single +12V line ensures all components are fed the same stable output regardless of which cable you use. Be bold, power with gold.


Features:

80 PLUS GOLD CERTIFIED:
- This certification guarantees a typical efficiency of 90% under normal operating conditions.

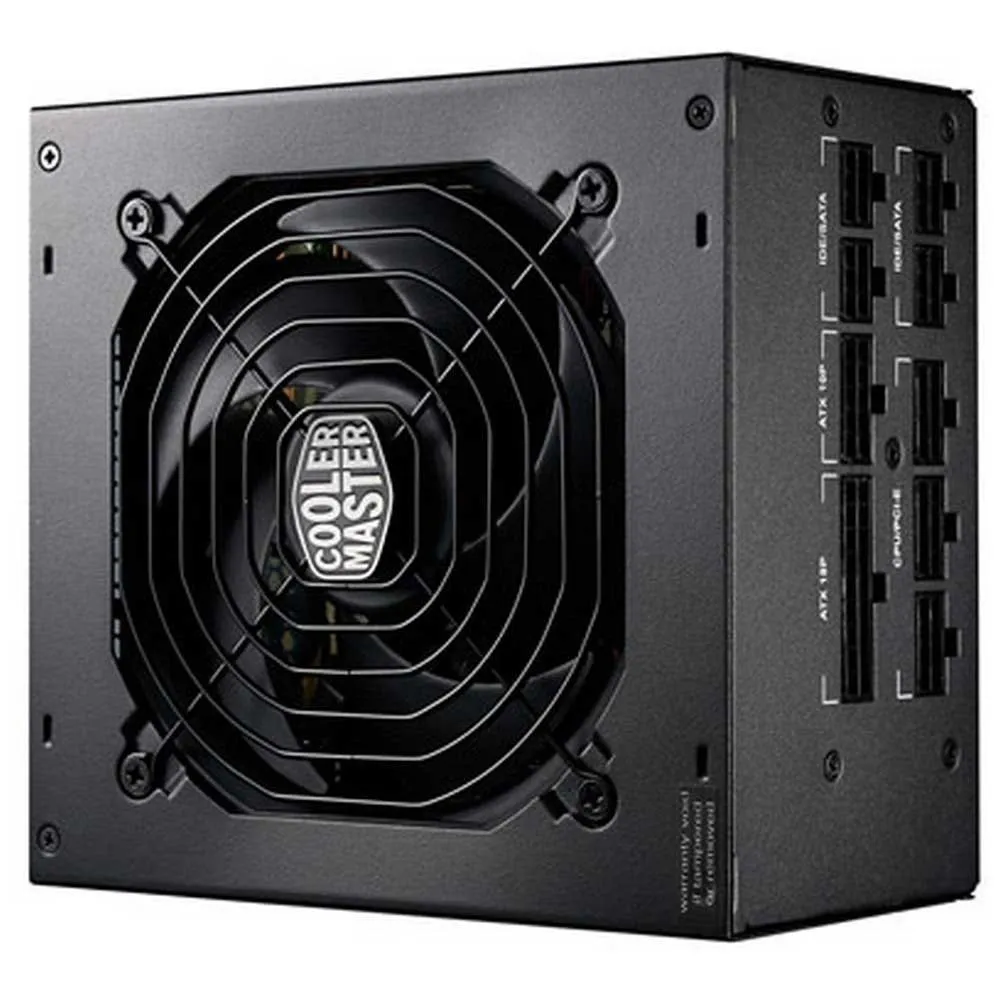

FULLY MODULAR CABLES:
- Fully customizable cabling reduces clutter, increases airflow, and improves overall thermal performance.

ADVANCED CIRCUITRY:
- The MWE Gold´s full-bridge design coupled with LLC, Synchronous, and DC to DC topology technologies offers reliable and stable voltage outputs.

5 YEAR WARRANTY:
- This unit comes with a standard limited manufacturing warranty of 5 years from the date of purchase.

SEALED LDB FAN BEARING:
- The sealed LDB bearing has been combined with Silencio fan technology for quiet cooling with a longer lifespan.

PSU Calculator:
- Need help choosing the right power supply for your system? Try out our easy to use, comprehensive PSU calculator.

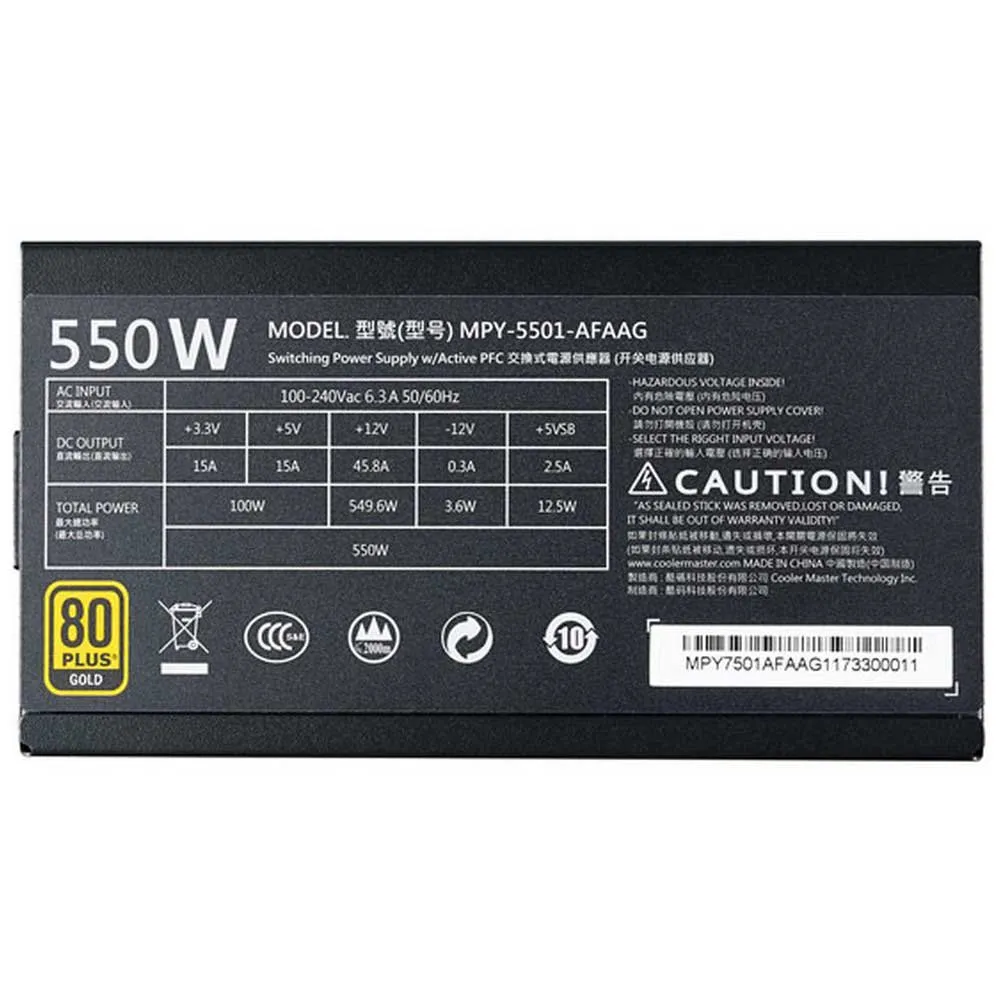

Specifications:

Power:
- Total power: 550 W
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Input current: 6.3 A
- Power Factor Correction (PFC) type: Active
- Combined power (+3.3V): 100 W
- Combined power (+12V): 549.6 W
- Combined power (+5V): 100 W
- Combined power (-12V): 3.6 W
- Combined power (+5Vsb): 12.5 W
- Max output current (+3.3V): 15 A
- Max output current (+12V): 45.8 A
- Max output current (+5V): 15 A
- Max output current (-12V): 0.3 A
- Max output current (+5Vsb): 2.5 A
- Hold time: 14 ms
- Efficiency: 90%
- Power Good signal delay range: 100 - 500 ms
- Power protection features: Over power,Over voltage,Short circuit,Under voltage,Overheating

Ports & interfaces:
- Motherboard power connector: 20+4 pin ATX
- Peripheral (Molex) power connectors (4-pin): 3
- Motherboard power cable length: 61 cm
- Number of SATA power connectors: 8
- SATA power cable length: 760 mm
- Peripheral (Molex) power cable length: 760 mm
- PCI Express power connectors (6+2 pin): 2
- PCI Express power cable length: 72 cm
- CPU power connector (4+4 pin): Yes

Ports & interfaces:
- CPU power cable length: 65 cm
- ATX power connector (20+4 pin): Yes
- Floppy drive power connector: 1
- Floppy disk drive connector: Yes

Performance:
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
- 80 PLUS certification: 80 PLUS Gold
- ATX version: 2.31
- Bearing technology: LDB
- Mean time between failures (MTBF): 100000 h
- Certification: CCC, CE, TUV-SUD, RCM, EAC, cTUVus, FCC, BSMI, KC, CB

Design:
- Fan diameter: 12 cm
- Number of fans: 1 fan(s)

Operational conditions:
- Operating temperature (T-T): 0 - 45 °C

Weight & dimensions:
- Width: 150 mm
- Depth: 160 mm
- Height: 86 mm
- Weight: 2.16 kg

Packaging data:
- Package width: 194 mm
- Package depth310 mm
- Package height: 120 mm
- Package weight: 2.46 kg

Logistics data:
- Quantity per pallet: 16 pc(s)
- Master (outer) case width: 32.5 cm
- Master (outer) case length: 62 cm
- Master (outer) case height: 22 cm
- Quantity per master (outer) case: 5 pc(s)
