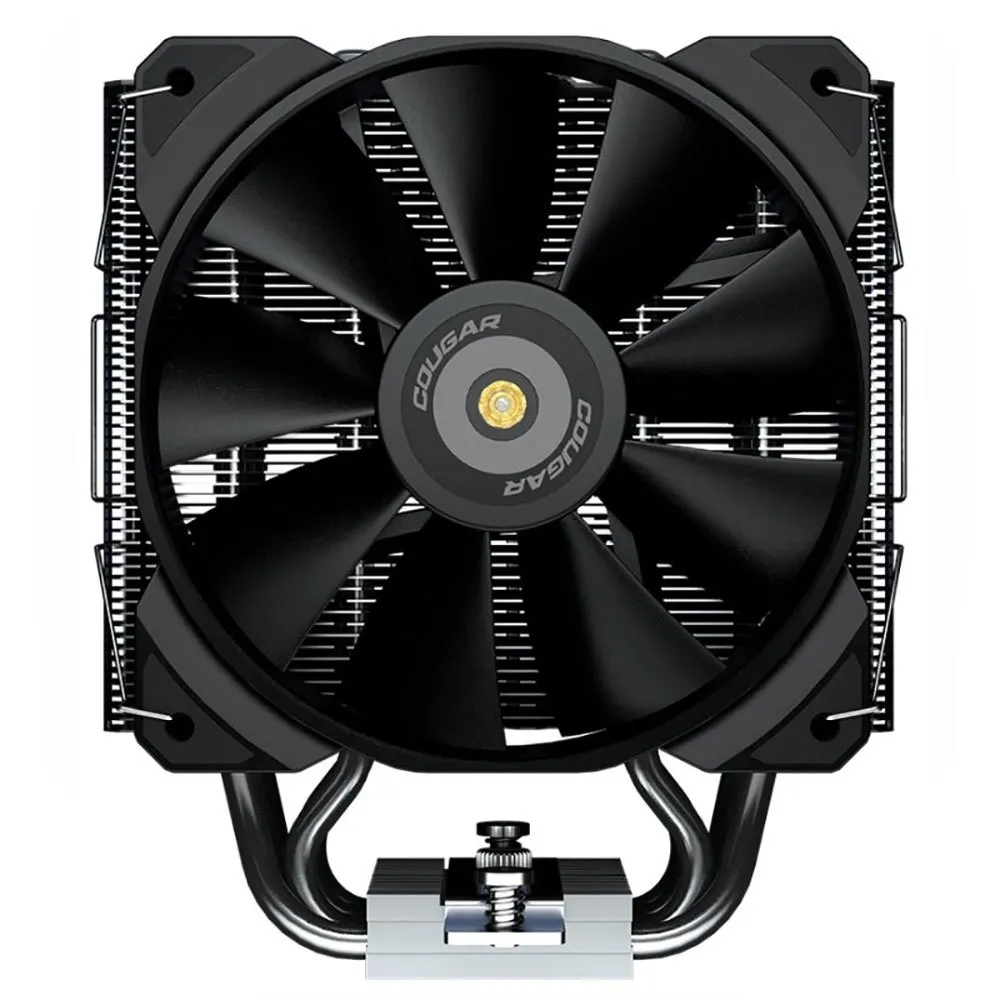

Cougar Forza 85 CPU Fan

Forza 85.

Premium individual tower air cooler.

As a single/high -level cpu air cooler for cpu, forza 85 with its single design front cover, together with the high performance fan cougar mhp120, it provides users with an optimal balance between ultra silent operation and a cooling extreme forza 85 is absolutely designed for most performance users.

(setting of the capable minor overclock).

Elegant pipa tapas decoration.

Forza 85 air cooler is designed with an elegant cover decoration.

Not only does the aesthetics of the entire cooling tower increase, but it also prevents oxidation in the heat tube from contacting the air.

Through the lid design, forza 85 offers both appearance and performance, really surprising! extremely hyperfanatic.

With 2000 rpm (max.

).

Forza 85 is equipped with a high performance fan cougar mhp 120.

With the motor of the engine reinforced with durable metal and the design of the metal bearing housing, as well as a fan speed capable of reaching up to 2000 rpm, cougar mhp 120 it provides high air flow and high static pressure to achieve an optimal balance between ultrasilencious functioning and extreme cooling.

Which makes it the perfect partner with forza 85 that offers exceptional performance.

Vacuum tunnel design.

To further improve the efficiency of heat dissipation, forza 85 was designed with a 90 -degree turn shape at both ends of the fins of the heat dissipator.

This closed space design creates an air tunnel that closes the air flow from the radiator sides and, in turn, causes a different air pressure on both sides of forza 85.

This air pressure difference increases the flow of air through fins to maximize cooling efficiency.

Nickel -coated copper base.

With 6 heat tubes and a polished copper surface, reflux welding crafts and six heat tubes with a diameter of 6 mm, forza 85 provides excellent heat dissipation capacity, sufficient for most users.

Excellent compatibility.

Through design verifications and installation tests, forza 85 has a compatibility of higher components in ram/gpu (including lga1700/lga2011/2066 dates from most brands easily.

Users can choose the components of their choice without any concern.

Less than 160 mm high.

Forza 85 can be installed in most multifunctional median tower chassis that support atx / e-tox base plates with a high restriction of up to 160 mm, which makes forza 85 an excellent option for pc diy lovers .

Dual fan.

Forza 85 comes with an additional game of fan clips that allows a second 120 mm fan of any brand to increase the heat dissipation efficiency of forza 85.

Easy to use installation.

To improve the general installation experience, forza 85 comes with an intel/amd support game, which can be easily installed in a few steps.

A screwdriver is also included in the package so that users use it directly without any prerequisite.

Brand:cougar.

Model:3mfza85.

0001.

Features:

Heat sink.

-base cpu:copper base with nickel -plated.

-heat tube diameter:6 mm.

-number of heat tubes:6 units.

-heat tube finish:copper with nickel -plated.

-craft:reflux.

-dimensions (width x depth x height):85 x 135 x 160 mm.

-weight:958g.

-weight included fan:1160 g.

Fan.

-fan model:mhp120.

-dimensions (an.

X pr.

X al.

):120 x 120 x 25 mm.

-fan speed:600-2000 rpm ± 200 rpm.

-air flow:82.

48 cfm / 143.

53 m3 / h (± 10 %).

-air pressure:4.

24 mm h2o ± 10 %.

-acoustic noise:34.

5 db (a) (max.

).

-nominal voltage:12 vcc.

-nominal current:0.

23 a.

-energy consumption:2.

76 w ± 10 %.

-type of bearing:hdb hydrodynamic bearing.

-cable length:200 mm.

-connector and control:4 pins pwm.

-cpu socket:intel socket lga 115x / 1366/1200/1700/2012/2066 (core i3 / i5 / i7 / i9 cpu).

Amd am4 / fm2 / fm1 / am3+ / am3 / am2+ / am2 cpu.

Review date.

09-09-2022 per mpm.
