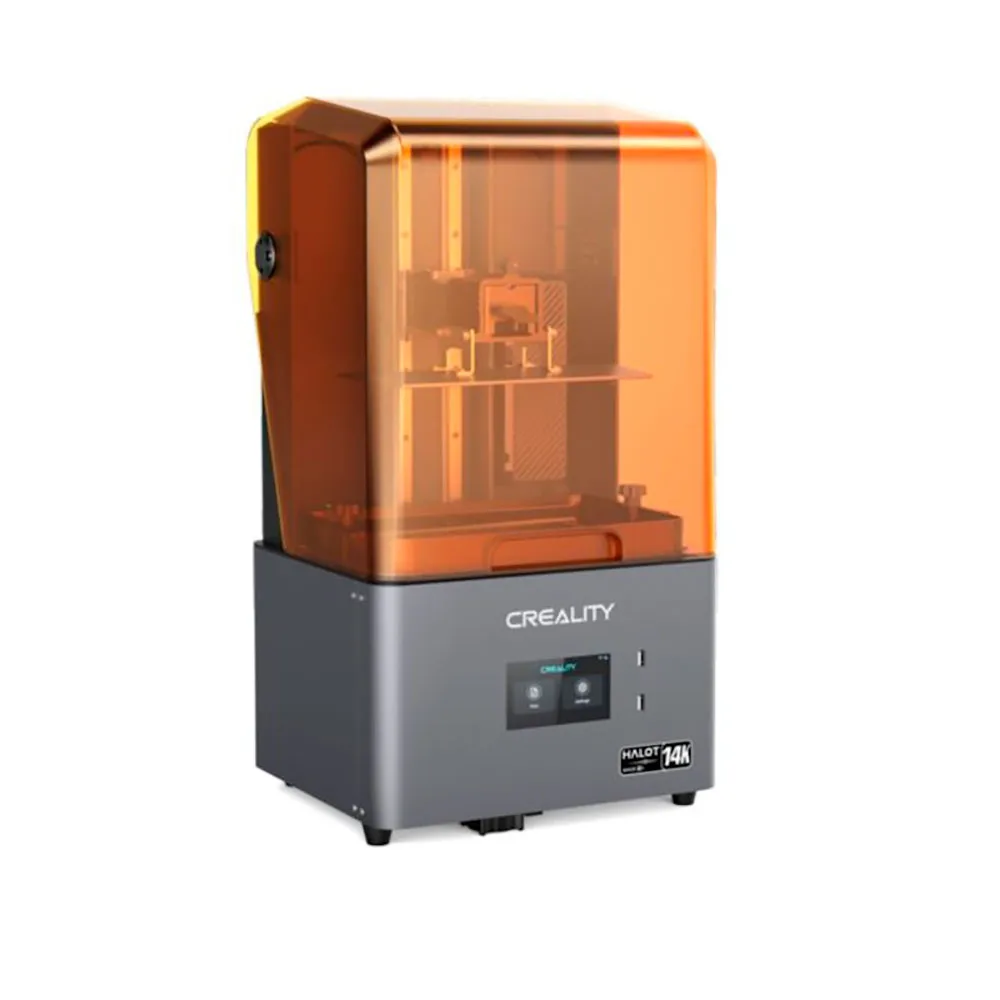

Creality Halot Mage S-14K Resin 3D Printer

EU Plug.

The Creality Halot Mage 3D printer offers 14K resolution, with a build volume of 223 x 126 x 230 mm and a printing speed of up to 150mm/h in ''Dynax+´´ ultra-high-speed mode.

Equipped with a 10.1-inch display and a third-generation integral light source, this device guarantees an irradiation uniformity of over 90%.

In addition, the precision of this model varies between 0.02 and 0.09 mm, and its motion system incorporates a high-torque closed-loop motor along with dual rails on the Z-axis, ensuring greater stability and precision in prints.

Features:

14K Resolution:- Creality´s Halot Mage S features a 14K resolution (13320 x 5120 pixels) with a pixel size of 16.8 x 24.8 μm.

This high resolution allows for extremely precise details in prints.

In addition, it is equipped with a third-generation integral light source, which ensures irradiation uniformity of over 90%.

Speed 150 mm/h with Dynax mode:- The printing speed reaches 150 mm/h in ultra-high ´´Dynax+´´ mode, allowing for fast prints without compromising quality.

On the other hand, the model´s precision varies between 0.02 and 0.09 mm, ensuring fine and accurate details in every creation.

Closed loop motion system (1300 Nm):- The Halot Mage S features a 1300 N m high torque closed-loop motor, which delivers precise and controlled movements.

Dual rails on the Z- axis improve the stability and accuracy of the motion system, thereby reducing vibrations and deviations during the printing process.

Three-layer film:- The Halot Mage S uses a three-layer composite film called ´´Pictor´´ which reduces the removal force by 35%.

This improves printing efficiency and reduces the risk of failure in printed parts.

Activated carbon air purification:- The built-in air purification unit features an activated carbon filter and an external tube exhaust port, which improves the air quality in the working environment by reducing volatile organic compounds.

HALOT OS operating system, WiFi, Ethernet and USB:- The Halot Mage S´ HALOT OS offers versatile connectivity via USB, WiFi, and Ethernet, enabling remote printing functionality and access to Creality Cloud.

Additionally, this system allows printing to be controlled from mobile devices and computers, facilitating the management and monitoring of projects in a practical and effective way.

Compatible resins:- It is recommended to use Kavaramon High Precision Resin, Vintage Jewelry Resin and BJD Doll Resin, as each type is specially formulated to meet different applications and specific needs.

Specifications:

Performance:- Printing technology:LCD MSLA.

- File Transfer:USB/Ethernet (RJ45)/WiFi.

- Construction volume:223 x 126 x 230mm (6462cm³).

- Separation film:High speed ´´Pictor´´ film/Regular FEP film.

- Smart resin pump:Optional.

- Air purifier:Yes.

- Noise level 49 dB (1 m).

- Print speed ≤150 mm/h.

- Resin:405nm resins.

- Layer height:0.05-0.2 mm.

- Cutting.

Software:HALOT BOX/CHITUBOX/Tango.

- Screen:10.1´´ Mono LCD.

- Display screen:4.3´´.

- LCD Resolution:14K (13320 x 5120 px).

- Supported operating system:Windows/Mac.

- File formats for cutting:STL/OBJ.

- XY Resolution:16.8 x 24.8 μm.

- Light source:Integrated light source 3.0.

- Light Uniformity (%):＞90%.

- Light intensity 3500 ±10% μW/cm².

- Interface languages:Chinese, English, Spanish, German, French, Russian, Portuguese, Italian, Turkish, Dutch, Polish, Japanese, Korean Connectivity:- Connectivity:WiFi and Ethernet.

- APP for cloud printing:Creality Cloud Energy control:- Nominal.

Power:100 W Dimensions and weight:- Dimensions:333 x 270 x 608 mm.

- Weight:13.13 kg.
