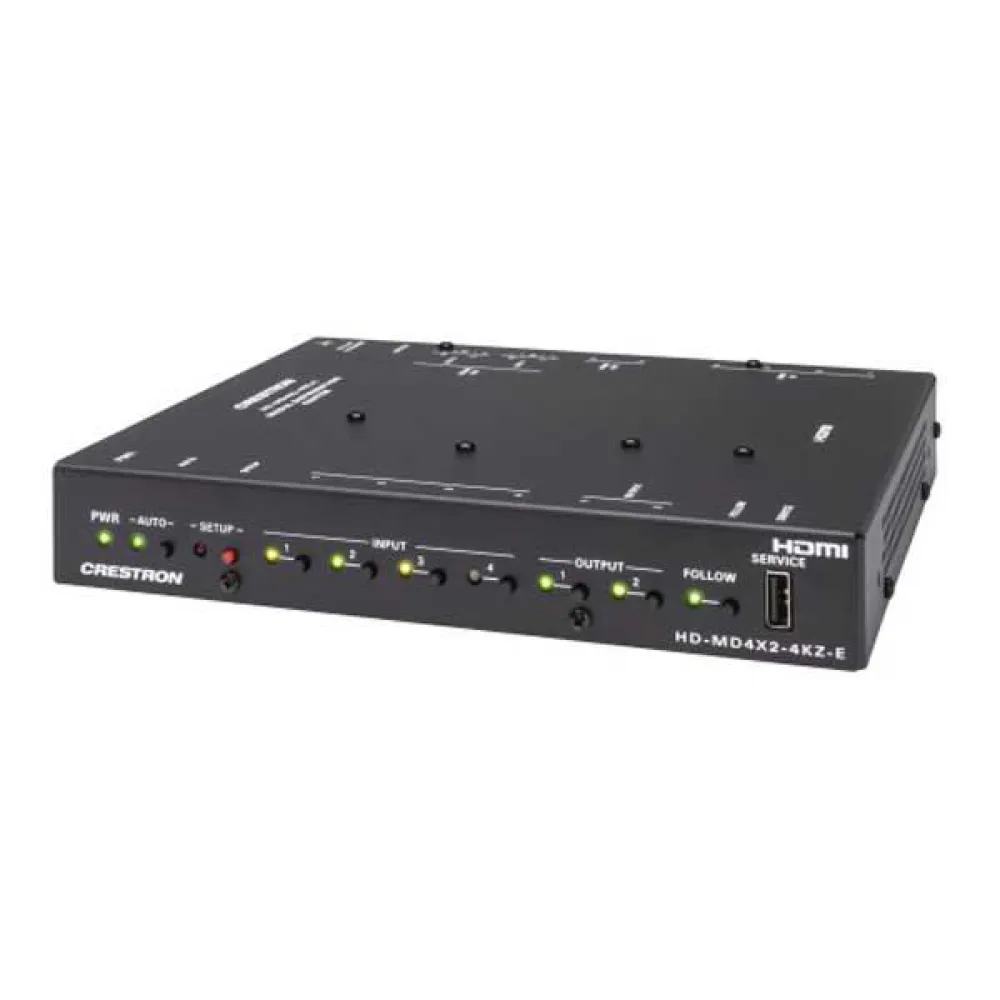

Crestron HD-MD4X2-4KZ-E 6511307 video switch

If you´re passionate about.

IT and electronics.

like being up to date on technology and don´t miss even the slightest details, buy.

HDMI switch Crestron HD-MD4X2-4KZ-E.

at an unbeatable price.

Type:Switch.

Connections:HDMI.

Ports:4.



Elevate your professional AV, smarthome, or security infrastructure with the CRESTRON HD-MD4X2-4KZ-E, a high-performance 4x2 4K AV switcher. Designed for reliability and pristine signal integrity, this device is the central hub for managing multiple high-definition video sources. It´s the perfect solution for conference rooms, classrooms, command centers, and advanced security and surveillance monitoring stations where routing multiple video feeds to different displays is critical. Experience seamless switching and distribution of your HDMI sources with the quality and control that only Crestron can deliver.

This compact yet powerful unit allows you to route any of four HDMI sources to two independent HDMI outputs, providing exceptional flexibility for your video presentation or monitoring needs. Whether you´re displaying a presentation on a primary screen while cueing the next source on another, or monitoring four different surveillance feeds across two displays, the HD-MD4X2-4KZ-E handles it with ease and precision.

Key Benefits

Experience uncompromised visual quality with full support for ultra high-definition signals. This switcher ensures that your content is displayed with the stunning clarity and vibrant colour it was intended to have. Its intelligent functionality simplifies operation, automatically detecting and selecting newly connected sources, making it ideal for collaborative environments. The integrated scaling technology solves common compatibility issues, ensuring a flawless picture even when connecting a mix of 4K and 1080p displays. For professional installers and managers, robust control and remote management options streamline setup, monitoring, and support.

Main Features
* Pristine 4K60 4:4:4 & HDR Video: Delivers the highest video quality by supporting full-spec 4K Ultra HD resolutions at 60 Hz with 4:4:4 colour sampling. It is also compatible with high dynamic range formats including HDR10, HLG, and Dolby Vision®, ensuring deep blacks, brilliant whites, and a vivid colour spectrum.
* Flexible 4x2 Matrix Switching: Provides four HDMI inputs and two HDMI outputs, allowing any source to be routed to either or both displays independently for maximum versatility.
* Integrated 4K Scaling: Features a built-in professional scaler on one output to downscale a 4K source to a 1080p resolution, ensuring compatibility with older displays without compromising the 4K signal for the main screen.
* Intelligent Automatic Switching: Simplifies user experience by automatically switching to the most recently connected input source, making presentations and collaborations effortless.
* Advanced EDID Management: Maintains stable communication between sources and displays by managing EDID (Extended Display Identification Data), which prevents screen flickering or resolution issues when switching inputs.
* Robust Control and Integration: Offers multiple control options including front-panel buttons, an included IR remote, and professional integration via RS-232 and Ethernet. It is fully compatible with Crestron .AV Framework™ technology and the XiO Cloud® service for easy deployment and remote management.
* Audio De-embedding: Includes a separate analog stereo audio output, allowing the audio signal from the selected HDMI source to be extracted and sent to a separate sound system or amplifier.

Technical Specifications
* Attribute: Switches
* Video Inputs: 4 x HDMI Type A
* Video Outputs: 2 x HDMI Type A
* Audio Output: 1x5-pin terminal block (unbalanced stereo analog)
* Max Resolution: 4096x2160@60Hz (4K60 4:4:4)
* HDR Support: HDR10, HLG, Dolby Vision
* Compliance: HDCP 2.2
* Communications: Ethernet, RS-232, IR
* Ethernet: 1 x RJ-45, 100Base-T, for control and console
* RS-232: 1x5-pin terminal block, for 2-way device control
* Model: HD-MD4X2-4KZ-E, Part Number: 6511307
