Cudy AP3000 WIFI Access Point

Premium Wi-Fi 6 with 2.5G Port.

Impress your customers with fast and responsive Wi-Fi with multi-gig bandwidth.enabled by the highest 160 MHz channel width in Wi-Fi 6.

A shielded 2.5G Ethernet port allows more devices to stream simultaneously without buffering.even in a complex electromagnetic environment.

Connects 512 Devices with 512 MB RAM.

1.3 GHz dual-core CPU.large RAM.and the upgraded UL/DL MU-MIMO and OFDMA technologies significantly reduce transmission latency to and from the AP when connecting multiple devices.

5 Antennas and 3+2 Strucutre Boost Coverage.

Five antennas plus 3+2 structure create more paths to bypass obstacles.

Beamforming tracks connected devices´ directions and boosts signal towards them.

Seamless Coverage with Fast Roaming.

Mesh support (802.11k/v) allows clients to switch between access points seamlessly.ensuring uninterrupted Wi-Fi calling or live streaming when moving around.

This feature requires a Cudy Wi-Fi router/VPN router/access point controller as a gateway with firmware newer than 15.28.

Advanced Business Features.

Captive Portal.

Improve your brand awareness by displaying a customized login page for new clients.

Band Steering.

Assign devices to less congested bands.

Auto Channel Selection.

Avoid signal interruptions with nearby access points.

Auto Mesh Optimization.

Form mesh backhaul via less congested routes automatically.

Multi-Mode for Multiple Scenarios.

Access Point.

Simply create a Wi-Fi spot behind a router.

Wi-Fi Router.

Please use the Router mode when PPPoE authorization or creating a separate subnet is needed.

Range Extender.

The Wi-Fi Extender (repeater) mode extends existing Wi-Fi coverage to hard-to-cover areas.

WISP.

WISP extends Wi-Fi but creates a subnet for connected devices.so it´s safer than extender mode.

Flexible Wired-and-Wireless Hybrid Backhaul.

Versatile Powering and Installation.

PoE or DC Power Supply.

- Supports 802.3at/af PoE.

- 48-57V Passive PoE.

- 12-48V DC.

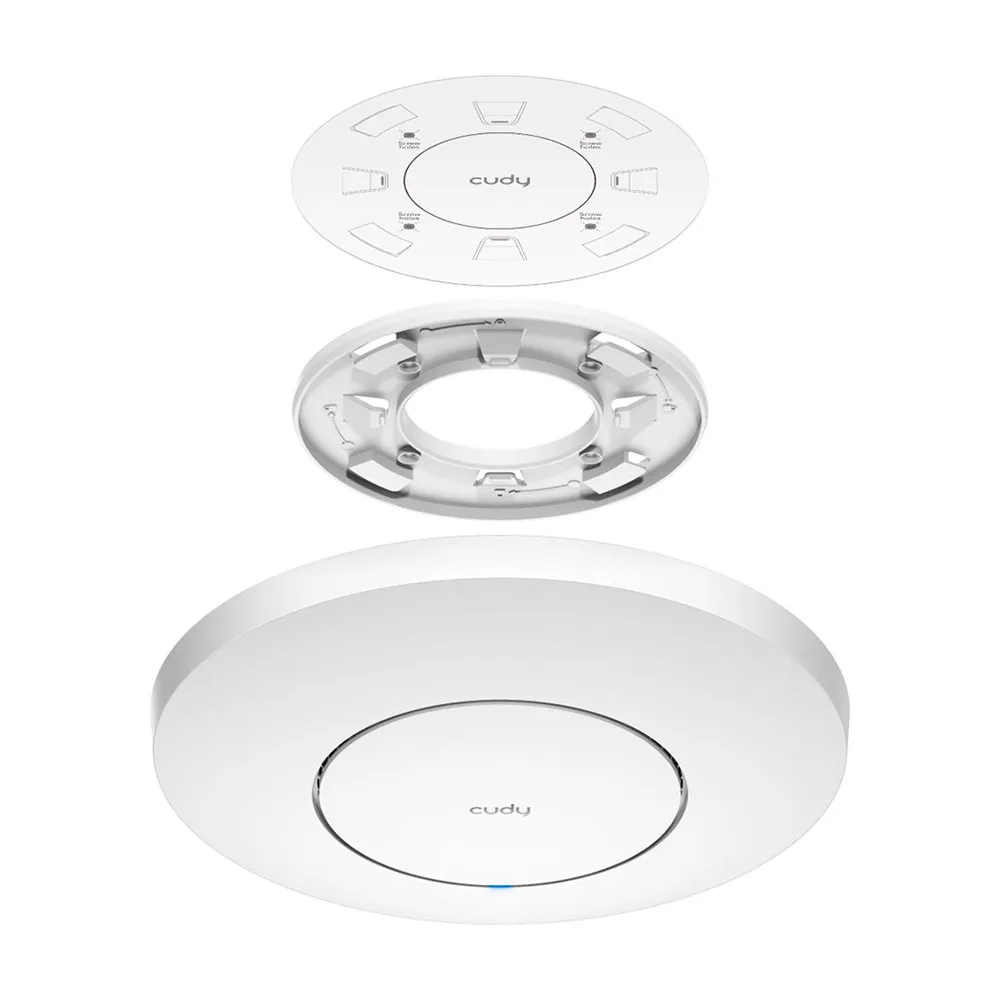

Versatile Mounting.

- Ceiling Mounting.

- Wall MountingCudy AP3000_P.

2.4 GHz.5 GHz.Maximum data transfer rate:2976 Mbit/s.

Security algorithms:WPA.WPA2.WPA3.

Ethernet LAN data rates:100.000.500 Mbit/s.

Power over Ethernet (PoE).

Product colour:White1.3 GHz Dual-Core CPU.

512 MB RAM.

4-Stream Dual-Band Wi-Fi 6.

2402 Mbps + 574 Mbps Wi-Fi.

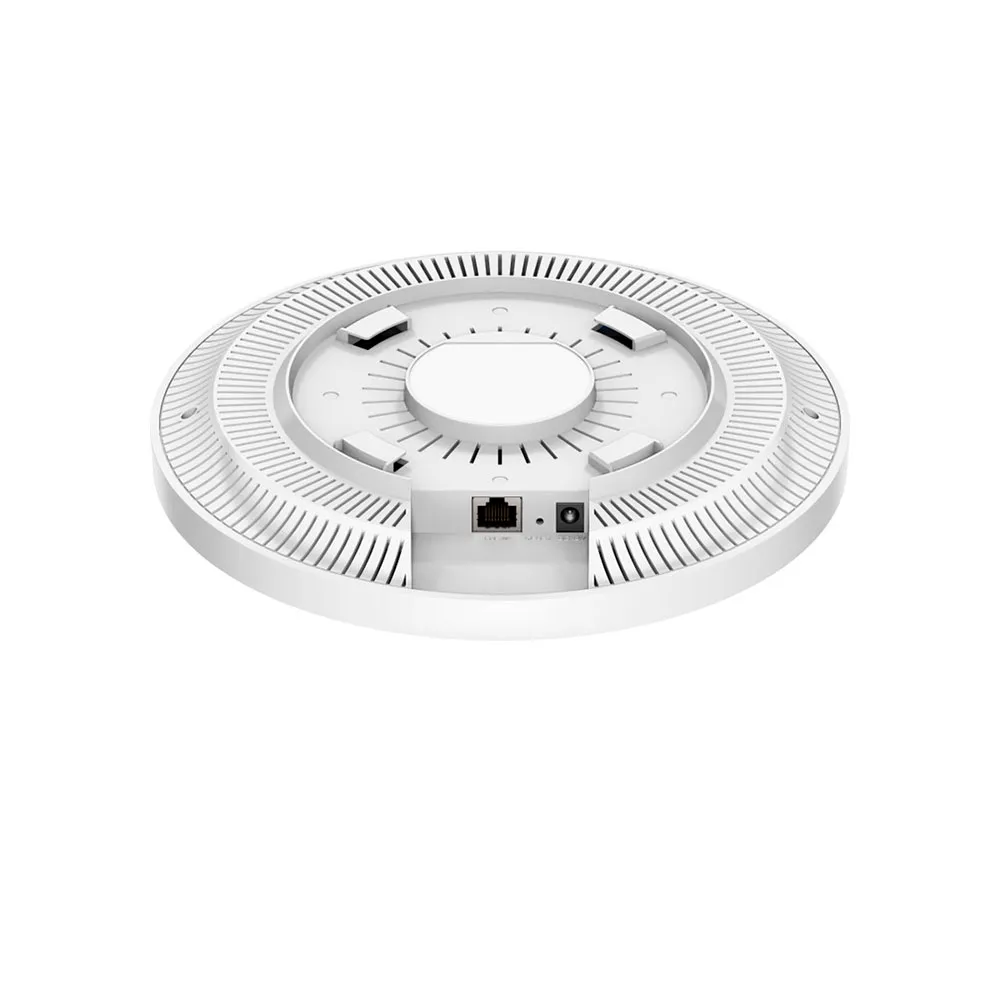

1× Shielded 2.5GbE PoE IN.

802.3at.Passive PoE.DC.

Watchdog.Schedule Reboot.

150 Connected Devices.

Covers 130 m² (1.00 ft²).

Multi-AP Management.

PoE Adapter Included in the box
