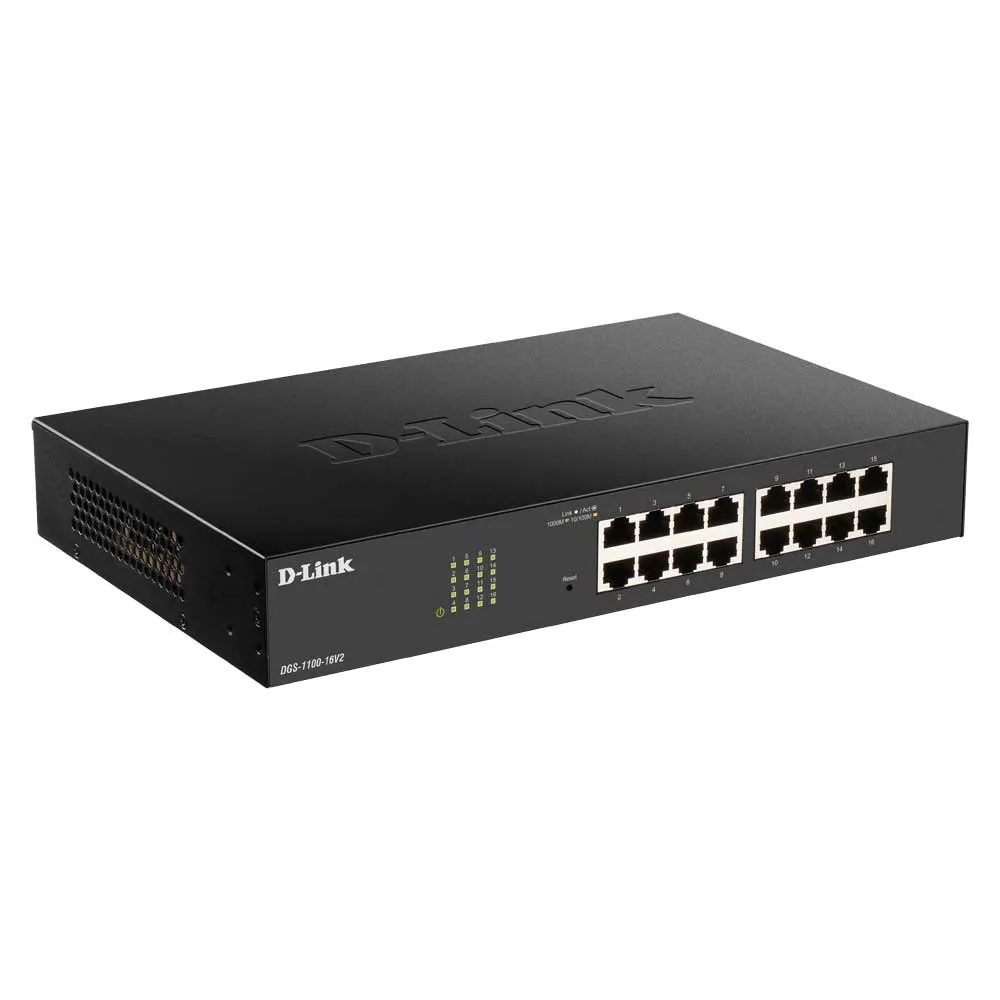

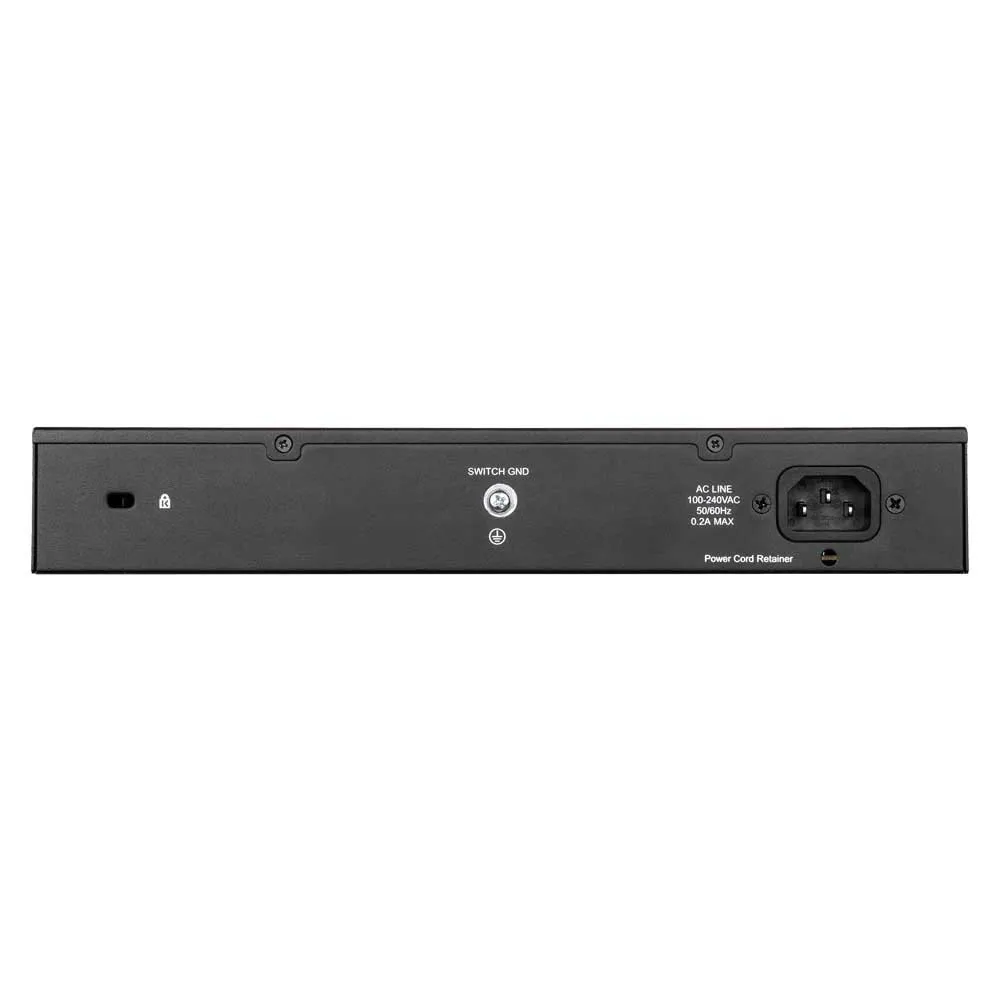

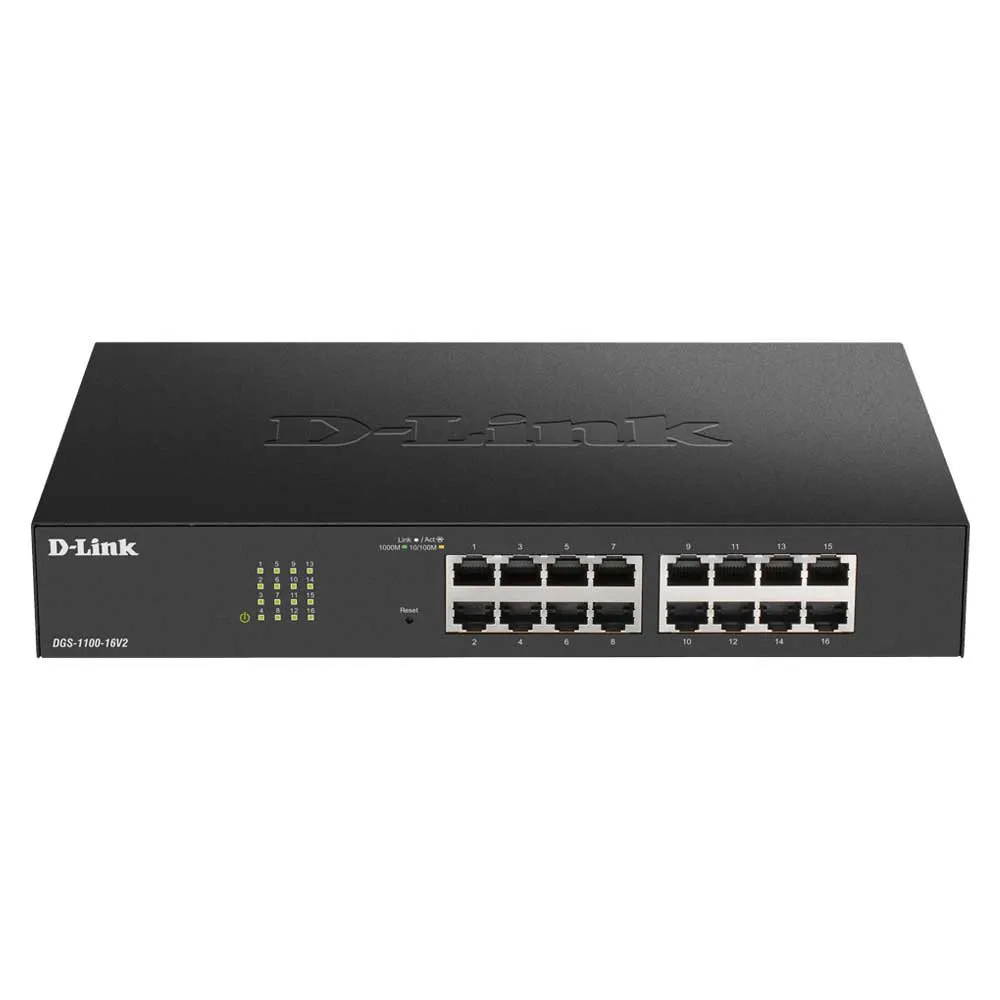

D-link 16 Port Gigabit Smart Managed

EU Plug.

Powerful Switching for your Business:- The DGS-1100 Series is a range of powerful switches that offer a lot of bang for your buck.

They are great for busy SMBs who expect a lot of their network, including support for surveillance and VoIP.

They are packed with traffic management & optimization features that keep your network congestion free.

Meanwhile, management tools are flexible and intuitive, making your life easier.

Easy to Use & Easy to Install:- D-Link Network Assistant Utility (DNA) can quickly discover and do initial setup for D-Link Networking devices such as the DGS-1100 Series, which greatly improves efficiency for solution deployment.

VLANs:Stronger Security & Better Traffic Management:- Relatively easy to set up, VLANs can be a big boon for your network.

They can isolate sensitive areas of your network, providing more protection from those with malicious intent, or keeping bandwidth open for latency-sensitive traffic such as VoIP.

For Voice:- If VoIP calls make up a large slice of your network usage, separating them onto their own VLAN can ensure they get the bandwidth they need for smooth conversations without lag or jitters.

For Surveillance:- If you have surveillance cameras and devices attached to your network, putting them onto their own VLAN keeps surveillance footage running seamlessly.

At the same time, it can help prevent a variety of malicious attacks by restricting access to different network areas.

Green Technology:- D-Link Green technology enables the DGS-1100 Smart Managed Switches to save power without sacrificing performance.

Most of the models in the series utilize a fanless design, for silent and energy-efficient operation.

All are IEEE 802.3az-compliant and feature Link Status detection and Time-Based PoE.

Features:

- 16 x 10/100/1000BASE-T ports.

- Fanless design for silent operation.

- Bandwidth Control ensures latency-sensitive traffic always gets the bandwidth it needs.

- Quality of Service further prioritizes latency-sensitive traffic, ensuring timely delivery.

- Segregate different types of traffic, such as surveillance or voice, with VLANs to heighten security.

- IGMP Snooping sends multicast traffic only where it needs to go, significantly cutting down network traffic.

- Innovative energy saving features are good for your budget, as well as the environment.

- Get up and going quickly with streamlined first-time setup and ongoing management.

Specifications:

- Auto MDI/MDIX:Yes.

- Switch Capacity:32 Gbps.

- Max.

Packet Forwarding Rate:23.81Mpps.

- Store-and-Forwarding:Yes.

- Dimension:280x 180x 44mm.

- Weight:1.27 Kg.

- Operation Temperature:-5-50°C.

- Power Input:AC:100-240V.

- FAN:Fanless.

- Comply with RoHS 6:Yes.

- Energy Efficiency Ethernet (EEE):Yes.

- 802.3x Flow Control:Yes.

- 802.1D Spanning Tree (STP):Yes.

- 802.1w Rapid Spanning Tree (RSTP):Yes.

- 802.1AX Link Aggregation:Yes.

- 802.3ad Link Aggregation:Yes.

- Port Mirroring:Yes.

- Jumbo Frame:9216 bytes.

- Loopback Detection (LBD):Yes.

- IGMP Snooping:Yes.

- 802.1Q VLAN:Yes.

- Port-based VLAN:Yes.

- Voice VLAN:Yes.

- Auto Surveillance VLAN:Yes.

- Asymmetric VLAN:Yes.

- Class of Service (CoS):Yes.

- Rate Limiting:Yes.

- Queue Handling:Yes.

- Strict Priority Queue (SPQ):Yes.

- Weighted Round Robin (WRR):Yes.

- SSL:Yes.

- Broadcast/Multicast/Unicast Storm Control:Yes.

- Traffic Segmentation:Yes.

- D-Link Safeguard Engine:Yes.

- DoS Attack Prevention:Yes.

- Port-based Bandwidth Control:Yes.

- Cable Diagnostics:Yes.

- Web-based GUI:Yes.

- SNMP:Yes.

- D-Link Discover Protocol (DDP):Yes (v0.25).

- D-Link Network Assistant:Yes.
