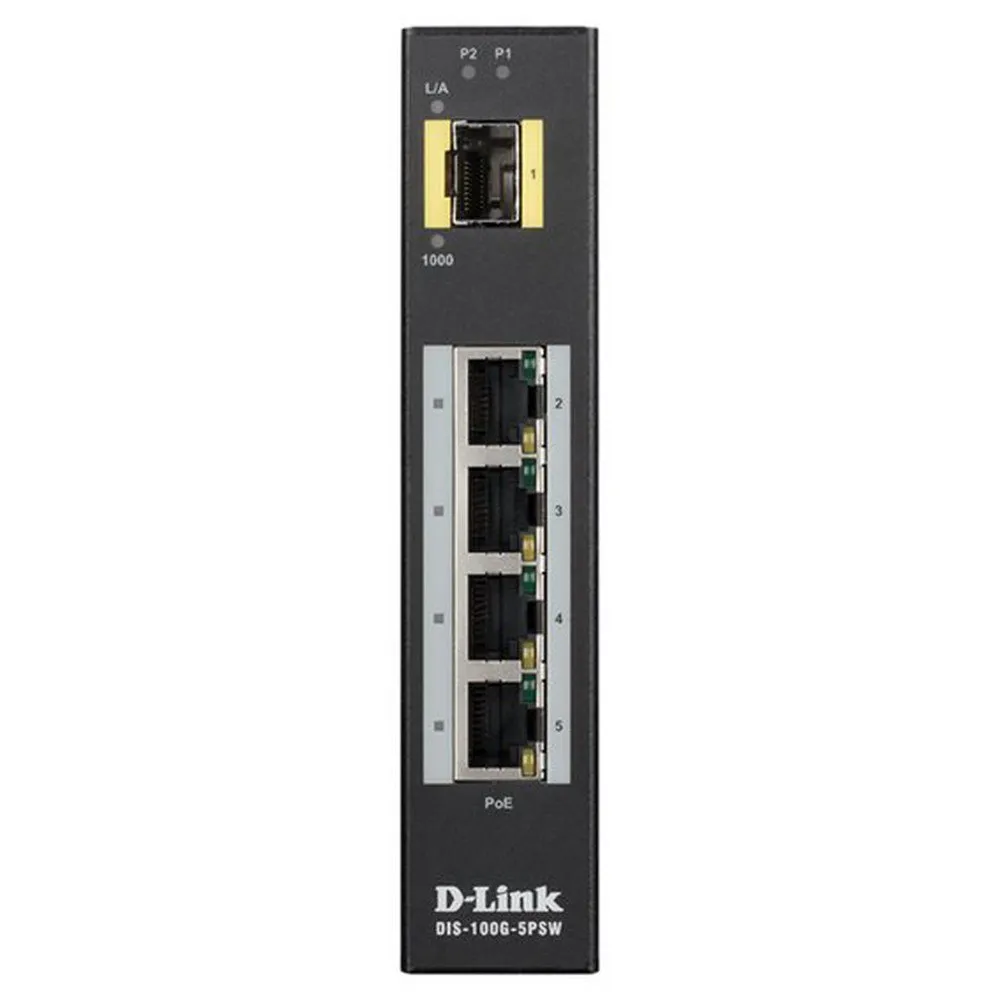

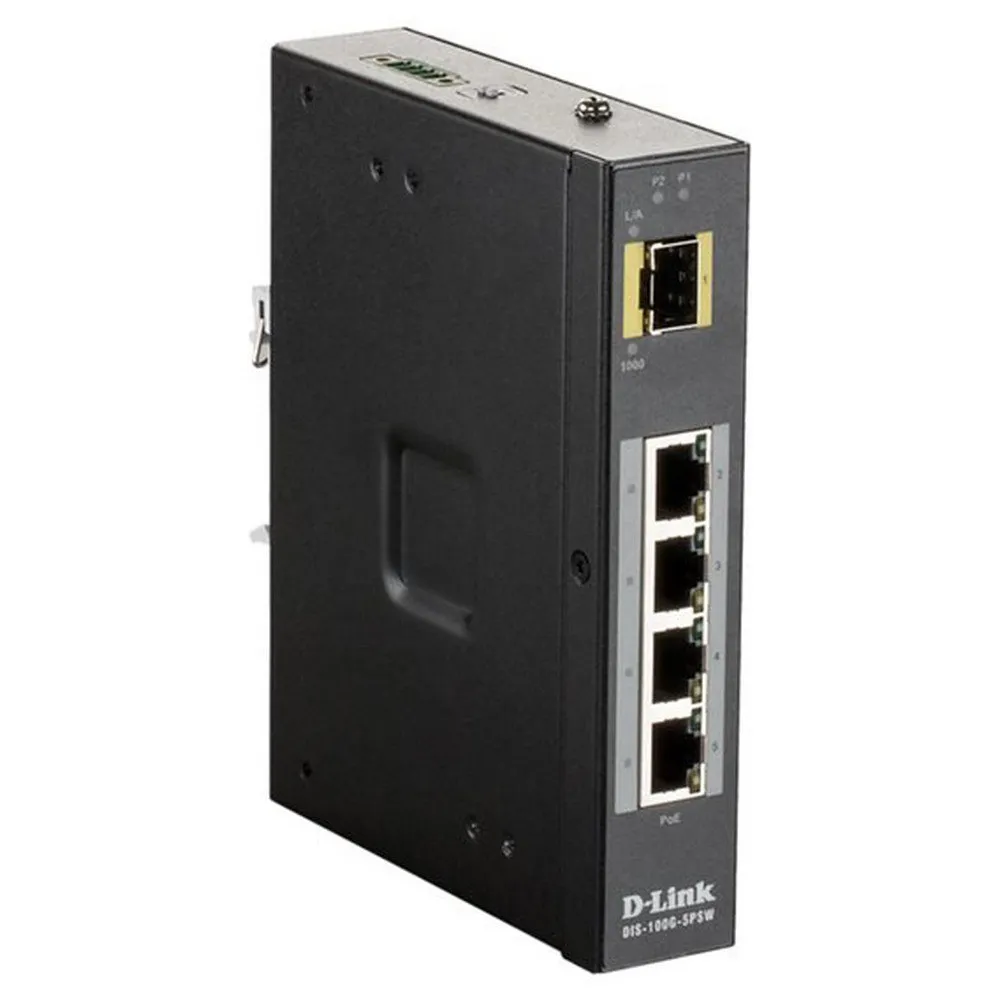

D-link 5 Port Unmanaged switch

EU Plug.

Durable, Reliable, and Efficient:- The DIS-100G Series switches are housed in a highly resistant IP30-rated metal casing to protect the switches from harsh environmental conditions.

The high electromagnetic compatibility (EMC) protects the DIS-100G Series from unwanted effects when operating in environments with strong electromagnetic interference.

Power over Ethernet Support:- The PoE-ready DIS-100G-5PSW features a total PoE budget of 120 W, capable of supplying up to 30 W of power per port to connected PoE-enabled devices leveraging existing conventional Ethernet cabling.

Fully Certified:- The D-Link DIS-100G Series industrial switches are compliant with all international requirements for product safety and electromagnetic compatibility to ensure that these switches meet all the necessary standards for safe deployment.

Moreover, the DIS-100G Series fully complies with the EN50121-4 wayside control and NEMA-TS2 traffic control standards, which makes these switches an ideal solution for Intelligent Transportation System (ITS) applications.

Industrial Switches:- Our industrial-grade switches are certified to endure and perform even in the toughest of environments.

Features:

- Four 10/100/1000BASE-T PoE ports.

- One Gigabit SFP port.

- -40 °C to +75 °C wide operating temperature range.

- IP30-rated solid metal housing.

- High EMC endurance.

- Dual power input for redundant power supplies.

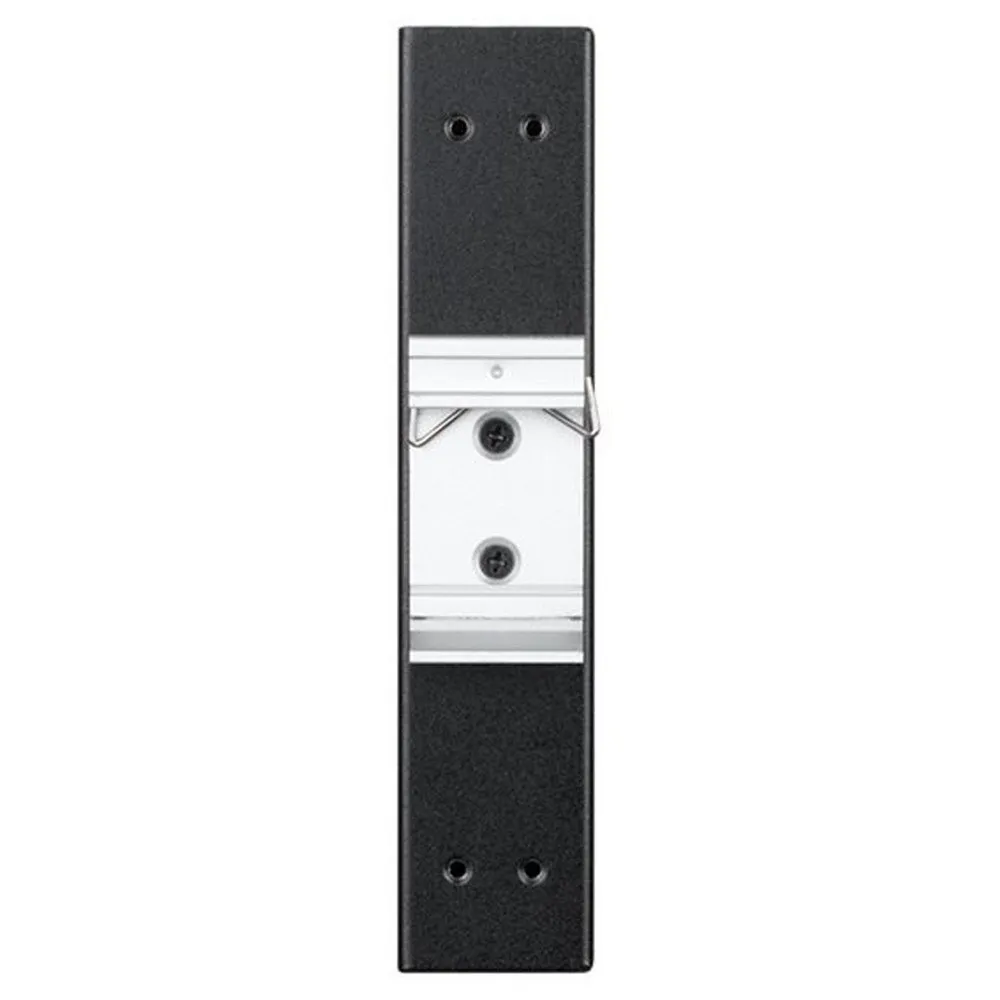

- DIN-rail and wall mounting options.

- Robust 120 W PoE power budget.

- Compliant with EN-50121-4 wayside control and NEMA-TS2 traffic control standards.

Specifications:

- 1000Base-T PoE Interface:4.

- 1000M SFP Interface:1.

- Auto MDI/MDIX:Yes.

- 10/100/1000 BASE-T PoE ports:4.

- SFP port:1.

- Switching Capacity:10Gbps.

- Max.

Packet Forwarding Rate:7.44Mpps.

- Store & Forwarding:Yes.

- Power Input:48-58Vdc.

- FAN:Fanless.

- Comply with RoHS 6:Yes.

- Energy Efficiency Ethernet (EEE):Yes.

- Power Saving By Link Status:Yes.

- Power Saving By Cable Length:Yes.

- Maximum PoE Budget:120W.

- MAC Address Table Size:2K.

- 802.3x Flow Control:Yes.

- Head-of-line (HOL) Blocking Prevention:Yes.

- Jumbo Frame:9K Bytes.

- Number of Queue:4.

- Broadcast/Multicast/Unicast Storm Control:Yes.

- PoE budget:Max.

120 W.

- Maximum Heat Dissipation:15.22 BTU/hr (PoE off).

448.94 BTU/hr (PoE on).

- Dimension:139x29x107mm.

- Maximum Power Consumption:Maximum:4.46 W (PoE off).

Maximum:131.57 W (PoE on).

- Operating Altitude:2000m.

- Operation Humidity:5 to 95% RH.

- Operation Temperature:-40~75°C.

- Storage Humidity:5 to 95% RH.

- Storage Temperature:-40~85°C.

- Weight:0.50kg.
