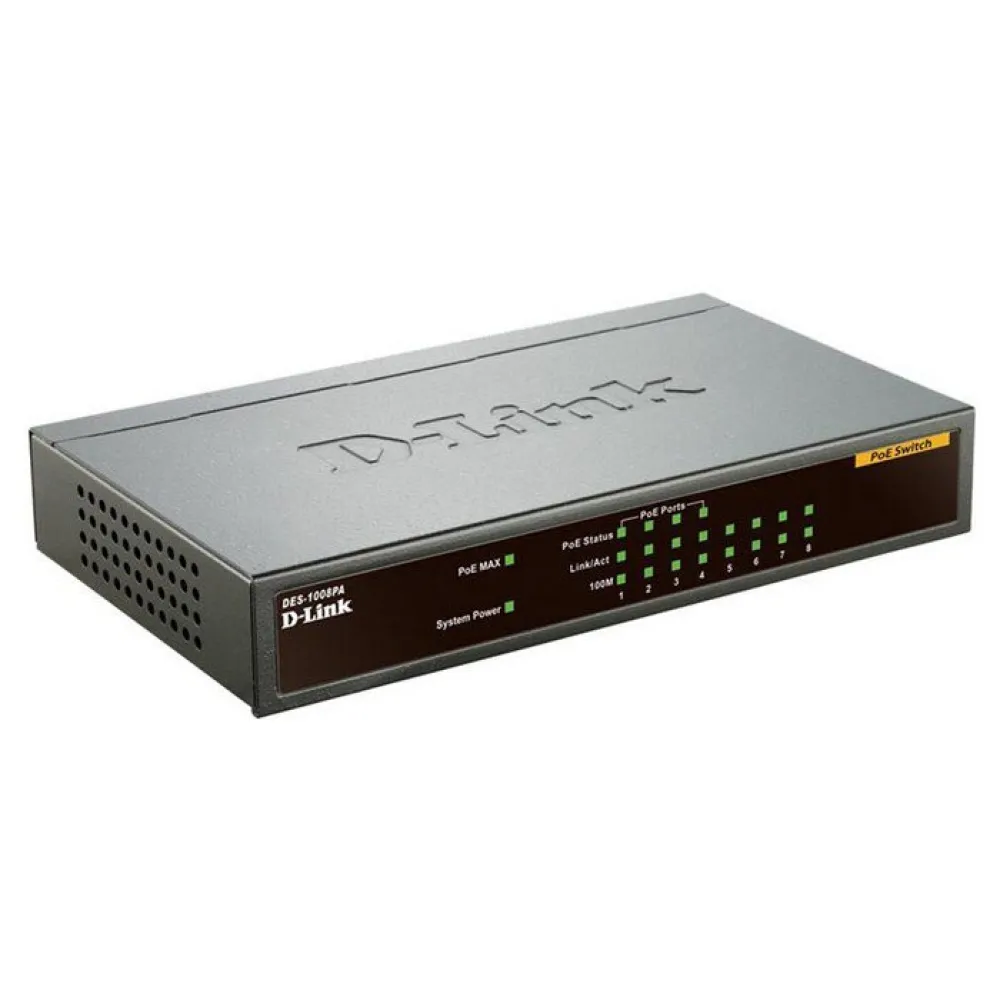

D-link DES-1008PA switch

EU Plug.

The DES-1008P 8-Port switch can convey power to up to four network devices via the usual network cables using Power over Ethernet technology.

This provides a cost-effective entry-level solution for users wishing to make the most of their network.

The DES-1008P enables users to easily connect and supply power to devices such as wireless Access Points (AP), IP cameras and IP phones via the common network cables.

As a switch, the DES-1008P can be used to share files, music and video across your network or create a multi-player gaming environment.

Users can also add multiple computers, printers, Network Attached Storage (NAS) and any other Ethernet device onto a network.

This device runs ultra-quiet, making it ideal for both home and small office use.

In addition, it can be wall-mounted to save desktop space.

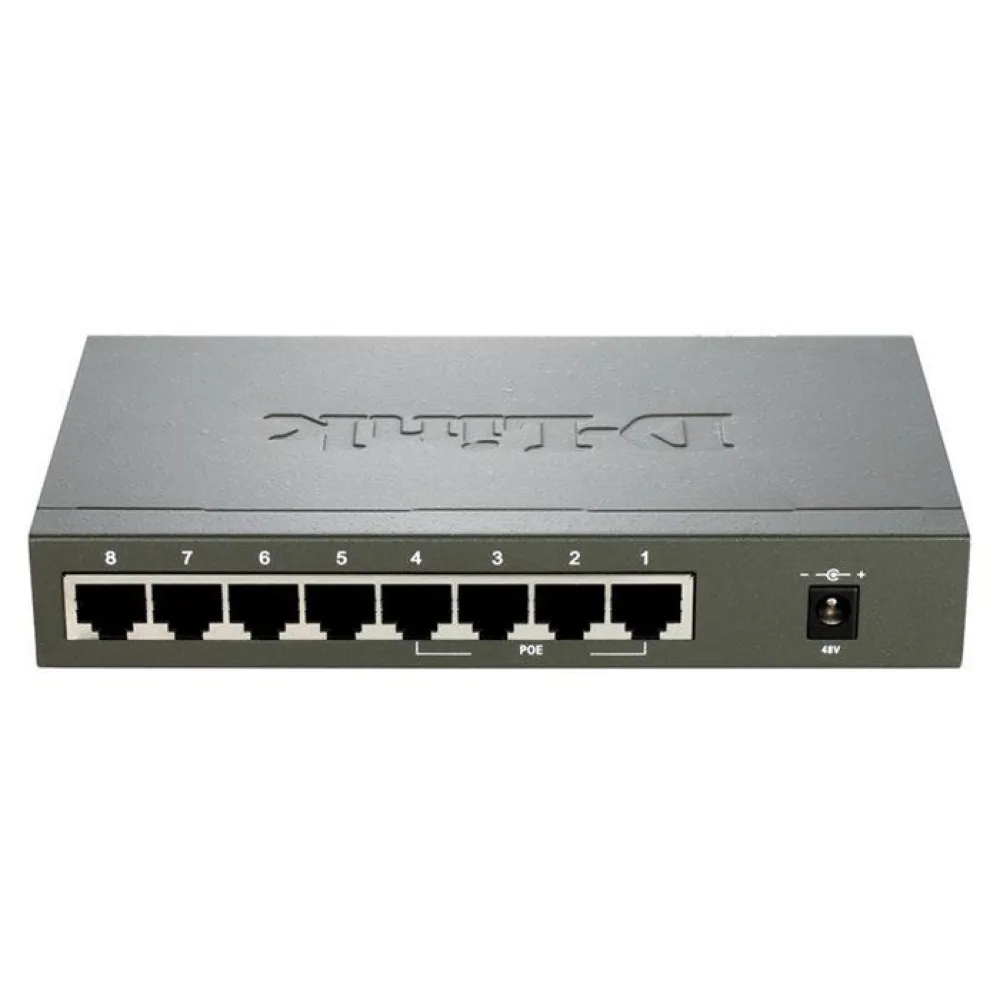

IEEE 802.3af Power over Ethernet (PoE):- Four out of the eight ports on the DES-1008P support the IEEE 802.3af standard for Power over Ethernet (PoE).

Each of these ports can supply up to 15.4W, up to a total PoE budget of 56W, allowing users to attach IEEE 802.3af-compliant devices without requiring an additional power source.

Networking devices receiving power in this way do not need to be placed within close proximity of a power outlet, allowing greater flexibility for their placement.

Compliance with IEEE 802.3af also means that when a compliant device is attached, the switch automatically adjusts the power supplied to that device.

For non-compliant devices, a PoE adapter such as D-Link´s DWL-P50 can be used to still allow the switch to be the power source.

Superior.

Performance:- The switch is completely unmanaged, so no configuration is required and installation is quick and easy.

Support for auto-MDI/MDI-X on all ports eliminates the need for crossover cables for connection to another switch or hub.

Auto-negotiation on each port senses the link speed of a network device (either 10 Mbps or 100 Mbps) and intelligently adjusts for compatibility and optimal performance.

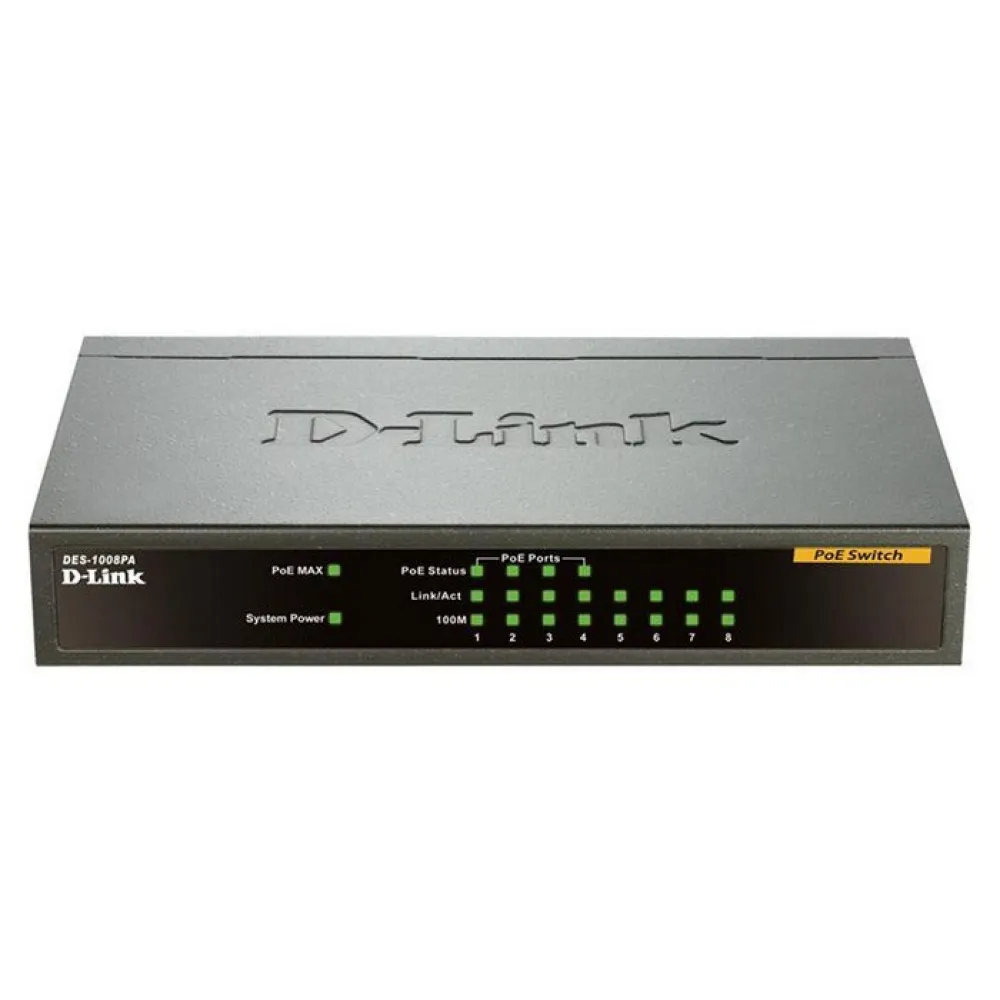

The DES-1008P also features diagnostic LEDs that display status and activity, allowing you to quickly detect and correct problems on the network.

With wire-speed filtering and store-and-forward switching, the DES-1008P also maximizes network performance while minimising the transmission of bad network packets.

Combining the convenience of PoE, superior performance, and ease of use, the D-Link DES-1008P is the ideal choice for adding PoE devices to either a home or a small business network.

Hassle-free set-up:- The DES-1008P is a plug-and-play device requiring no configuration, which makes set-up simple and hassle-free.

Specifications:

- Switch type:Unmanaged.

- Ports & interfaces.

- Basic switching RJ-45 Ethernet ports quantity:8.

- Basic switching RJ-45 Ethernet ports type:Fast Ethernet (10/100).

- Fast Ethernet (copper) ports quantity8.

- Network.

- Networking standards:IEEE 802.3,IEEE 802.3af,IEEE 802.3u,IEEE 802.3x.

- 10G support:No.

- Flow control supportYes.

- Data transmission.

- Switching capacity:1.6 Gbit/s.

- MAC address table:1000 entries.

- Store-and-forwardYes.

- Maximum data transfer rate1 Gbit/s.

- Packet buffer memory0.09 MB.

- Design.

- LED indicatorsLAN, PoE, Power.

- SafetyLVD.

- CertificationFCC, CE, VCCI.

- Technical details.

- Shipping (inner) case height43 cm.

- Shipping (inner) case width26.5 cm.

- Shipping (inner) case length37.5 cm.

- Shipping (inner) case net weight11.9 kg.

- Quantity per shipping (inner) case10 pc(s).

- Shipping (inner) case gross weight12.7 kg.

- Pallet gross weight (air)628.5 kg.

- Number of cartons per pallet (air)48.

- Technical details.

- Quantity per pallet (air)480 pc(s).

- Pallet length110 cm.

- Pallet width120 cm.

- Pallet height (air)191.5 cm.

- Pallet gross weight (sea)628.5 kg.

- Number of cartons per pallet (sea)48.

- Quantity per pallet (sea)480 pc(s).

- Pallet height (sea)191.5 cm.

- Power.

- Input current1.45 A.

- Power consumption (typical)69 W.

- Power over Ethernet (PoE).

- Power over Ethernet (PoE):Yes.

- Power over Ethernet (PoE) ports quantity4.

- Total Power over Ethernet (PoE) budget52 W.

- Operational conditions.

- Operating temperature (T-T)0.

- 40 °C.

- Storage temperature (T-T)-10.

- 70 °C.

- Operating relative humidity (H-H)10.

- 95%.

- Storage relative humidity (H-H)5.

- 90%.

- Weight & dimensions.

- Width170.2 mm.

- Depth99.1 mm.

- Height27.9 mm.

- Weight454 g.

- Packaging data.

- Package width208 mm.

- Package depth250 mm.

- Package height68 mm.

- Package weight1.19 kg.

- Other features.

- Input voltage48 V.
