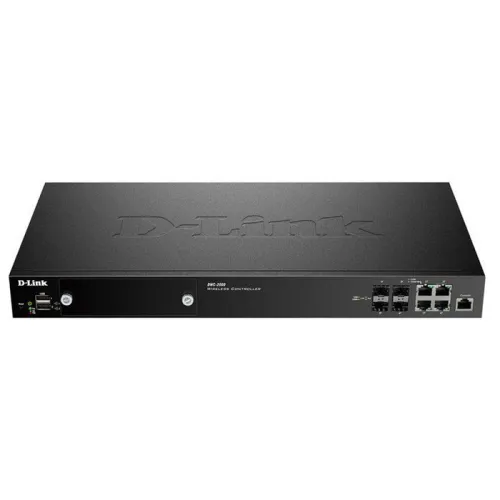

D-link DWC-2000 Wireless Controller switch

EU Plug.

D-Link´s DWC-2000 Unified Wireless Controller is a cost-effective wireless management solution suitable for large Access Point deployments.

Capable of managing 64 Unified Wireless Access Points out of the box, it provides a reliable, secure, self-healing, scalable wireless network suitable for education, hospitality and businesses of any size.

Big company wireless at small company prices.

With a wide selection of Access Points and technologies, D-Link´s Wireless Solution is the perfect choice for any business.

Benefits:- Simplified wireless LAN management enhanced user experience.

- Segment guest and corporate access with multiple SSIDs, Guest Captive Portal, and standard based VLAN configurations.

- Free Integrated Payment Gateway.

- Optimise network with automatic RF channel settings and adjustments of AP output power setting.

Centralised Monitoring and Management:- Whether you intend to use a single Access Point or roll out a large corporate network, all compatible D-Link Unified Wireless Access Points can be managed using a D-Link Wireless Controller.

Functionality without Complexity:- Simplified and Intuitive GUI with integrated configuration wizards make deployment and monitoring a simple task.

Integrated Payment Gateway:- Monetising your wireless investment is simple using the integrated payment gateway.

D-Link´s Family of Wireless Controllers enable you to charge for Wireless access by using one of the integrated payments services making PCI-DSS compliance easy.

Self-Healing Wireless:- With D-Link´s Self-Healing Wireless network, the Wireless Controller can detect if a surrounding access point has failed and boost their power output to compensate for the failure, minimizing the effect of the failed AP.

Scalability:- The ideal solution for businesses of any size, starting with just 8 Access Points and scaling to support 1024 APs in a clustered configuration.

The DWC-2000 is the perfect solution for any business looking to enhance their wireless network with the minimal service disruption.

With an extensive range of D-Link Unified Access Points and simplified management and monitoring tools the DWC-2000 is deployable anywhere, across any geography.

Fast, Seamless Roaming:- Combining a Unified Access Point with a DWC-2000 Unified Wireless Controller enables you to create a wireless network that enables roam around a building or even outside without losing effecting your video call.

Specifications:

- 10/100/1000Base-T:0.

- Combo 10/100/1000Base-T/SFP:4.

- Console Port:RJ-45.

- USB Port (2.0):2.

- Maximum Access Points per unit (default/ upgrade):64/256.

- Maximum Access Points per cluster (default/ upgrade):1024.

- AP Auto Discovery:Yes.

- AP Monitoring:Yes.

- AP Authentication by Local Database:Yes.

- AP Authentication by External RADIUS:Yes.

- Auto Channel Management:Yes.

- Auto Power Management:Yes.

- Centralized Firmware Upgrade:Yes.

- Remote AP Reboot:Yes.

- Visualization Management:Yes.

- Connection mode between controller and AP:Bridge and tunnel.

- Device Clustering:Yes.

- Device Clustering per Group:8.

- Configuration Push within Group:Yes.

- Captive Portal:Yes.

- External User Database.

- RADIUS:Yes.

- External User Database.

- POP3:Yes.

- External User Database.

- LDAP:Yes.

- Local User Database:Yes.

- 802.1X:Yes.

- Client Classicification:Yes.

- Client Monitoring:Yes.

- Ad-hoc Client Monitoring:Yes.

- Location Tracking:Yes.

- L2 Fast Roaming:Yes.

- TKIP/AES Encryption:Yes.

- WPA/WPA2-Personal:Yes.

- WPA/WPA2-Enterprise:Yes.

- Rouge AP Detection & Mitigation:Yes.

- Rouge Client Detection & Mitigation:Yes.

- WLAN MAC Filtering:Yes.

- Hidden SSID:Yes.

- AP Classification:Yes.

- AP Station Isolation:Yes.

- WIDS:Yes.

- Wireless Multimedia (WMM):Yes.

- 802.1p Priority Queues:Yes.

- CoS-based QoS:Yes.

- Per-flow Bandwidth Control:Yes.

- Per-port Traffic Shaping:Yes.

- 802.1Q VLAN Tagging:Yes.

- 802.1V Subnet-based VLAN:Yes.

- MAC-based VLAN:Yes.

- Port-based VLAN:Yes.

- GVRP:Yes.

- Voice VLAN:Yes.

- Static VLAN:255.

- VLAN Numbers:4,093.

- Double VLAN (Q-in-Q):Yes.

- Telnet Server:Yes.

- TFTP Server:Yes.

- SNMP (v1,v2c,v3):Yes.

- NTP:Yes.

- DHCP Server:Yes.

- SYSLOG:Yes.

- SSH:Yes.

- HTTP:Yes.

- Command Line Interface (CLI):Yes.

- Maximum Jumbo Frame (KB):9 KB.

- IPv4 Static Route:Yes.

- IPv6 Static Route:Yes.

- Routing Table Size:2,048.

- 802.3ad Link Aggregation:Yes.

- Link Aggretation Group Per Device:4.

- Max Port Per Link Aggregation Group:4.

- Rackmount:19-Inch.

- Dimension:440 x 310 x 44 mm.

- Weight:3.72 kg.

- Operation Temperature:0 ~ 40 °C.

- Storage Temperature:- 20 ~ 70 °C.

- Operation Humidity:10% ~ 90% RH.

- Storage Humidity:5% ~ 95% RH.

- Power Supply:AC：100 ~ 240 V, 50/60 Hz.

- Power Consumption:26.95 W.

- Heat Dispassion:86.77 BTU/hr.

- MTBF:271,827 hrs.

- FCC:Class A.

- CE:Class A.

- VCCI:Class A.

- C-Tick:Class A.

- BSMI:Class A.

- ICES-003:Yes.

- Safety Certifications (cUL):Yes.

- Safety Certifications (CB):Yes.

- Safety Certifications (LVD (En60950-1) ):Yes.

- AP License Upgrade:32-AP upgrade 64-AP upgrade 128-AP upgrade.
