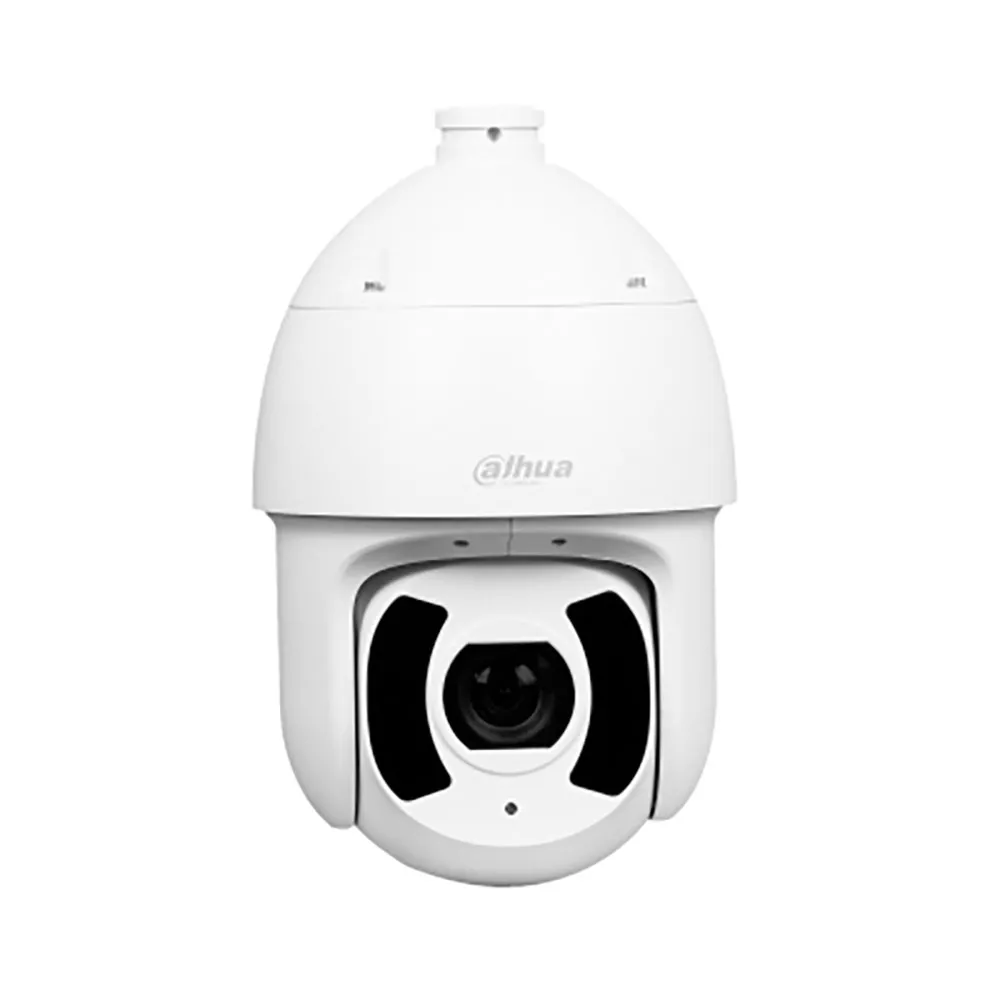

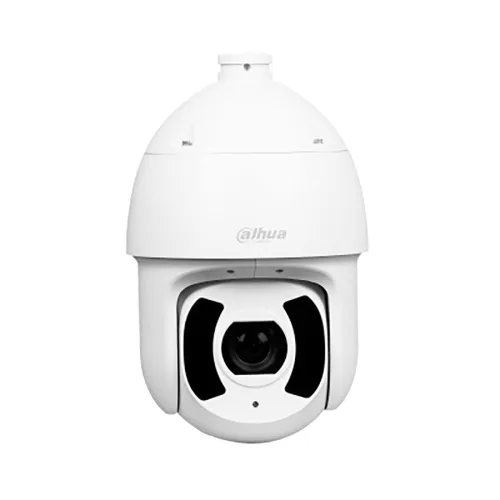

Dahua DH-SD6CE445GB-HNR security camera

Dahua Technology WizSense SD6CE445GB-HNR.

Type:IP Security Camera, Supported Placement:Indoor and Outdoor, Connectivity.

Technology:Wired.

Mounting type:Ceiling, Product colour:White, Form factor:Pad.

Minimum illumination:0.005 lx, Rotation angle:180°, Lens viewing angle, horizontal:65.7°.

Sensor type:CMOS, Optical sensor size:25.4 / 2.8 mm (1 / 2.8´´), Number of effective pixels (W x V):2560 x 1440 Pixels.

Optical zoom:45x, Digital zoom:16x, Detection distance:2451.7 m.

Specifications:-Supported mobile operating systems:Android, iOS.

-Voice codecs:G.711Mu, G.711a, G.722.1, G.723, G.726, G.729.

-Audio input channels:1.

-Audio output channels:1 channel.

-Signal-to-noise ratio (SNR):55 dB.

-Ethernet LAN ports (RJ-45):1.

-RS-485:1 ports.

-BNC output ports:1.

-Observation distance:972.9 m.

-Recognition distance:490.3 m.

-Identification distance:245.2 m.

-Digital zoom:16x.

-Number of lenses:1.

-Maximum opening:4.95.

-Zoom capacity:Yes.

-Optical zoom:45x.

-Minimum opening:1.6.

-Focal length range:3.95.

- 177.7 mm.

-Closest focusing distance:0.1 m.

-Focus:Motorized/Manual.

-Autofocus:Yes.

-Detection distance:2451.7 m.

-Weight:5.9 kg.

-Diameter:20.9 cm.

-Package weight:9.6 kg.

-Length:337.4 mm.

-Power consumption:13 mA.

-Power:DC, PoE.

-DC output voltage:24.

-DC output amperage:2.5 A.

-Power consumption (max):25 W.

-Operating temperature range:-40 -70 °C.

-Relative operating humidity:0 -95%.

-Relay mode:Multicast, Unicast.

-Ethernet:Yes.

-Wifi:No.

-Network standards:IEEE 802.1x, IEEE 802.3at.

-Supported network protocols:FTP, RTMP, IPv6, Bonjour, IPv4, DNS, RTCP, PPPoE, NTP, RTP, HTTPS, SNMP, TCP/IP, DDNS, UPnP, NFS, ICMP, UDP, IGMP, HTTP, SSL, DHCP, SMTP, RTSP, ARP.

-Bluetooth:No.

-Ethernet interface type:Fast Ethernet.

-Quality of service (QoS) support:Yes.

-Number of users:20 user(s).

-Image stabilizer:Yes.

-Bit rate control:Constant Bit Rate (CBR)/Variable Bit Rate (VBR).

-Maximum resolution:2560 x 1440 Pixels.

-Video compression formats:H.264, H.264+, H.264B, H.264H, H.265, H.265+, M-JPEG.

-Supported video format:480p, 576p, 720p, 1080p, 1440p.

-Frame rate:30 pps.

-Privacy mask:Yes.

-Noise reduction:Yes.

-Noise reduction.

Technology:2D noise reduction, 3D noise reduction.

-Total megapixels:4 Mpx.

-Supported graphics formats:352 x 288, 640 x 480 (VGA), 704 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 2304 x 1536, 2560 x 1440 -Backlight Compensation (BLC):Yes.

-Smart IR:Yes.

-Video broadcast:Yes.

-Gain control type:Automatic/Manual.

-Bit rate:38 kbps -8960 kbps.

-High beam compensation (HLC):Yes.

-Coding of regions of interest (ROI):Yes.

-Internal memory:1000 MB.

-ROM capacity:4000 MB.

-Integrated card reading:Yes.

-Compatible memory cards:MicroSD (TransFlash).

-Maximum memory card size:512 GB.

-Built-in HDD:No.

-Classification of objectives such as vehicles and people:Yes.

-Alarm input channels:7.

-Alarm output channels:2.

-Video motion detection:Yes.

-Features of the intelligent video surveillance system (IVS):Abandoned object, Face detection, Intrusion, Removed object, Presence detection (tripwire).

-Optical sensor size:25.4 / 2.8 mm (1 / 2.8´´).

-Sensor type:CMOS.

-Number of sensors:1.

-Progressive scanning:Yes.

-Number of effective pixels (W x V):2560 x 1440 pixels.

-Management programming:DSS, DMSS.

-Web browser:Yes.

-Viewing angle of the lens, horizontal:65.7°.

-Viewing angle of the lens, vertical:39.4°.

-Lens viewing angle, diagonal:73.1°.

-Manual tilt speed:0.1 -200°/s.

-Manual panning speed:0.1 -300°/s.

-Camera shift control:Yes.

-Camera tilt control:Yes.

-Inclination angle:-20 -90°.

-Tray range:0 -360°.

-Minimum illumination:0.005 lx.

-Rotation angle:180°.

-Automatic rotation:Yes.

-White balance:Auto, Indoor, Manual, Natural, Outdoor, Sodium lamp, Street lamp.

-Shutter speed:1/1 -1/30000 s.

-Tilt preset speed:300°/s.

-Preset panning speed:400°/s.

-Type of camera shutter release:Electronic.

-Number of cameras:1.

-Product color:White.

-Form factor:Minidome.

-Mounting type:Ceiling.

-IP Code (International Protection):IP67.

-IK code:IK10.

-Night vision:Yes.

-Night vision distance:250 m.

-LED type:IR.

-Number of lighting LEDs:6.

-PTZ protocols:Pelco-P/D, DH-SD.

-Type:IP security camera.

-Placement supported:Indoor and outdoor.

-Connectivity.

Technology:Cable.

-Day/night mode:Yes.

-.

Certification:EN55032, EN55024, EN50130-4, FCC, ANSI C63.4-2014.

-Infrared cut filter:Yes.

-Wide dynamic range (WDR):Yes.

-PTZ Control (Pan/Tilt/Zoom):Yes.

-Auto-tracking:Yes.

-Preset points:Yes.

-PTZ modes:5 patterns.

-Entry/exit alarm:Yes.

-Recording tour:Yes.
