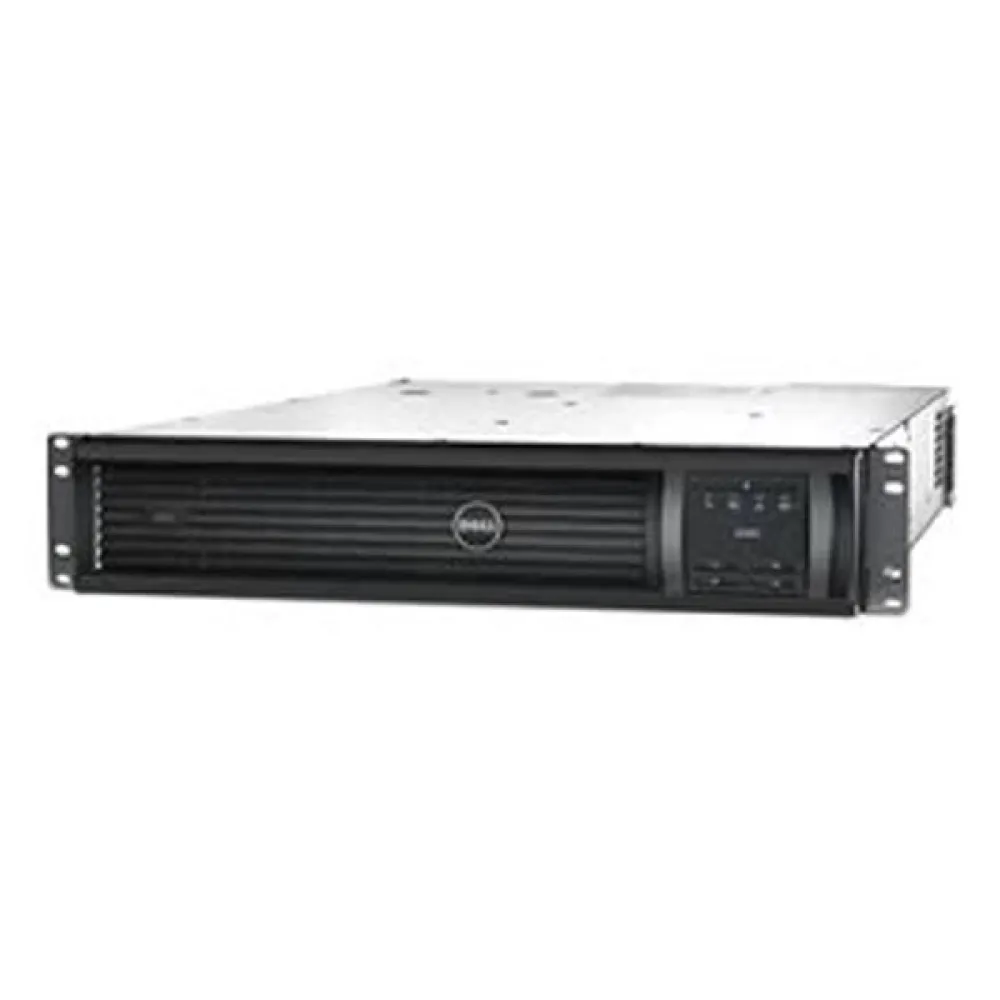

Dell Smart-UPS 3000VA LCD RM UPS

EU PLUG.

Intelligent and efficient network power protection from entry level to scaleable runtime.

Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.

Adjustable voltage sensitivity:

- Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.

Adjustable voltage-transfer points:

- Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.

Audible alarms:

- Provides notification of changing utility power and UPS power conditions Automatic restart of loads after UPS shutdown.

- Automatically starts up the connected equipment upon the return of utility power.

Automatic self-test:

- Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Battery failure notification:

- Provides early-warning fault analysis on batteries enabling timely preventive maintenance Boost and Trim Automatic Voltage Regulation (AVR):

- Eliminates voltage fluctuations as a source of AV signal degradation and component power-supply stress.

Cold-start capable:

- Provides temporary battery power when the utility power is out.

Disconnected battery notification:

- Warns when a battery is not available to provide backup power.

Energy meter:

- Provides actual kilowatt hours of usage for energy conscious users.

Frequency and voltage regulation:

- Gives higher application availability by correcting poor frequency and voltage conditions without using the battery.

Green mode:

- Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.

High online efficiency:

- Reduces utility costs, generates less heat.

Hot-swappable batteries:

- Ensures clean, uninterrupted power to protected equipment while batteries are being replaced Intelligent battery management:

- Maximizes battery performance, life, and reliability through intelligent, precision charging.

Intuitive LCD interface:

- Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.

LED Indicators:

- Provide easy-to-read status of the unit and utility power conditions.

Network manageable:

- Provides proactive notifications of changing power or unit conditions and provides the user the ability to remotely control PMU functions.

Outlet group control:

- Turn on/off, reboot or shut down select outlet groups to save dispatching technicians to remote locations (for UPSs with switched outlet groups).

Predictive failure notification:

- Provides early-warning fault analysis ensuring proactive component replacement.

Predictive replace battery date:

- Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.

Pure sine wave output on battery:

- Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.

Safety-agency approved:

- Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Sequenced network shutdown and reboot:

- Customize network shutdown and reboot sequence of connected servers and UPSs.

Serial connectivity:

- Use any Home Automation network to monitor and control the S20 through its RS-232 serial port.

For information on how to communicate with the S20, see APC´s Application Note 102.

Crestron and AMX installers should visit their respective websites for information on how to integrate the S20 into those networks.

Single switched outlet group Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.

SmartConnect:

- Innovative, easy to use remote monitoring feature that provides automatic notifications, firmware updates, and advanced support services.

StruxureWare Data Center Expert compatible:

- Enables centralized management via StruxureWare Data Center Expert.

Temperature-compensated battery charging:

- Prolongs battery life by regulating the charge voltage according to battery temperature.

USB connectivity.

- Provides management of the UPS via a USB port (not available on all models).

User-replaceable batteries:

- Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR) Wide input voltage range:

- Designed for harsh electrical environments to save battery life.

Specifications:

- Device Type:

UPS.

- rack-mountable.

- Rack Size:

2U.

- Weight:

44.28 kg.

- Input Voltage:

AC 220/230/240 V.

- Output Voltage:

AC 230 V.

- Power Capacity:

2700 Watt / 3000 VA.

- Input Connectors:

1 x power IEC 60320 C20.

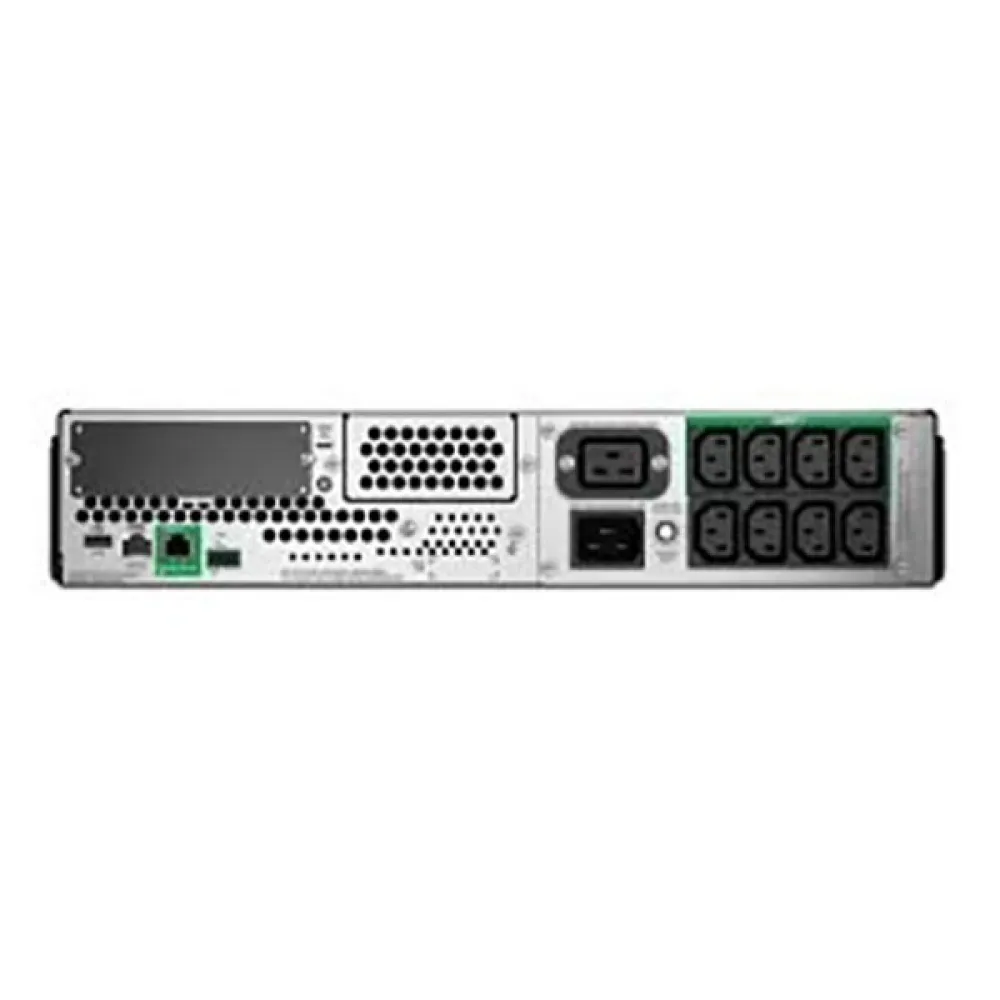

- Output connectors:

8 x power IEC 60320 C13 ¦ 1 x power IEC 60320 C19.

- Battery:

Lead Acid.

- Run Time (Up To):

3 min at full load.

- Networking:

Ethernet 10/100, RS-232, USB.

- Dimensions (WxDxH):

48 cm x 68.3 cm x 8.6 cm.

- Bundled with:

APC SmartConnect General:

- Device Type:

UPS.

- rack-mountable.

- Height (Rack Units):

2U Bundled with:

- APC SmartConnect:

Power Device.

- Input Voltage:

AC 220/230/240 V.

- Input Voltage Range:

AC 150.

- 300 V.

- Frequency Provided:

50/60 Hz.

- Frequency Required:

50/60 Hz.

- Input Connectors:

1 x power IEC 60320 C20 Power Output Connectors Details:

- 8 x power IEC 60320 C13.

- 1 x power IEC 60320 C19.

- Output Voltage:

AC 230 V 50/60 Hz.

- Power Capacity:

2700 Watt / 3000 VA.

- Output Waveform:

Sinewave.

- Surge Energy Rating:

459 Joules.
