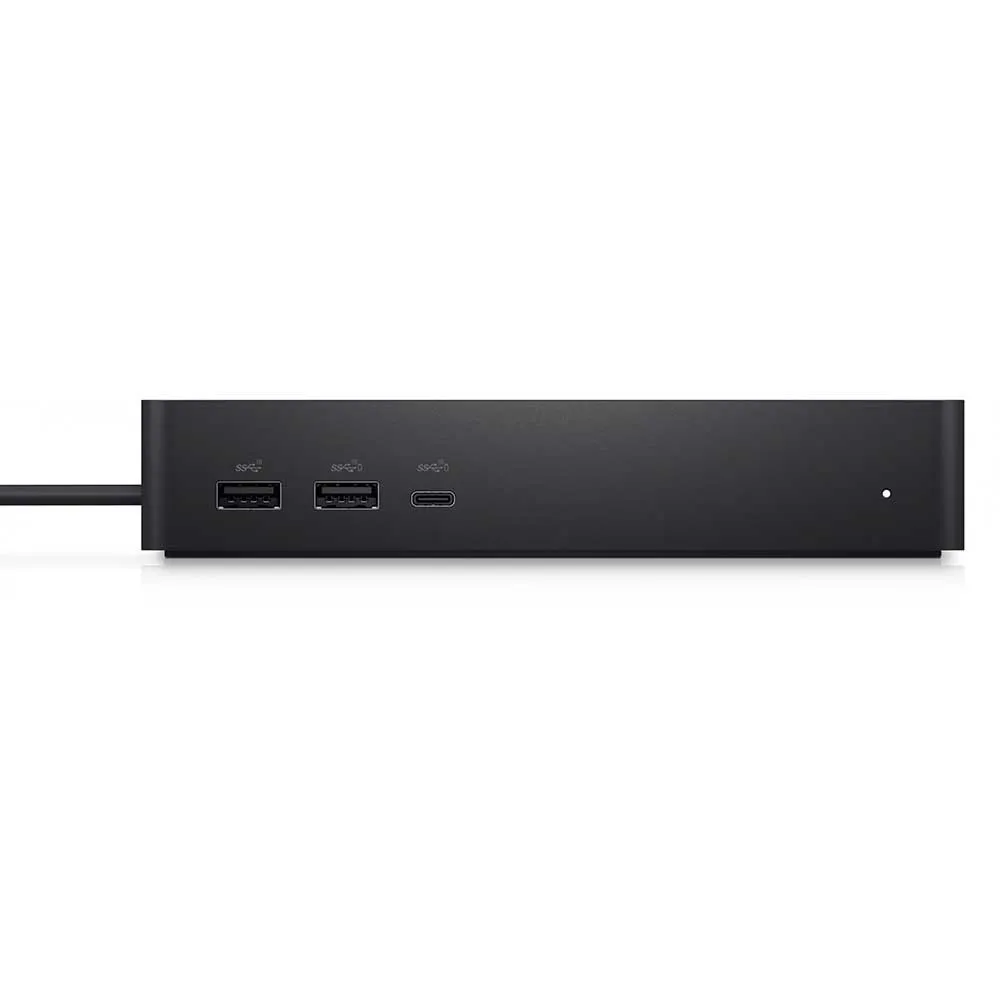

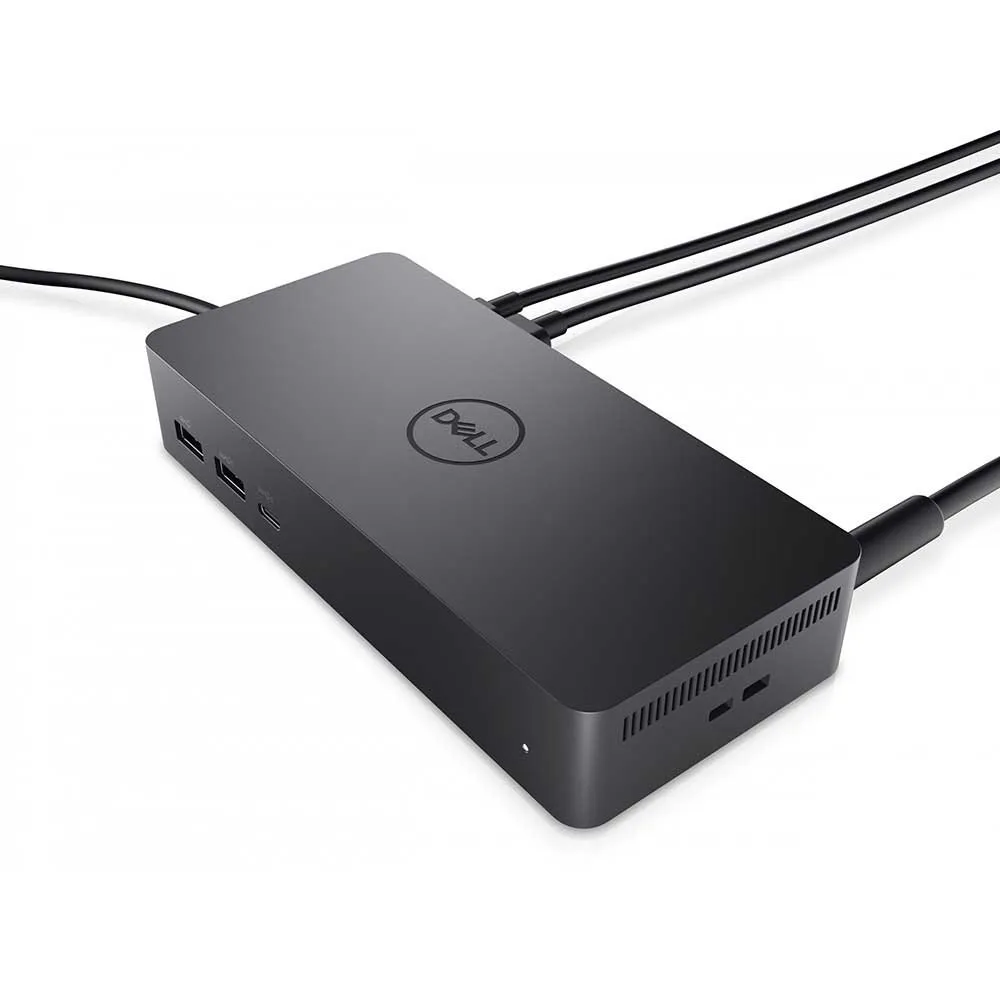

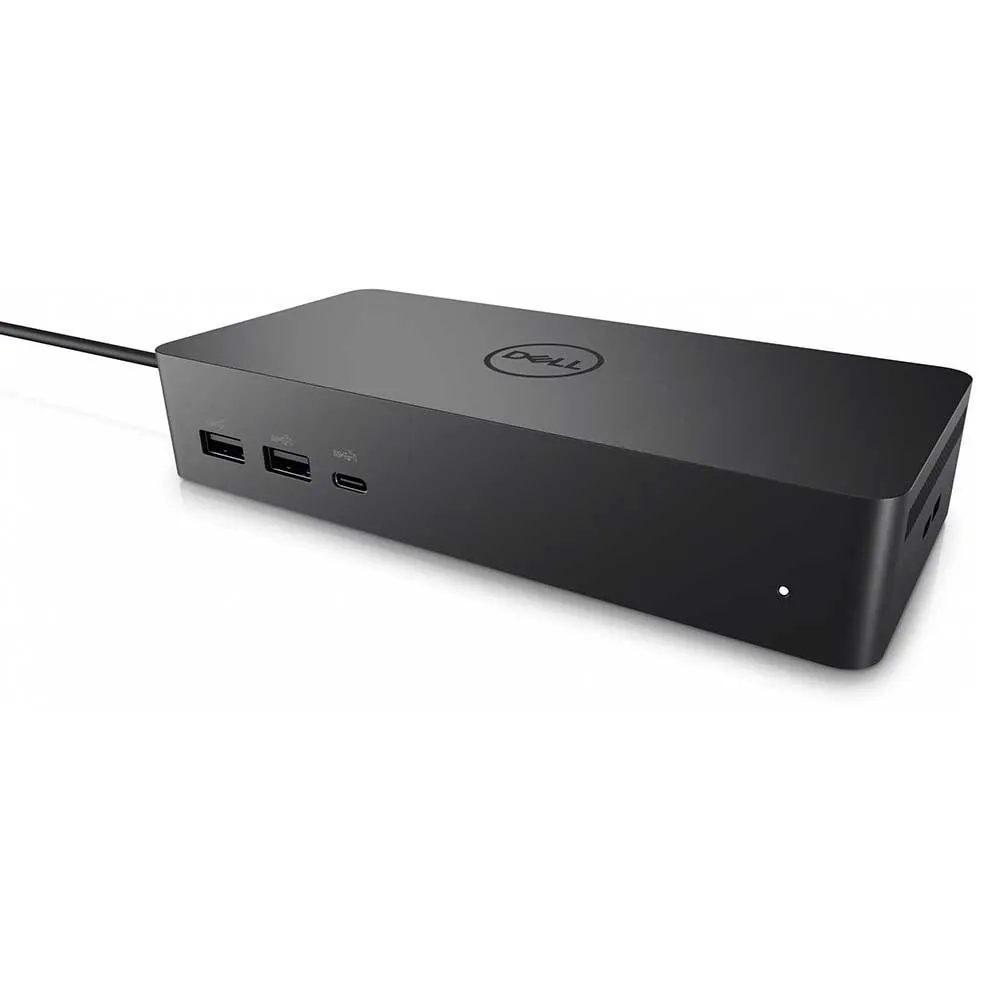

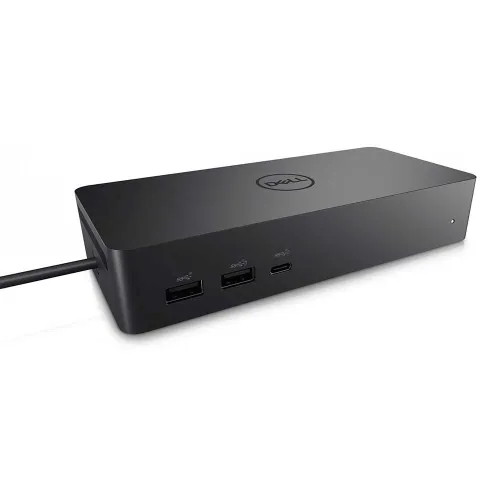

Dell UD22 USB-C docking station 130W

Experience the ultimate universal dock, equipped with 10 ports, for any USB-C notebook.

Features & Design:

Universal connectivity:

Consistent experience:
- Connect to any USB-C notebook, regardless of the manufacturer, and run any operating system.

Multiple monitor support:
- Enhance your coworking spaces with consistent display support across different systems.

High power delivery:
- Achieve a fast-charging experience with up to 96W power delivery for any USB-C notebook.

Next-level productivity:

Enhanced display support:
- Maximize productivity with the highest number of displays supported on a universal dock*, enabling connection of up to four 4K monitors via DisplayLink drivers.

Multiple ports:
- With the highest number of ports on a universal dock*, create a productive work station with increased flexibility.


Seamless experience and supportive management:

Faster, easier deployment:
- Connect your laptop and get started quickly even when the DisplayLink driver is not installed, thanks to the additional support for DP Alt mode.

Hoteling made convenient:
- Enhance the shared workspace experience further with DisplayLink’s layout provisioning feature that enables preconfigured display layout automatically for the users.

Extended warranty:
- Dell Docks now have their own service tags, along with a 3 to 5 year warranty option for the best support, management and upgradeability possible.


Specifications:

General:
- Product Type: Docking station
- Width: 7.6 cm
- Depth: 16.6 cm
- Height: 3.2 cm
- Weight: 416 g


Video:

Max Resolution Details:
- 5K - 60 Hz (Single Display)
- 4K - 60 Hz (Quad Display)

Networking:
- Data Link Protocol
- Gigabit Ethernet


Expansion / Connectivity:

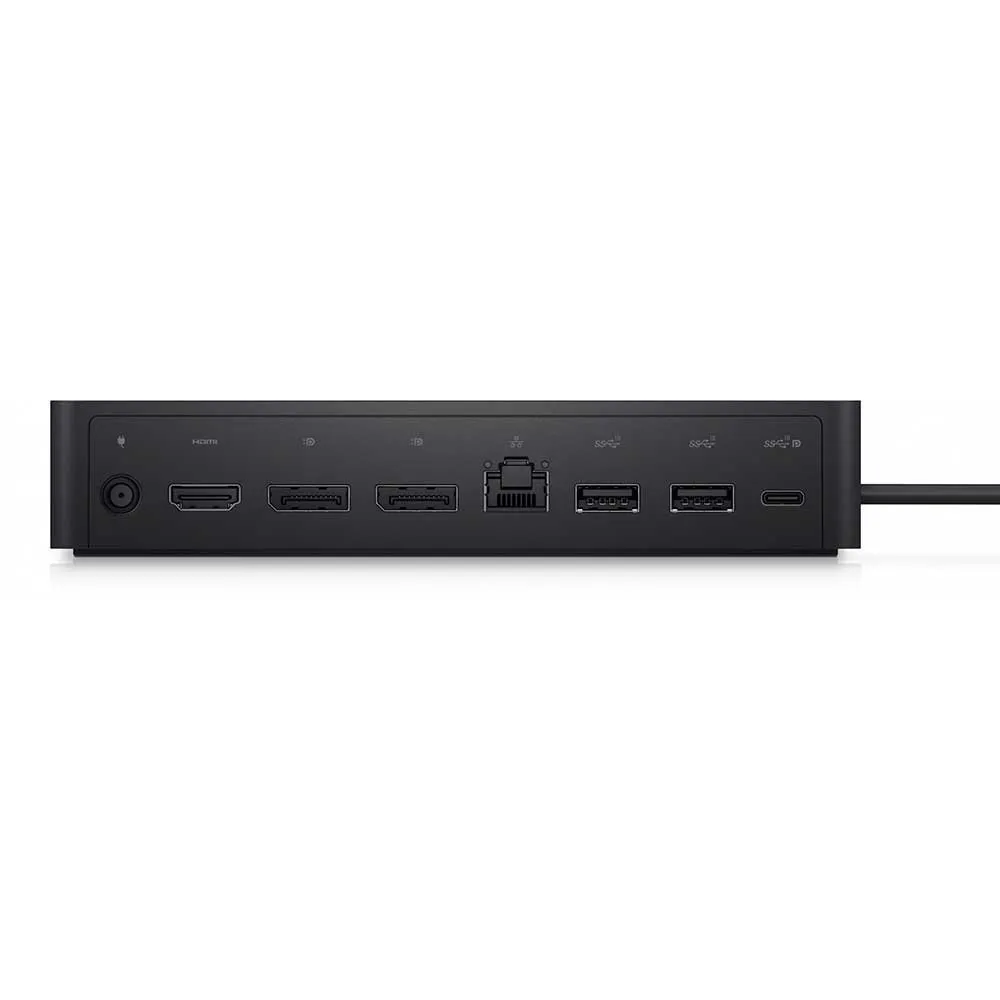

Interfaces:
- 2 x display / video - DisplayPort - 20 pin DisplayPort (1.2)
- 1 x display / video - HDMI
- 1 x USB-C 3.2 Gen 2/DisplayPort
- 1 x USB 3.2 Gen 2 with PowerShare
- 3 x USB 3.2 Gen 2
- 1 x USB-C 3.2 Gen 2
- 1 x network - RJ-45


Miscellaneous:

Cables Included:
- 1 x USB-C cable - 0.8 m

Features:
- Security lock slot (cable lock sold separately), wake on LAN, 3 LED indicators, MAC address pass-through, wireless vPro, 96W power delivery, High Bit Rate 3 (HBR3), High Bit Rate 2 (HBR2), Kernel Direct Memory Access (DMA) protection

Security Slot Type:
- Kensington nano security slot / Kensington security slot

Power:
- Power Device: Power adapter
- Power Provided: 96 Watt

System Requirements:

OS Required:
- Windows 10, Windows 11, Ubuntu 20.04 or later, Apple macOS 12.21 or later, Google Chrome OS 100 or later
