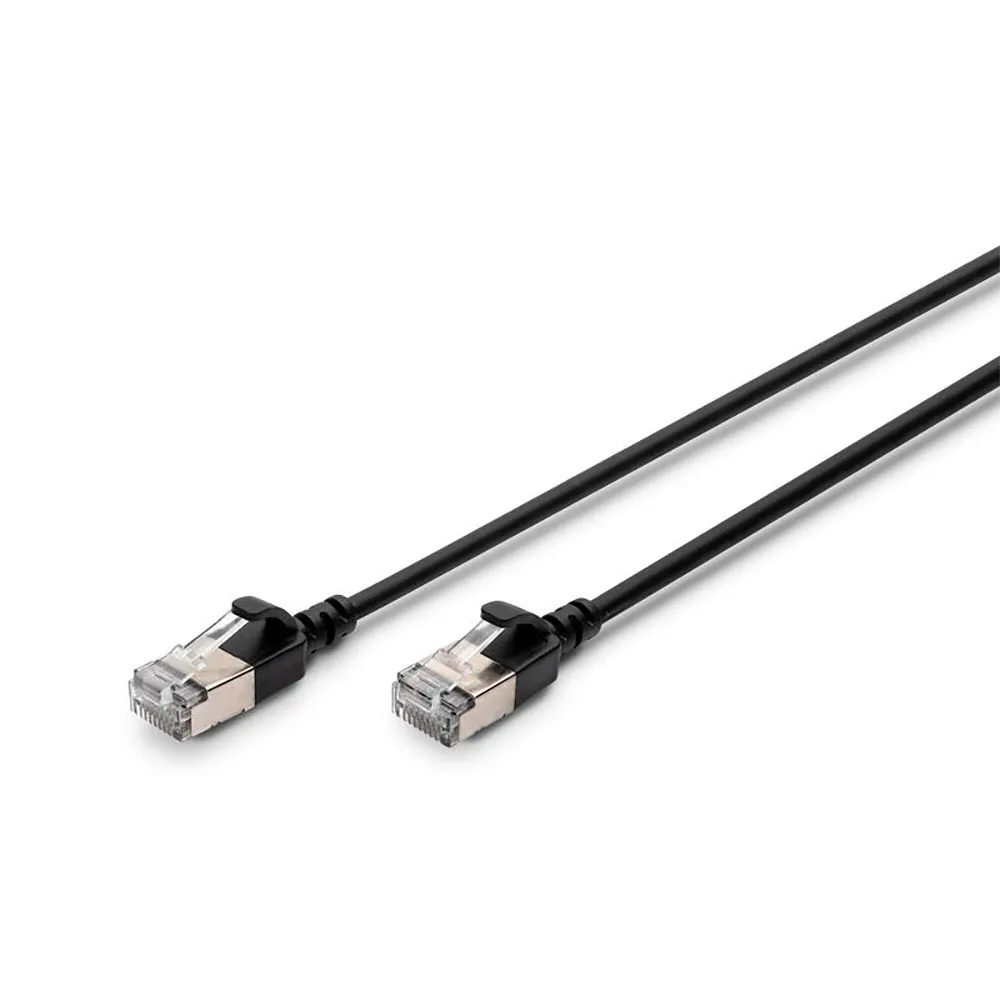

Digitus 904164010 CAT6a network cable

Specifications:

- Outer jacket: LSZH (low smoke zero halogen)
- Overall diameter: 3.8 mm ± 0.15 mm
- Stranded conductor: AWG 32/7 bare copper, 0.12 ± 0.005 mm
- Insulation: HD-PE (high-density polyethylene)
- Bending radius: 15x OD
- Plug: RJ45 plug
- Cabling standard: EIA/TIA 568B
- PIN assignment: 1:1
- Contact resistance: 376.96O/km maximum at 20 °C
- Resistance unbalance: 3% maximum.
- Operating temperature: -20 °C to +60 °C.
- Flame retardancy: IEC 60332-1
- Smoke emission: IEC 61034
- Typical applications: IEEE 802.3: 10BASE-T; 100BASE-T; 1000BASE-T
- Standards: ISO/IEC 11801-1; EN-50173; ANSI/TIA 568-C; EN 60603-7-4
- Dielectric strength: 500 V AC for 1 minute without breakdown (TIA/EIA-364-21)
- Service life: 750 mating cycles
- Packaging: DIGITUS Polybag

Features:
- Cable length: 1.5 m
- Cable standard: Cat6a
- Cable shielding: F/FTP (FFTP)
- Connector 1: RJ-45
- Connector 2: RJ-45
- Connector 1 gender: Male
- Connector 2 gender: Male
- Connector 1 form factor: Straight
- Connector 2 form factor: Straight
- Connector contacts plating: Bronze/Gold
- Jacket material: Halogen-free (LSZH)
- Cable shape: Round
- Conductor type: Flexible
- Conductor material: Copper
- AWG cable gauge: 32/7
- Data transfer rate: 10000 Mbit/s
- Frequency: 500 MHz
- Power over Ethernet (PoE) type support: PoE+

Environmental conditions:
- Operating temperature range: -20 - 60 °C

Weight and dimensions:
- Outer diameter: 3.8 mm
