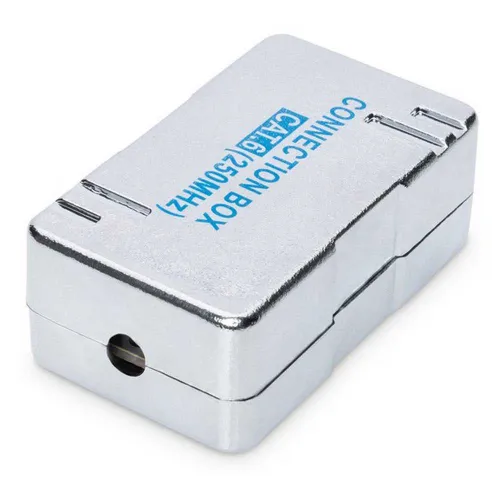

Digitus CAT6 Splice Box

Future-oriented standards and high-end quality for your network.

The DIGITUS® Connection module is for the purpose of connecting or extention of Twisted Pair Cables.

Specifications:

- Transmission properties:

Category 6.

- Area of application:

Up to 250 MHz, 1GBase-T.

- Norms:

ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C.

- General properties:

- Suitable for installation in trunking, surface and flush mount.

- Cable installation via LSA stripes, color-coded as per EIA/TIA 568 A & B.

- Suitable for connection of installation cables.

- extension of cables, replacing of defect cable links.

- Integrated strain relief for installation cables.

- Suitable for cables with AWG 22-26 diameter.

- Technical properties:

- Housing material:

ABS UL-94V-0.

- RJ45 female contact:

Tinned phosphor bronze, 0.5 μ gold-plated contact.

- RJ45 shielding:

Tinned bronze.

- LSA termination clamp:

Krone LSA+, UL 94V-0, zinc plated phosphor bronze.

- Conductor plate:

FR4, UL 94V-0.

- Physical properties:

- Operation temperature:

- 20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C).

- IDC wire size:

22.

- 26 AWG solid and stranded conductor.

- Insulation resistance:

> 500 MOhm.

- Contact resistance:

< 20 MilliOhm.

- Dielectric strength:

1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground).
