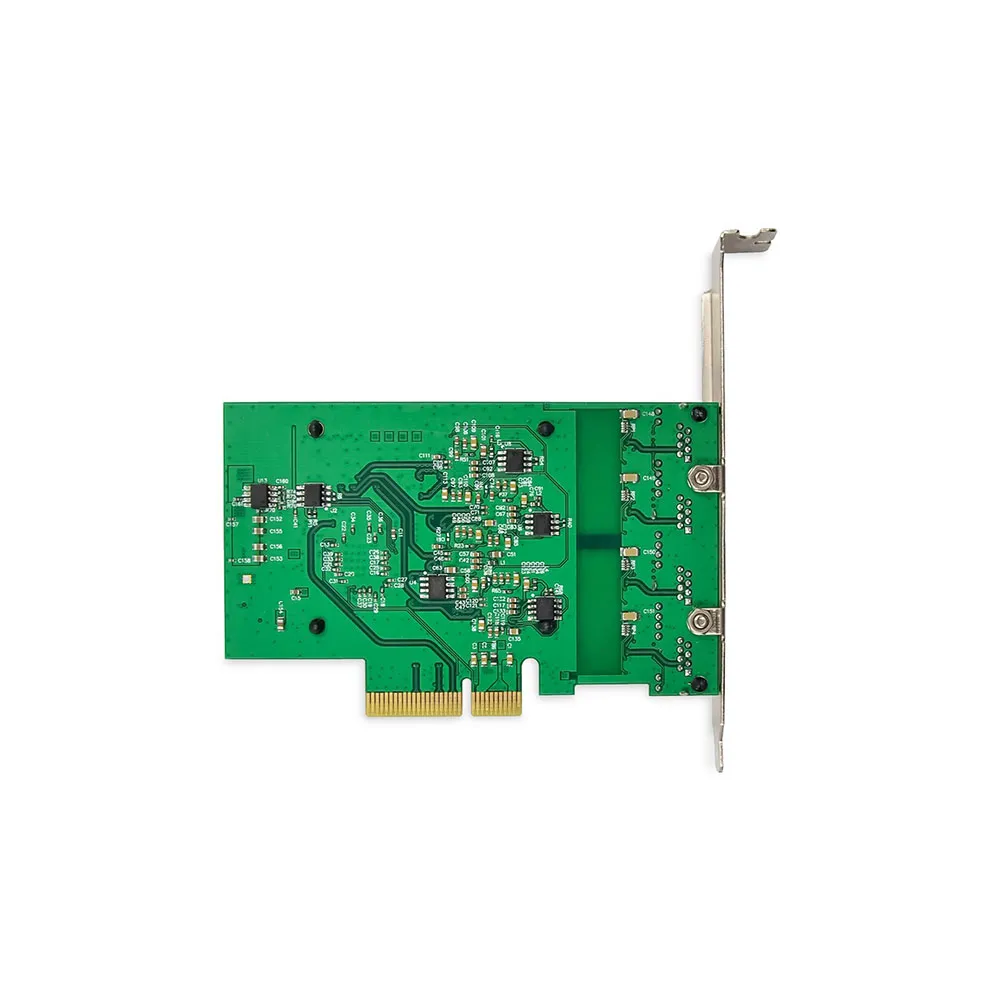

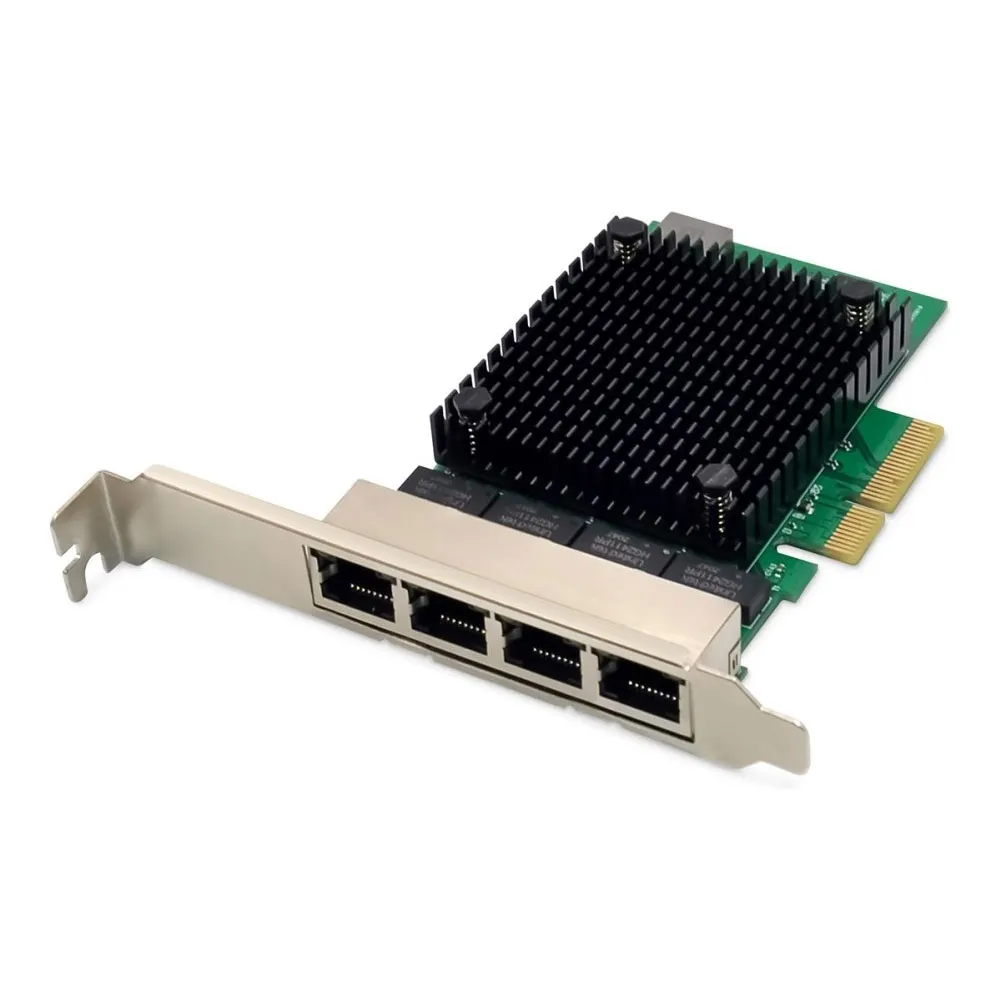

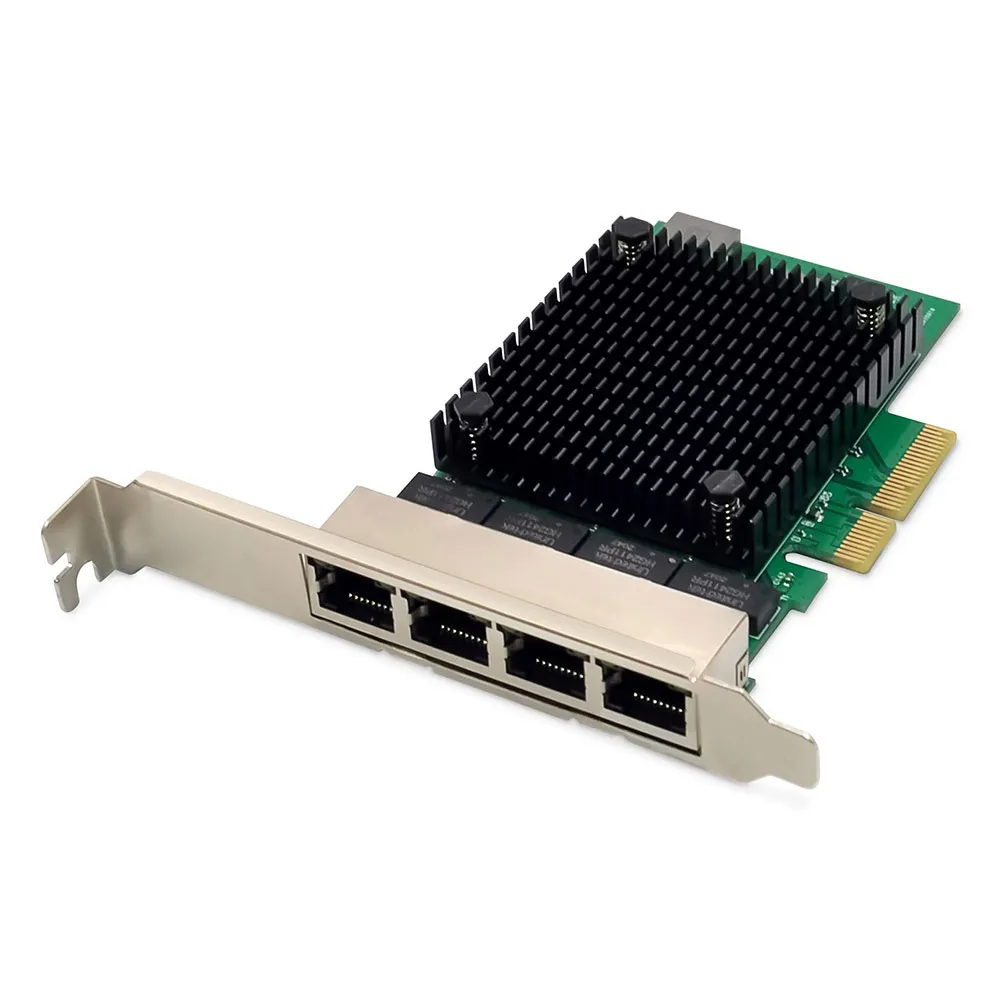

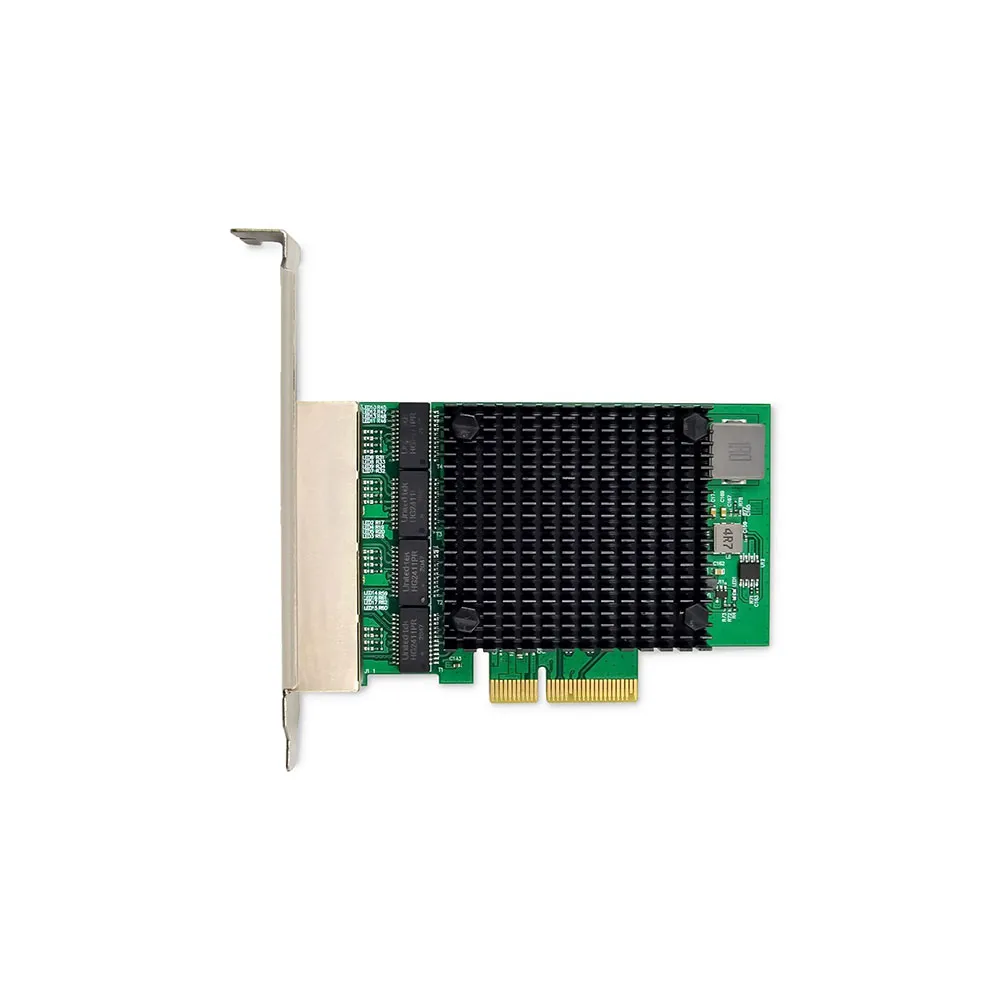

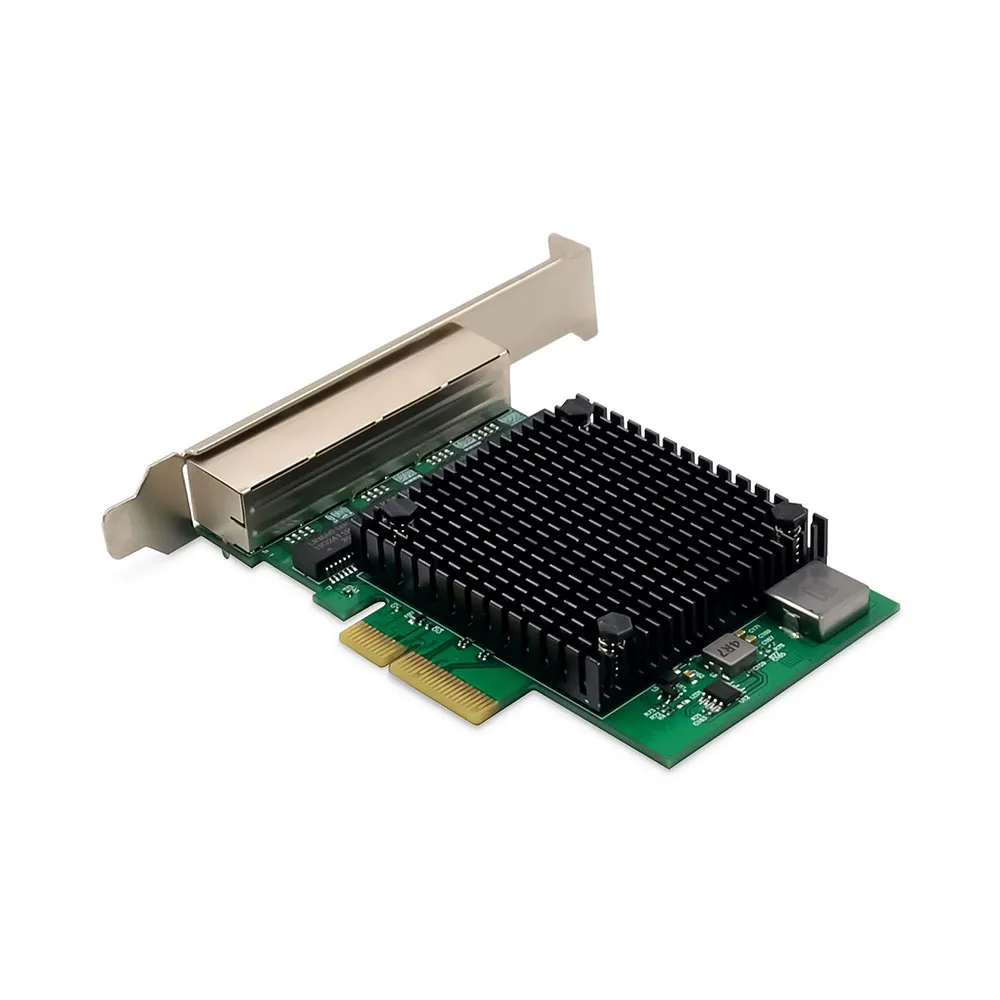

Digitus DN-10136 PCI-E Expansion Card

The DN-10136 PCIe Quad-Port 2.5G network adapter combines an IEEE802.3-compliant Media Access Controller with a four-speed Ethernet transceiver.

It meets the IEEE802.3u, IEEE802.3ab, and IEEE802.3bz specifications, supports high-speed transmissions over CAT5e/ CAT3 UTP cables, and is suitable for desktops, workstations, servers, communication platforms, and embedded applications.

- 2-Lane PCI Express bus connecting with up to 10Gbps bus width - PCI Express interface:x4 - Integrated 10M BASE-Te and 100/1000M/2.5G base-T 802.3 compatible transceiver - Supports 2.5G and 1G Lite mode - Supports pair swap/polarity/skew correction - Crossover Detection& Auto-Correction The DN-10136 PCIe Quad-Port 2.5G network adapter is realized by the combination of multiple chips, it is combines a four-speed IEEE802.3 compatible Media Access controller with a four-speed Ethernet transceiver, it is complies with the IEEE802.3u specification for 10/100Mbps Ethernet,the IEEE802.3ab specification for 1000Mbps Ethernet and IEEE802.3bz specification for 2500 Mbps Ethernet.

Also it offers high-speed transmission over CAT5e UTP cable OR CAT3 UTP(10Mbps only)cable.It is suitable for multiple market segments and emerging applications, such as desktop, workstation, server, communications platforms, and embedded applications.Digitus 4 port 2.5 Gigabit Ethernet network card, RJ45, PCI Express, Realtek chipset.

Internal.

Connectivity technology:Wired,.

Host interface:PCI Express,.

Interface:Ethernet.

Maximum data transfer rate:10000 Mbit/s.

Product colour:Black, Green
