Digitus DN-19 09-U-EC rack cabinet

EU Plug.

DIGITUS DN-19 09-U-EC 9U Wall Mount Rack Cabinet Eco Series Elevate your network and server infrastructure with the DIGITUS DN-19 09-U-EC, a professional 9U wall-mount rack cabinet from the Eco Series.

Designed for optimal performance in small office/home office (SOHO) environments, retail back-offices, or as a network distribution point, this cabinet provides a secure, organized, and space-saving solution for housing your critical 19-inch active and passive network components.

Its compact and robust design ensures your equipment, such as servers, switches, patch panels, and UPS systems, is protected from dust, tampering, and environmental factors, all while maintaining a clean and professional aesthetic.

The DN-19 09-U-EC is engineered for convenience and efficiency.

By mounting directly to the wall, it frees up valuable floor space, making it an ideal choice for areas where a full-sized server rack is impractical.

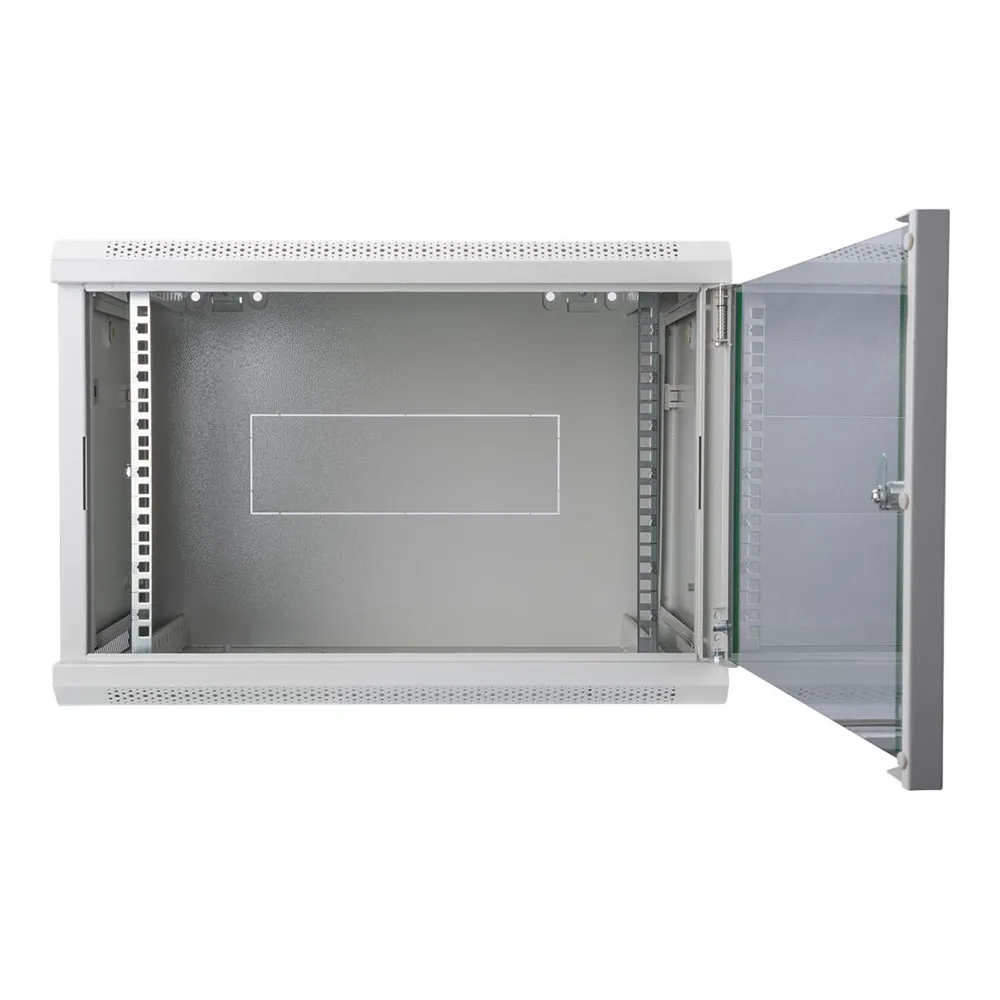

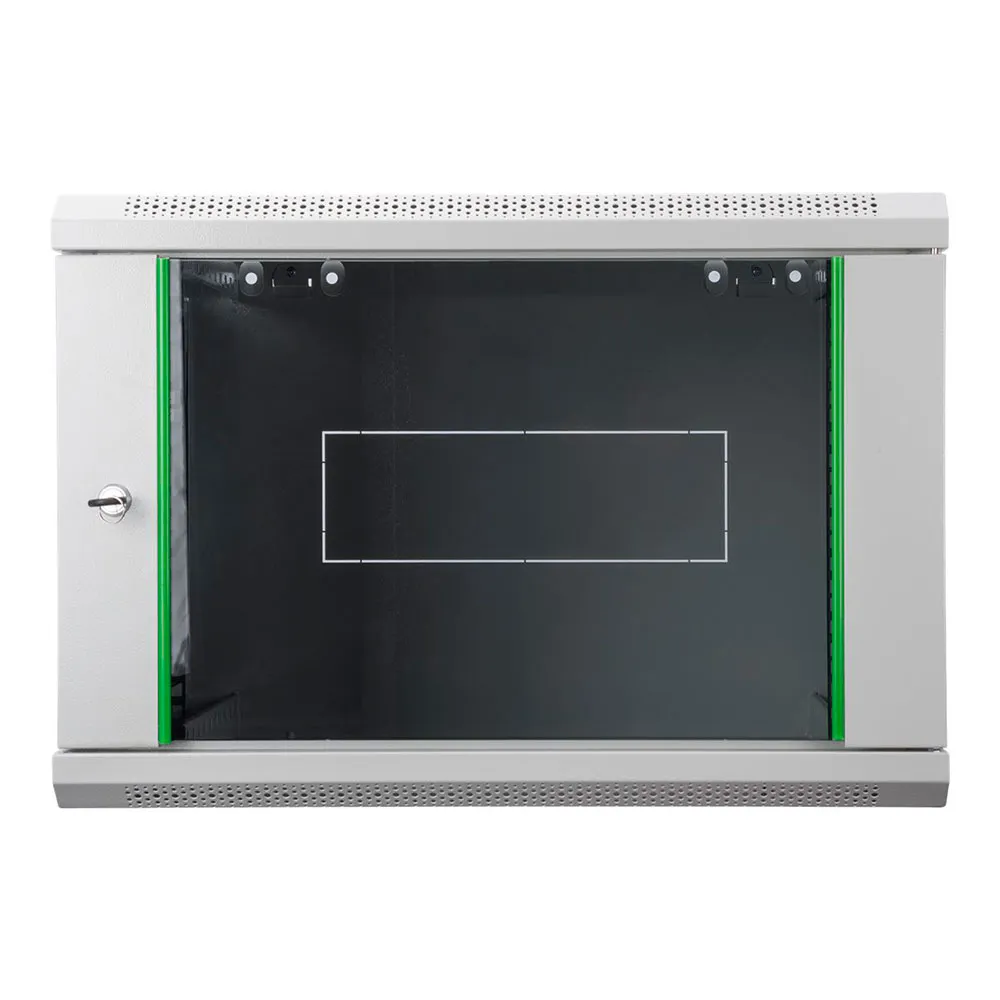

The lockable front door, featuring a sturdy safety-glass panel, allows for quick visual inspection of your equipment´s status indicators without compromising security.

This combination of accessibility and protection makes managing your network infrastructure simpler and more secure.

Key Features:

-Robust Steel Construction:

Built from a strong 1.1 - 1.5 mm thick sheet steel with a high load capacity, ensuring your valuable server and network equipment is housed securely.

The powder-coated finish provides excellent resistance to scratches and corrosion.

-Secure and Visible:

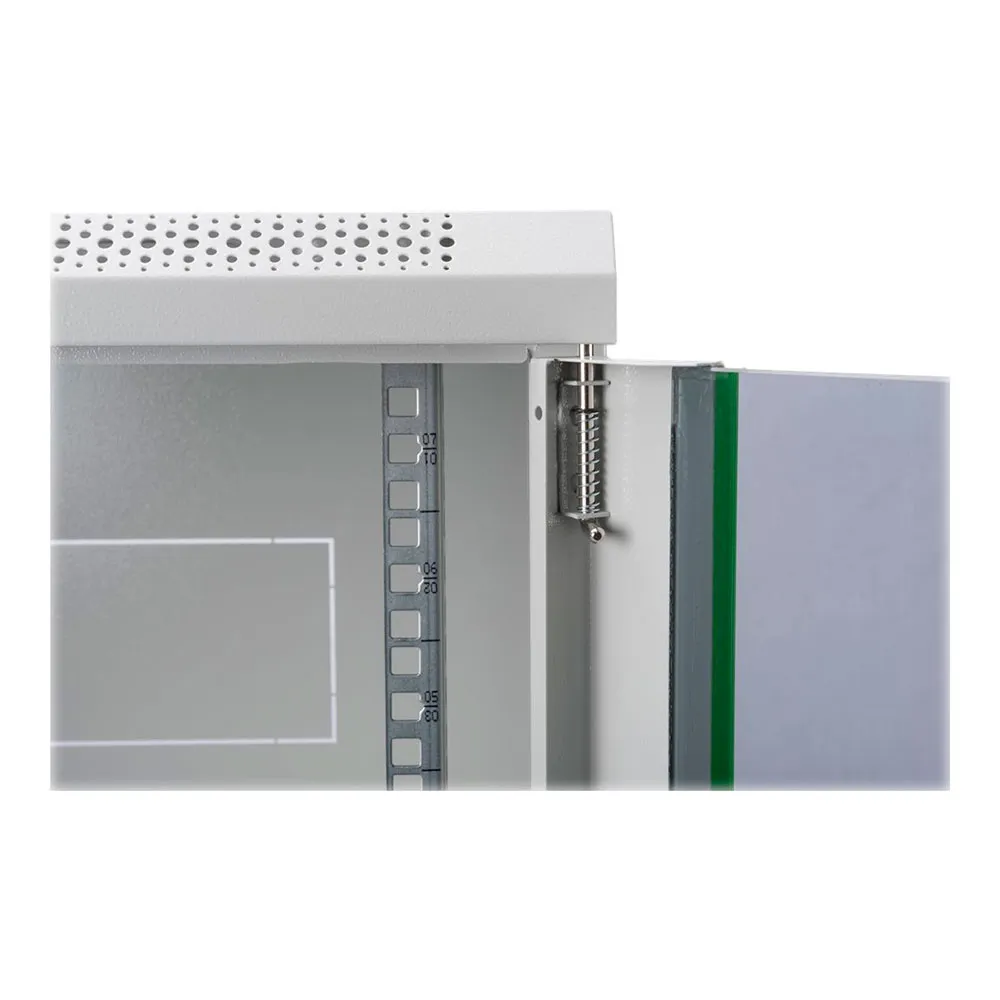

Features a lockable front door with a safety-glass window, providing both physical security against unauthorized access and the convenience of at-a-glance equipment monitoring.

The door has a 210° opening angle for easy access during installation and maintenance.

-Flexible Equipment Mounting:

The interior is equipped with two 19´´ profile rails that are depth-adjustable, allowing you to customize the mounting depth to accommodate a wide variety of server and network hardware.

-Optimized Cable Management:

Designed with pre-punched, break-out cable entry points on the top and bottom panels.

This facilitates clean and organized cable routing, reducing clutter and improving airflow within the cabinet.

-Passive Ventilation:

Integrated ventilation slots on the top and bottom of the cabinet promote natural air convection, helping to dissipate heat generated by active components and maintain optimal operating temperatures.

Mounting Decks and Interior Layout The internal architecture of the DN-19 09-U-EC is centered around its versatile mounting decks.

These consist of two galvanized 19-inch profile rails, which are fully adjustable along the depth of the cabinet.

This adjustability provides maximum flexibility, enabling you to perfectly position equipment of varying depths, from shallow patch panels to compact servers.

The rails are clearly marked with height units (U) to simplify the installation process and ensure precise alignment of your devices.

Technical Specifications:

-Product Code:

DN-19 09-U-EC -Cabinet Type:

Wall Mounting Cabinet, Eco Series -Rack Units (U):

9U -Dimensions (HxWxD):

476 mm x 540 mm x 450 mm -Color:

Light Grey (RAL 7035) -Load Capacity:

60 kg -IP Protection Class:

IP20 -Material:

Sheet Steel -Front Door:

Safety Glass Door, single-point-locking -Side Panels:

Not demountable -Profile Rails:

Two 19´´ profile rails, depth-adjustable -Cable Entry:

Top and Bottom (pre-punched) -Ventilation:

Passive ventilation slots for air circulation -Width:

540 mm -Depth:

450 mm.
