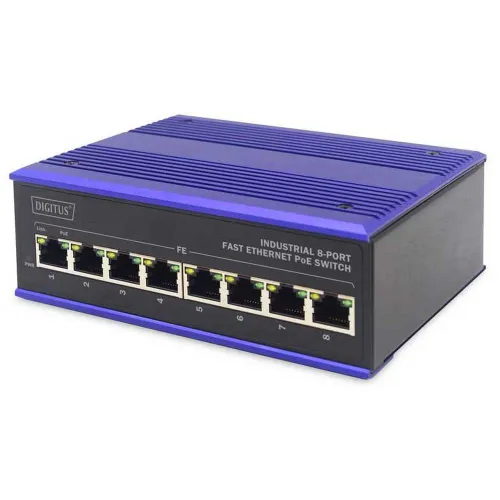

Digitus DN-650108 switch 8 ports

EU Plug.

The DIGITUS® Industrial Fast Ethernet Switch is designed for harsh environments where it is exposed to moisture, temperature fluctuations and vibration.

With a temperature range of -40°C to 85°C, the Industrial Fast Ethernet Switch can be used under the most adverse conditions.

The PoE ports with IEEE802.3af/at support can supply PoE capable devices with up to 30 W per port.

It ensures a constant availability in highly sensitive areas such as transport, production, traffic and safety monitoring.

The simple plug and play system allows the Industrial Fast Ethernet Switch to be quickly integrated into the respective environment.

With its Fast Ethernet connectivity, the Industrial Fast Ethernet Switch is a flexible, cost-effective solution for the industrial environment.

Features:

- The industrial Ethernet Switch has 8 RJ45 PoE ports with fast Ethernet speeds and comes in a robust, compact black and blue metal case.

- The power supply is designed redundantly and is connected via a terminal connector.

The Network Switch also has lightning, short circuit and surge protection.

- In addition to profile rail mounting on standard DIN rails in switch or control cabinets, the Industrial Switch can also be mounted directly on the wall.

- IP40 means that the PoE Switch is protected against foreign objects (>1 mm).

- the expanded temperature range is -40 °C to +85 °C.

- suitable for non-condensing humidity of 5% to 95%.

- The LAN switch contains store and forward technology, automatic cable recognition (auto MDI/MDI-X) & half/full duplex recognition.

- standards:IEEE802.3u, IEEE802.3x, IEEE802.3af, IEEE802.3at.

Specifications:

- 8 x 10/100Base-TX Ethernet PoE Ports.

- Supports IEEE802.3af/at.

- Automatic cable detection.

- Auto MDI / MDI-X function.

- Supported standards:IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX, IEEE802.3af, IEEE802.3at.

- IEEE802.3x Flow Control und Back Pressure.

- Store and forward technology for optimized data transfer.

- Automatic speed and half/full duplex recognition/adjustment.

- Backplane with 1.6Gbps.

- Supports up to 2K MAC addresses.

- Compact, robust metal housing.

- Excellent short-circuit protection.

- Lightning and overvoltage protection.

- DIN rail (top-hat rail) and wall mounting possible.

- Redundant power supply:48~57 V DC, redundant power supply with reverse polarity protection function.

- Extended operating temperature range, -40 °C ~ +85 °C.

- Removable terminal connection.

- Protection class:IP40.

- Ethernet speed:Fast Ethernet.

- Industrial usage:yes.

- Number of ports:8.

- PoE (Power over Ethernet):no.

- Protection against vanadlism:no.

- Managed:no.

- Outdoorsuitable:no.

- VLAN:no Package content:- Industrial 8-Port Fast Ethernet PoE Switch.

- Quick start guide.

- AWG 27/7, twisted pair Logistics:- Packaging Unit Carton 42 34,80 46,00 64,50 36,00 106812,00.

- Packaging Unit Inside 1 0,83 15,40 21,30 6,70 2197,73.

- Packaging Unit Single 1 0,83 15,40 21,30 6,70 2197,73.

- Net single without Packaging 1 0,71 15,40 21,30 6,70 2197,73.
