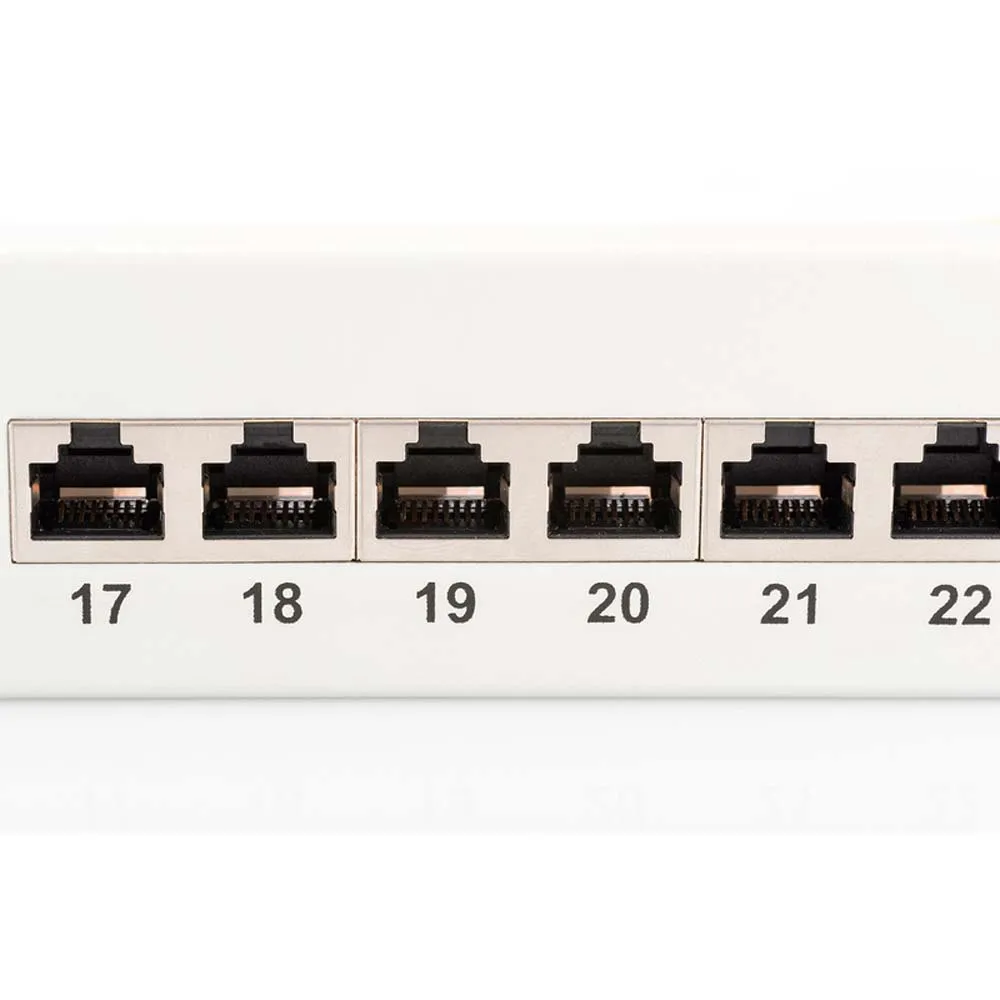

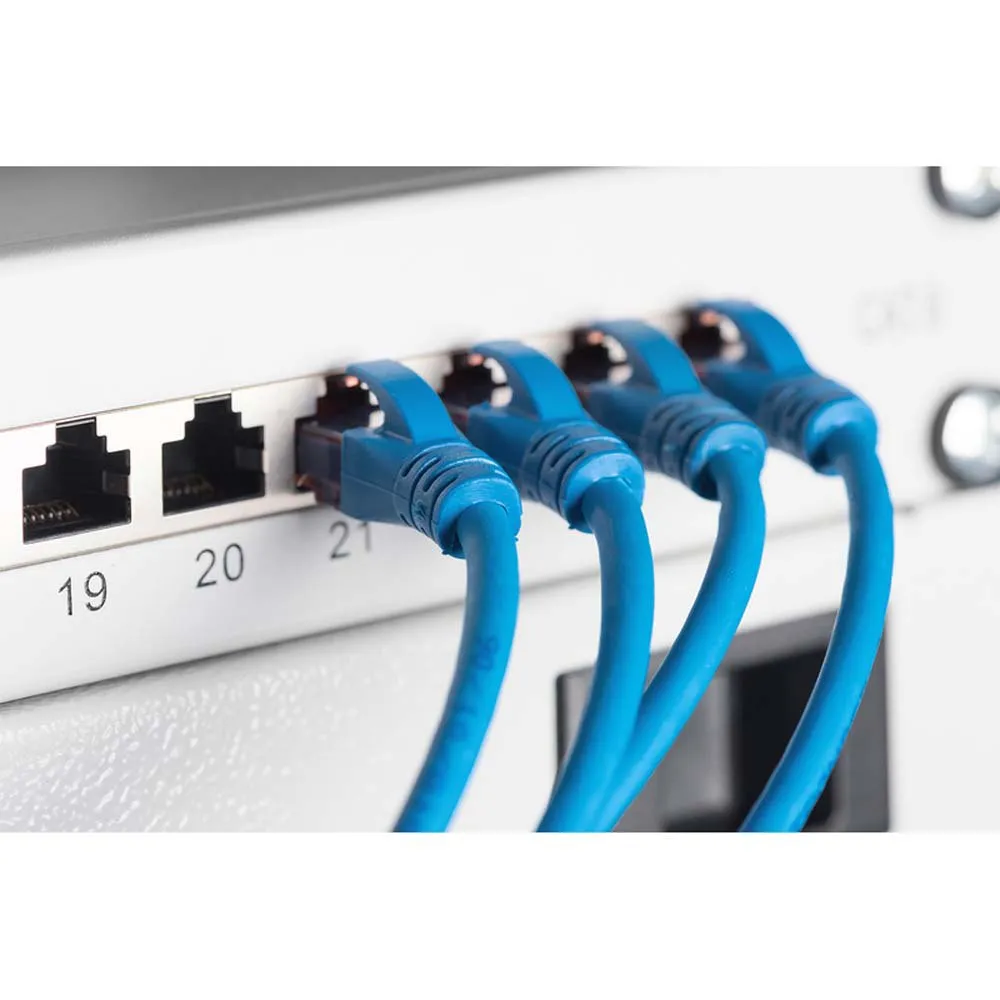

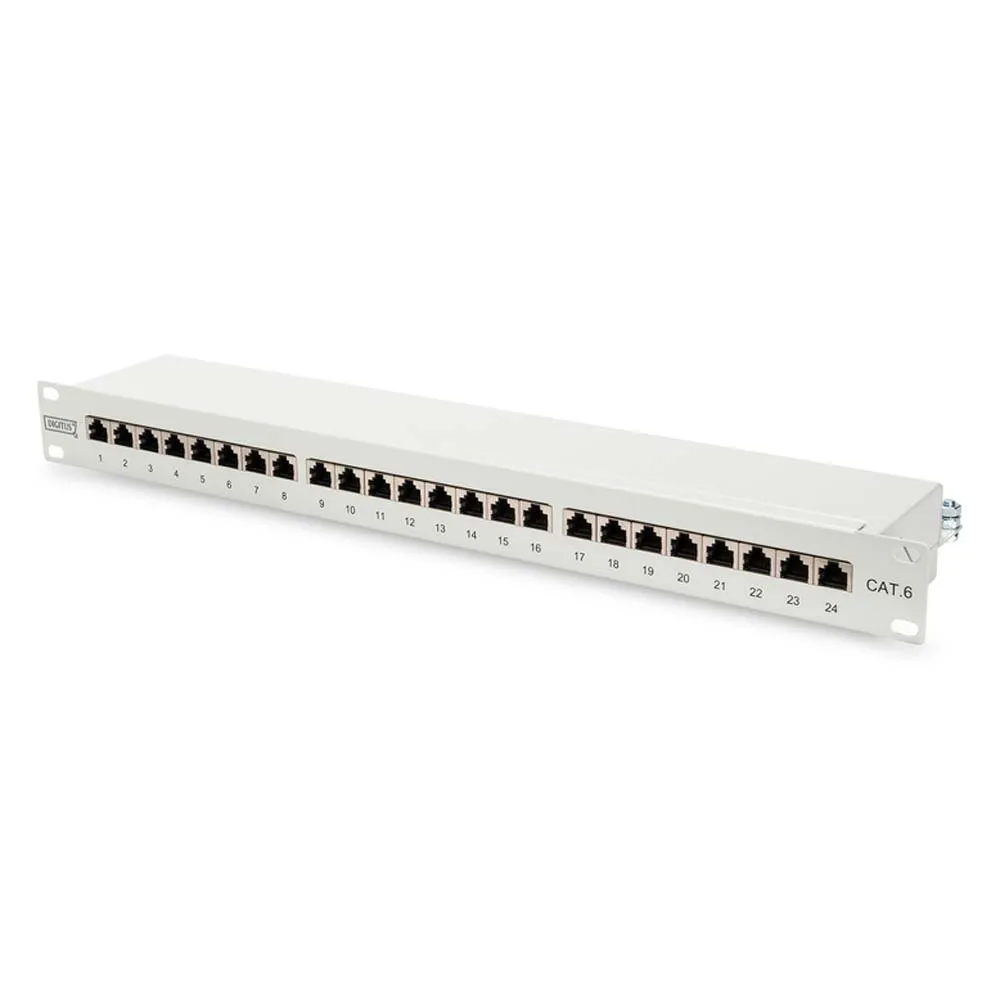

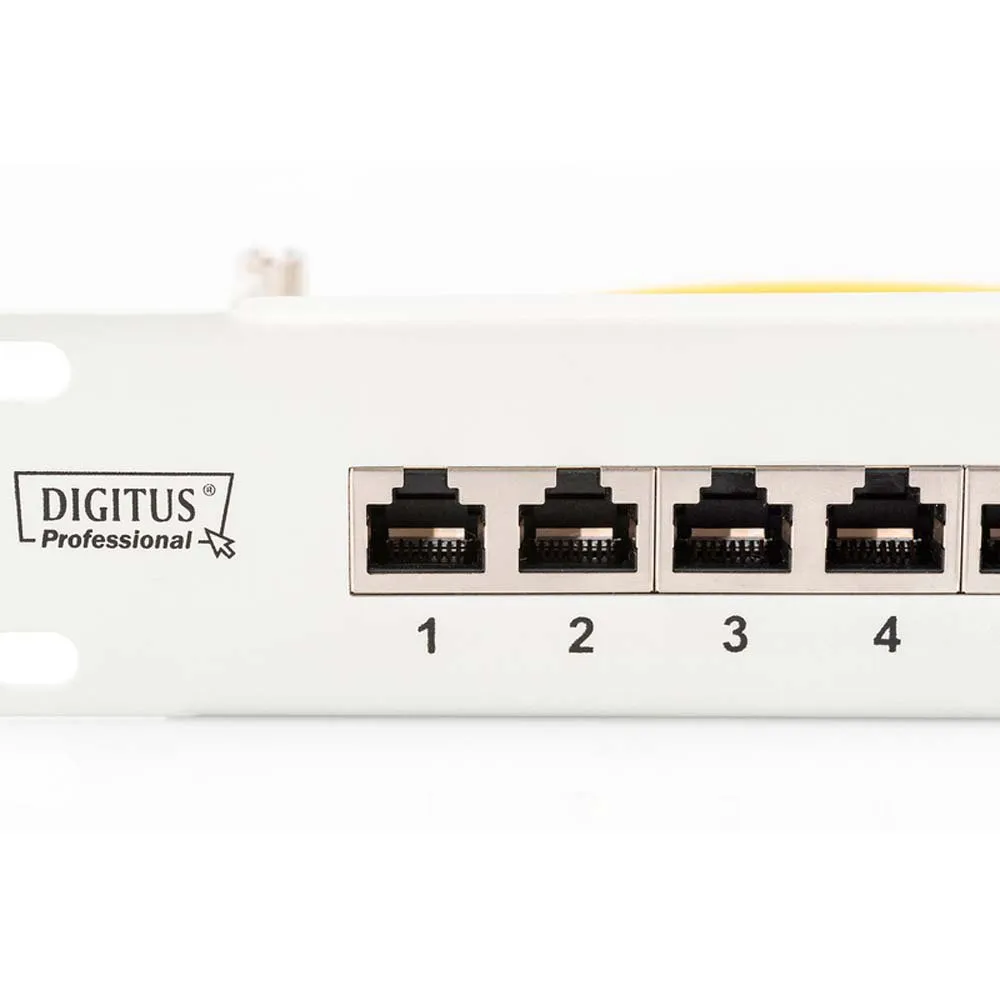

Digitus DN-91624S CAT 6E Patch Panel 24 ports

EU Plug.

Features:

- Transmission properties:Category 6.

- Area of application:Up to 250 MHz, 1GBase-T.

- Norms:ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C.

- General properties:- Suitable for 483 mm (19´´) cabinet mounting.

- RJ45 female, 8P8C.

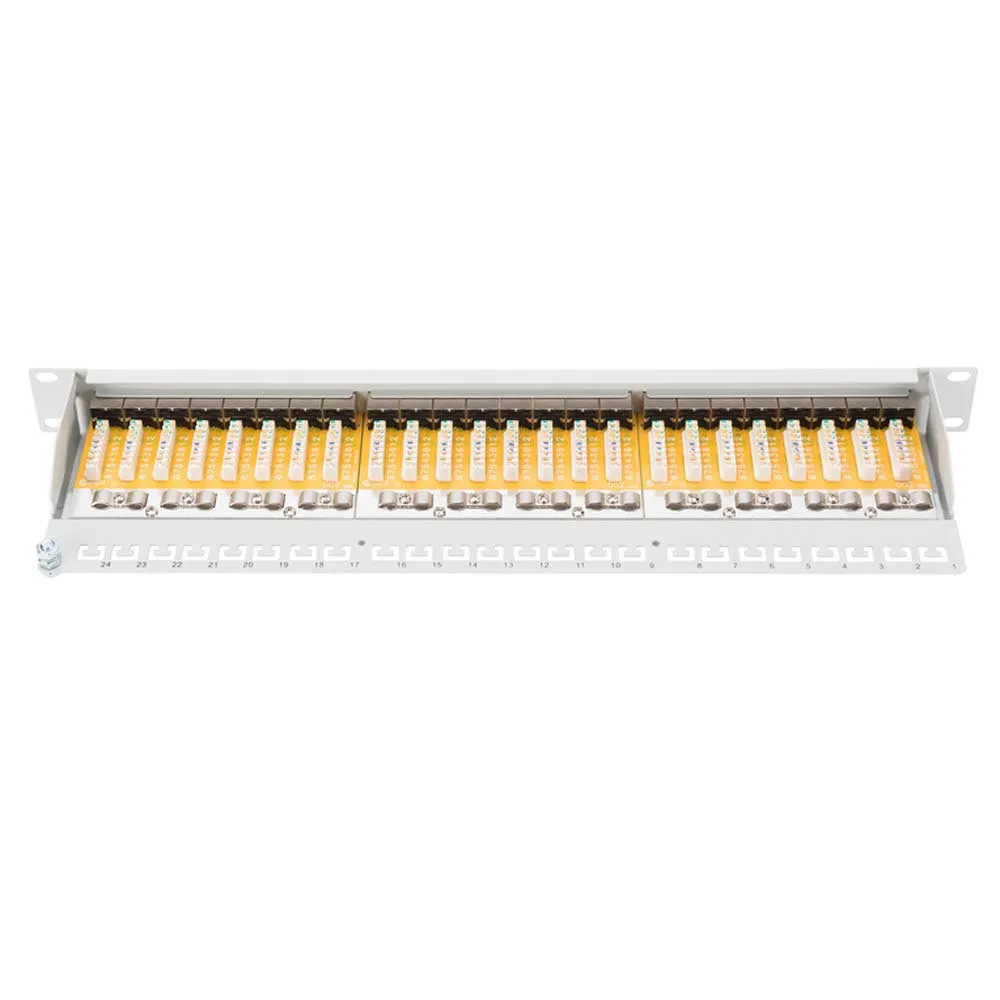

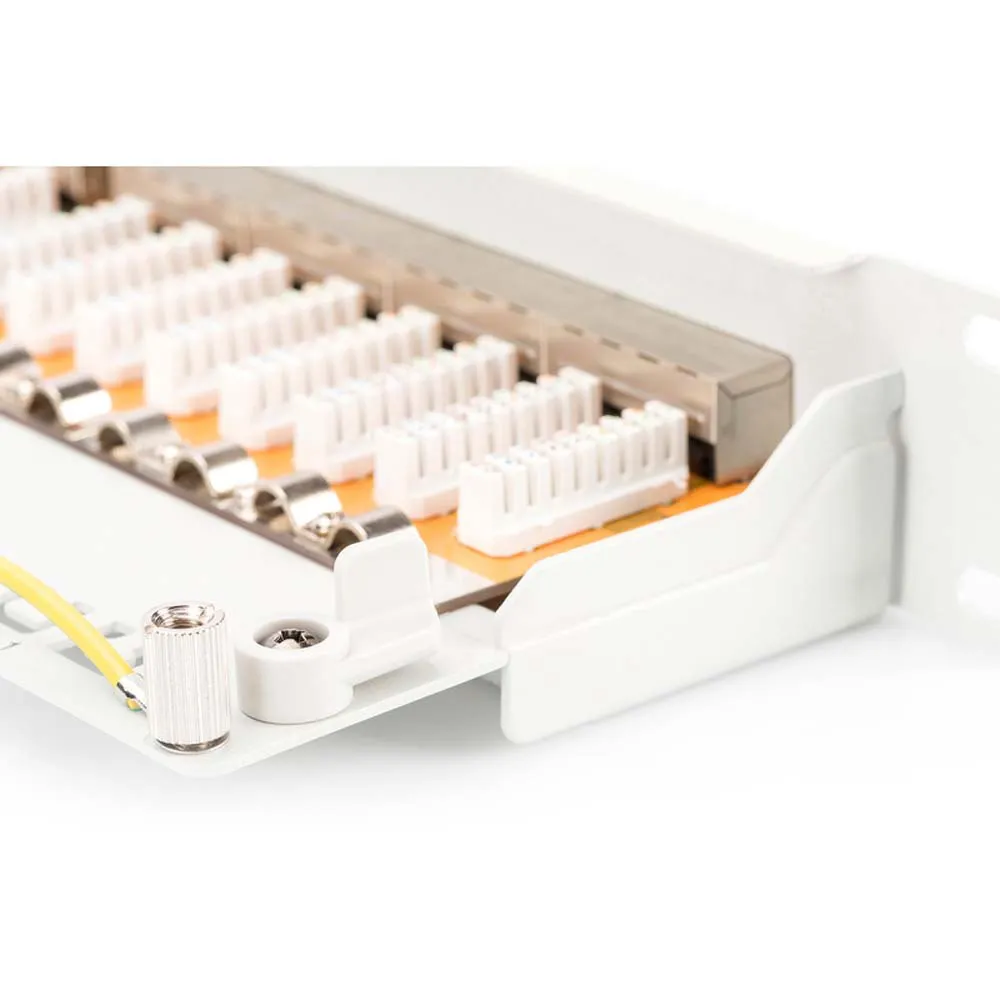

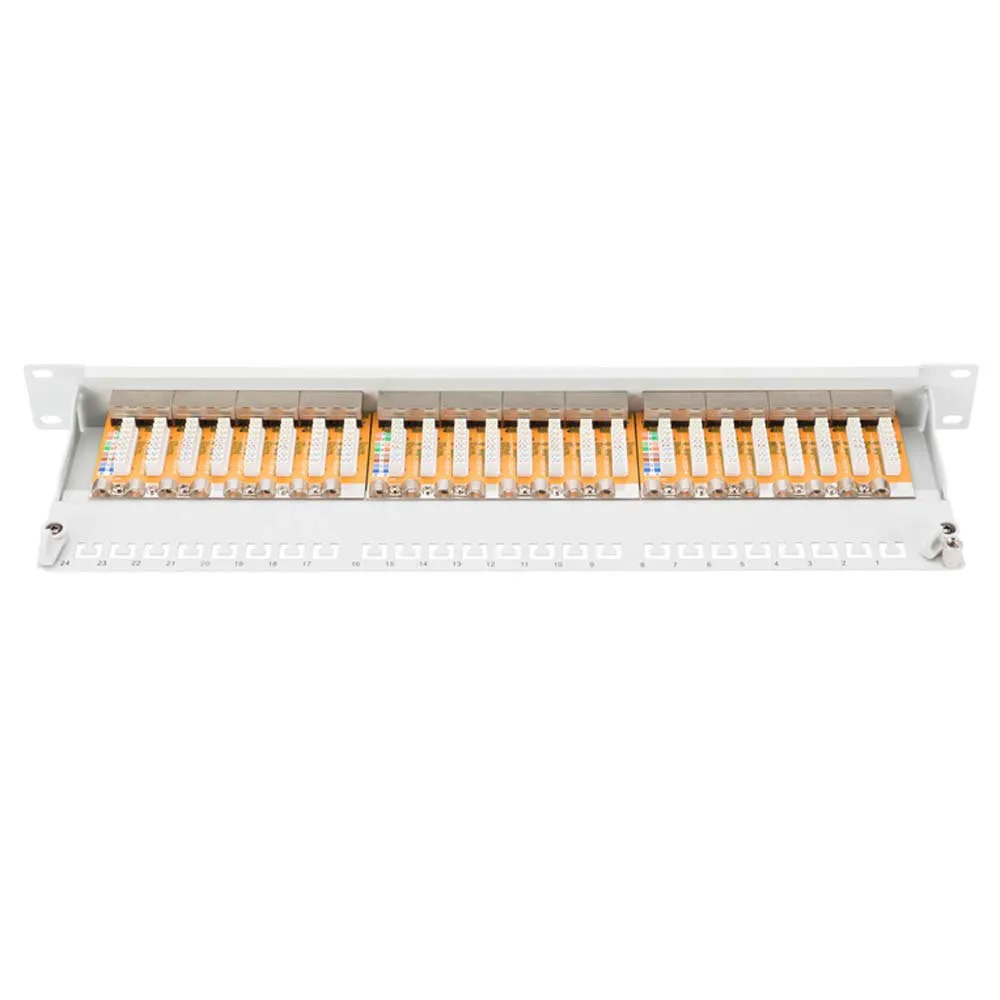

- Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B.

- Cable fixing with smart cable ties.

- Central ground connection.

- 360° shield coverage.

- Mechanical properties:- Housing material:1.5 mm galvanic cold rolled steel, acc.

to EN1.4301, UNS S30400, AISI 304 and LMSAD110.

- RJ45 female material:ABS UL 94V-0.

- RJ45 female contact:Tinned phosphor bronze, 0.5 μ gold-plated contact.

- RJ45 shielding:Tinned bronze.

- LSA termination clamp:Krone LSA+, UL 94V-2, zinc plated phosphor bronze.

- Ground wire:Not included.

- Conductor plate:FR4, UL 94V-0.

- Physical properties:- Insertion force:30N max.

(IEC 60603-7-5).

- Retention strength:7.7 kg between jack and plug.

- Operation temperature:-20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C).

- Mating cycles female:> 750 acc.

to ISO/IEC 11801, IEC 60603-7-5.

- Clamp:> 200 acc.

to ISO/IEC 11801, IEC 60603-7-5.

- IDC wire size:22.

- 26 AWG solid and stranded conductor.

- Insulation resistance:> 500 MOhm.

- Contact resistance:- Dielectric strength:1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground).

Specifications:

- Connector(s):RJ-45.

- Cable types supported:Cat6.

- Mounting:Rack mounting.

- Rack capacity:1U.

- Package width:55 mm.

- Package depth:515 mm.

- Package weight:1.56 kg.
