Digitus DN-95317 switch 10 ports

EU Plug.

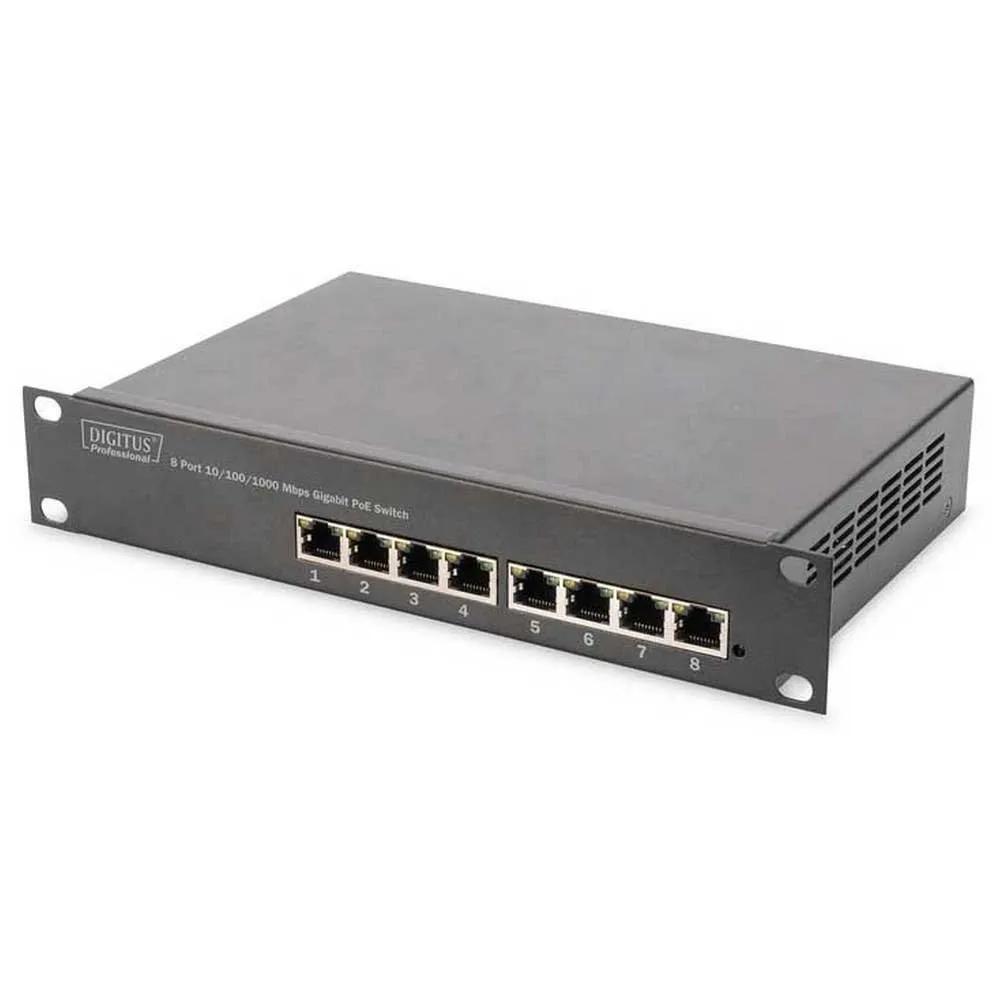

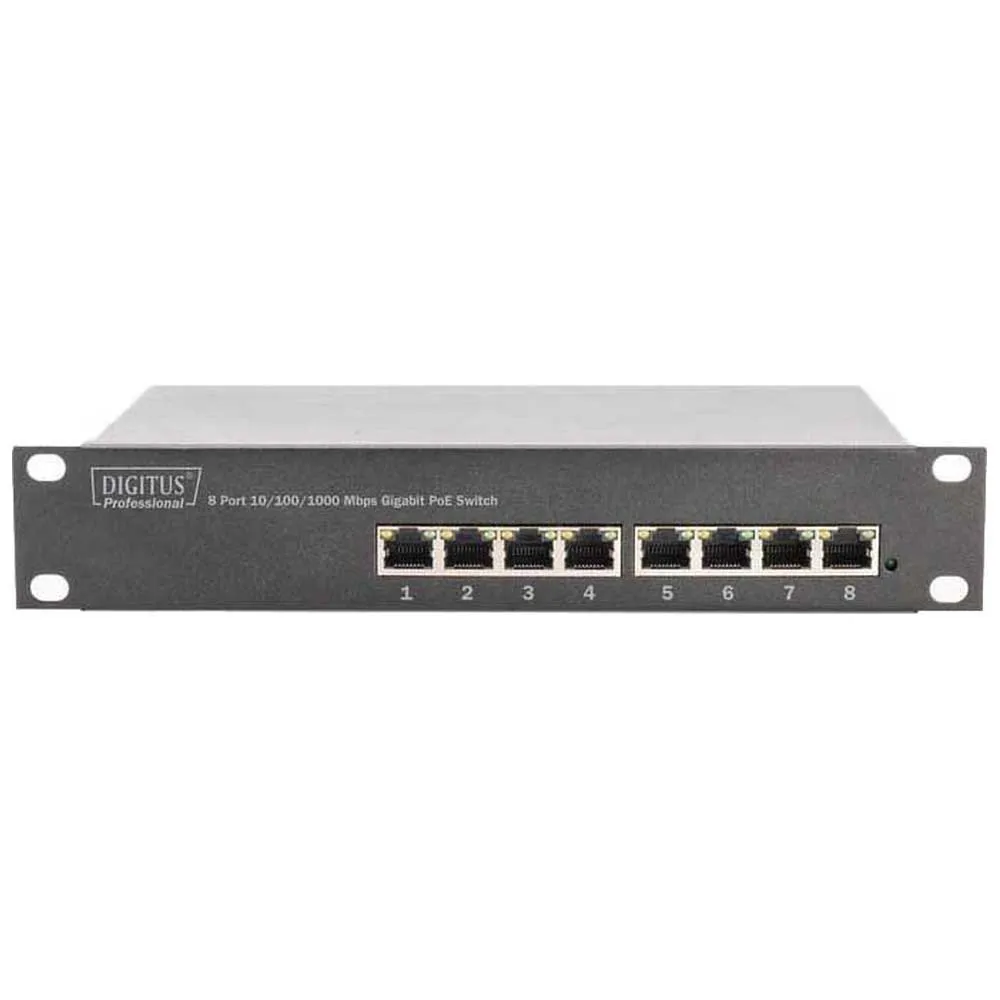

The DIGITUS® 8-Port Gigabit Ethernet PoE Switch provides 8 10/100/1000 Mbps RJ-45 ports with PoE support.

All ports support the Auto MDI/MDIX function, which eliminate the need for crossover cables and uplink ports.

Low costs, simple use and high performance are the strengths of the DIGITUS® 8-Port Gigabit Ethernet PoE Switch and thus make it an excellent choice for your network.

Due to its compact dimensions, the switch can be installed in a 10-inch wall cabinet.

The mounting angles are included.

Features:

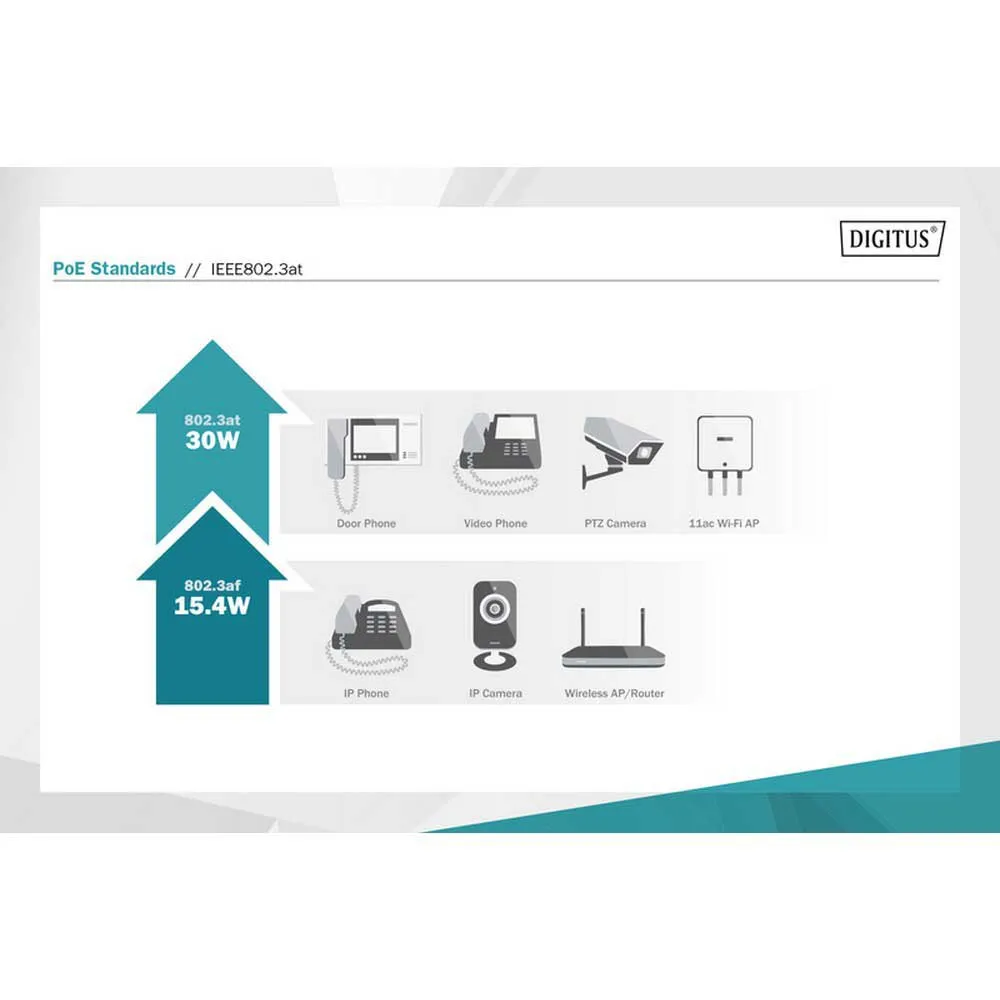

- The PoE+ Network Switch for 10´´ Racks is compatible with the standards IEEE 802.3af & at for Power over Ethernet and ideally suited for small and medium-sized networks in private and business environments.

- To supply the connected PoE devices with power, the LAN switch has a power budget of 80 watts, and a single port can supply a maximum of 30 watts.

- Along with the PoE standards, the switch complies with the standards IEEE802.3, IEEE802.3u, IEEE802.3ab und IEEE802.3x.

- thanks to Auto MDI/MDI-X, the use of crossover patch cables is no longer necessary.

- In full duplex mode, the switch reaches a respective data transfer rate of 20 / 200 / 2000 Mbit.

- the MAC storage corresponds to a size of 8000 MAC addresses.

- the backplane operates at 16 Gbps.

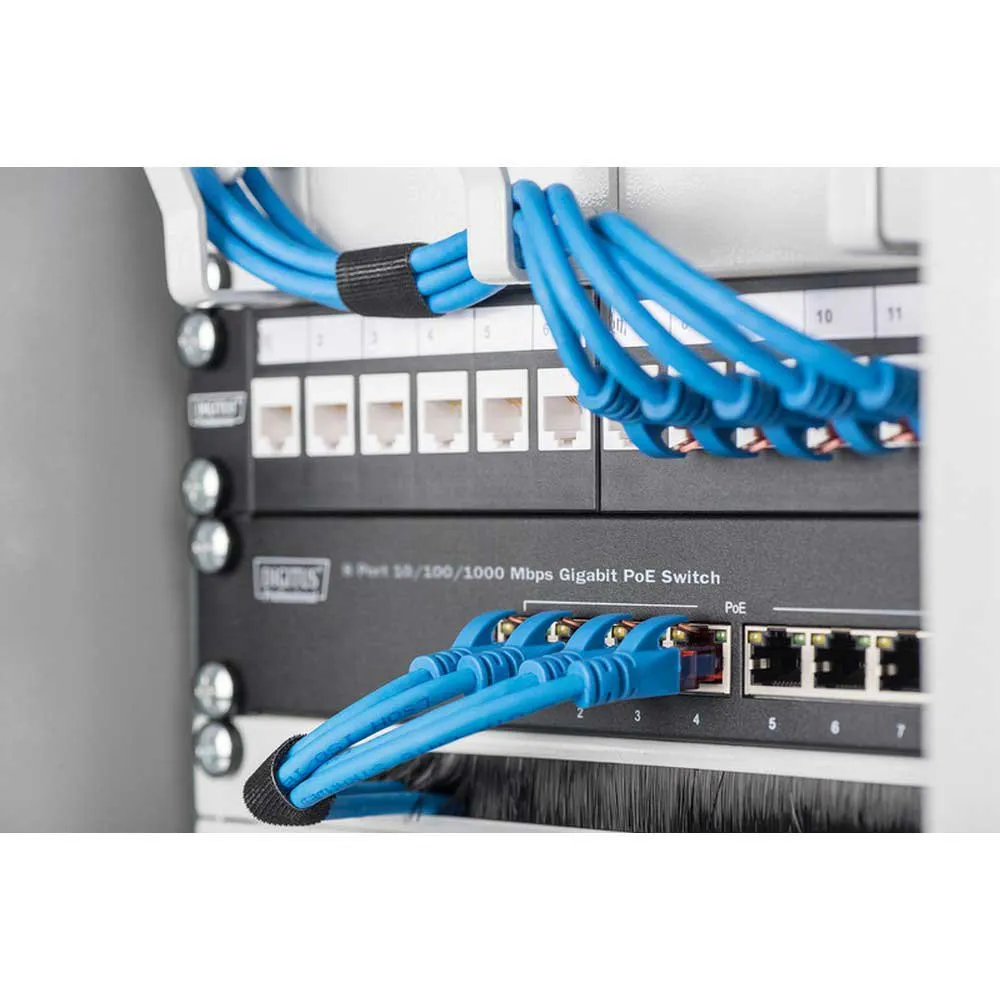

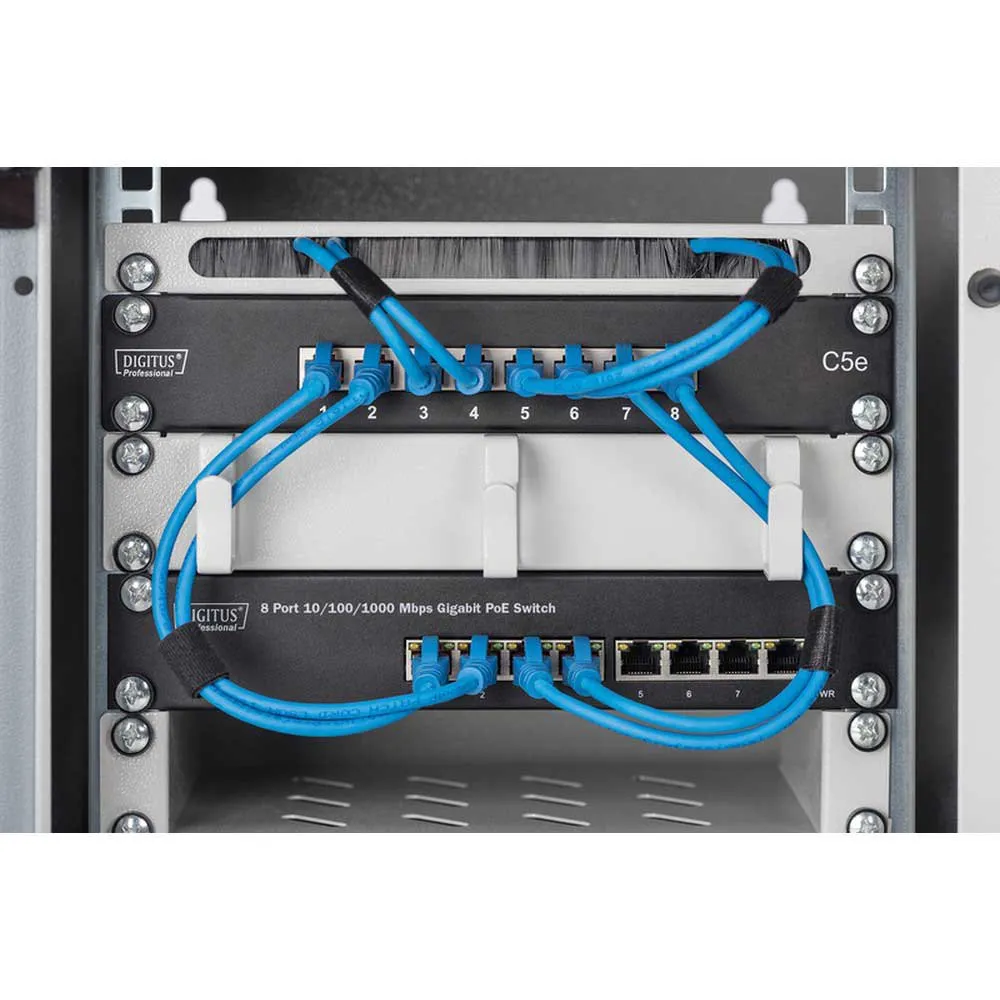

- Combined with a 10-inch network cabinet and additional 10´´ components such as patch panels and socket strips, an efficient and compact network infrastructure can be assembled.

Specifications:

- 8 x 10/100/1000Base-T.

- Complies with the IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE802.3x and IEEE 802.3af/at network standards.

- Supports non-blocking, non-head-of-line forwarding.

- Supports back pressure and bandwidth control in each port.

- Store and forward technology for optimized data transfer.

- Automatic speed and half/full duplex recognition/adjustment.

- 20/200/2000 Mbit in full duplex mode.

- Auto MDI/MDI-X function.

- Backplane with 16Gbps.

- Supports up to 8K MAC addresses.

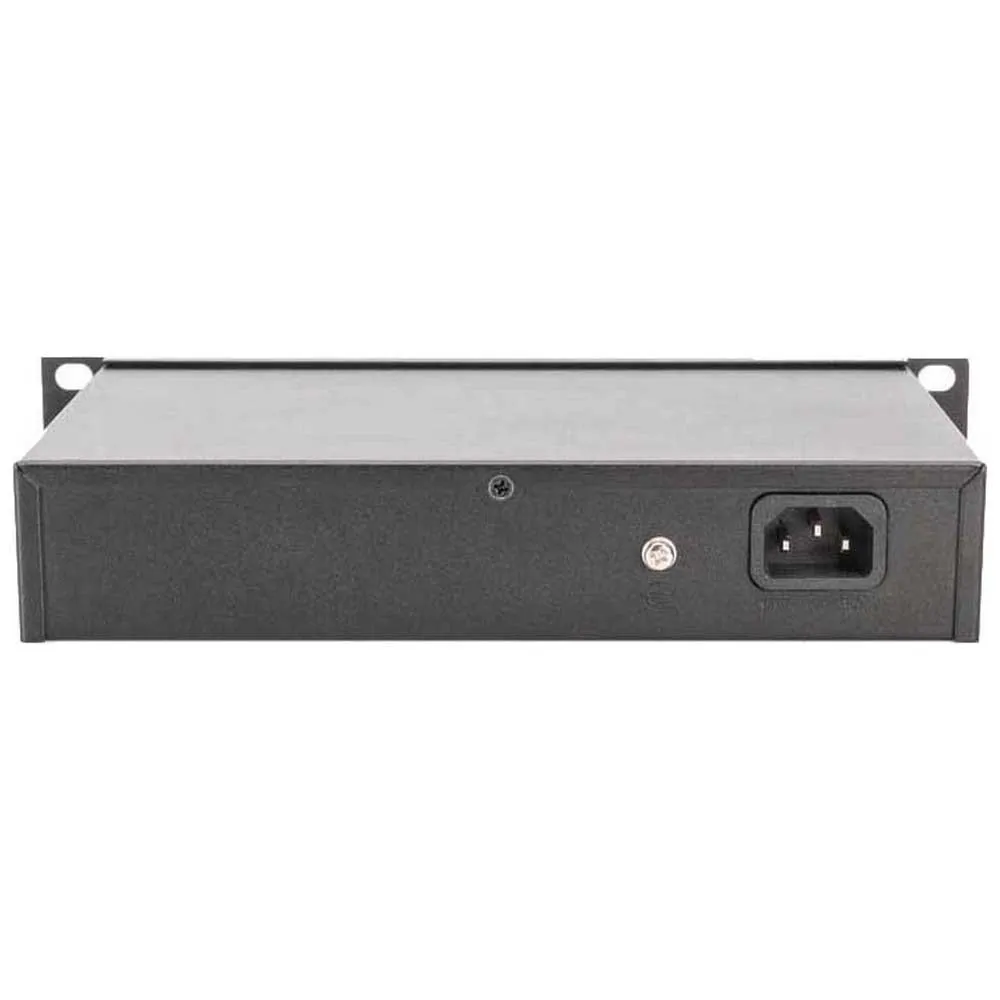

- Integrated power supply unit.

- Maximum power consumption 96W.

- Dimensions:(W x D x H):250x150x42 mm.

- Ethernet speed:Gigabit.

- Industrial usage:no.

- Number of ports:8.

- PoE (Power over Ethernet):yes.

- Protection against vanadlism:no.

- Managed:no.

- Installation type:10 inch, Desktop.

- Outdoorsuitable:no.

- VLAN:no.

- PoE Power budget:80 W.

- PoE standard:IEEE802.3at (PoE+) Package content:- 10-inch 8-Port Gigabit Switch.

- Quick start guide.

- Power cord.

- Mounting accessories Logistics:- Packaging Unit Carton 50 8,80 36,00 36,00 27,00 34992,00.

- Packaging Unit Inside 10 1,76 22,00 30,00 36,00 23760,00.

- Packaging Unit Single 1 0,18 2,20 17,00 25,00 935,00.

- Net single without Packaging 1 0,17 2,20 17,00 25,00 935,00.
